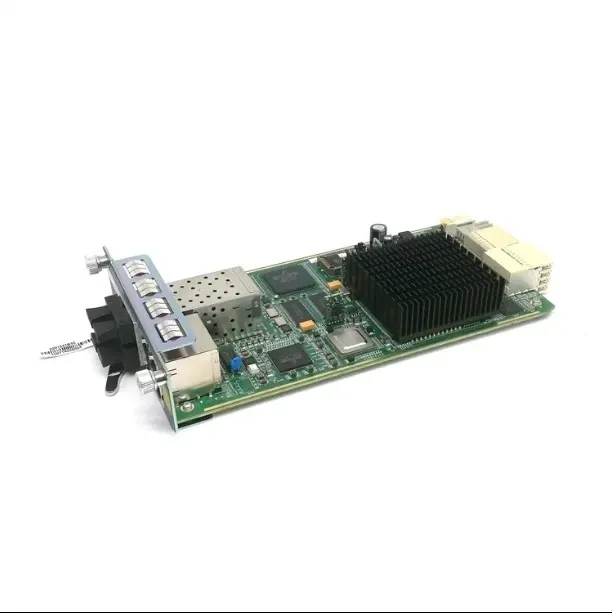

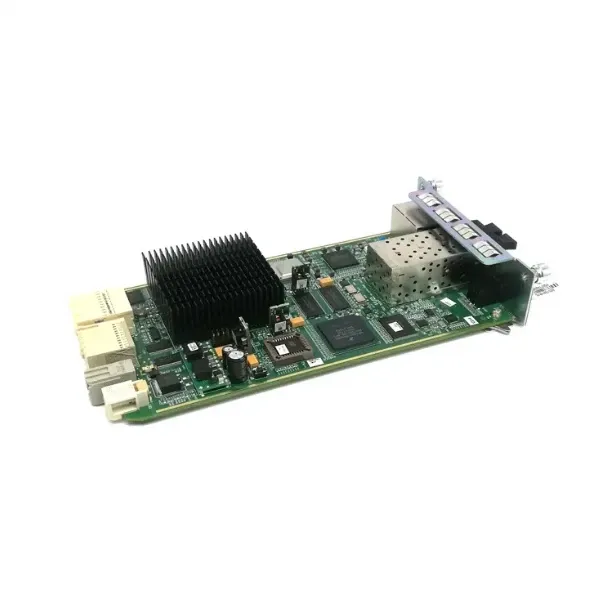

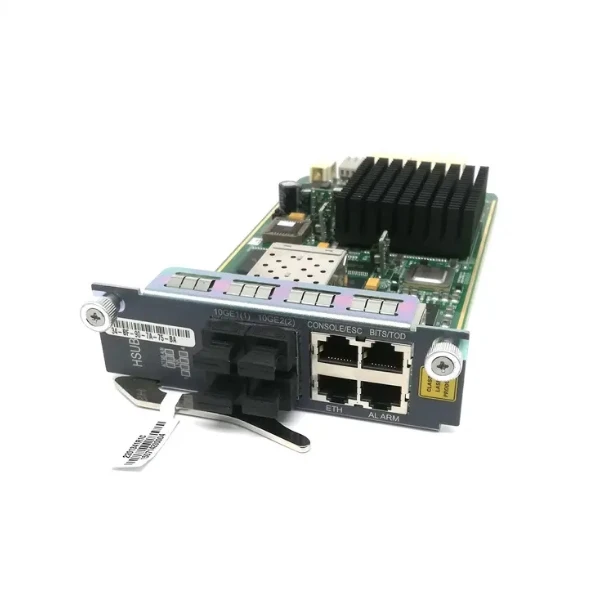

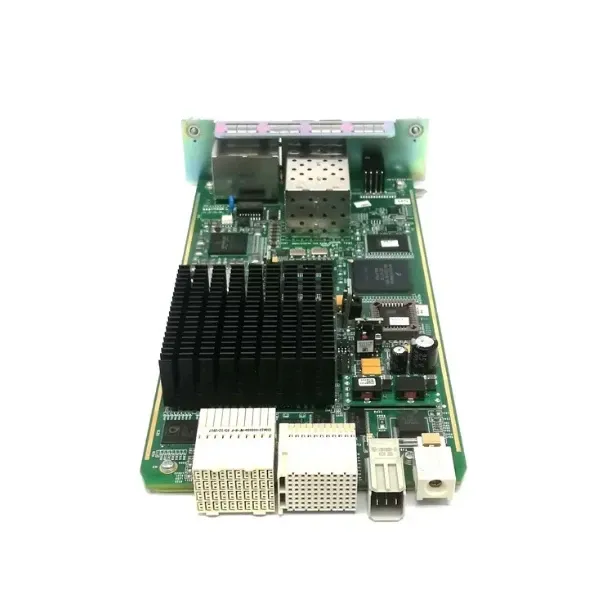

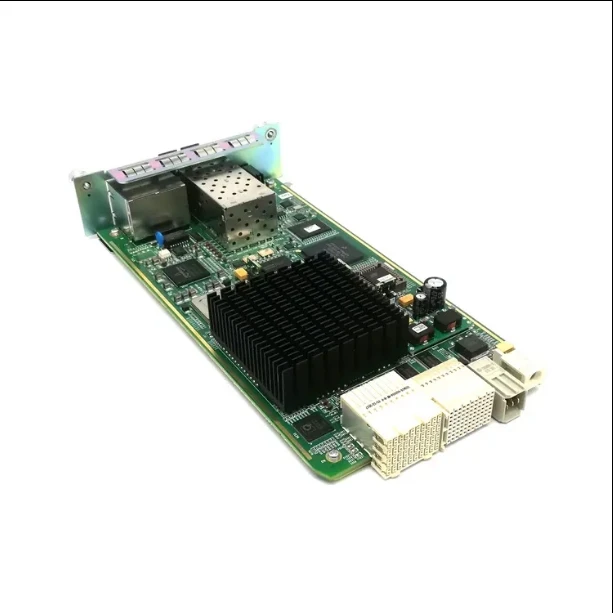

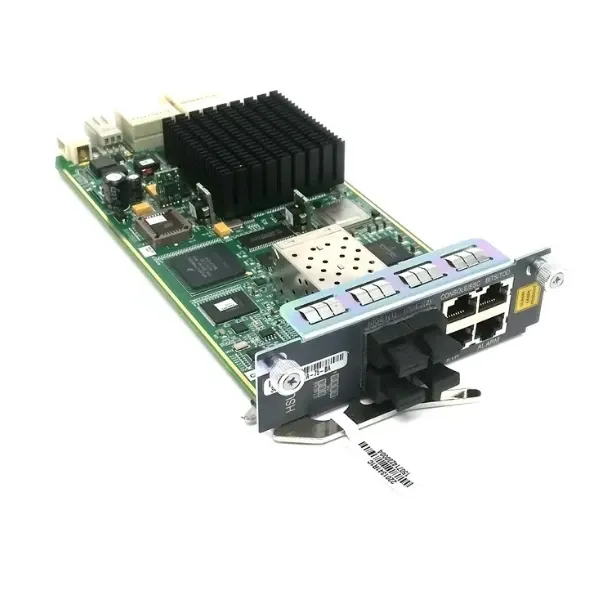

Boxin high-quality HSUB uplink control board with 2 x 10GE and 2 x GE ports applied to AN5516-04 OLT
$330.00 USD
Izračun stroškov prevoza na blagajni
Količina

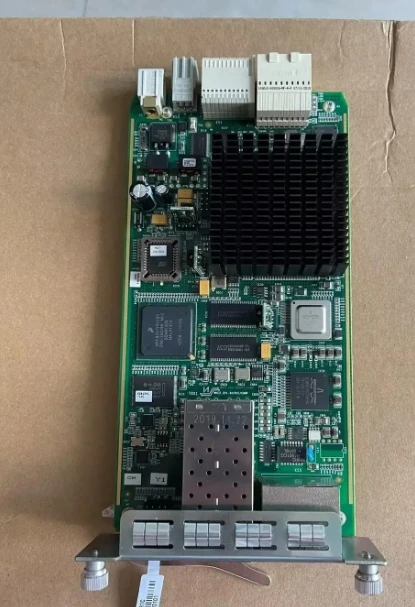

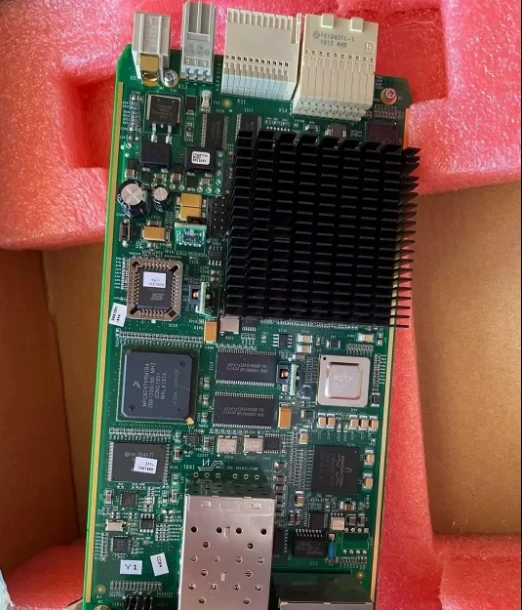

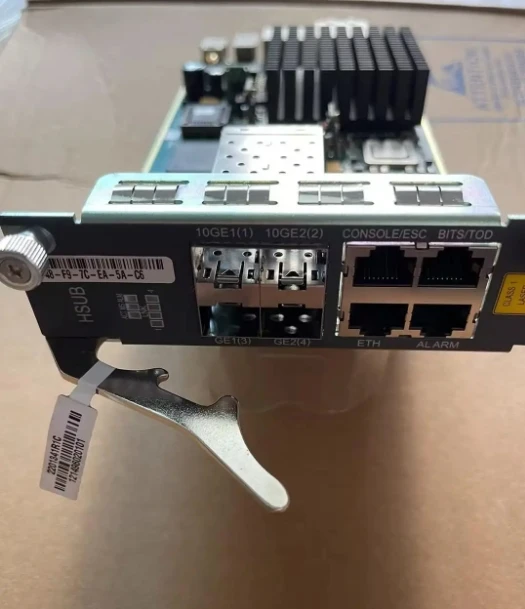

Hongfei high-quality HSUB uplink control board with 2 x 10GE and 2 x GE ports applied to AN5516-04 OLT
Overview
HSUB Overview
HSUB card is a switching uplink card that applies to AN5516-04 OLT, it comes with 2-Port 10GE and 2-Port GE Optical/Electrical Uplink Ports.
Intra-card aggregation Inter-card aggregation Supported synchronization modes supported: SyncE, 1588 V2, and BITS
HSUB is the Switching Uplink Card for AN5516-04 OLT, it provides system control and service switching and aggregation, integrated with 2-Port 10GE and 2-Port GE upstream optical/electrical ports.
AN5516-04 OLT can be configurated with 2 x HSUB switching uplink cards.
HSUB Datasheet
| Item | HSUB | |
| Ports specs. | 2-port 10GE and 2-Port GE Optical/Electrical Uplink | |
| Supported | Intra-card aggregation; Inter-card aggregation | |
| Clock Synchronization Modes | SyncE, 1588 V2, and BITS | |
| Specification of Optical Interfaces on HSU card | ||
| Item | 1000Base-SX | 1000Base-LX |
| Interface type | LC / PC | LC / PC |
| Interface rate | 1000Mbit/s | 1000Mbit/s |
| Central wavelength | 850nm | 1310nm |
| Maximum transmission distance |
500m | 20km |
| Maximum launched power | -4dBm | -3dBm |
| Minimum launched power | -9.5dBm | -11.5dBm |
| Maximum receiving sensitivity | -17dBm | -19dBm |
| Minimum extinction ratio | 9dB | 9dB |
| Specifications of Ethernet electrical interfaces on HSU card | ||
| Item | 10 / 100 / 1000Base-T | |
| Interface type | RJ45 | |
| Interface rate | 10 / 100 / 1000Mbit/s self-adaptive | |
| Transmission media | CAT-5 | |
| Applicable standard | IEEE 802.3-2005 | |
| Transmission Distance | 100m | |
