IE-2000-8TC-G-E - Industrial Ethernet 2000 Series IE2000 with 8FE Copper Ports and 2GE Combo (Lan Base) - 1588
IE-2000-8TC-G-E Overview
IE-2000-8TC-G-E is the IE2000 series 8 10/100, 2 T/SFP, and LAN Base switch. The® Industrial Ethernet 2000 (IE 2000) Series is a range of compact, ruggedized access switches that handle security, voice, and video traffic across industrial networks.They provide customers in industries such as automotive, oil and gas, mining, transportation, and energy with highly secure access and industry-leading convergence using Resilient Ethernet Protocol (REP).
Product Details
The IE 2000 Series are designed for low cost, low ports, and small sizes.They offer:
- Four, eight, or 16 10/100Base-T Ethernet ports (Small Form-Factor Pluggable [SFP] downlinks on selected models); fixed configurations with a compact form factor
- Two gigabit combo ports: SFP (100 Mbps and 1 Gbps) or RJ45 uplink
- Dual-input DC power supply, alarm relays, DIN rail mount
- Industrial Power over Ethernet (PoE) solution
- Conformal coating available
- Swappable SD flash card and mini-USB connector
- Industrial environmental compliance and certifications
- Industrial partner applications: Ethernet/IP and PROFINET
Quick Spec
Table 1 shows the quick spec.
|
Part Number |
|
|
Total Ports |
10 |
|
RJ45 Ports |
8 FE |
|
Combo Ports |
2 GE |
|
Manufacturing license |
LAN Base |
|
Type of possible upgrade |
1, 2, 4 |
“Type of possible upgrade” legend:
1: LAN Base to IP Lite IOS Software Upgrade
2: Enhanced LAN Base to IP Lite IOS Software Upgrade
3: LAN Lite to LAN Base IOS Software Upgrade
4: LAN Base to Enhanced LAN Base IOS Software Upgrade and License Upgrade
Product Details

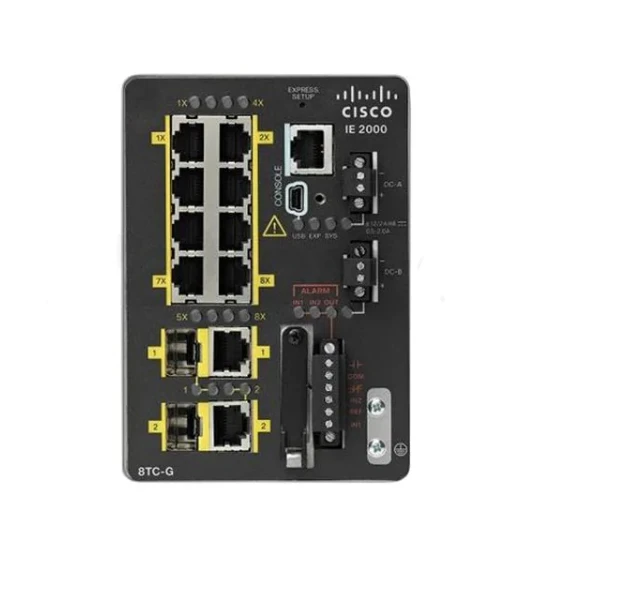

Figure 1 shows the front view of IE2000 8TC-G switches.
Note:
| 4 |
2 Dry-contact alarm inputs, and 1 alarm relay output |
|
5 |
Dual DC inputs |
|
6 |
Console port RJ45 and Mini USB |
Supported Products
Table 2 shows the supported modules, cards, licenses and accessories.
|
Model |
Description |
|
1GB SD Memory Card |
|
|
GLC-SX-MM-RGD 1000Mbps Multi-Mode Rugged SFP |
|
|
1000BASE-BX10 SFP module for single-strand SMF, 1310-nm TX/1550-nm RX wavelength, single LC/PC connector |
|
|
1000BASE-T SFP transceiver module for Category 5 copper wire |
|
|
1000BASE-ZX SFP |
|
|
1000BASE-BX SFP, 1310NM |
|
|
1000BASE-LX/LH SFP (DOM) |
|
|
GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
|
|
GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
|
|
IE2000 LAN Base or Enhanced LAN Base to IPLite e-license |
|
|
19 inches.DIN Rail mount kit |
Compare to Similar Items
Table 3 shows the comparison.
|
Part Number |
||
|
Total Ports |
10 |
10 |
|
RJ45 ports |
8 FE |
8 FE |
|
Combo Ports |
2 GE |
2 GE |
|
Manufacturing license |
LAN Lite |
LAN Base |
|
Type of possible upgrade |
3 |
1, 2, 4 |
“Type of possible upgrade” legend:
1: LAN Base to IP Lite IOS Software Upgrade
2: Enhanced LAN Base to IP Lite IOS Software Upgrade
3: LAN Lite to LAN Base IOS Software Upgrade
4: LAN Base to Enhanced LAN Base IOS Software Upgrade and License Upgrade
