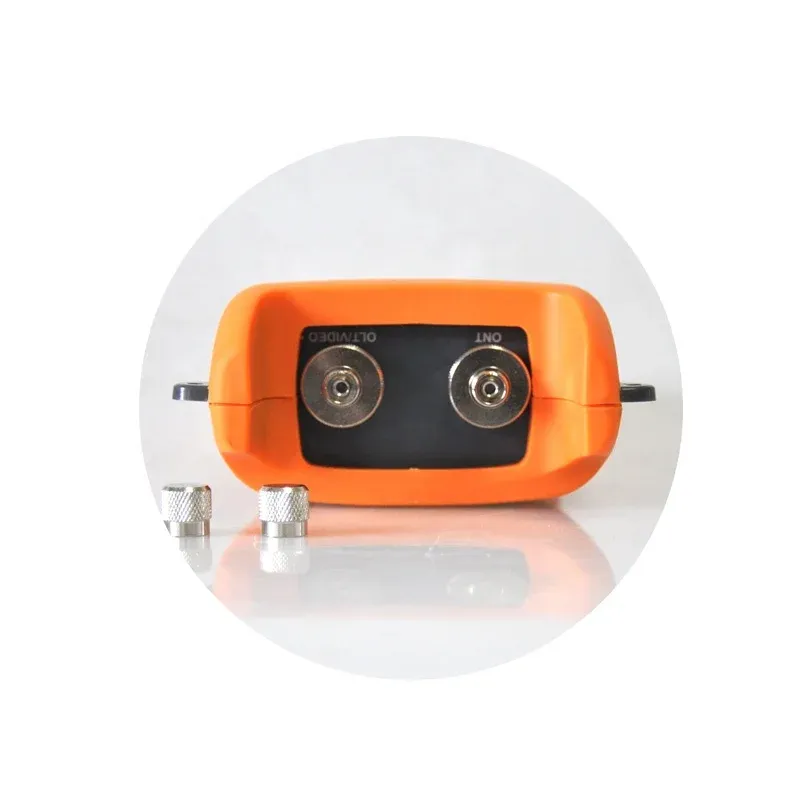

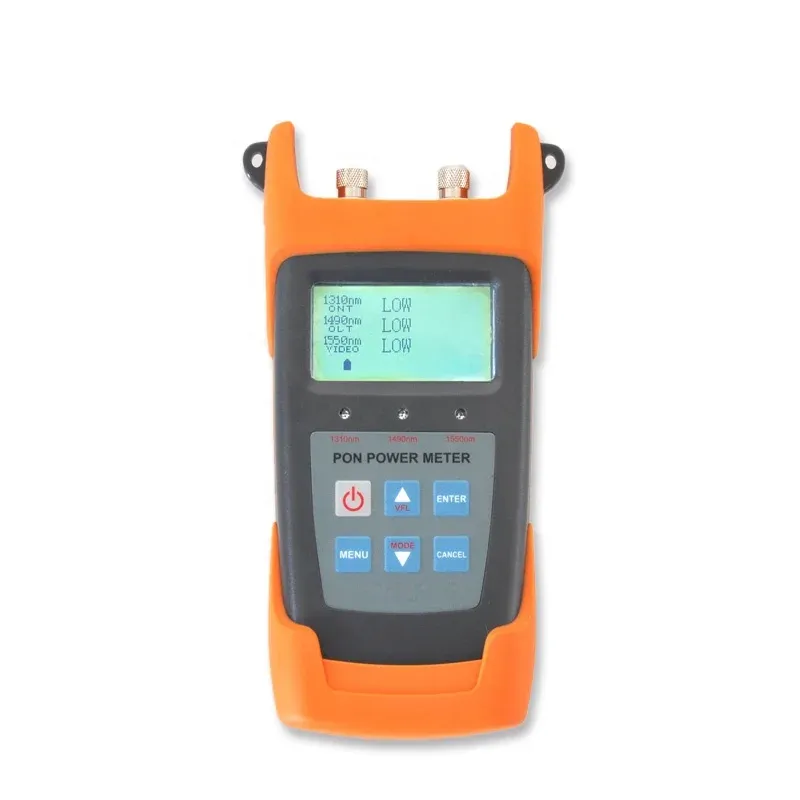

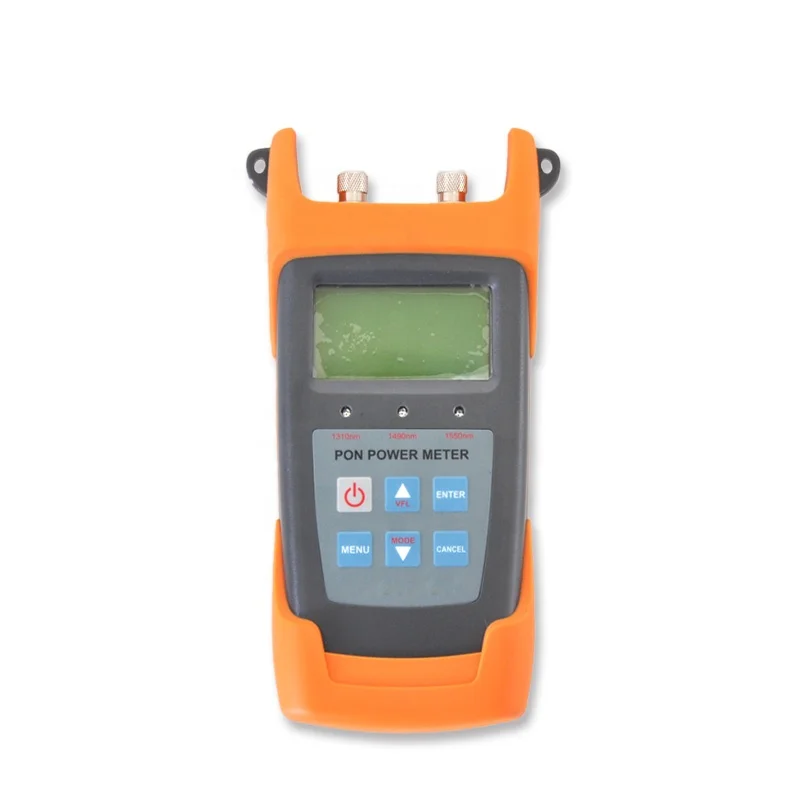

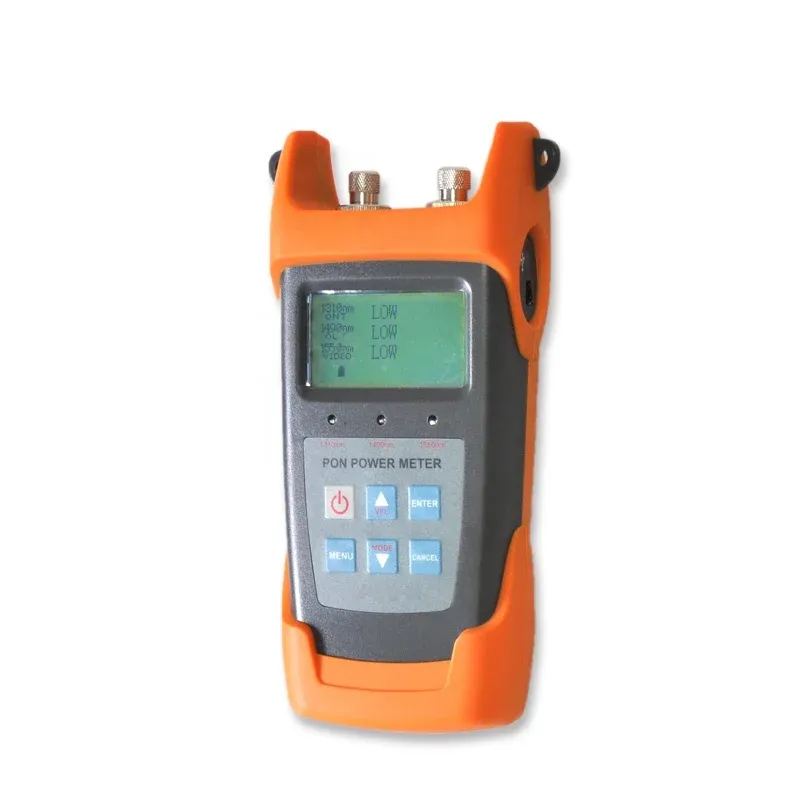

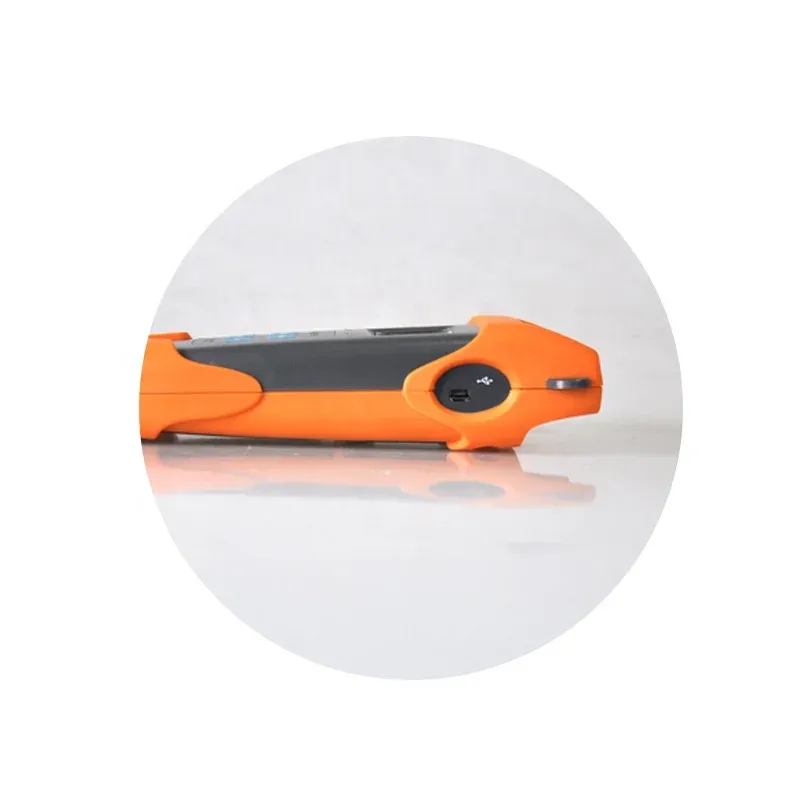

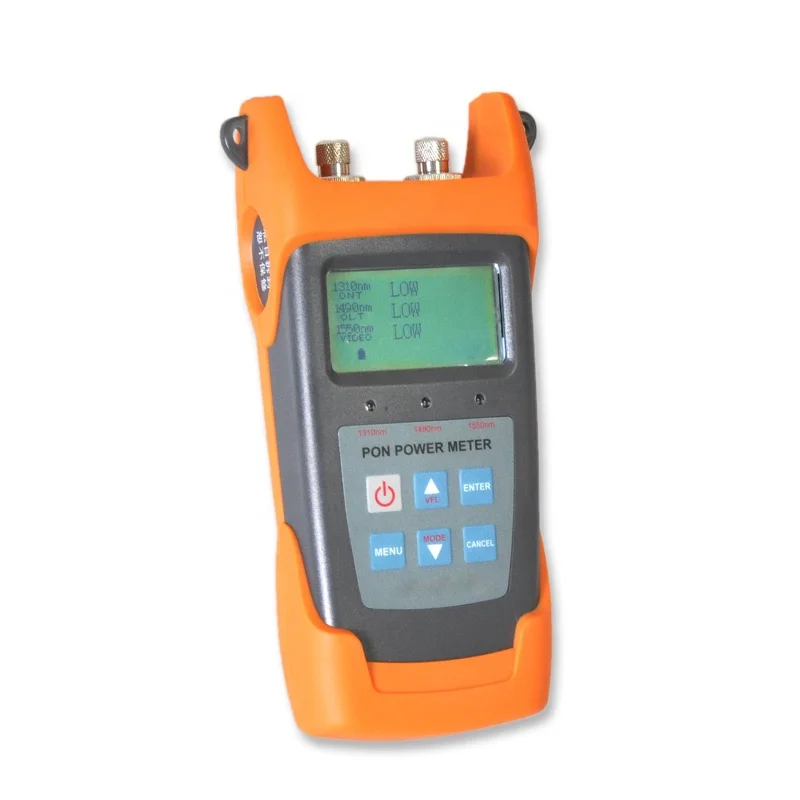

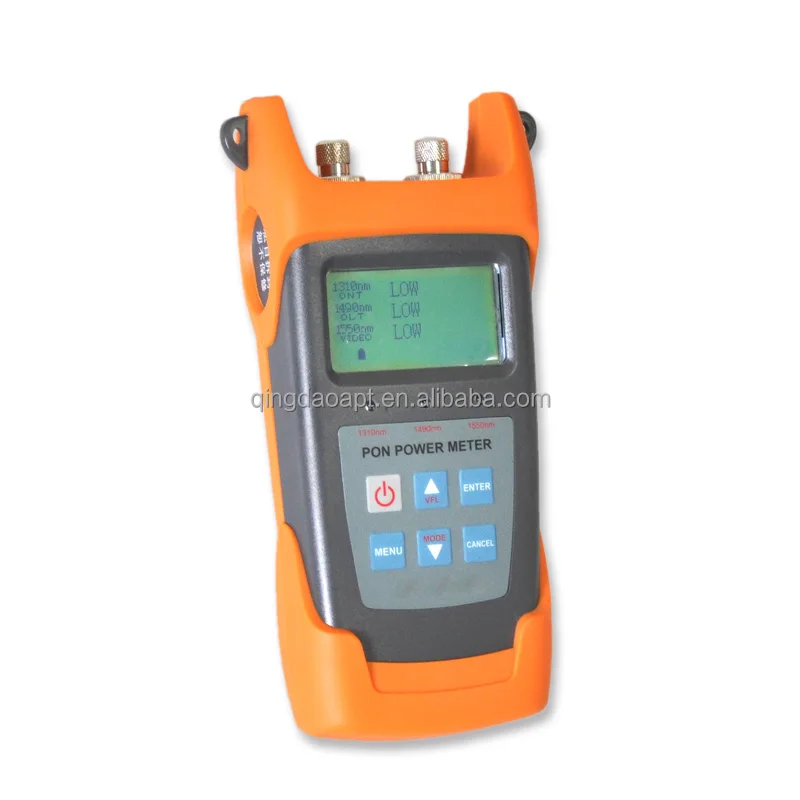

OPM Vfl Ftth Communication Pon Equipment Tools Sc Mini Handheld Light Source Splicing Kit Fiber Optical Power Meter Opm
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|

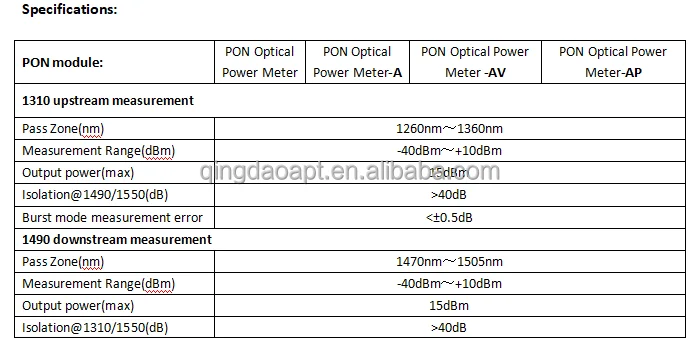

PON module:
|
PON Optical
Power Meter
|
PON Optical
Power Meter-A
|
PON Optical Power
Meter -AV
|
PON Optical Power
Meter-AP
|
||||
|
1310 upstream measurement
|
|
|
|
|
||||
|
Measurement Range(dBm)
|
-40dBm～+10dBm
|
|
|
|
||||
|
Output power(max)
|
15dBm
|
|
|
|
||||
|
Isolation@1490/1550(dB)
|
> 40dB
|
|
|
|
||||
|
Burst mode measurement error
|
<±0.5dB
|
|
|
|
||||
|
1490 downstream measurement
|
|
|
|
|
||||
|
Pass Zone(nm)
|
1470nm～1505nm
|
|
|
|
||||
|
Measurement Range(dBm)
|
-40dBm～+10dBm
|
|
|
|
||||
|
Output power(max)
|
15dBm
|
|
|
|
||||
|
Isolation@1310/1550(dB)
|
> 40dB
|
|
|
|
||||
|
1550 downstream measurement
|
|
|
|
|
||||
|
Pass Zone(nm)
|
1535nm～1570nm
|
|
|
|
||||
|
Measurement Range(dBm)
|
-40dBm～+10dBm
|
|
|
|
||||
|
Output power(max)
|
25dBm
|
|
|
|
||||
|
Isolation@（1310/1490n）
|
> 40dB
|
|
|
|
||||
|
Measurement Accuracy
|
|
|
|
|
||||
|
Connatural uncertainty(dB)
|
±0.5dB
|
|
|
|
||||
|
Linearity(dB)
|
±0.1dB
|
|
|
|
||||
|
Passing through insertion Loss(dB)
|
<1.5dB
|
|
|
|
||||
|
General Information
|
|
|
|
|
||||
|
Detector Type
|
InGaAs
|
|
|
|
||||
|
Optical Connector
|
FC/SC/ST Interchangeable/2.5 universal adapter
|
|
|
|
||||
|
Fiber Type
|
SM 9/125um
|
|
|
|
||||
|
Measurement Unit
|
dB/dBm/xW
|
|
|
|
||||
|
Resolution (dB)
|
0.01dB
|
|
|
|
||||
|
Operation Voltage(V)
|
DC 3.3V～5.5V
|
|
|
|
||||
|
Power Supply
|
3pc1.5V battery
|
|
|
|
||||
|
Continuously Operation time (h)
|
PON：90h
|
PON：90h
OPM：100h VFL：50h |
PON：90h
VFL：50h |
PON：90h
OPM：100h |
||||
|
Operation Temperature(℃)
|
-10℃～60℃
|
|
|
|
||||
|
Storage temperature(℃)
|
-25℃～70℃
|
|
|
|
||||
|
Weight(kg)
|
423g
|
425g
|
424g
|
424g
|
||||
Note:
operation time will be shorted.
*Comfortable LCD display and optional backlight LCD display supports night operation
*Power measurements in dBm or mw and insertion loss in dB
*Low battery consumption, more than 240 hours continual operation time for three 1.5V alkaline batteries
*10 minutes Auto-off function can be activated or deactivated.
