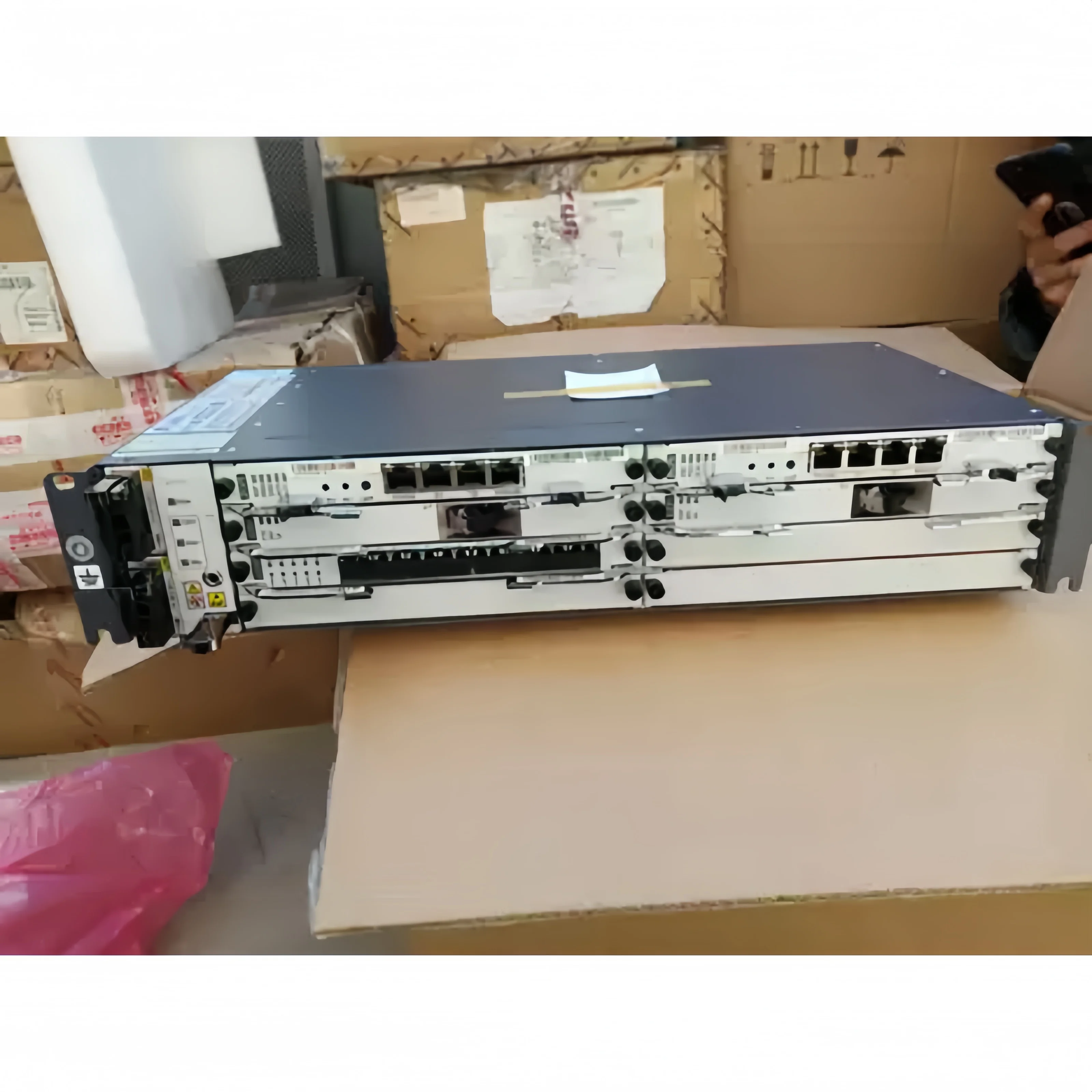

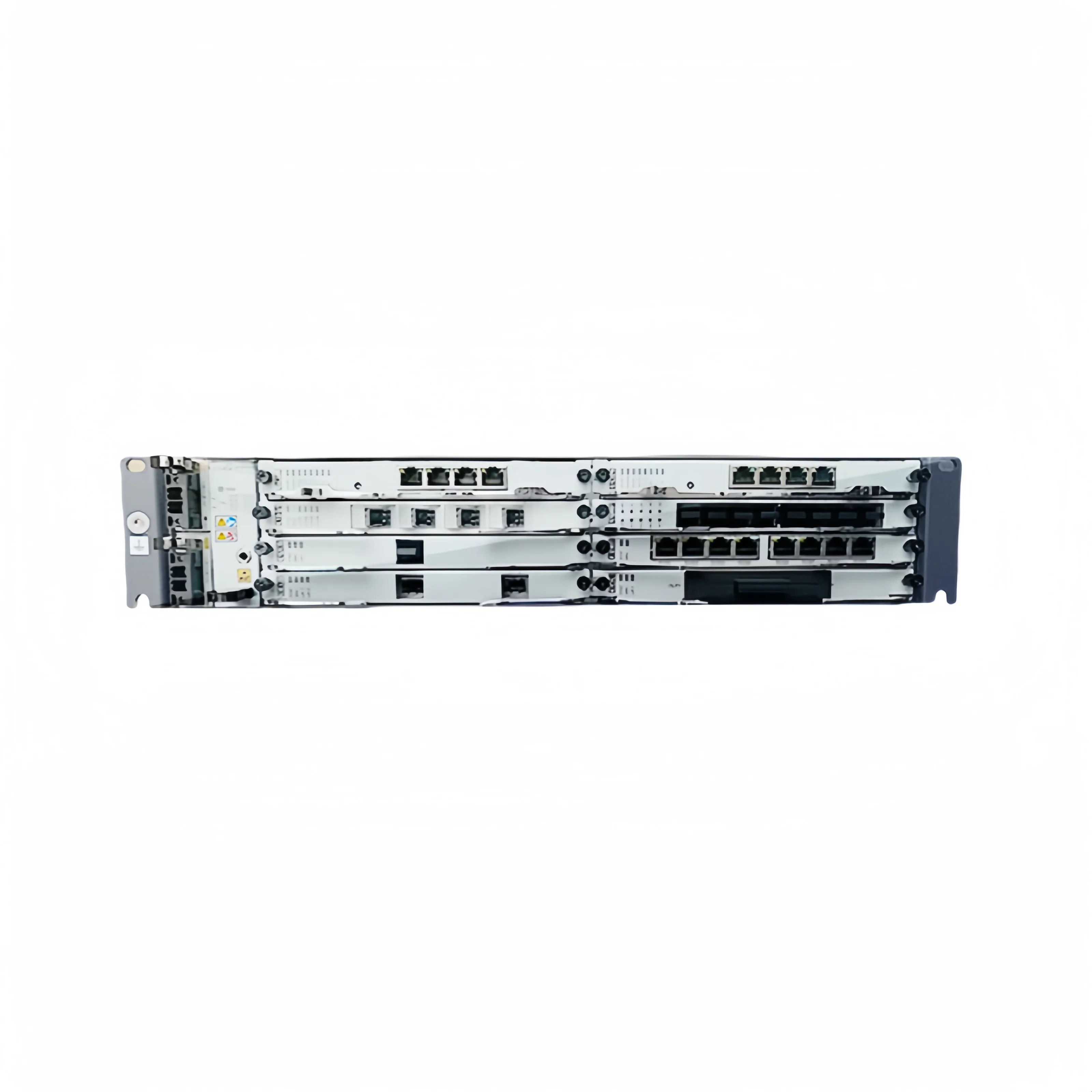

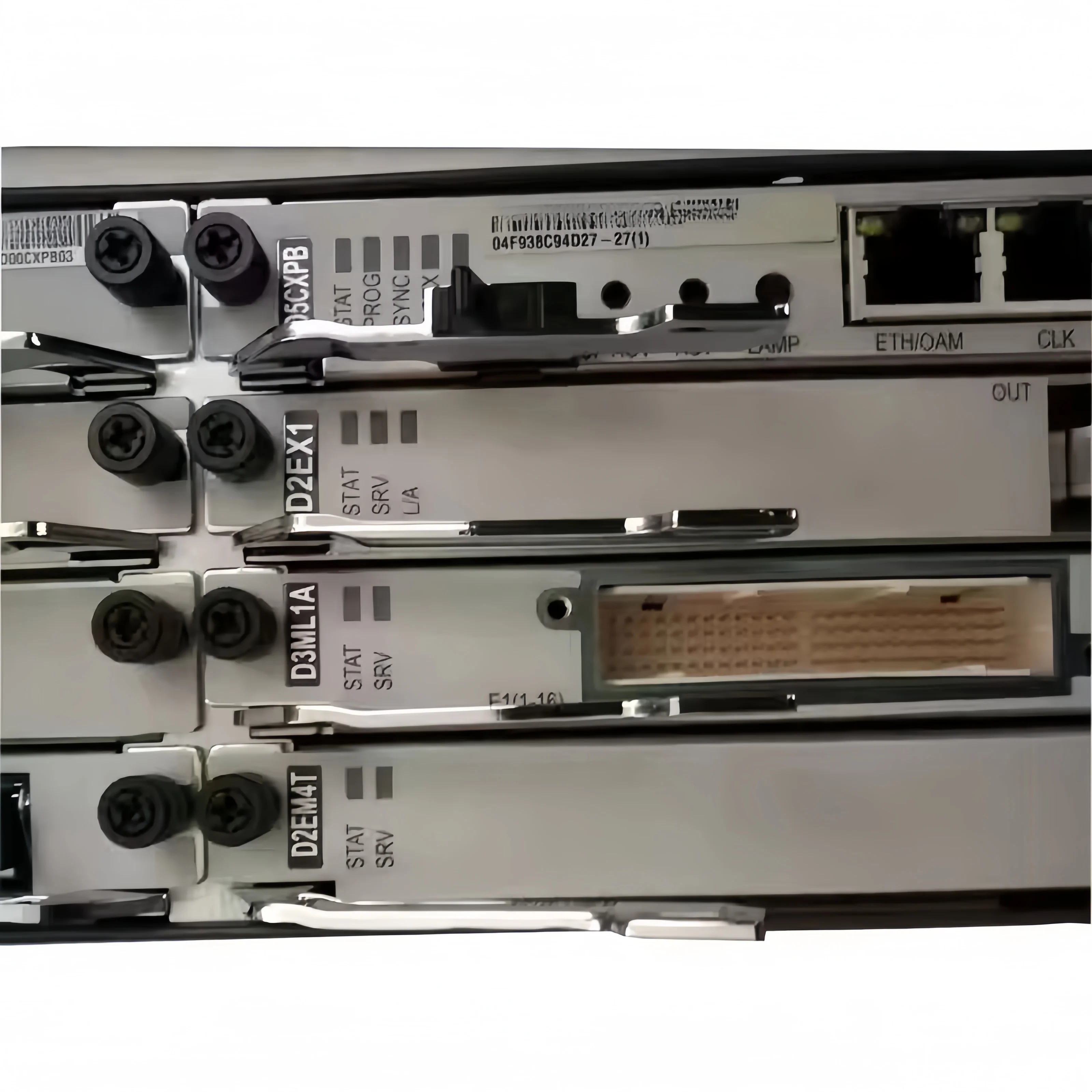

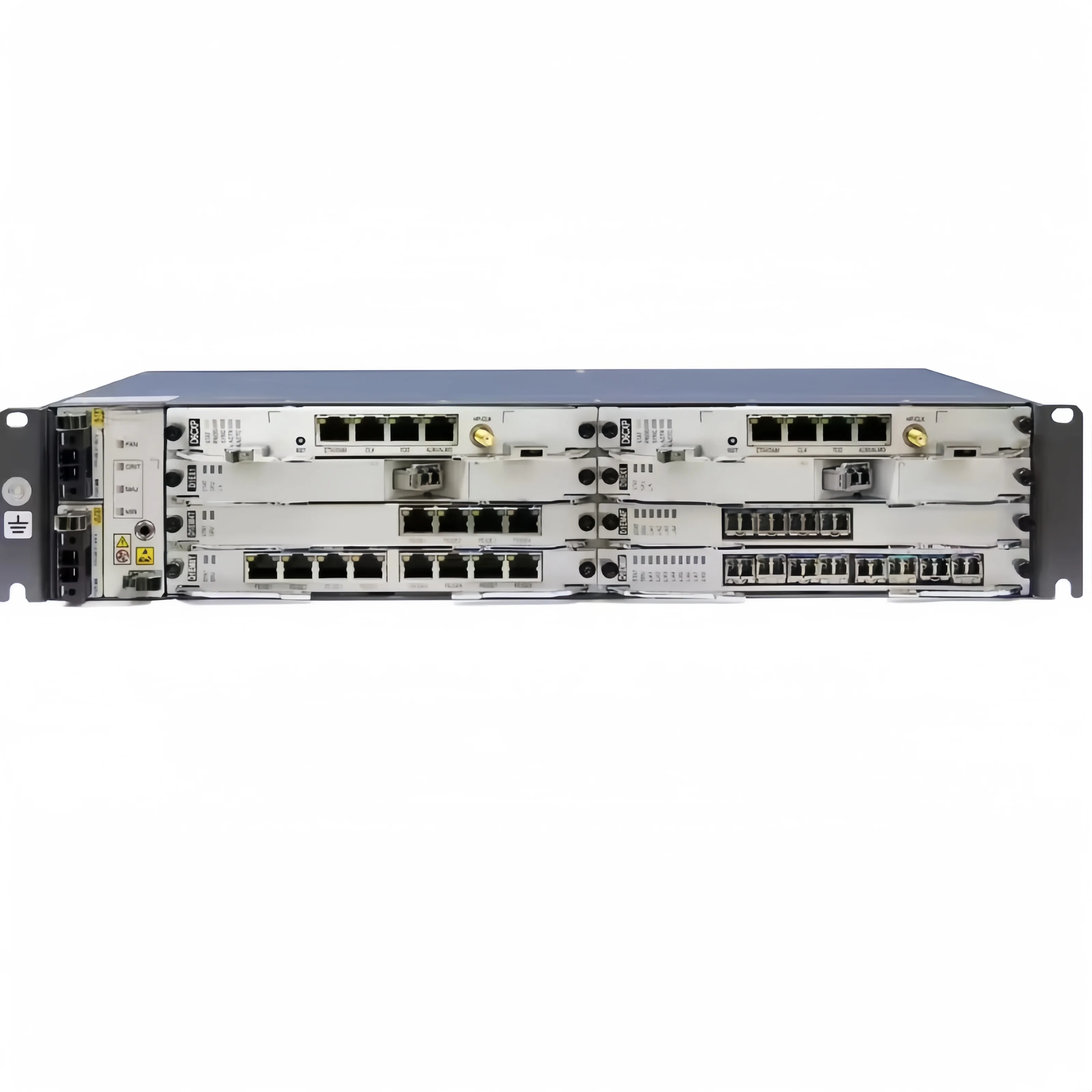

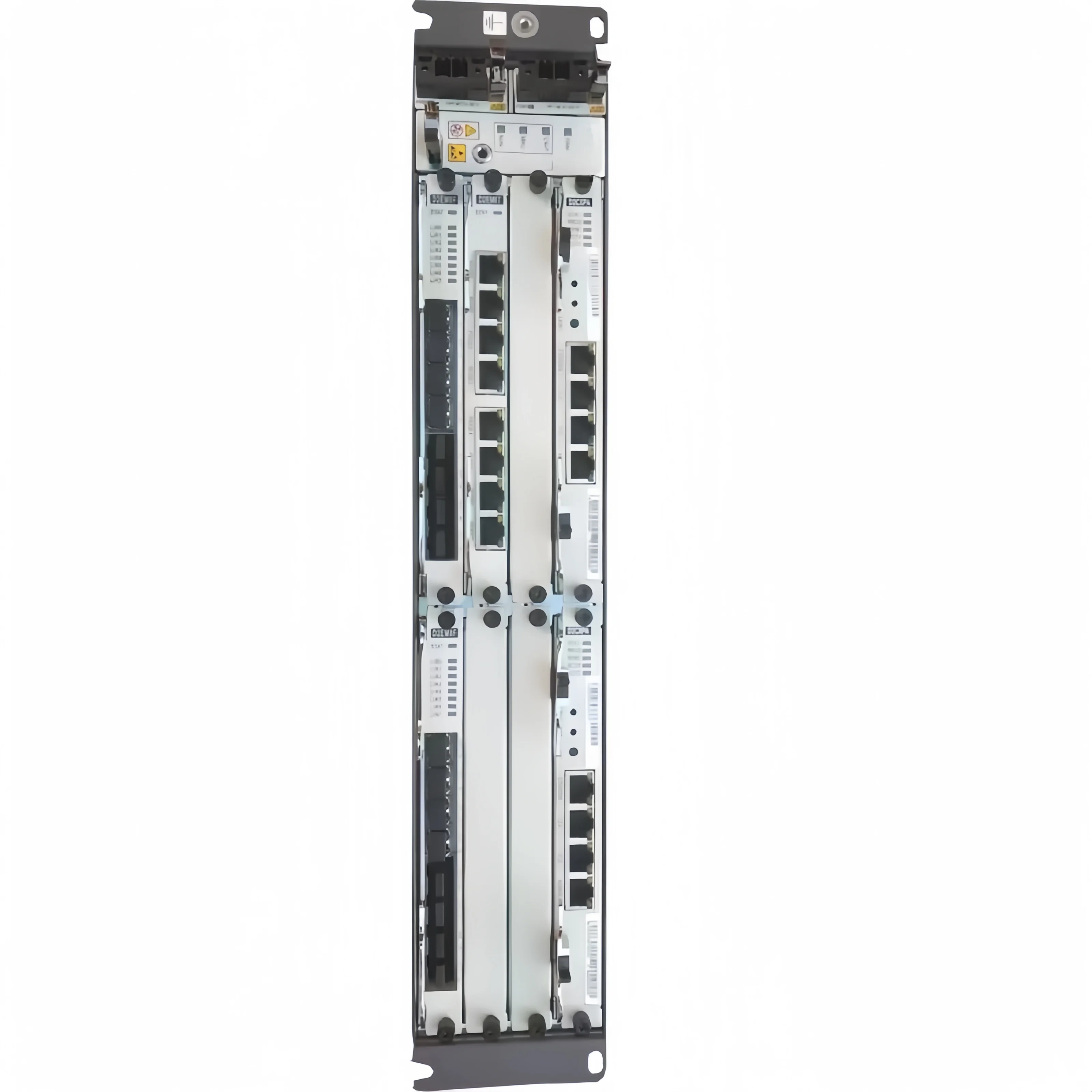

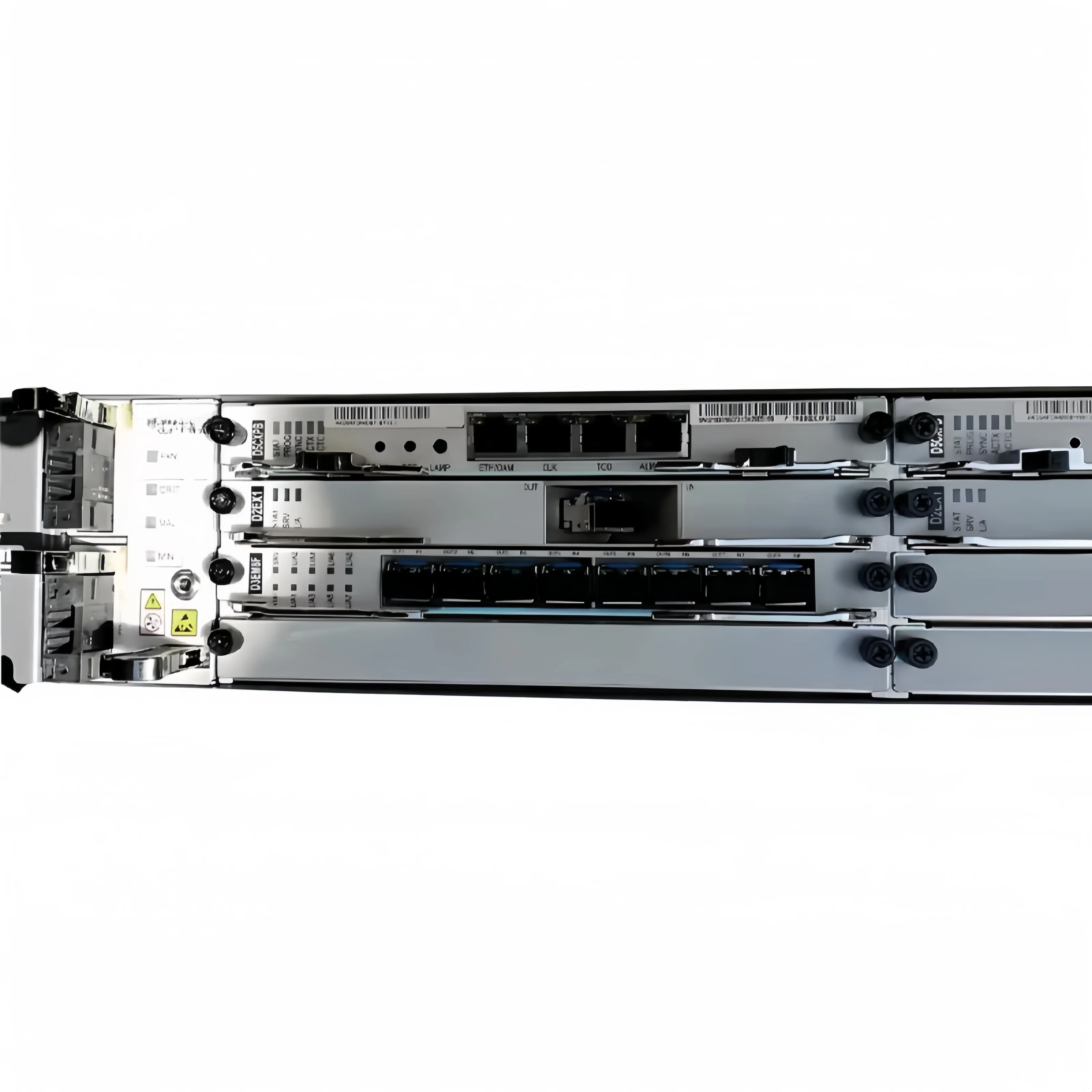

OptiX PTN 960 TDM MPLS-TP Transport Platform 02310WRT TNDPHOST3700
$450.00 USD
Izračun stroškov prevoza na blagajni
Količina
Details Images
Products Description
|
Product name
|
PTN 960
|
|
Condition
|
100% Original/Used
|
|
Shipping term
|
TNT DHL FEDEX EMS UPS
|
|
Warranty
|
1 Year
|
|
Use
|
FTTH FTTB FTTX Network
|
|
Switching capacity
|
56 Gbps
|
|
Interface capacity per device
|
8 slots: 2 for main control boards and 6 for service boards
|
|
Input voltage range [V]
|
10GE optical: 5
GE optical: 48 GE electrical: 48 FE optical: 48 FE electrical: 48 10M electrical: 48 ATM STM-1 optical: 24 STM-1 (VC3/VC4) optical: 24 Channelized STM-1 optical: 16 E1: 192 |
|
Subrack dimensions (W * D * H)
|
442 mm x220 mm x 88.9 mm (DC) (2U)
442 mm x 220 mm x 133.3 mm (AC) (3U) |
|
Working voltage
|
-38.4 V to -72.0 V (DC); 100 V to 240 V (AC)
|
|
Standard power consumption
|
100 W
|
|
Environment requirements
|
Long-term working temperature: –20ºC to +60ºC
Storage temperature: –40ºC to +70ºC Relative humidity: 10% RH to 90% RH Altitude: ≤ 4000 m |
|
Service types
|
E-Line, E-LAN, L3VPN, CES, ATM, and IP over PW
|
|
Service protection
|
IMA, ML-PPP, LMSP, LAG, MPLS Tunnel APS, PW APS, dual-homing protection and ring network protection
|
OptiX PTN960 Product Features
* OptiX PTN960 has perfect QoS (Quality of Service) capabilities and has achieved standard BE, AF1, AF2, AF3, AF4, EF,
CS6, CS7 eight PHBs (Per-hop Behavior), enabling network operators to provide users with Service guarantee with different quality of service levels to achieve a comprehensive network that carries data, voice and video services simultaneously.
CS6, CS7 eight PHBs (Per-hop Behavior), enabling network operators to provide users with Service guarantee with different quality of service levels to achieve a comprehensive network that carries data, voice and video services simultaneously.
* OptiX PTN960 supports in-band DCN (Data Communication Network, which is a part of network management and is used to transmit network management information).There is no need to establish a dedicated DCN channel to ensure the communication of network management information, which greatly saves the cost of building the network.
* OptiX PTN960 supports the physical layer clock synchronization mechanism, IEEE 1588 V2 Precision Time Protocol (PTP) and 1588 ACR (Adaptive Clock Recover) clock synchronization mechanism.Provide high-precision time and clock information for mobile communication services.
* OptiX PTN960 supports the NSF function during the soft reset of the main control, switching, and clock board.That is,
when the control plane of the device fails, data forwarding is still performed normally to protect services on the network.
Supports MPLS OAM, realizes rapid fault detection, can quickly trigger protection switching when a fault occurs and guarantees the carrier-class quality of service in a packet-switched network.
when the control plane of the device fails, data forwarding is still performed normally to protect services on the network.
Supports MPLS OAM, realizes rapid fault detection, can quickly trigger protection switching when a fault occurs and guarantees the carrier-class quality of service in a packet-switched network.
