Superior and stable performance
* Long-last lifespan, electrode Life time about 4000 times
* Compatible with various fusion splicers
* Brand new and Original
* Package :1 pair
* Applicable to Signal Fire AI-7 AI-8 AI-8C AI-9 Fusion Splicer
Note: This electrode is only suitable for Signalfire Fusion Splicer AI7 AI8 AI8C AI9.
If you need electrode which suits for splicing machine of other models, please call Sunny

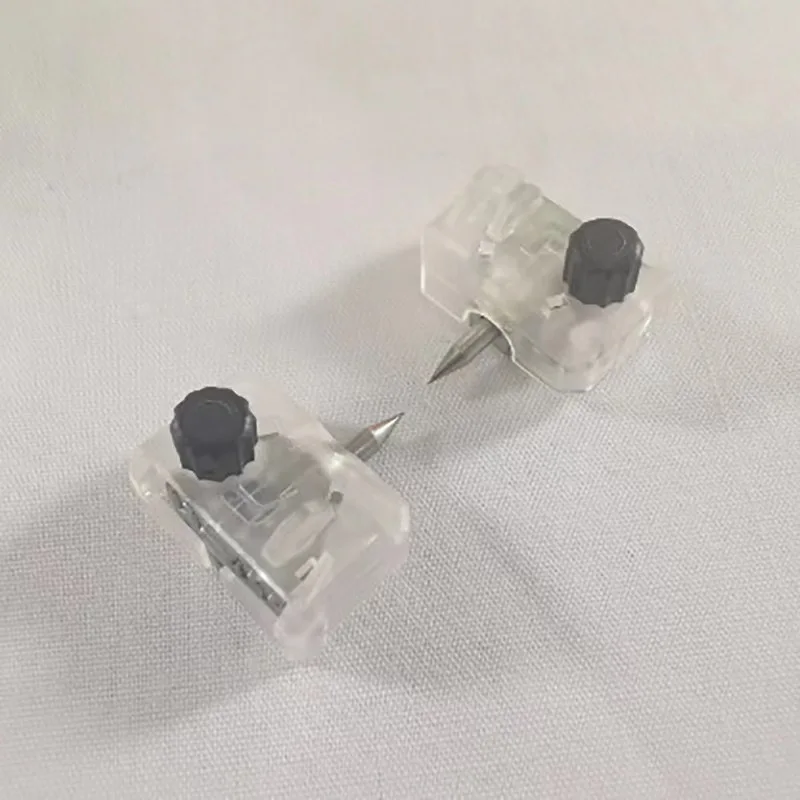

Change electrode method:
* First, must confirm the welding machine in a shutdown state, take the electrode chamber protective cover, screw loosen the
fixed electrode extraction electrode; then release the electrode silk top, remove the lower electrode.
* Secondly, the installation of new electrode, the operation steps and the method of removing the electrode is the opposite, in
turn, can be operated.The two electrode tip clearance requirements for : 2.6 + / - 0.2 mm.
* Finally, in the assembly process, Do not touch the tip of the electrode and to prevent damage to the electrode, and avoid
electrode fall into the machine internal damage caused by.After replacing the electrode, the arc position should be calibrated

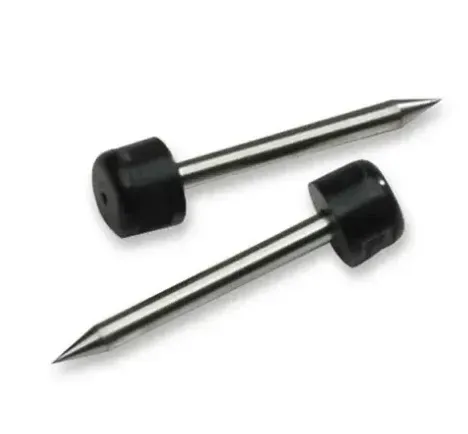

Original Fujiikura Fusion Splicer Electrodes ELCT2-20A Is Used for FSM-50S/60S/70S/80S /90s Fusion Splicer Electrodes
$69.90 USD
Izračun stroškov prevoza na blagajni
Količina
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
ELCT2-20A Electrodes for 50S 60S 80S Fiber Optic Fusion Splicer Electrode rod
Specification
|
item
|
value
|
|
Model Number
|
ELCT2-20A Electrodes
|
|
Type
|
50S 60S 80S Fiber Optic Fusion Splicer Electrode rod
|
|
Place of Origin
|
Japan / China
|
|
|
Shandong
|
|
Brand Name
|
janpan fusion splicer
|
|
Use
|
FUSION SPLICER MACHINE
|
|
Warranty Time
|
1YEARS
|
|
Network
|
Wireless Lan, Wired LAN, 4g
|
|
Name
|
signal fire splicer electrode
|
|
original
|
yes
|
|
fusion splicer model
|
FSM-50S/60S/70S/80S /90s Fusion Splicer Electrodes
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
