OSN8800 TSC 03024GDQ TN55TSC 100G Tributary Service Processing Board With Tributary Service Processing Card
$3,500.00 USD
Izračun stroškov prevoza na blagajni
Količina
Details Images
Products Description
|
Model Number
|
TN55TSC
|
|
|
Condition
|
Brand new/used
|
|
|
Warranty time
|
1years
|
|
|
Valid Slot
|
|
|
|
Parameter
|
Value
|
|
|

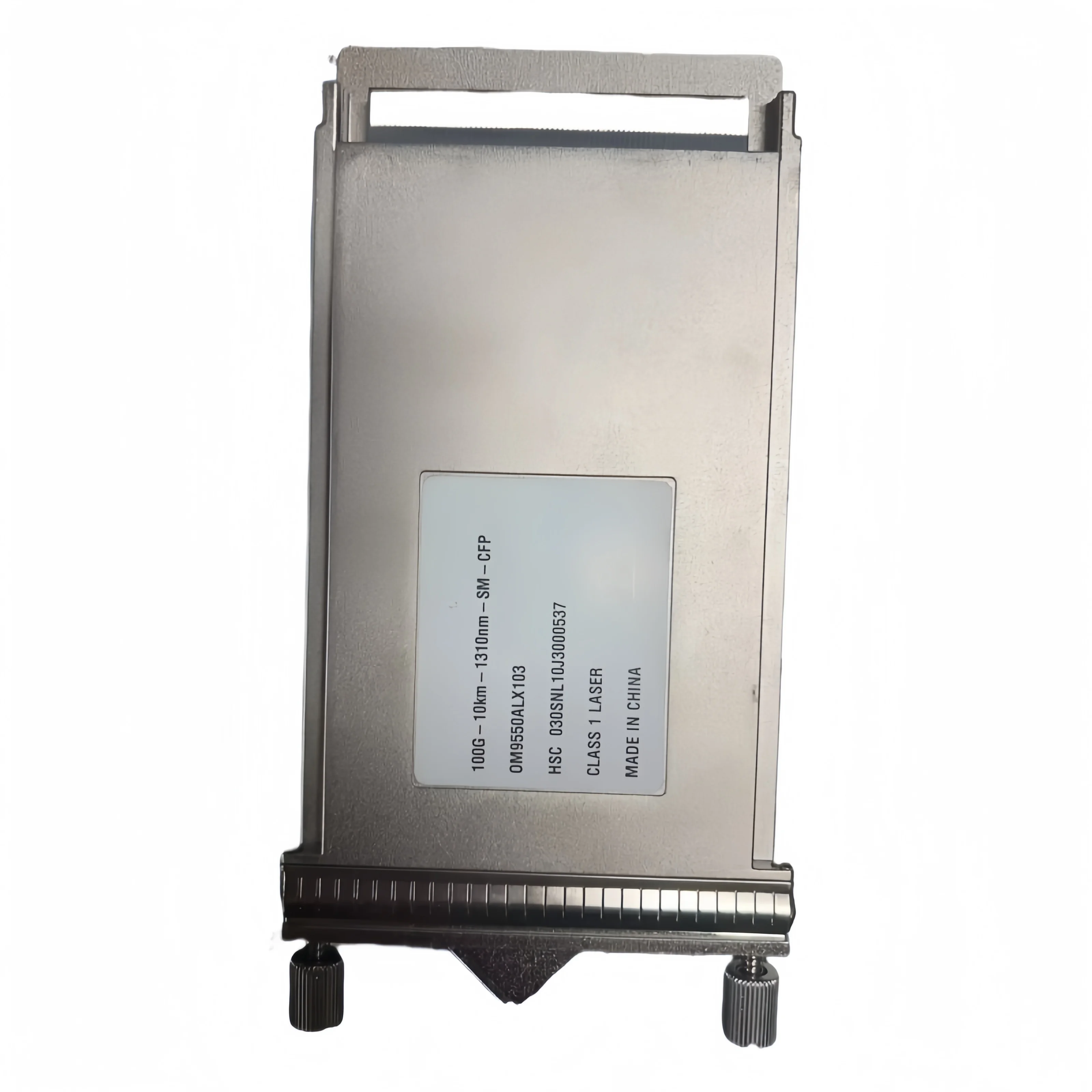

Optical Module Type
|
100G BASE-LR4-10 km-CFP
|
|
|
Line code format
|
NRZ
|
|
|
Optical source type
|
SLM
|
|
|
Target transmission distance
|
10 km (6.2 mi.)
|
|
|
Transmitter parameter specifications at point S
|
|
|
|
Signaling Speed per Lane (Gbit/s)
|
25.78125
|
|
|
Signaling Speed Accuracy(ppm)
|
-100 to 100
|
|
|
Total Average Launch Power (Min)(dBm)
|
1.
|
|
|
Total Average Launch Power (Max)(dBm)
|
10.5
|
|
|
Transmit OMA per Lane (Min)(dBm)
|
-1.3
|
|
|
Transmit OMA per Lane (Max)(dBm)
|
4.5
|
|
|
Average Launch Power per Lane (Min)(dBm)
|
-4.3
|
|
|
Average Launch Power per Lane (Max)(dBm)
|
4.5
|
|
|
Optical Extinction Ratio (Min)(dB)
|
4
|
|
|
Side Mode Suppression Ratio (Min)(dB)
|
30
|
|
|
Receiver parameter specifications at point R
|
|
|
|
Receiver type
|
PIN
|
|
|
Signaling Speed per Lane (Gbit/s)
|
25.78125
|
|
|
Signaling Speed Accuracy(ppm)
|
-100 to 100
|
|
|
Average Receiver Power per Lane (Min)(dBm)
|
-10.6
|
|
|
Average Receiver Power per Lane (Max)(dBm)
|
4.5
|
|
|
Minimum receiver overload (OMA) per Lane(dBm)
|
4.5
|
|
|
Receiver Sensitivity (OMA) per Lane(dBm)
|
-8.6
|
|
|
Maximum reflectance(dB)
|
-26
|
|
