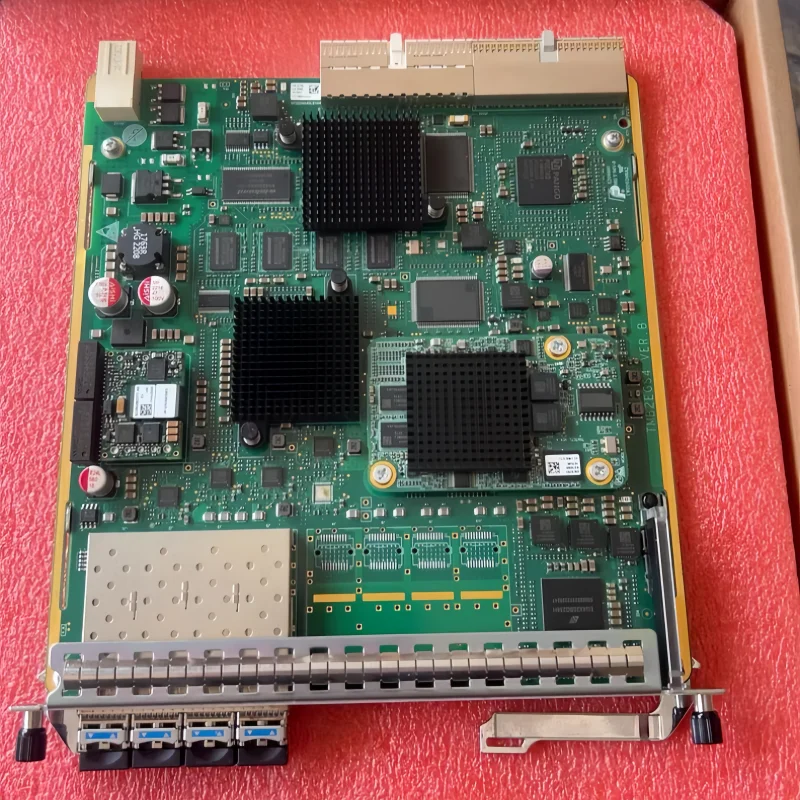

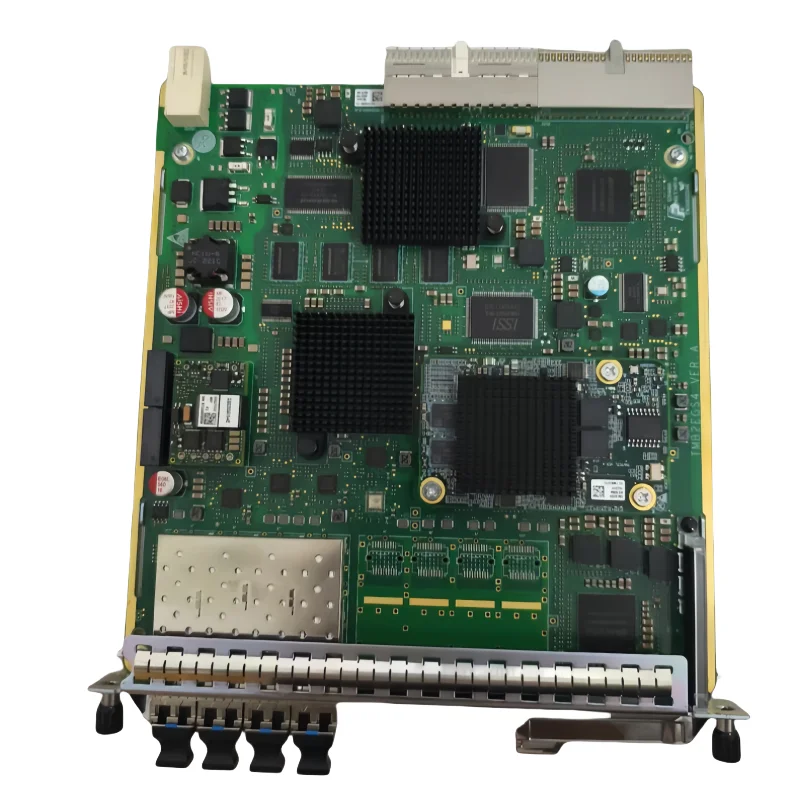

Ready to Ship OSN 1800 4-Port EOS Switching Processing Board Used for Transmitting/Rice Ethernet Services for WiFi Networks
$500.00 USD
Izračun stroškov prevoza na blagajni
Količina
Details Images
Products Description
OSN 1800 4 Port EOS Board TMB2EGS4 Overview
TMB2EGS4: 4 x GE switching and processing board
The TMB2EGS4 is used to transmit/receive Ethernet services, manage bandwidths, and realize Layer 2 switching of Ethernet services.
The TMB2EGS4 consists of an Ethernet access unit, an encapsulation/mapping unit, a logic control unit, a power supply unit, and a clock unit.
The TMB2EGS4 is used to transmit/receive Ethernet services, manage bandwidths, and realize Layer 2 switching of Ethernet services.
The TMB2EGS4 consists of an Ethernet access unit, an encapsulation/mapping unit, a logic control unit, a power supply unit, and a clock unit.
|
Function and Feature
|
Description
|
|
Basic function
|
Transmits/Receives 4 x FE/GE services, encapsulates and maps the Ethernet services into SDH signals, and forwards the SDH signals
to the SDH plane for transmission. |
|
Bound bandwidth
|
16 x VC-4, or 48 x VC-3, or 252 x VC-12
|
|
Maximum uplink bandwidth
|
2.5 Gbit/s
|
|
Number of services
|
2000 unidirectional services
|
|
Service mapping mode
|
Supports HDLC, LAPS, and GFP-F
|
