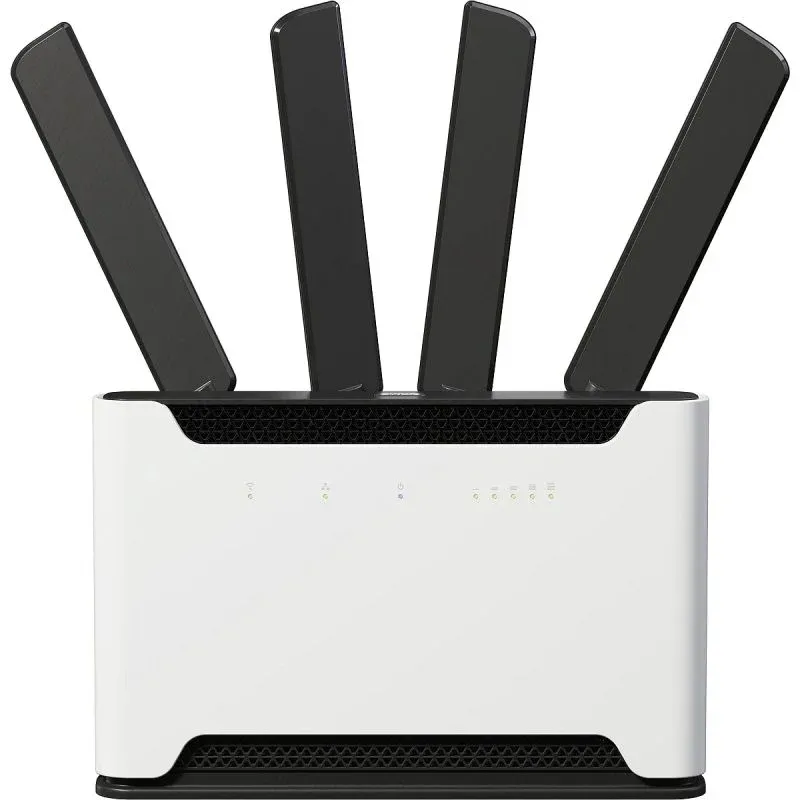

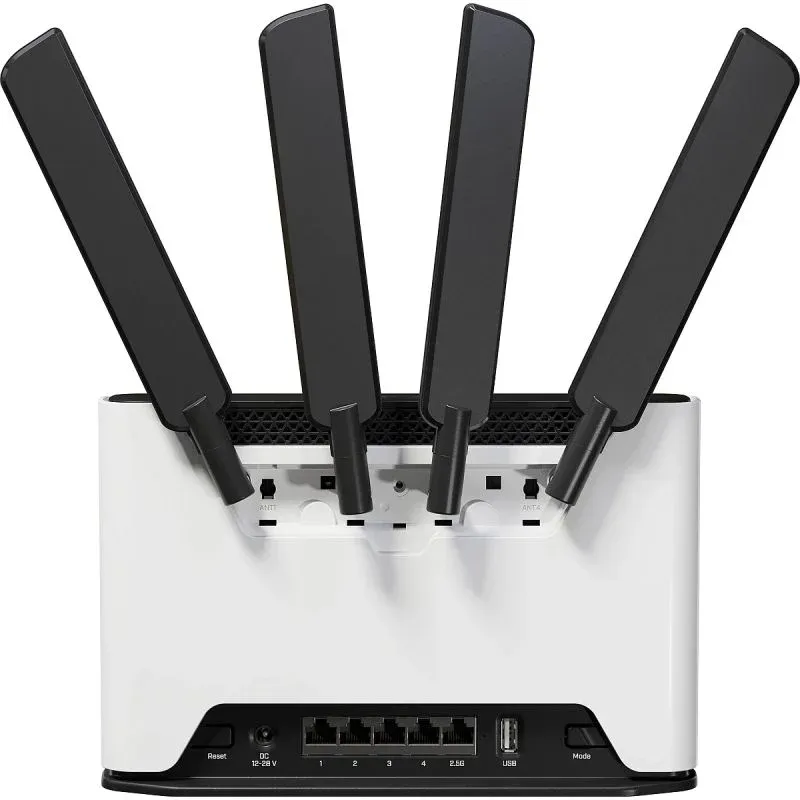

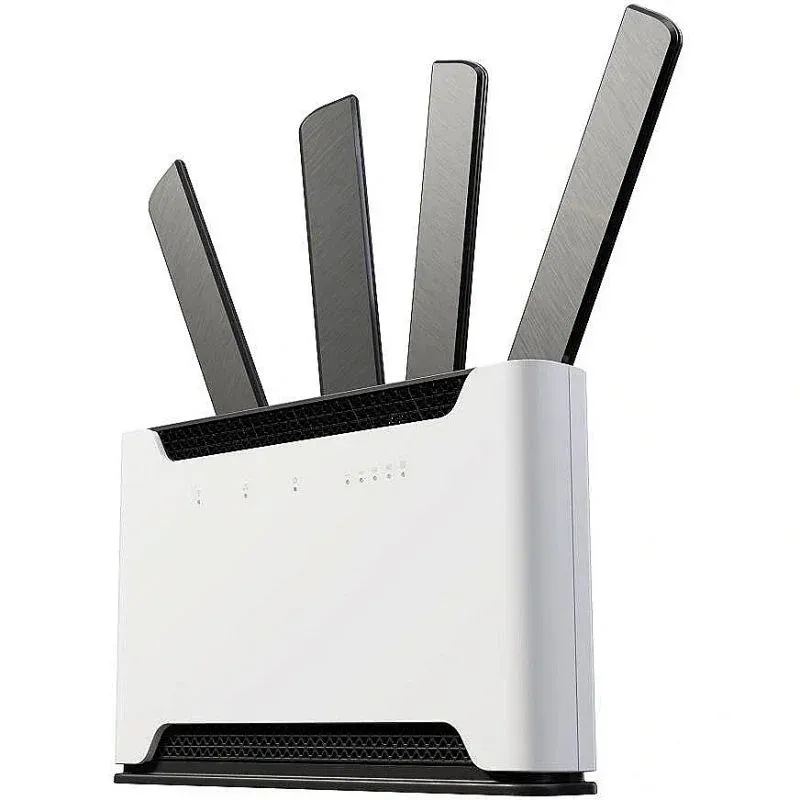

S53UG+M-5HaxD2HaxD-TC&RG502Q-EA Chateau 5G Ax 4 Gigabit Ethernet Ports Wifi 6 Dual Band Wireless Home Router with Sim Card
the Chateau series was perfecting the wireless capabilities.With the Generation6 802.11ax wireless standard and Wave 2 support, Chateau 5G ax can deliver unprecedented speed.If we compare it to the previous generation, we’re looking at up to 40% higher speed in the 5 GHz and up to 90% higher speed in the 2.4 GHz spectrum!We’ve made massive improvements to the wireless radio and antennas.Chateau 5G ax supports MIMO 4x4 on 5G and LTE.There are 6 built-in LTE/5G antennas.One pair of external antennas provides even better wireless network coverage in the largest homes, and the other - improved LTE/5G connectivity.
| Details | |
|---|---|
| Product code | S53UG+M-5HaxD2HaxD-TC&RG502Q-EA |
| Architecture | ARM 64-bit |
| CPU | IPQ-6010 |
| CPU core count | 4 |
| CPU nominal frequency | car (864-1800) MHz |
| Switch chip model | IPQ-6010 |
| Dimensions | 240 x 156 x 44 mm |
| RouterOS license | 4 |
| Operating System | RouterOS v7 |
| Size of RAM | 1 GB |
| Storage size | 128MB |
| Storage type | NAND |
| MTBF | Approximately 200'000 hours at 25C |
| Tested ambient temperature | -40°C to 70°C |
| IPsec hardware acceleration | Yes |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 12-28 V |
| Max power consumption | 19 W |
| Max power consumption without attachments | 16 W |
| Cooling type | Passive |
Wireless specifications
| Details | |
|---|---|
| Wireless 2.4 GHz Max data rate | 574 Mbit/s |
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n/ax |
| Antenna gain dBi for 2.4 GHz | 3 |
| Wireless 2.4 GHz chip model | QCN-5022 |
| Wireless 2.4 GHz generation | Wi-Fi 6 |
| Wireless 5 GHz Max data rate | 1200 Mbps |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n/ac/ax |
| Antenna gain dBi for 5 GHz | 6 |
| Wireless 5 GHz chip model | QCN-5052 |
| Wireless 5 GHz generation | Wi-Fi 6 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 4 |
| Number of 2.5G Ethernet ports | 1 |
