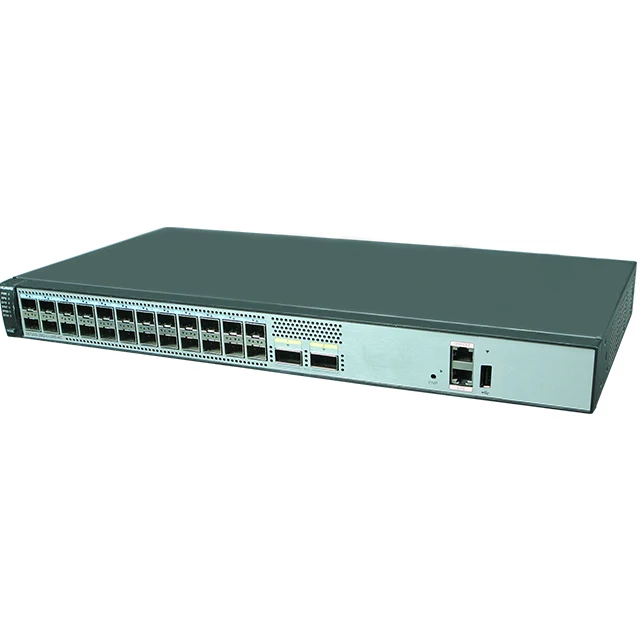

S6720-HI Series S6720-30L-HI-24S 24-Port 10GE Routing Switch

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Specification

HW S6720-HI Series S6720-30L-HI-24S 24-Port 10GE routing switch

S6720-HI series full-featured 10 GE routing switches are HW’s first IDN-ready fixed switches that provide 10 GE downlink ports
and 40 GE/100 GE uplink ports.
S6720-HI series switches provide native AC capabilities and can manage 1K APs.They provide a free mobility function to ensure a
consistent user experience and are VXLAN capable to implement network virtualization.S6720-HI series switches also provide
built-in security probes and support abnormal traffic detection, Encrypted Communications Analytics (ECA), and network-wide threat
disappointment.The S6720-HI is ideal for enterprise campuses, carriers, higher education institutions, and governments.

Features

Wired/Wireless Convergence

The native AC function manages APs efficiently.Super Virtual Fabric (SVF) virtualizes core/aggregation plus access switches and
wireless APs into a single device, greatly simplifying network management.

Automated Network Services
Software-Defined-Campus (SD-Campus) automates the network to accelerate service provisioning and reduce OPEX by 80%.

100 GE Uplink Ports
The first-of-a-kind 100G fixed switches help build high-bandwidth enterprise campus networks.

Product Description

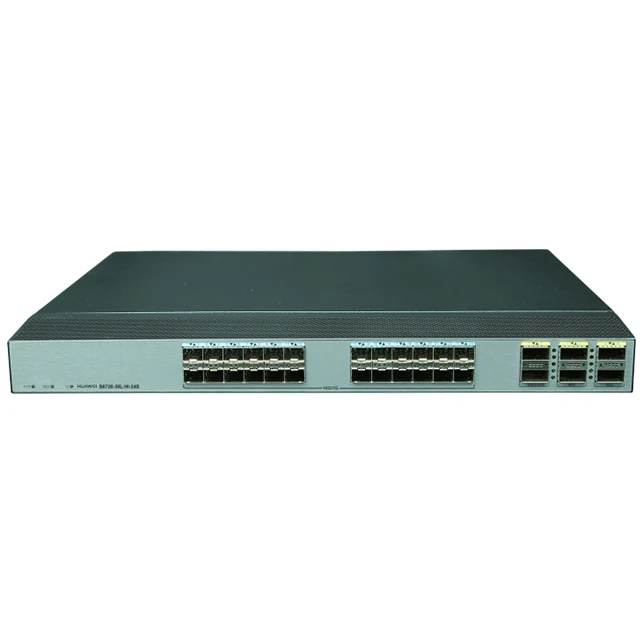

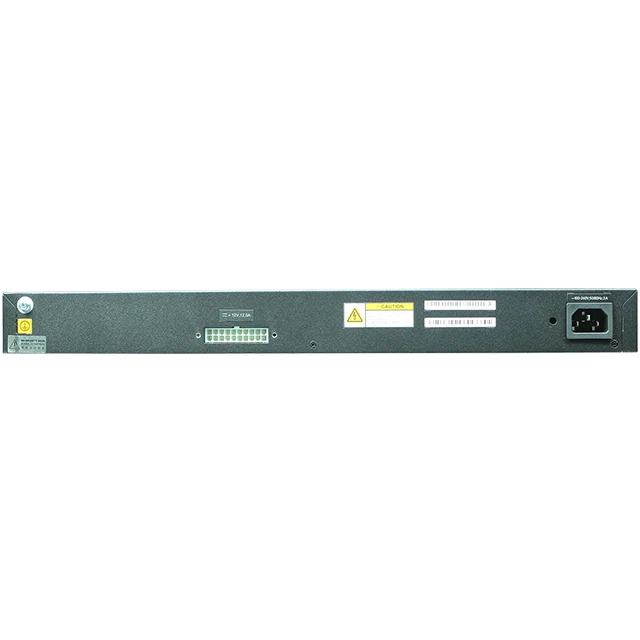

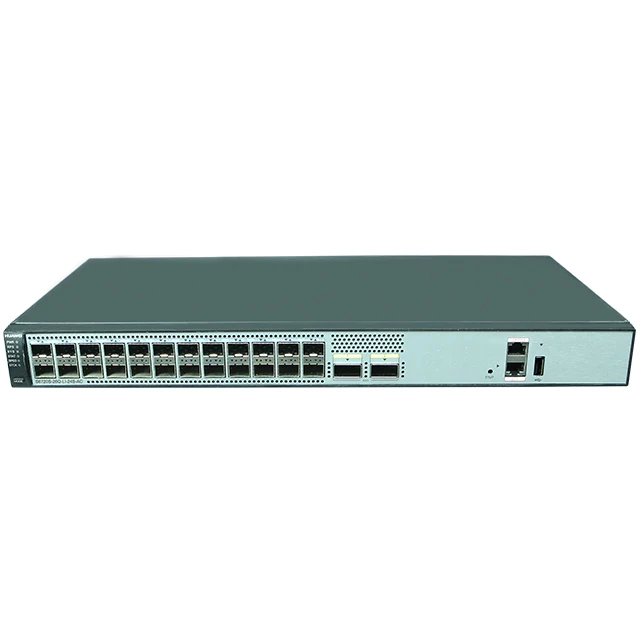

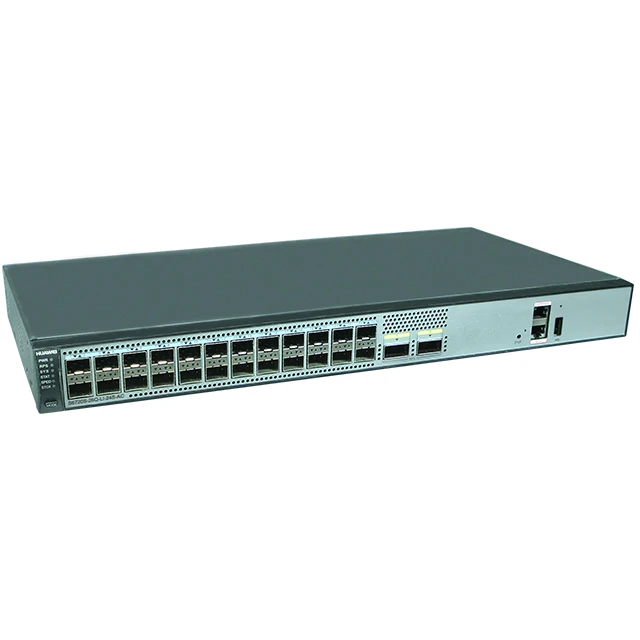

Details Images.



Product Model	S6720-30L-HI-24S
Switching Capacity	2.56 Tbit/s
Fixed Ports	24 x 10 Gigabit SFP+, 4 x 40 Gigabit QSFP+, and 2 x 100 Gigabit QSFP28
Extended Slots	Not supported
MAC Address Table	64K MAC address entries IEEE 802.1d standards compliance MAC address learning and aging Static, dynamic, and blackhole MAC address entries Packet filtering based on source MAC addresses
VLAN Features	4,094 VLANs Guest VLANs and voice VLANs GVRP MUX VLAN VLAN assignment based on MAC addresses, protocols, IP subnets, policies, and ports VLAN mapping
IP Routing	Static routes, RIP v1/2, RIPng, OSPF, OSPFv3, IS-IS, IS-ISv6, BGP, BGP4+, ECMP, and routing policy

Item	Description
Memory (RAM)	2 GB
Flash	1 GB in total.To view the available flash memory size, run the display version command.
Mean time between failures (MTBF)	61.42 years
Mean time to repair (MTTR)	2 hours
Availability	> 0.99999
Service port surge protection	NA
Power supply surge protection	· Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode · Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode
Dimensions (H x W x D)	43.6 mm x 442.0 mm x 420.0 mm (1.72 in.)x 17.4 in.x 16.5 in.)
Weight (with packaging)	9.9 kg (21.83 lb)
Stack ports	· Any 10GE SFP+ ports (a maximum of 16 physical ports) · Any 40GE QSFP+ ports (a maximum of 6 physical ports) · Any 100GE QSFP28 ports (a maximum of 2 physical ports)
RTC	Supported
RPS	Not supported
PoE	Not supported
Rated voltage range	100 V AC to 240 V AC, 50/60 Hz -48 V DC to -60 V DC
Maximum voltage range	90 V AC to 264 V AC, 47 Hz to 63 Hz -38.4 V DC to -72 V DC
Maximum power consumption (100% throughput, full speed of fans)	232 W
Typical power consumption (30% of traffic load, tested according to ATIS standard)	138 W
Operating temperature	0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE: When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage temperature	-40°C to +70°C (-40°F to +158°F)
Noise under normal temperature (27°C, sound power)	< 65 dB(A)
Relative humidity	5% to 95%, noncondensing
Operating altitude	0-5000 m (0-16404 ft.)
Certification	· EMC certification · Safety certification · Manufacturing certification
Part number	02351MXR
