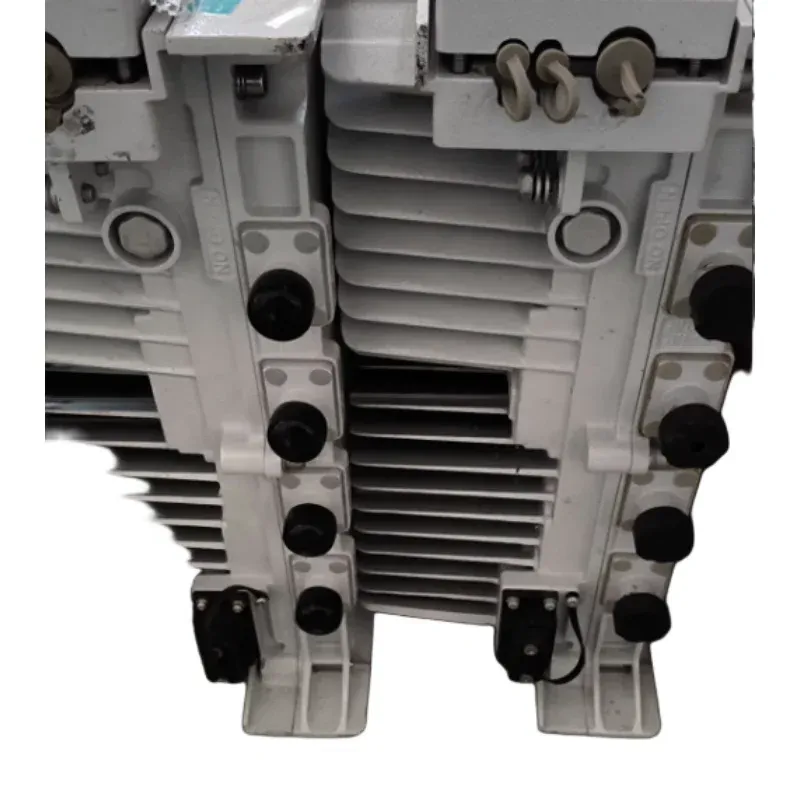

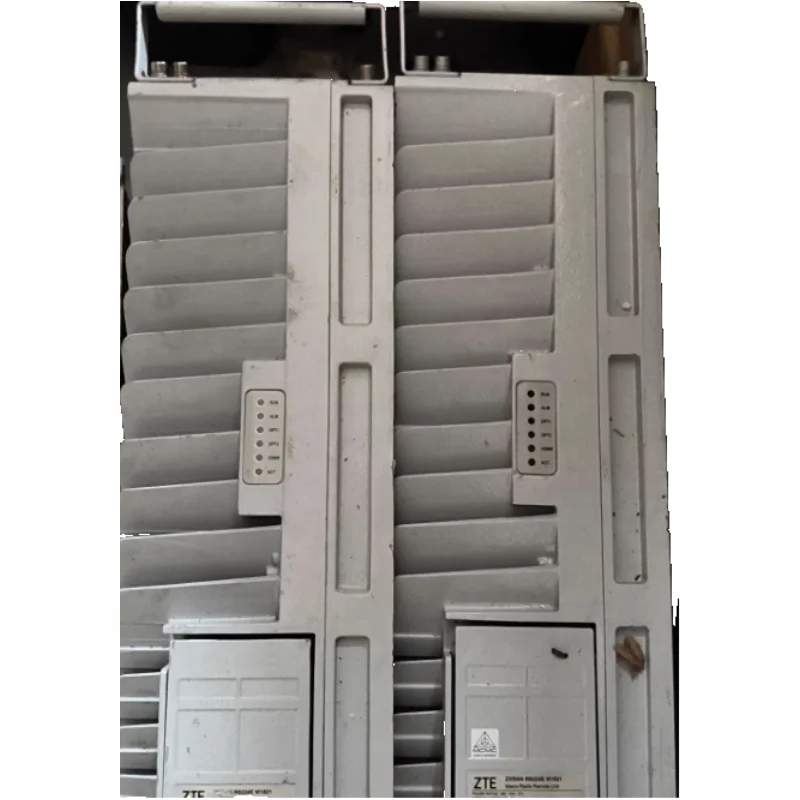

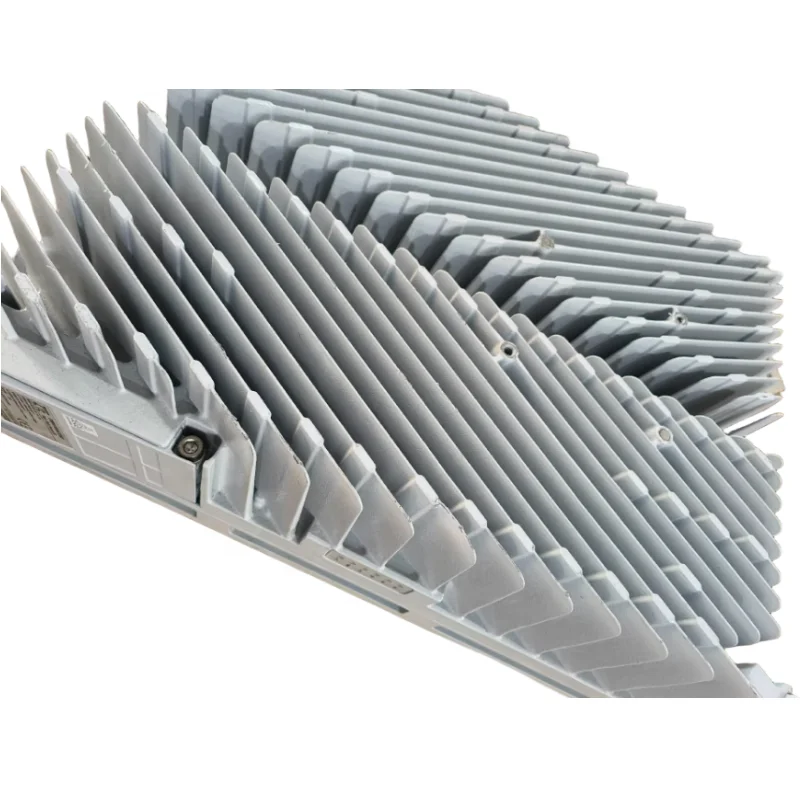

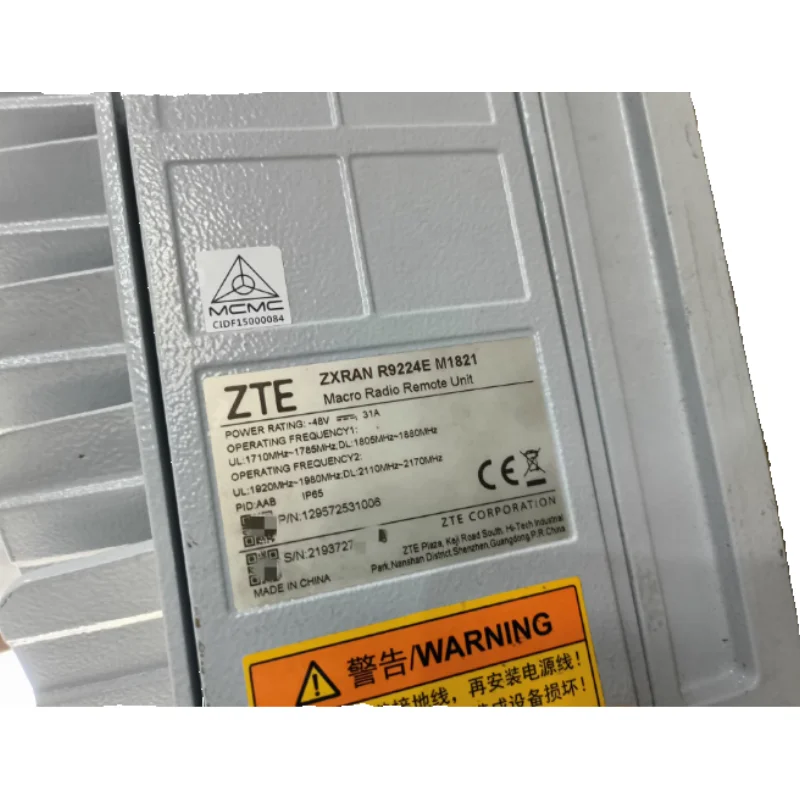

Wireless Communication Equipment Base Station RRU for R9224E M1821/R9224E M7290 1800M/2100M 700M/900M 4T4R Remote RF Unit

$699.79 USD
Izračun stroškov prevoza na blagajni
Color
Količina
Products Description
Model Number
R9224E M1821 1800M 2100M R9224E M7290 700M 900M
Type
RRU
Brand Name
ZTE
Place of Origin
Hong Kong S.A.R.
Use
Base Stations wireless coverage
Product usage situation
All products are all second-hand products
Delivery time
3-10days
Package
Carton Package
Warranty
Twelve months
R9224E M1821 Dimensions (H * W * D)
500 mm * 360 mm * 150 mm
R9224E M1821 Weight
25.8 kg
R9224E M7290 Dimensions (H *W * D)
500 mm * 360 mm * 170 mm
R9224E M7290 Weight
30 kg

Product Architecture

Hardware Component
Figure1 shows the hardware components of the R9224E.
Figure1 Hardware Architecture

1,Handle
2,Indicators
3,Maintenance window
4,Interfaces on the bottom

ZXRAN R9224E M1821 (hereinafter R9224E) is the new distributed remote radio unit (RRU) with ultra-broadband, 4T4R, high output power and low power consumption.The R9224E works in multi-mode configuration of GSM, UMTS, LTE, and NR mode.R9224E together with the baseband unit (BBU) forms the distributed macro base station.
Environment Requirements
Operating Power Supply
Istamp
Specification
Power Supply
DC: -48 V (-37 V to -57 V)
Operating Environment
tem
Specification
Temperature
-40℃~+55℃
Relative Humidity
5%~100%
Atmosphere pressure
70 kPa~106 kPa
Waterproof/Dustproof
IP65
Ground
<5 Ω
Earth resistance can be less than 10 Ω in thunder-less area where thunderstorm days is less than 20 per year
Storage Environment
ETSI EN 300019-1-1 Class 1.2 “Weather protected, not temperature-controlled storage locations”
When the storage environment conditions specified in the above standards are met, the product can operate properly within a
storage period of one year
