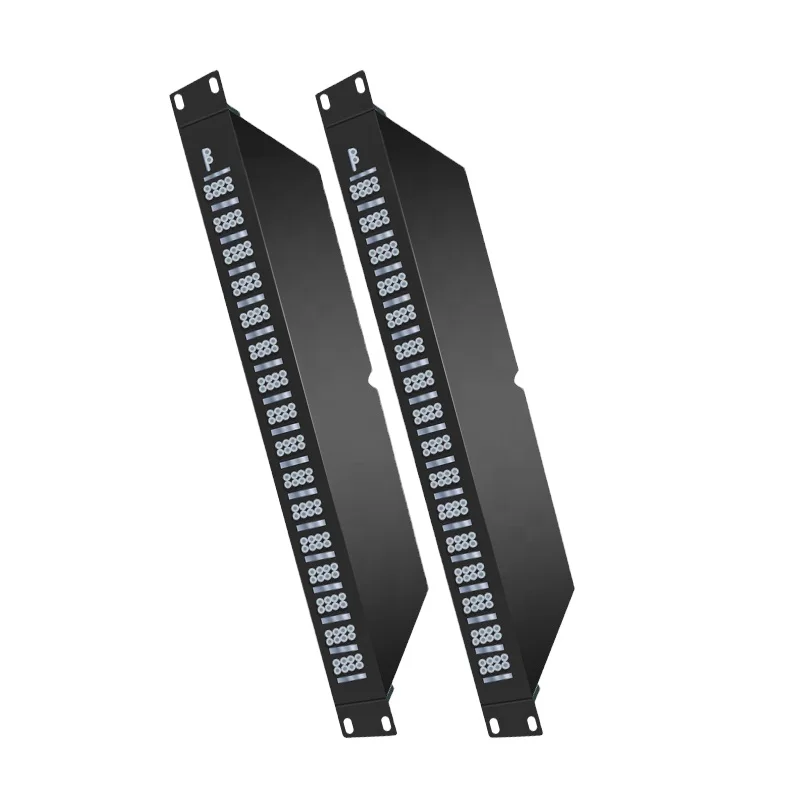

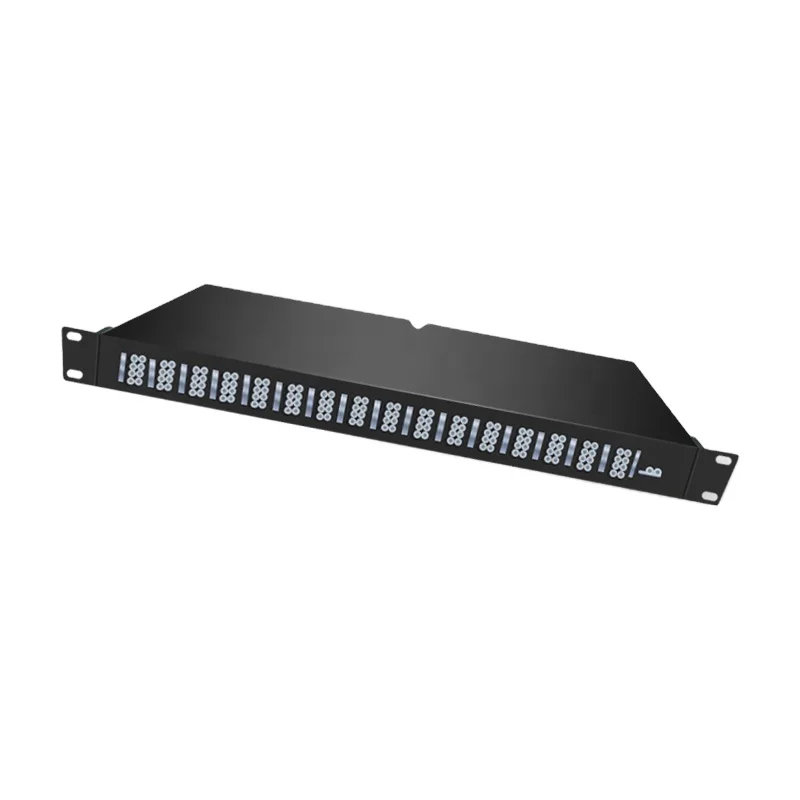

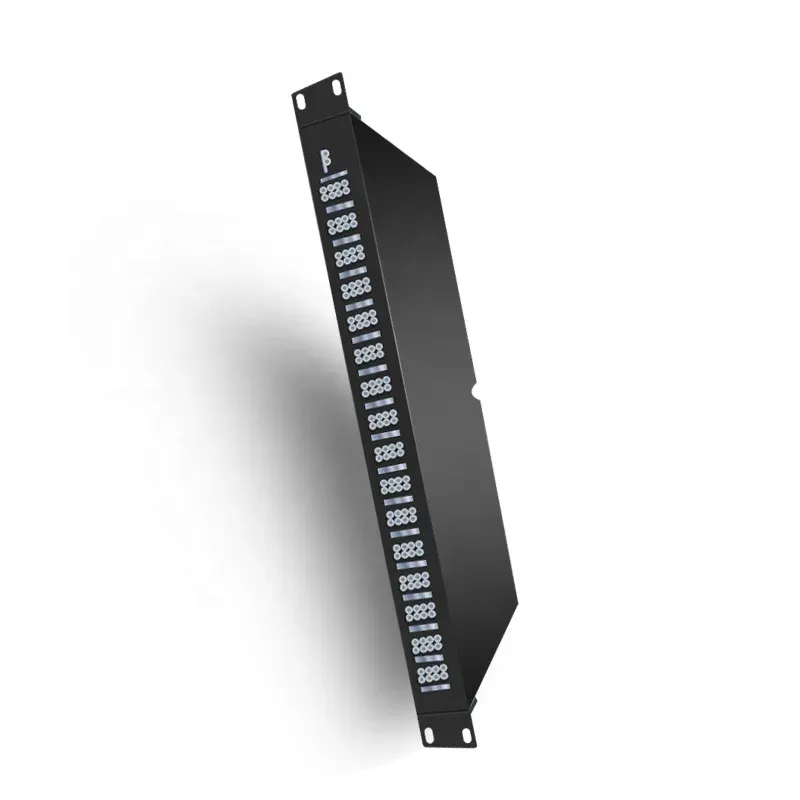

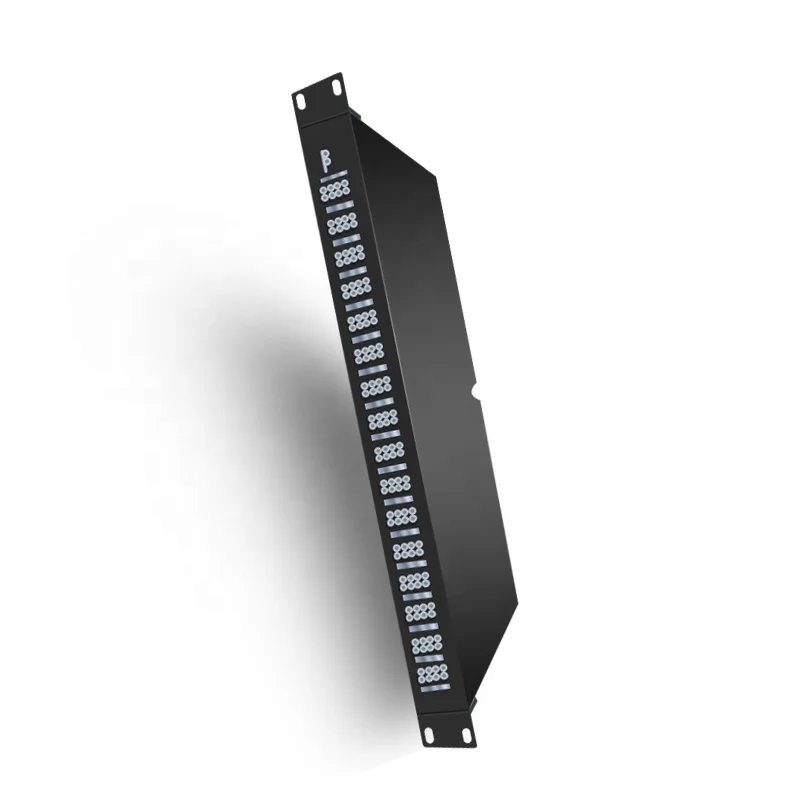

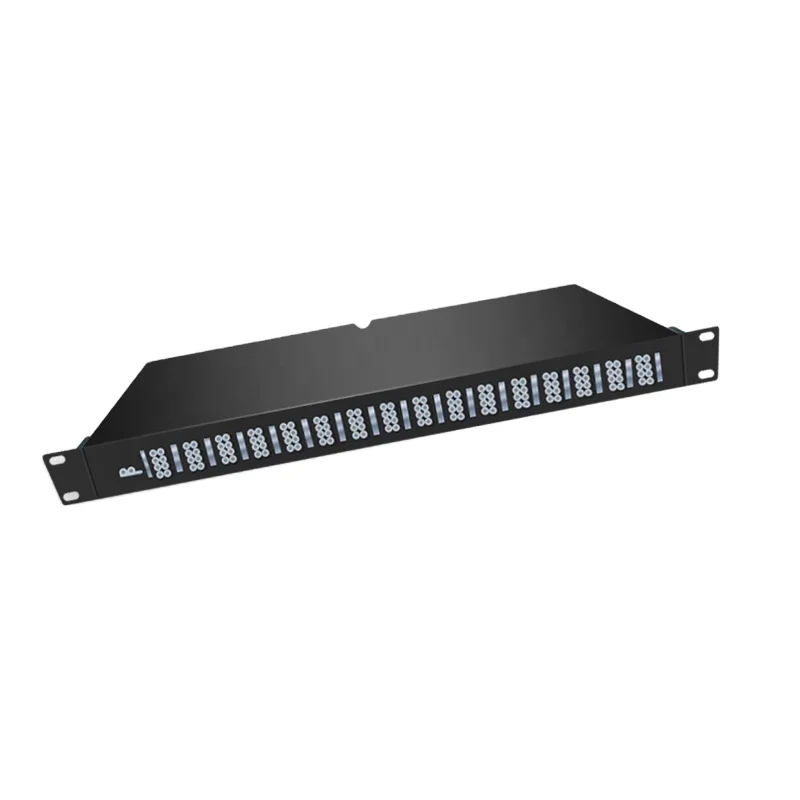

1U Rack 50G/100G 40 Channel MUX/DEMUX DWDM Flat top Athermal AWG AAWG
ZG TECH offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG.Here we present the generic specification for the 41-channel 100GHz Gaussian Athermal AWG (41 channel AAWG) MUX/DEMUX component supplied for use in DWDM system.
Typical Advantage
1.Multiplexing of up to 4 Channels on a single fiber
2.HIgh quality thin film filter technology
3.100GHz ITU grid,0.8nm spacing
4.Low Insertion Loss
5.Simplex LC/UPC for line port
Typical Usage
1.Channel ADD/DROP
2.DWDM Network
3.Wavelength Routing
4.Fiber Optical Amplifier
5.CATV Fiber Optic System
Performance Specifications
|
NO. |
PARAMETER |
SPECIFICATION |
UNITS |
|||
|
MIN. |
TYPE. |
MAX. |
||||
|
2.1 |
Channels |
41 |
Ch |
|||
|
2.2 |
Channel Spacing |
100 |
GHz |
|||
|
2.3 |
Reference Passband |
±12.5 |
|
±12.5 |
GHz |
|
|
2.4 |
Wavelength Accuracy |
-50 |
|
+50 |
pm |
|
|
2.5 |
Center Wavelength Slope |
|
|
1 |
pm/°C |
|
|
2.6 |
1dB Bandwidth |
0.38 |
0.4 |
|
nm |
|
|
2.7 |
3dB Bandwidth |
0.58 |
0.6 |
|
nm |
|
|
2.8 |
20dB Bandwidth |
|
|
1.26 |
nm |
|
|
2.9 |
30dB Bandwidth |
|
|
1.76 |
nm |
|
|
2.10 |
Insertion Loss |
|
|
5.0 |
dB |
|
|
2.11 |
Insertion Loss Uniformity |
|
|
1.5 |
dB |
|
|
2.12 |
Ripple |
|
|
0.5 |
dB |
|
|
2.13 |
Adjacent Channel Isolation |
23 |
|
|
dB |
|
|
2.14 |
Non-adjacent Channel Isolation |
30 |
|
|
dB |
|
|
2.15 |
Total Crosstalk |
21 |
|
|
dB |
|
|
2.16 |
Polarization Dependent Loss (PDL) |
|
|
0.5 |
dB |
|
|
2.17 |
Return Loss |
40 |
|
|
dB |
|
|
2.18 |
Maximum continuous optical power |
|
|
250 |
mW |
|
|
2.19 |
Chromatic Dispersion(CD) |
-20 |
|
+20 |
ps/nm |
|
|
2.20 |
Polarization Mode Dispersion(PMD) |
|
|
0.5 |
ps |
|
