Systems FTTH Mini Fast Waterproof Field Assembly High Quality SC/APC Fiber Optic Connector Kit Equipment 1 Port 3 Year Warranty
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

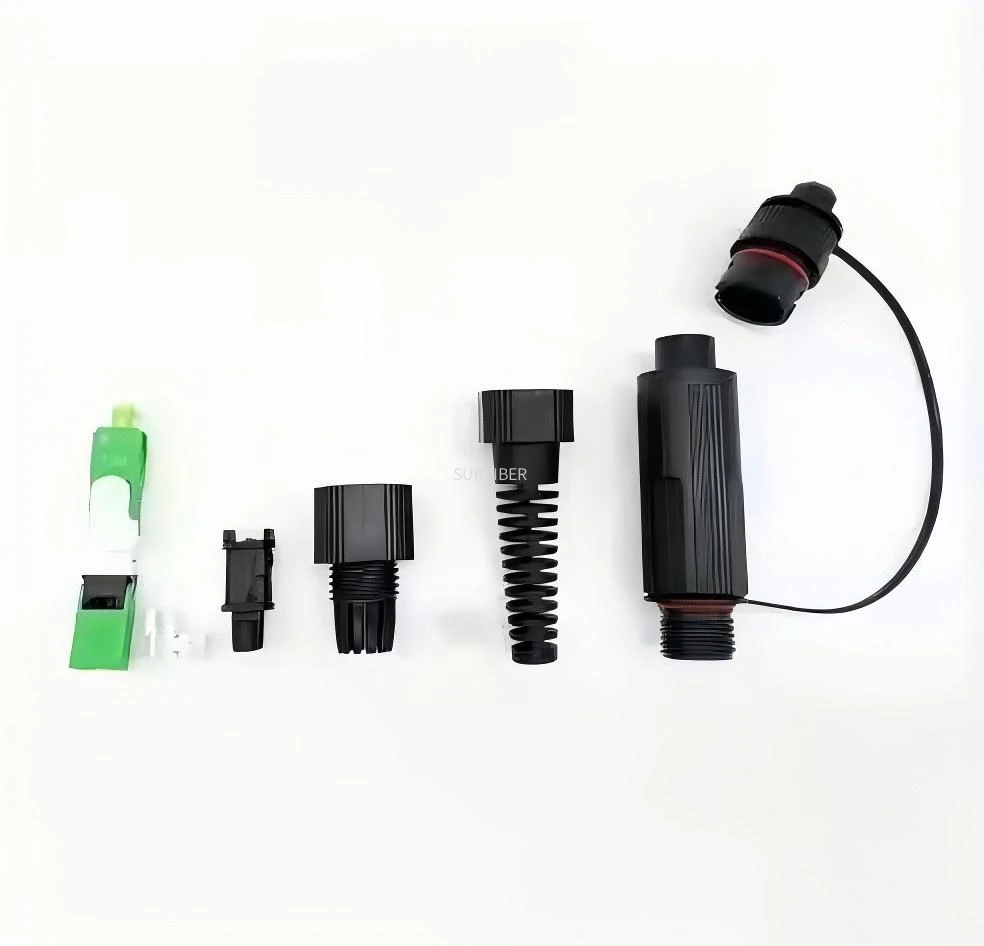

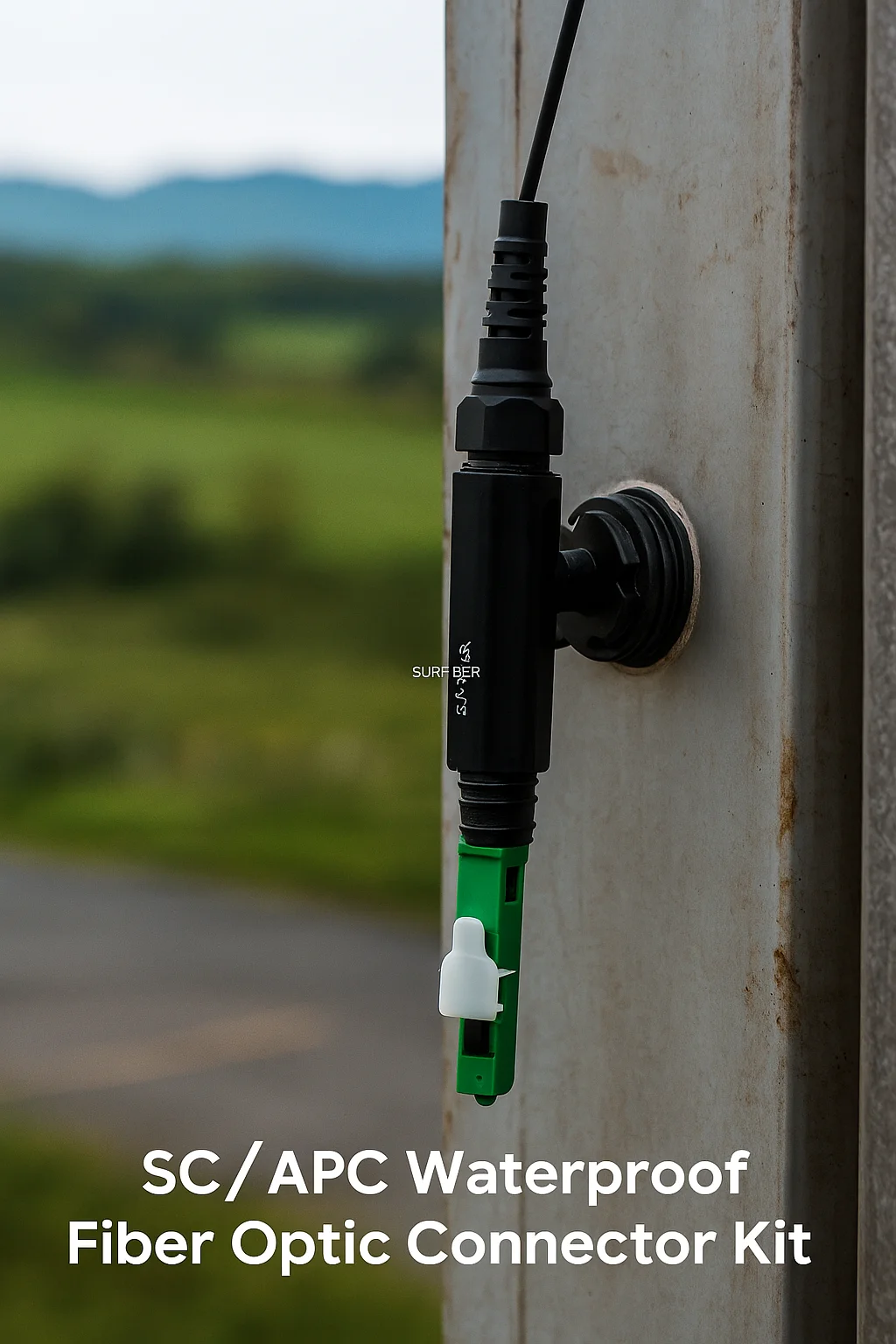

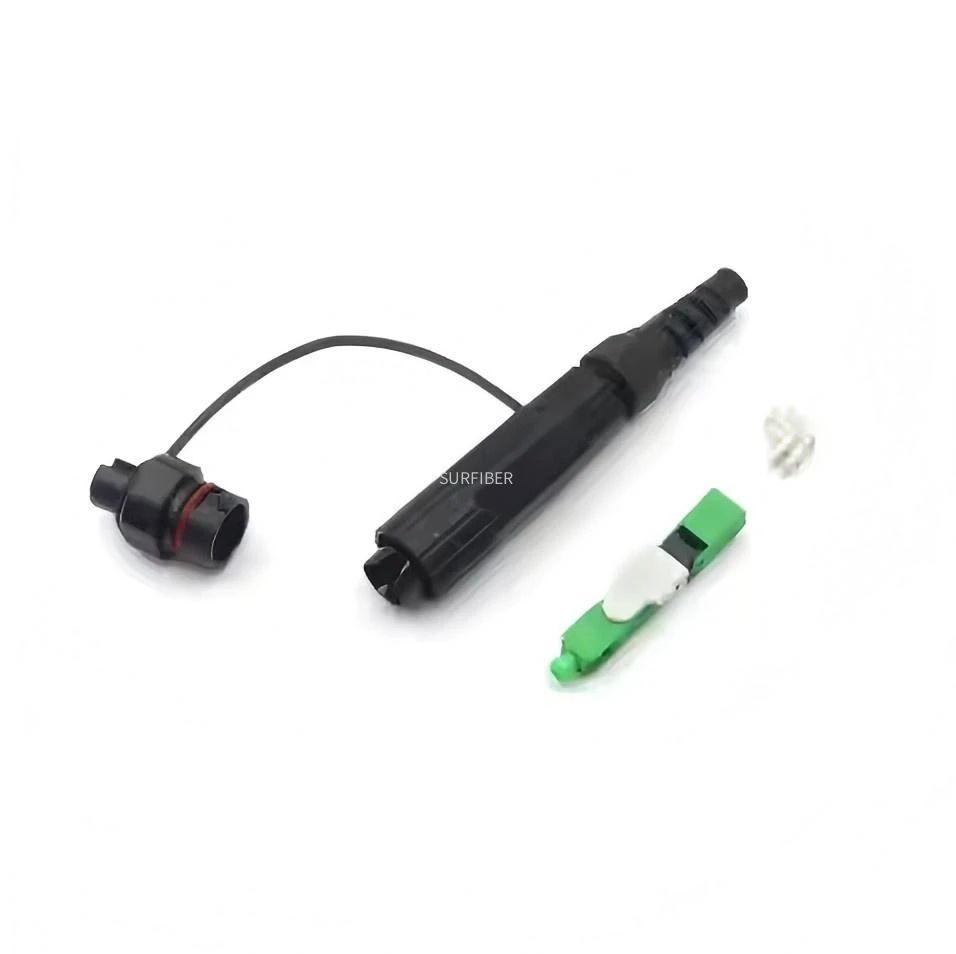

Mini IP SC Series Field Installable Fast Waterproof Connector is a new design outdoor waterproof fiber optical connector
compatible with Huawei Mini SC connector /adapter .It’s mainly used for FTTH outdoor installation .It’s small and easy to be
installed with IP68 grade .Mini sc fast connector is an excellent solutions with Huawei Device and do not need terminated the
connector in laboratory .It can bot field assembled very easy to save time and short the project time.
Features:
Cost effective solution for in house termination.
Low insertion loss and added loss.
Height of attenuation.
IP68 water, dust proof and corrosion resistant
Mechanical performance: IEC 61754-4 standard.
ROHS and REACH materials compliant.
Cable diameter Range:FTTH Drop cable 2.0*1.6mm/ 2.0*3.0mm/2.0*5.0mm ,Round cable 5.0mm/3.0mm/2.0mm.
|
Category
|
Specification
|
|
Cable Scope
|
2*1.6mm/2*3.0mm /2.0*5.0mm flat drop cable,
5.0mm/3.0mm/2.0mm round cable |
|
Fiber Diameter
|
125μm(652&657)
|
|
Coating Diameter
|
250μm
|
|
Fashion
|
Single mode or Multi mode
|
|
Operation Time
|
about 15s(exclude fiber presetting)
|
|
Working wavelength
|
1310 nm, 1490 nm, 1550 nm
|
|
Insertion Loss
|
AVG≤0.3dB,
MAX≤0.5dB(1310nm & 1490nm & 1550nm |
|
Return Loss
|
≥50dB for UPC,
≥55dB forAPC |
|
Success Rate
|
>98%
|
|
Reusable Times
|
>5 times
|
|
Tensile Strength
|
>30 N
|
|
Temperature
|
40～+85C
|
|
On-line Tensile Strength Test(20 N)
|
Less than 0.3dB
|
|
Mechanical Durability(500 times)
|
Less than 0.3dB
|
|
Drop Test(4m concrete floor,
once each direction,three times total) |
Less than 0.3dB
|
