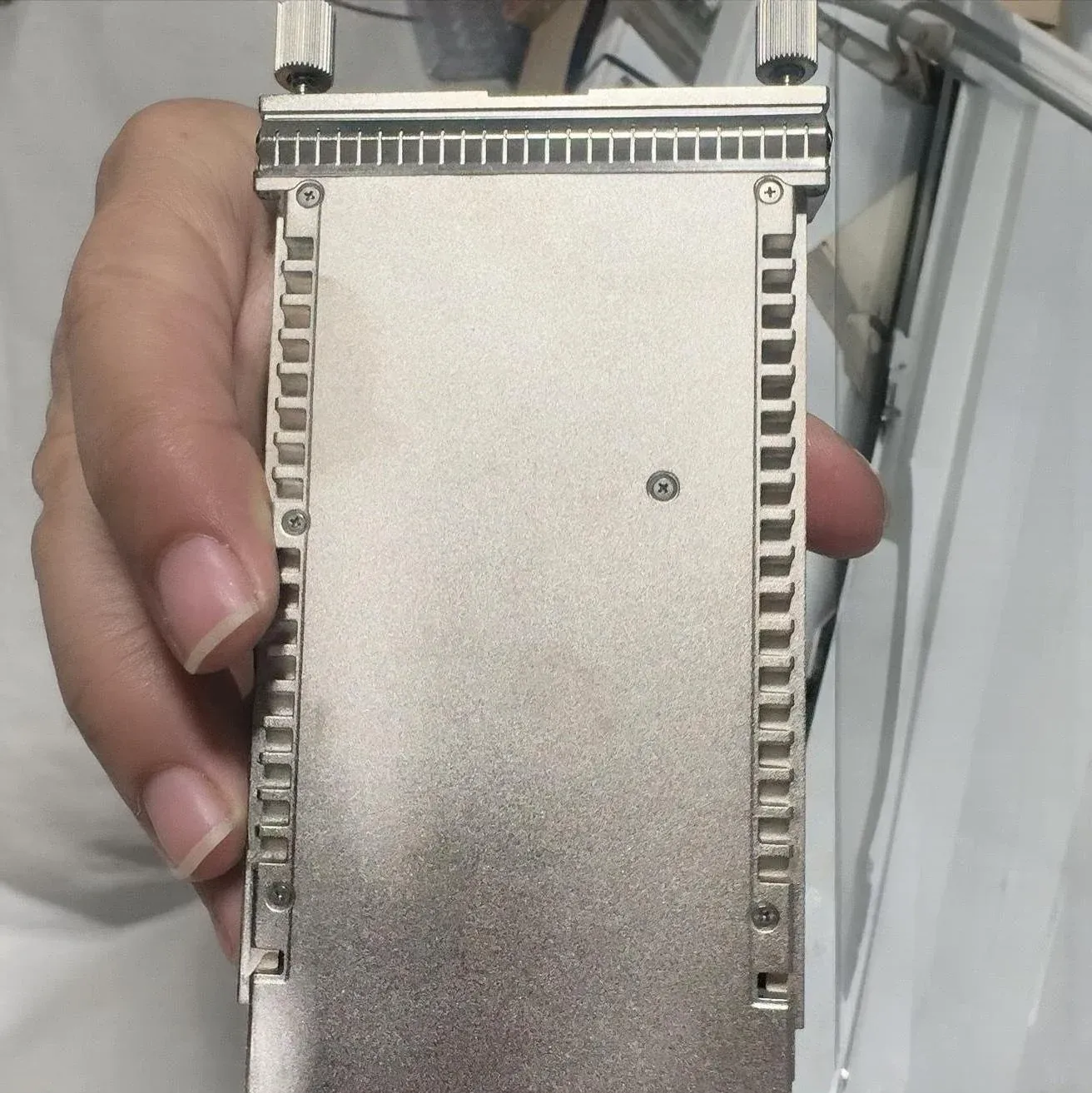

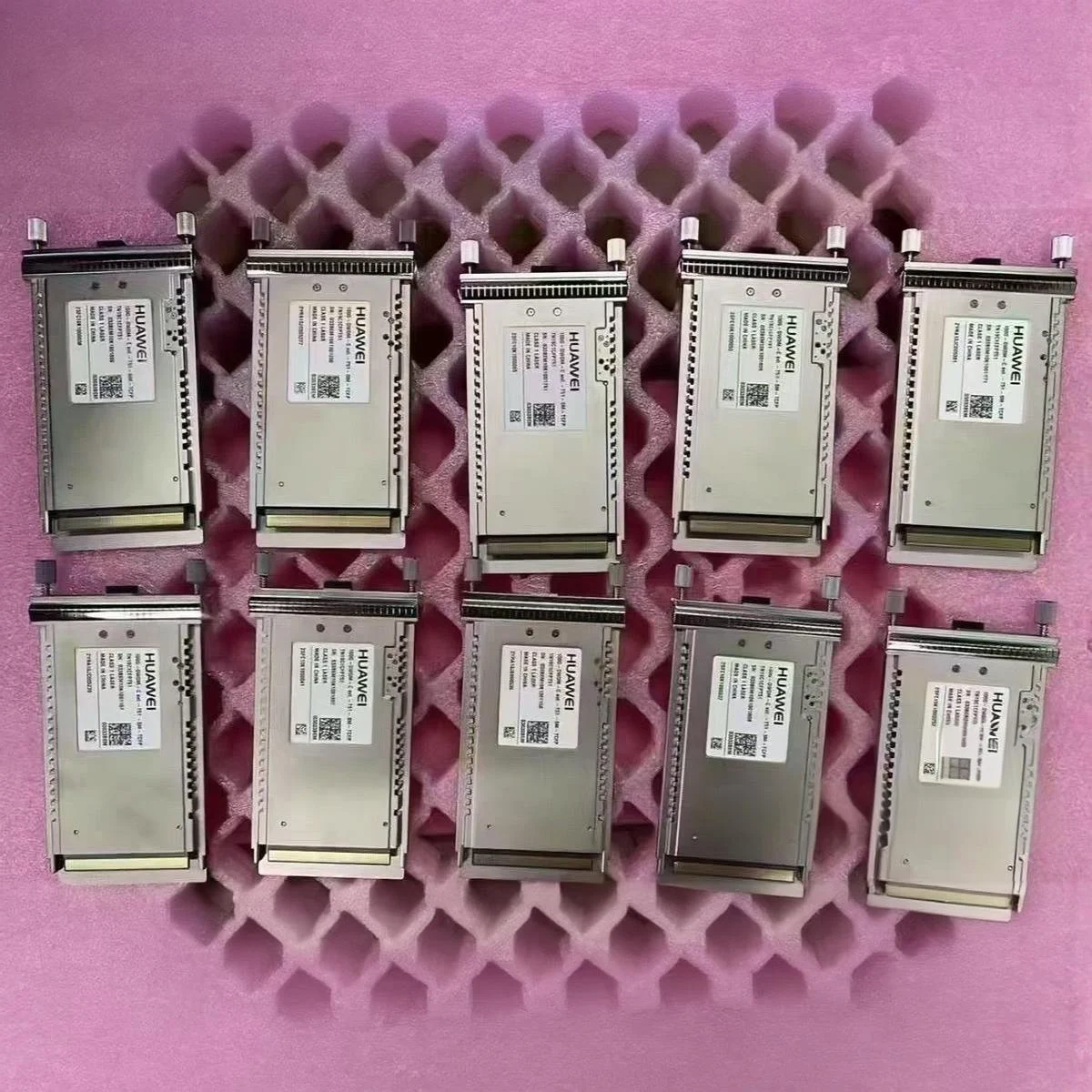

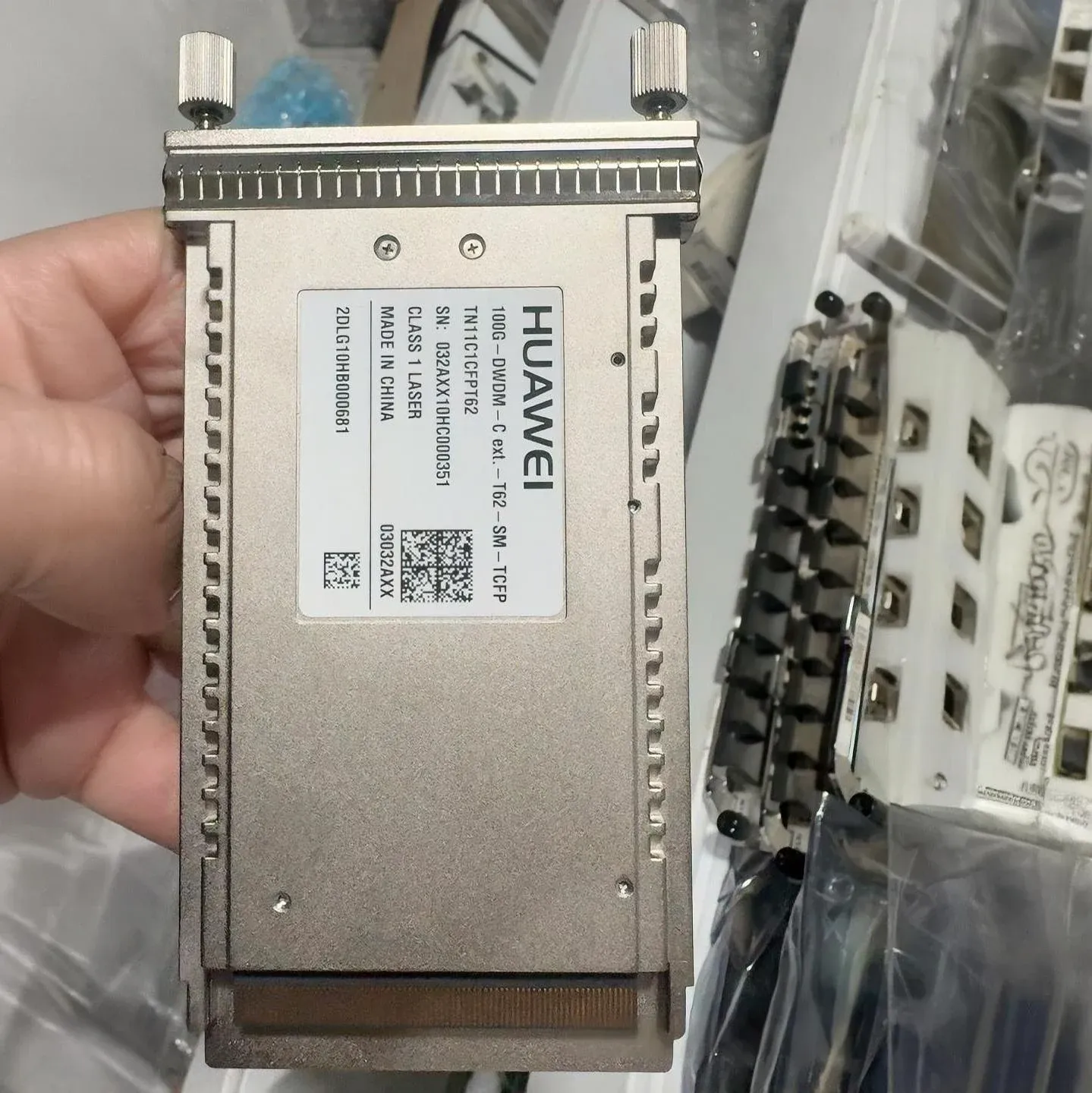

OSN9800 03032AMR TN11C1CFPT65 100G CFPT65(Metro,SDFEC2,Coherent WDCM) Enterprise Network WDM

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

OptiX OSN 9800 U32E Standard

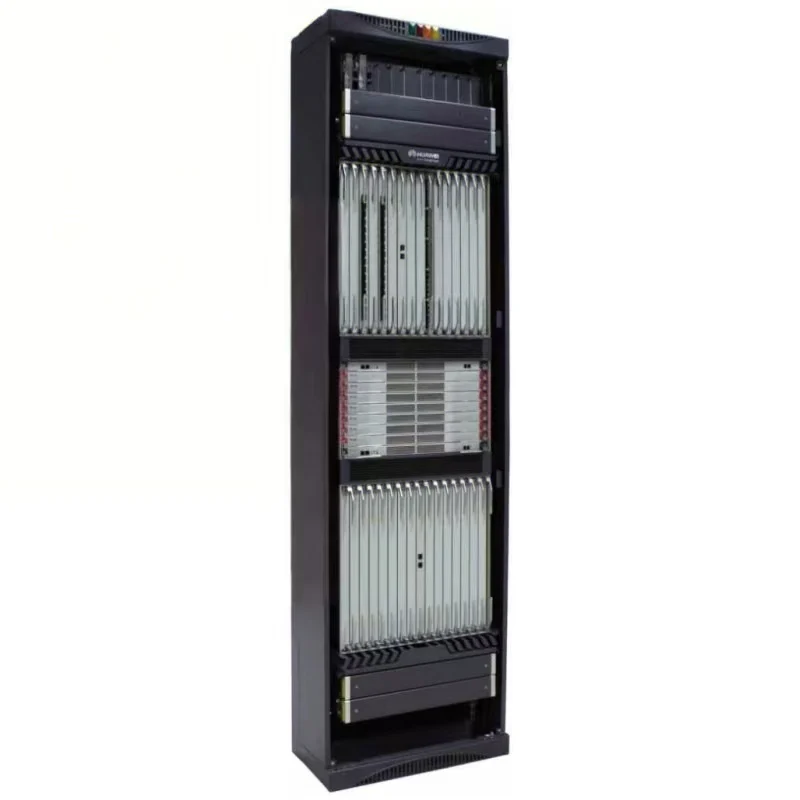

The OptiX OSN 9800 U32 is a large-capacity OTN product intended for the beyond 200G/400G era.It is highly integrated, saves equipment room space, and achieves energy conservation.This product supports a variety of services, such as Ethernet, OTN, SDH, storage, and video services, and integrates 20 Tbit/s unified switching, IEEE 1588v2, synchronous Ethernet, ASON, TSDN, and various management and protection functions.It is the optimal 100G/400G OTN platform in the industry and provides carriers with OTN/WDM transmission solutions featuring ultra broadband, flexible grooming, high elasticity, and ASON.

Highlight

The industry's largest capacity MS-OTN and OTN cluster platform, with flexible service grooming
Optimal 200G/400G transmission technology, meeting future bandwidth requirements Energy-saving and easy maintenance, improving O&M efficiency.

Specifications	OSN 9800 U64 Standard	OSN 9800 U32 Standard	OSN 9800 U16	OSN 9800 U64 Enhanced	OSN 9800 U32 Enhanced
Subrack dimensions (mm)	2200 (H) x 600 (W) x 600 (D)	1900 (H) x 498 (W) x 295 (D)	847 mm (H) x 442 mm (W) x 295 mm (D)	2200 (H) x 600 (W) x 600 (D)	1900 (H) x 498 (W) x 295 (D)
Suitable cabineta	The subrack is integrated into a cabinet, and no additional cabinet needs to be configured.	ETSI 300/600 cabinets, such as N63B and N66B	ETSI 300/600 cabinets, such as N63B and N66B 19-inch cabinet	The subrack is integrated into a cabinet, and no additional cabinet needs to be configured.	ETSI 300/600 cabinets, such as A63B
Max.number of slots for service boards	64	32	14	64	32
Max.number of wavelengths	Fixed grid: 96 wavelengths @50 GHz grid Flexible grid: The maximum number of wavelengths is related to the width of the flex channel.
Center wavelength range	DWDM system: 1529.16 nm to 1567.13 nm (extend C-band) CWDM system: 1471 nm to 1611 nm (S+C+L Band)
Max.rate per channel	400 Gbit/s (OTUC4)

Related Products

H80BZ2MABO01

H82Z1MABM

CR5D00LFXF74

CR5DOLFXFM70

SSE2SCC02

CR5DLPUFM070

Products of the same series

P/N	Model	Description
03032VKU	TNG1M402C01	2*100Gbit/s Service Multiplexing Into 1*200G/100G Programable Wavelength Conversion Board
03033DAP	TNG1M502DMC01	2*100Gbit/s Service Multiplexing Into 1*200G or 2*100G Programable Wavelength Conversion Board
03033AJG	TNG3CXCS	Higher order cross-connect board
	TNG3CXCS01	Higher order cross-connect board
03033HNS	TNG3CXCS02	High Order Cross-connect Board
02120826	TN18FAN	Fan Box
03022AWS-001	TN18PIU	Power Interface Board
02131158	TN18APIU	TN18APIU
