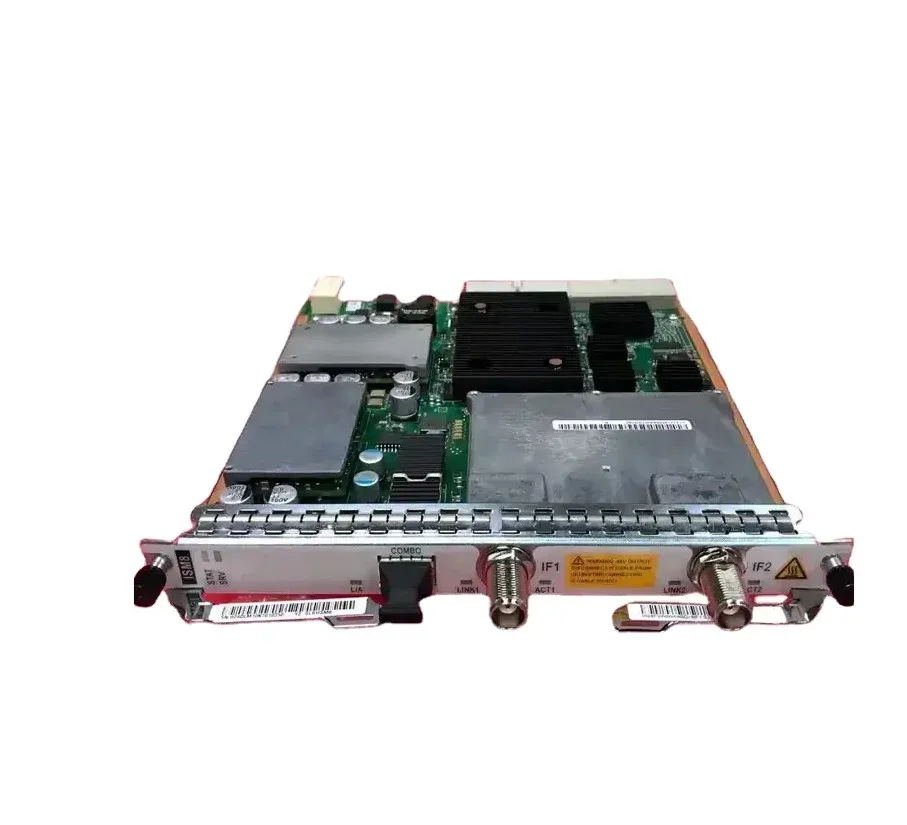

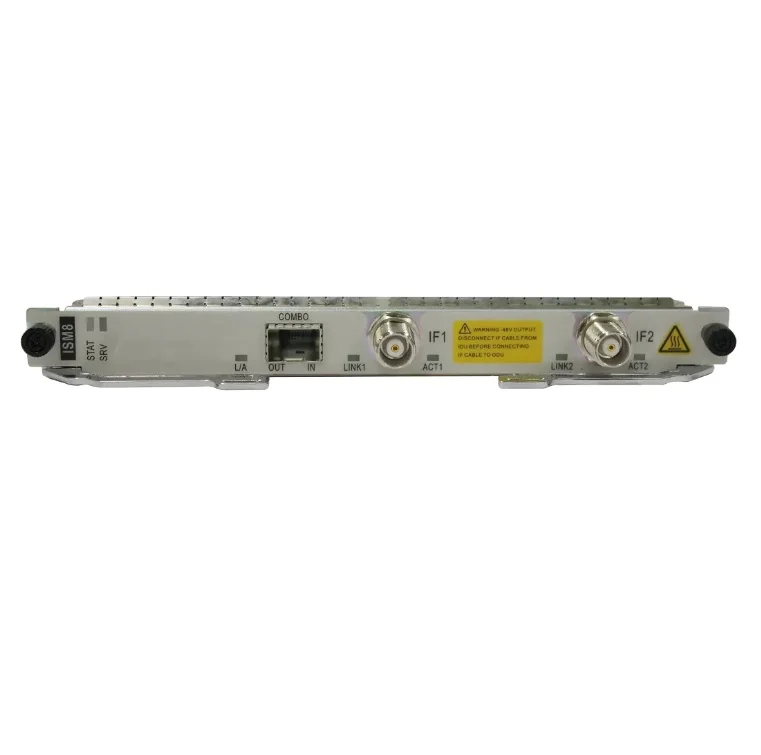

brand new or used SL91ISM8 ISM8 Microwave RTN 980
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
Split Type Long Range Microwave Transmission Equipment Assembly IDU RTN 980 Series(RTN 980L/RTN 980)
RTN 980Lis the new generation IP longhaul microwave tailored to fit ultra-broadband and all-IP trends.RTN 980L supports a maximum capacity of 16 Gbit/s, IF combination, as well as the aggregation of 12 links in an enhanced physical link aggregation (EPLA) group.It can be flexibly deployed and serves as a major complement in fixed transmission scenarios where deploying fibers is difficult.
ALL-IP: Uniform TDM/Hybrid/Packet platform, support Evolution Smoothly
RTN980L can process all kinds of services separately or mixed in the radio base on the most advanced uniform TDM/Hybrid/Packet architecture, including E1/STM-1, native Ethernet, and PWE3/MPLS E1/Ethernet, and so on.It not only meets the current requirements of the longhaul microwave network, but also that of the evolution to the pure packet longhaul microwave network in the future.
Agile: Most Flexible Design and support IF Combination
RTN980L has flexible design with full indoor, split mount and all outdoor installation methods, and also support 2+0 or 3+0 lightweight BU, suit for the challenges from the different deployment scenarios.RTN980 has unified platform for flexible scheduling, and support multi-service access and mix pass, for matching various scenarios.
TECHNICAL SPECIFICATION
|
Network layer |
Suitable for: access layer and aggregation layer |
|
Frequency band |
6 ~ 42 GHz |
|
Channel spacing |
3.5/7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5GHz) |
|
Bandwidth |
Determine based on ODU bandwidth |
|
Modulation mode |
QPSK Strong,QPSK,16QAM Strong,16QAM,32QAM,64QAM,128QAM,256QAM,512QAM,512QAM Light,1024QAM,2048QAM,4096QAM |
|
Maximum number of RFUs |
XMC-LH RFU:10 XMC-LH 5D RFU:5 |
|
RF direction |
14 |
|
Air port capacity |
22Gbps |
|
Link Aggregation |
2-4 |
|
Interface type |
E1,STM-1(e/o),F.E.(e/o),GE(e/o),2.5GE(o),10GE(o) |
|
Transmission power @ QPSK |
Based on the RTN980 technical specifications |
|
Super Dual Band |
Based on the RTN980 technical specifications |
|
L3 VPN |
Based on the RTN980 technical specifications |
|
Support eCPRI |
Based on the RTN980 technical specifications |
|
RFconfiguration method |
1+0 unprotected configuration N+0 unprotected configuration |
|
Function |
Ethernet II, IEEE 802.3 and IEEE 802.1q/p field addition/deletion, and VLAN label exchange (IEEE 802.1q/p) ISIS, OSPF, BGP, RSVP, |
|
Business type |
Native ETH service: E-Line dedicated line service and E-LAN private network service PW based Native ETH services: E-Line dedicated |
|
Key Features |
CES E1, IEEE 1588v2, USB start, H-QoS, PLA/EPLA/EPLA+, AES-256 encryption, device anti-theft, 1+1, N+1, XPIC, AM, TDM, PWE3/MPLS, |
|
Antenna |
Parabolic antenna: 0.3m~3.7m |
|
IDU weight |
15.4KG |
|
IDU size |
442mm×220mm×225mm |
|
Environment |
Temperature: IDU -5 °C ~+60 °C;ODU -33°C ~ +55°C Humidity: IDU 5%~95%;ODU 5%~100% |
|
Power supply |
-38.4 V~-57.6 V |
|
Authenticated document |
CE,RCM,FCC,IC,ETL,MCMC |
Specification
Split Type Long Range Microwave Transmission Equipment Assembly IDU RTN 980
Product Description
|
Product Name |
Huawei ISM8 |
|
Part Number |
ISM8 |
|
Manufacturer |
HUAWEI |
|
Application |
XPON/OLT/GPON |
|
Condition |
New |
Product Description
Packing & Shipping
