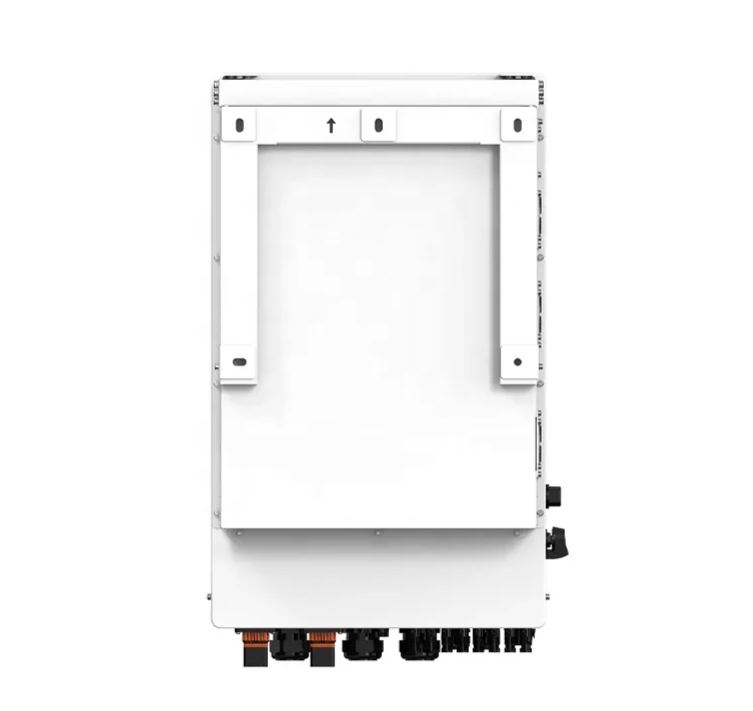

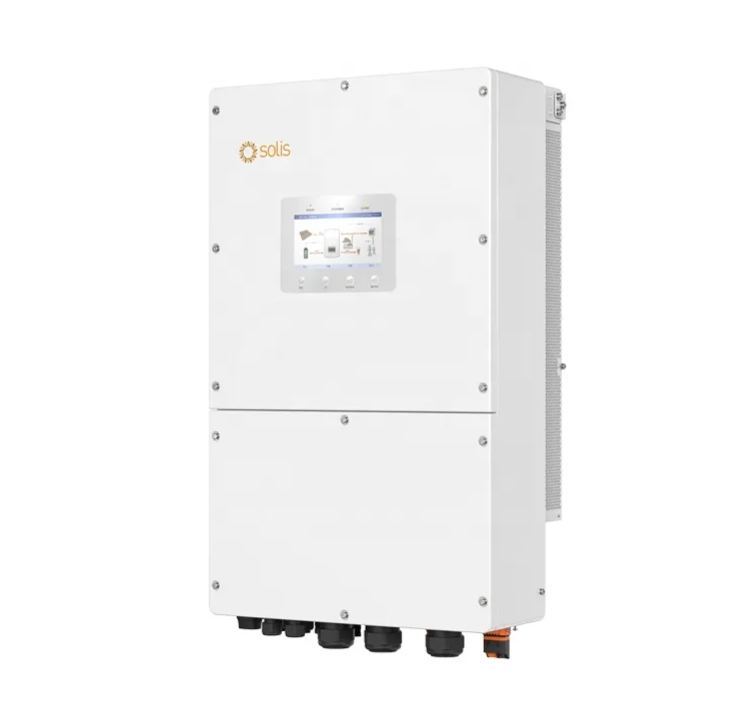

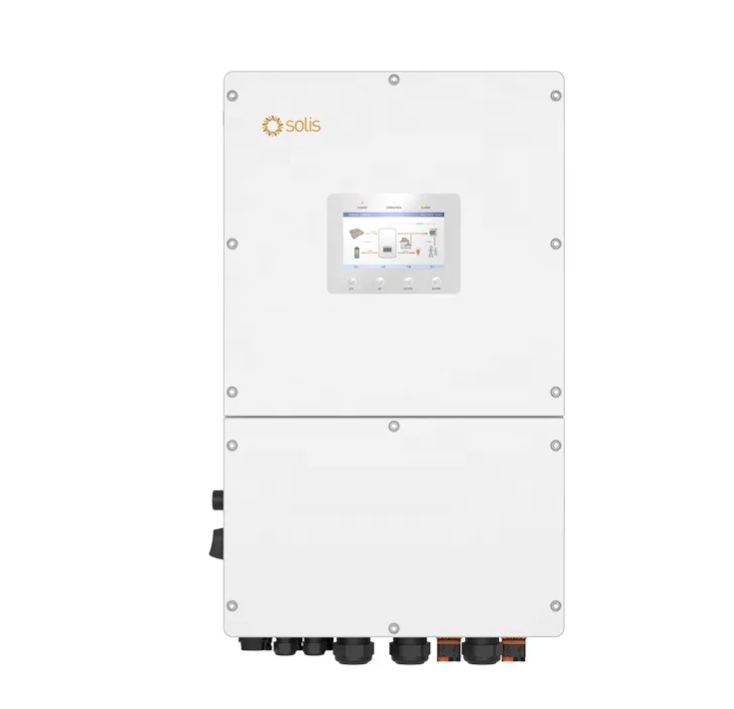

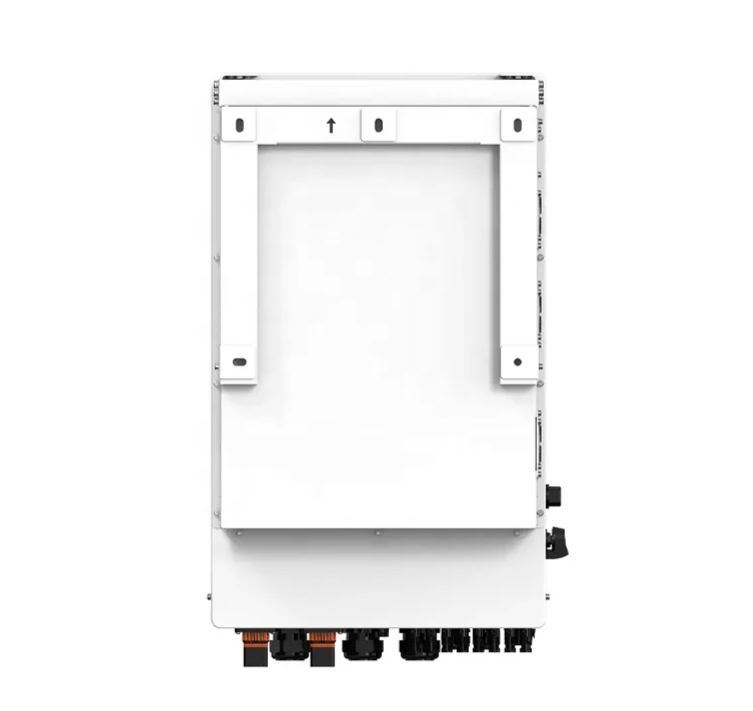

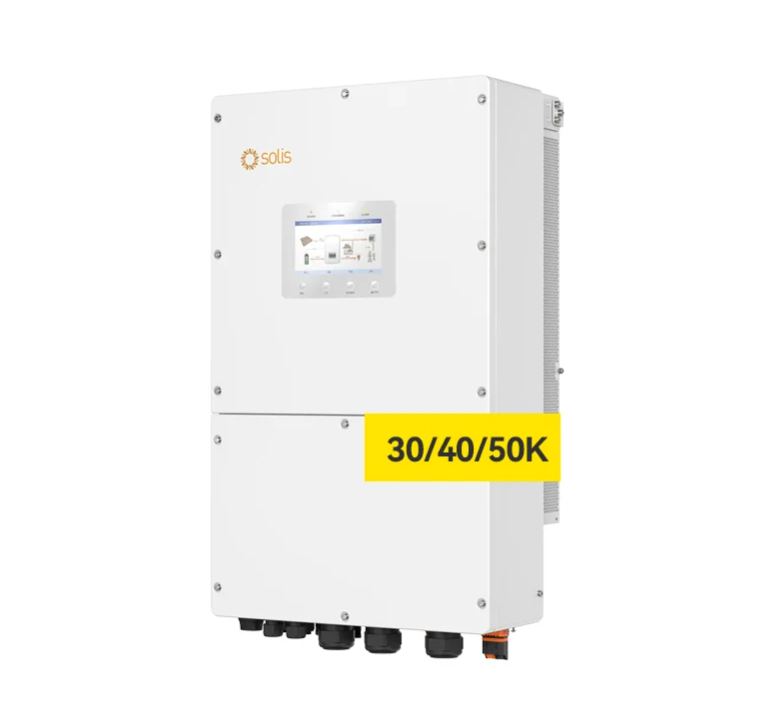

Solis 3 Phase Hybrid Inverter 30kw 40kw 50kw Power Inverter with WIFI Communication
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Models
|
29.9K
|
30K
|
40K
|
50K
|
|||
|
Input DC (PV side)
|
|
|
|
|
|||
|
Recommended max.PV array size
|
59.8 kW
|
60 kW
|
80 kW
|
100 kW
|
|||
|
Max.usable PV input power
|
59.8 kW
|
60 kW
|
80 kW
|
96 kW
|
|||
|
Max.input voltage
|
1000 V
|
|
|
|
|||
|
Rated voltage
|
600 V
|
|
|
|
|||
|
Start-up voltage
|
180 V
|
|
|
|
|||
|
MPPT voltage range
|
150 - 850 V
|
|
|
|
|||
|
Max. input current
|
40 A / 40 A / 40 A
|
|
4 × 40 A
|
|
|||
|
Max.short circuit current
|
60 A / 60 A / 60 A
|
|
4 × 60 A
|
|
|||
|
MPPT number / Max.input strings number
|
3 / 6
|
|
4 / 8
|
|
|||
|
Battery
|
|
|
|
|
|||
|
Battery type
|
Li-ion
|
|
|
|
|||
|
Battery voltage range
|
150 - 800 V
|
|
|
|
|||
|
Max.charge / discharge power
|
32.1 kW
|
33 kW
|
44 kW
|
55 kW
|
|||
|
Max.charge / discharge current
|
70 A × 2
|
|
|
|
|||
|
No.of battery inputs
|
2
|
|
|
|
|||
|
Max.charge / discharge power of each input
|
32.1 kW
|
33 kW
|
35 kW
|
35 kW
|
|||
|
Communication
|
CAN / RS485
|
|
|
|
|||
|
Output AC (Grid side)
|
|
|
|
|
|||
|
Rated output power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|||
|
Max.apparent output power
|
29.9 kVA
|
30 kVA
|
40 kVA
|
50 kVA
|
|||
|
Rated grid voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|
|
|
|||
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
|
|
|||
|
Rated grid output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|||
|
Max.output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|||
|
Power factor
|
> 0.99 (0.8 leading - 0.8 lagging)
|
|
|
|
|||
|
THDi
|
< 3%
|
|
|
|
|||
|
Input AC (Grid side)
|
|
|
|
|
|||
|
Max.AC passthrough current
|
90.8 A / 86.4 A
|
91.2 A / 86.6 A
|
121.6 A / 115.4 A
|
152 A / 144.4 A
|
|||
|
Rated input voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|
|
|
|||
|
Rated input frequency
|
50 Hz / 60 Hz
|
|
|
|
|||
|
Input Generator
|
|
|
|
|
|||
|
Max.input power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|||
|
Rated input current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|||
|
Rated input voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|
|
|
|||
|
Rated input frequency
|
50 Hz / 60 Hz
|
|
|
|
|||
|
Output AC (Back-up)
|
|
|
|
|
|||
|
Rated output power
|
29.9 kW
|
30 kW
|
40 kW
|
50 kW
|
|||
|
Max.apparent output power
|
1.6 times of rated power, 2 s
|
|
|
|
|||
|
Back-up switch time
|
< 10 ms
|
|
|
|
|||
|
Rated output voltage
|
3/N/PE, 220 V / 380 V; 3/N/PE, 230 V / 400 V
|
|
|
|
|||
|
Rated frequency
|
50 Hz / 60 Hz
|
|
|
|
|||
|
Rated output current
|
45.4 A / 43.2 A
|
45.6 A / 43.3 A
|
60.8 A / 57.7 A
|
76 A / 72.2 A
|
|||
|
THDv (@linear load)
|
< 2%
|
|
|
|
|||
|
Efficiency
|
|
|
|
|
|||
|
Max.efficiency
|
97.8%
|
|
|
|
|||
|
EU efficiency
|
97.4%
|
|
|
|
|||
|
BAT charged by PV max.efficiency
|
98.5%
|
|
|
|
|||
|
BAT charged / discharged to AC max.efficiency
|
97.5%
|
|
|
|
|||
|
Protection
|
|
|
|
|
|||
|
Anti-islanding protection
|
Yes
|
|
|
|
|||
|
Output over current protection
|
Yes
|
|
|
|
|||
|
Short circuit protection
|
Yes
|
|
|
|
|||
|
Integrated DC switch
|
Yes
|
|
|
|
|||
|
DC reverse-polarity protection
|
Yes
|
|
|
|
|||
|
Surge protection
|
DC Type II / AC Type II
|
|
|
|
|||
|
Integrated AFCI 2.0
|
Optional
|
|
|
|
|||
|
General Data
|
|
|
|
|
|||
|
Dimensions (W × H × D)
|
530 × 880 × 290 mm
|
|
|
|
|||
|
Weight
|
73 kg
|
|
|
|
|||
|
Topology
|
Transformerless
|
|
|
|
|||
|
Self-consumption (night)
|
< 35 W
|
|
|
|
|||
|
Operating ambient temperature range
|
-25 ~ +60°C
|
|
|
|
|||
|
Relative humidity
|
0 - 95%
|
|
|
|
|||
|
Ingress protection
|
IP66
|
|
|
|
|||
|

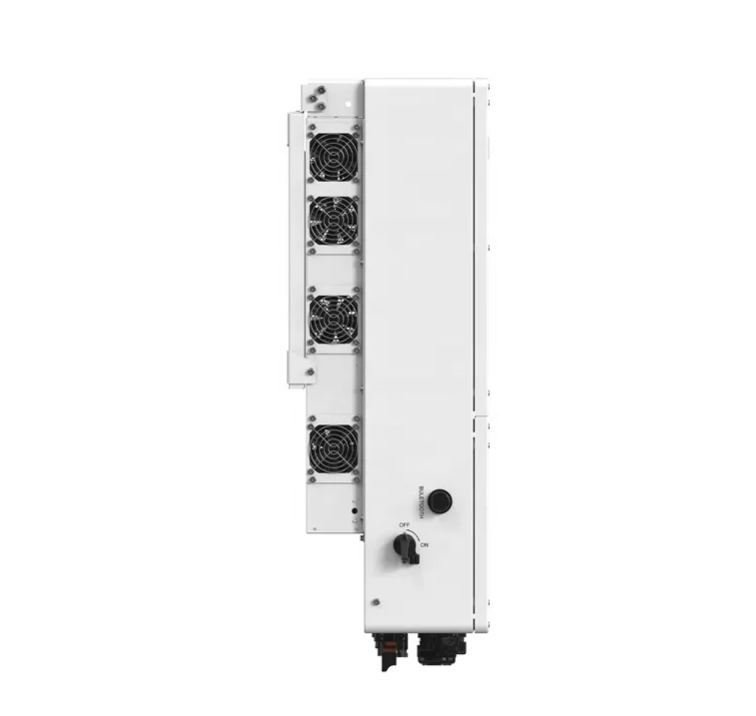

Cooling concept
|
Intelligent fan-cooling
|
|
|
|
|||
|
Max.operation altitude
|
4000 m
|
|
|
|
|||
|
Grid connection standard
|
G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1/EN 50549-10, VDE 0126/UTE C 15/VFR:2019,
NTS 631/RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, DOCUMENT NO. 140, OF MARCH 21, 2022 |
|
|
|
|||
|
Safety / EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4, EN 55011
|
|
|
|
|||
|

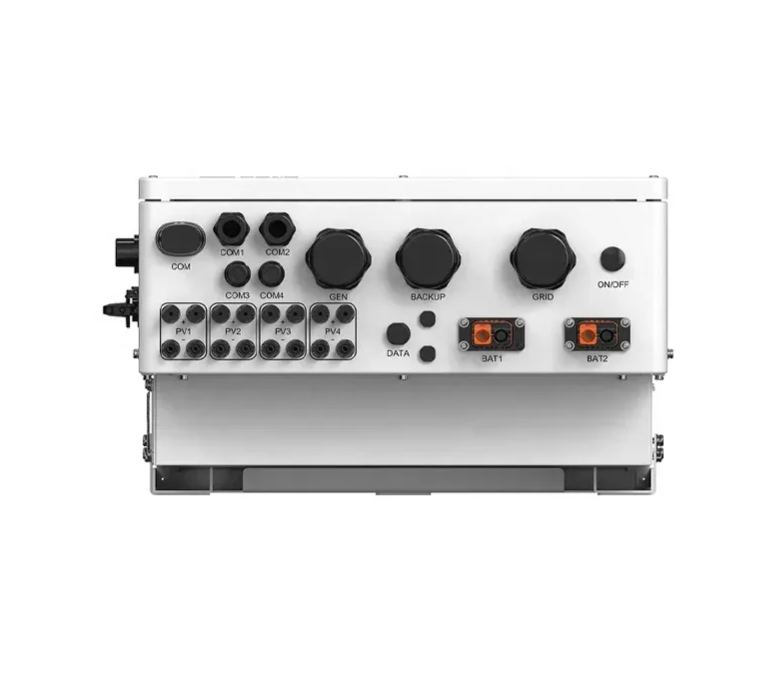

Features
|
|
|
|
|
|||
|
PV connection
|
MC4 Quick connection plug
|
|
|
|
|||
|
Battery connection
|
Terminal connector
|
|
|
|
|||
|
AC connection
|
Terminal Block
|
|
|
|
|||
|
Display
|
7.0" LCD display + APP
|
|
|
|
|||
|
Communication
|
CAN, RS485, Ethernet, Optional: Wi-Fi, Cellular, LAN
|
|
|
|
|||
