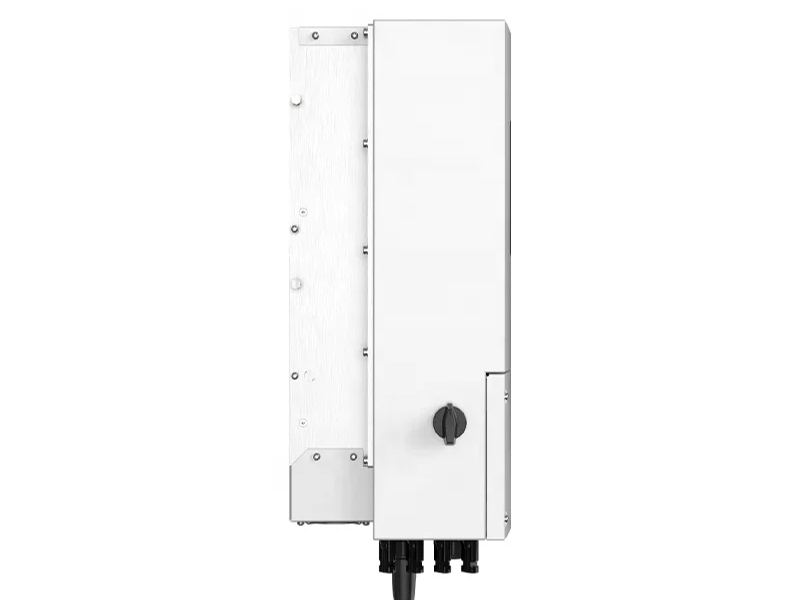

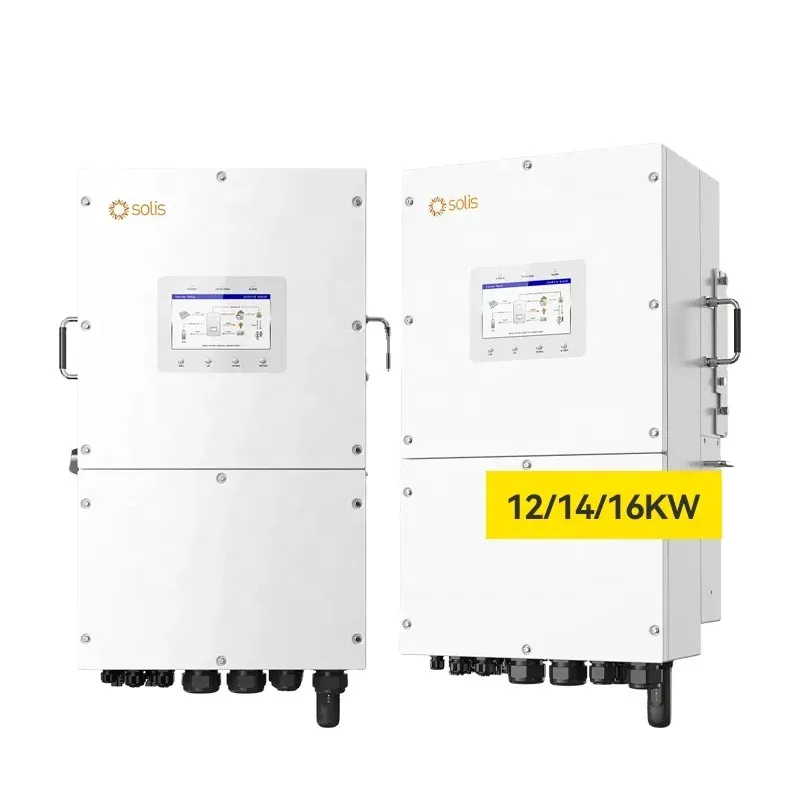

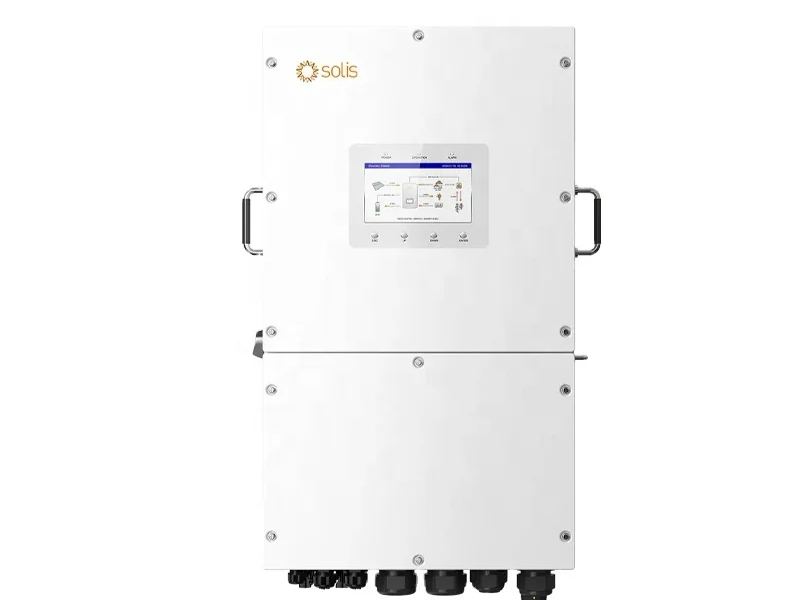

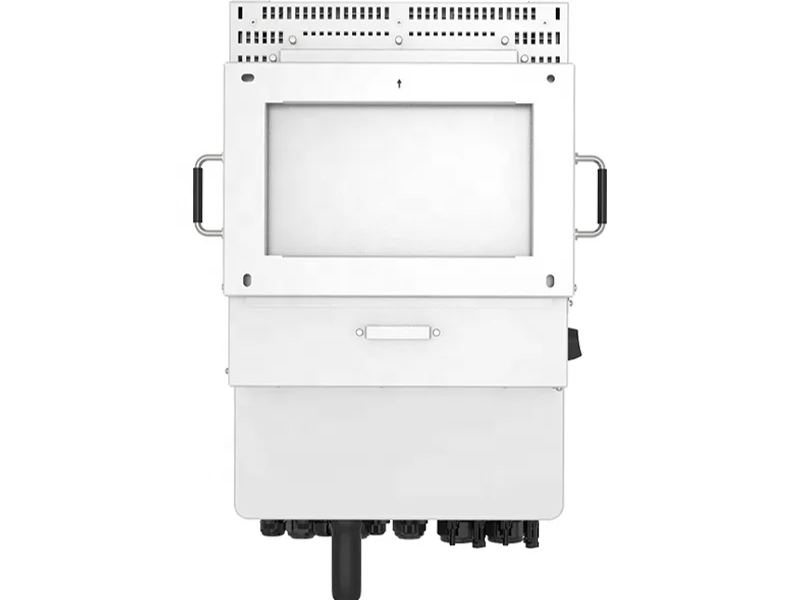

Solis Hybrid 5kw 8kw Single Phase 48V 51.2V Power Home 220V/230V Pure Sine Wave Mppt Inverters for Solar Energy System

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Products Description

Models	12K	14K	16K
Input DC (PV side)
Recommended max.PV array size	24 kW	28 kW	32 kW
Max.usable PV input power	19.2 kW	22.4 kW	22.4 kW
Max.input voltage	550 V
Rated voltage	380 V
Start-up voltage	100 V
MPPT voltage range	80-520 V
Max. input current	40 A / 40 A / 40 A
Max.short circuit current	50 A / 50 A / 50 A
MPPT number/Max.input strings number	3/6
Battery
Battery type	Li-ion / Lead-acid
Battery voltage range	40 - 60 V
Max.charge / discharge power	12 kW	14 kW	16 kW
Communication	CAN/RS485
Output AC (Grid side)
Rated output power	12 kW	14 kW	16 kW
Operation phase	L/N/PE
Rated grid voltage	220 V / 230 V
Rated grid frequency	50 Hz / 60 Hz
Rated grid output current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
Power factor	>0.99 (0.8 leading - 0.8 lagging)
THDi	<3%
Input AC (Grid side)
Input voltage range	187-253 V
Max. input current	81.8 A / 78.3 A	95.5 A / 91.3 A	109.1 A / 104.3 A
Frequency range	45-55 Hz/55-65 Hz
Output AC (Back-up)
Rated output power	12 kW	14 kW	16 kW
Max.apparent output power	2 times of rated power, 10 s
Back-up switch time	＜4 ms
Rated output voltage	L/N/PE, 220 V / 230 V
Rated frequency	50 Hz / 60 Hz
Rated output current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
THDv (@linear load)	<3%
Input Generator
Max.input power	12 kW	14 kW	16 kW
Max. input current	54.5 A / 52.2 A	63.6 A / 60.9 A	72.7 A / 69.6 A
Rated input frequency	50 Hz / 60 Hz
Efficiency
Max.efficiency	97.6%
EU efficiency	97.2%
BAT charged by PV Max.efficiency	> 94.9%
BAT charged/discharged to AC Max.efficiency	> 94.33%/93.51%
Protection
Surge protection	Yes
DC reverse-polarity protection	Yes (PV only)
Ground fault monitoring	Yes
Integrated AFCI 2.0	Optional
Protection class/Over voltage category	I / II (PV and BAT), III (MAINS and BACKUP and GEN)
General Data
Dimensions (W*H*D)	464*763*282 mm
Weight	48.5 kg
Topology	Transformerless
Operating ambient temperature range	-25 ~ +60°C
Ingress protection	IP66
Cooling concept	Intelligent redundant fan-cooling
Max.operation altitude	4000 m
Grid connection standard	NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Safety/EMC standard	IEC/EN 62109-1/-2, EN 61000-6-2/-3

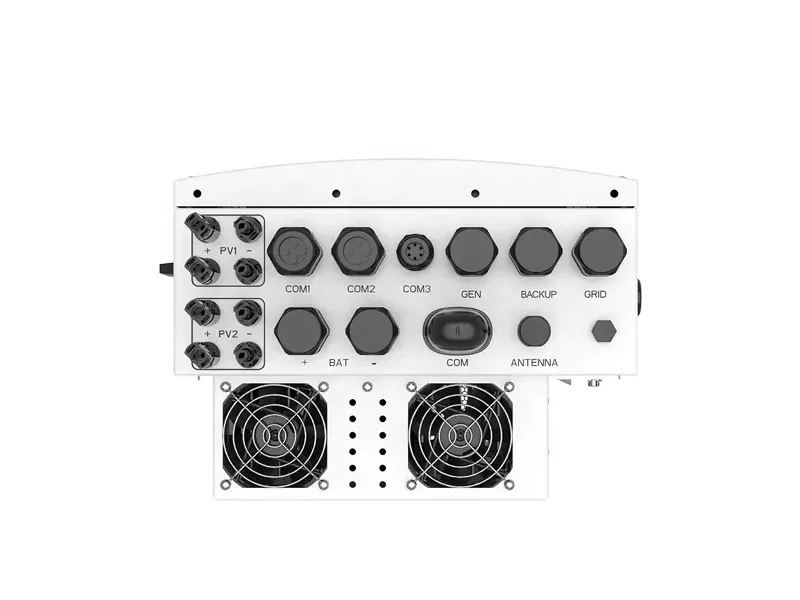

Features
DC connection	MC4 plug (PV port) / Terminal Block (BAT port)
AC connection	Terminal Block
Display	LCD  + APP
Communication	RS485, Optional: Cellular, Wi-Fi, LAN



Packing & Delivery



Project Case
