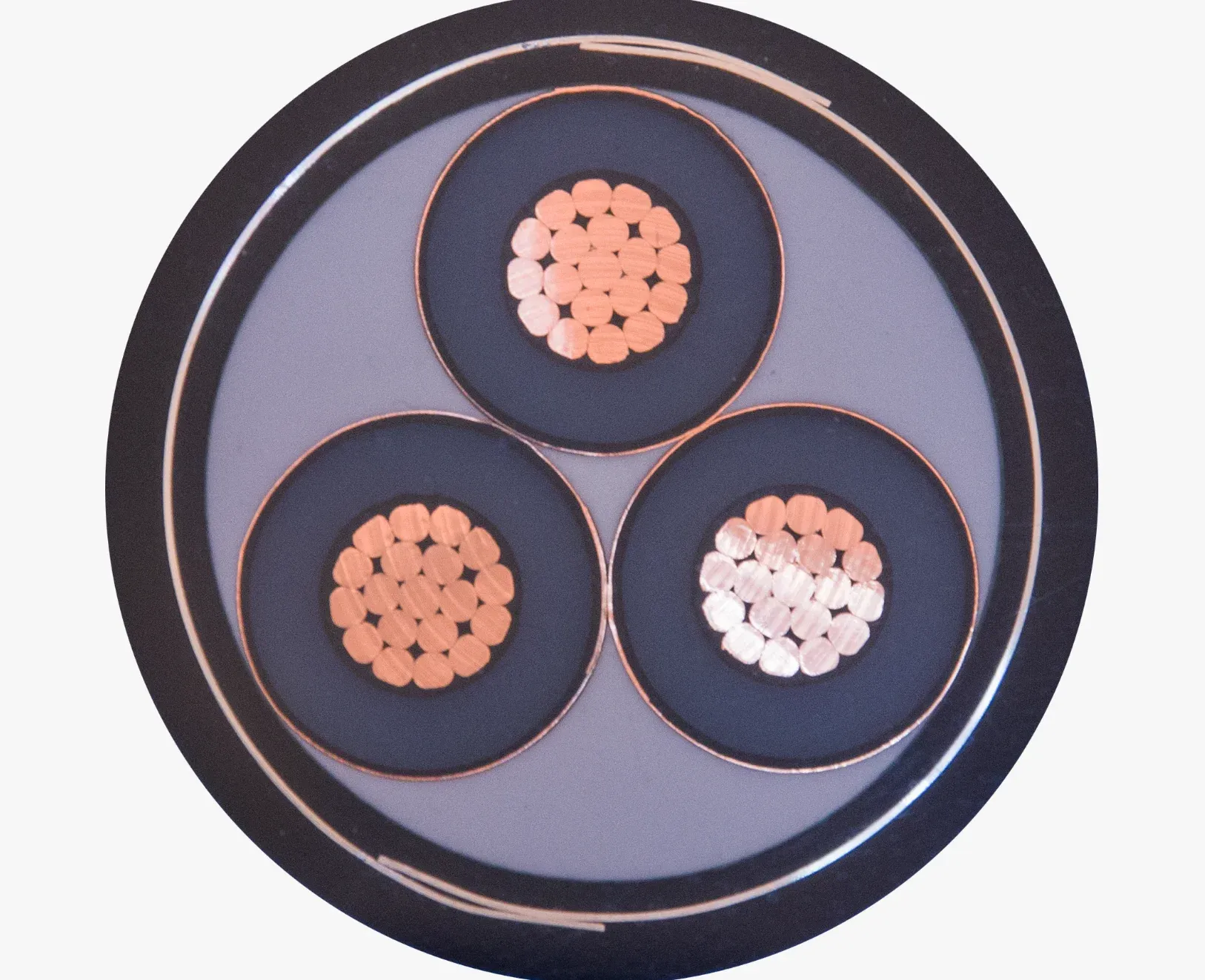

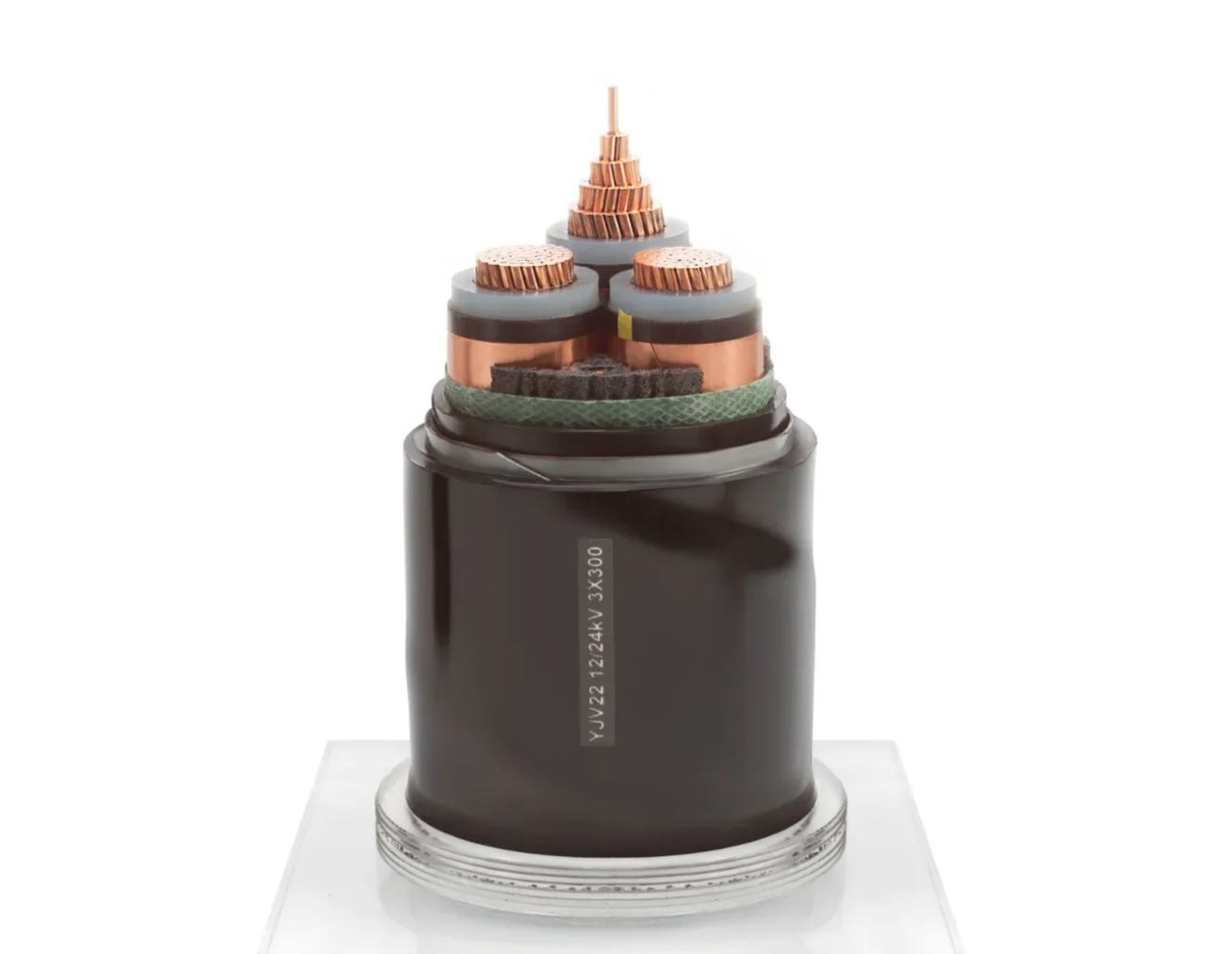

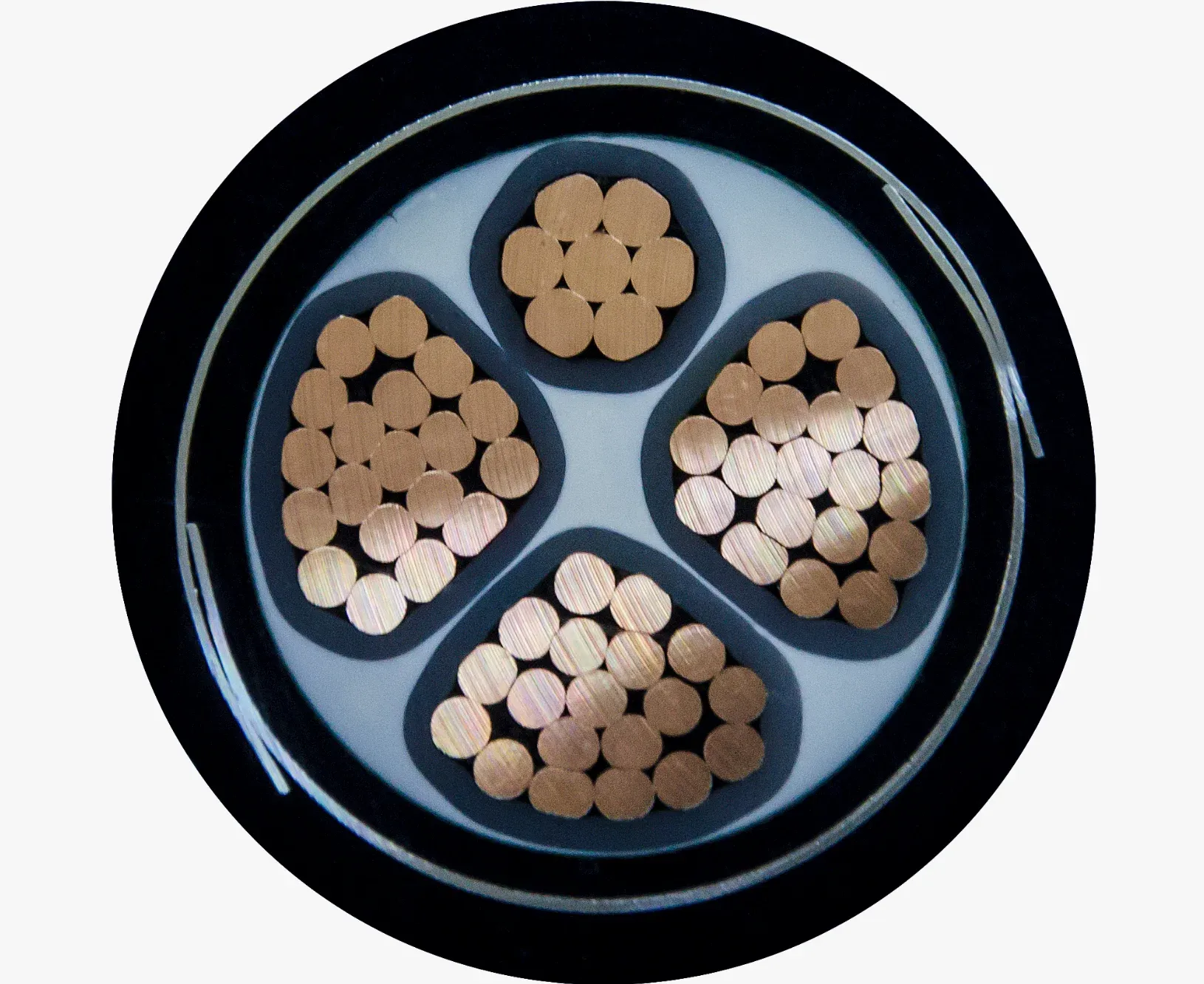

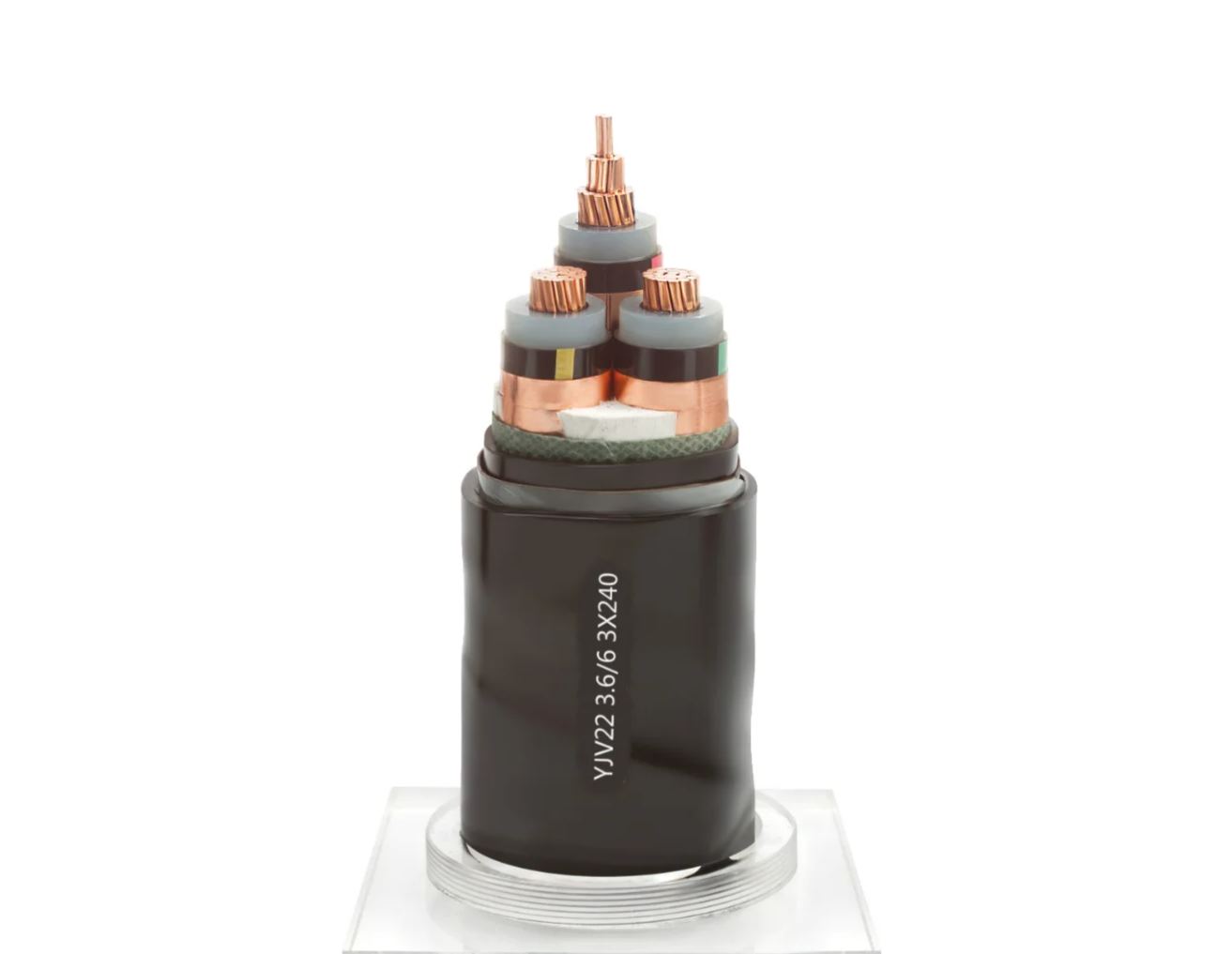

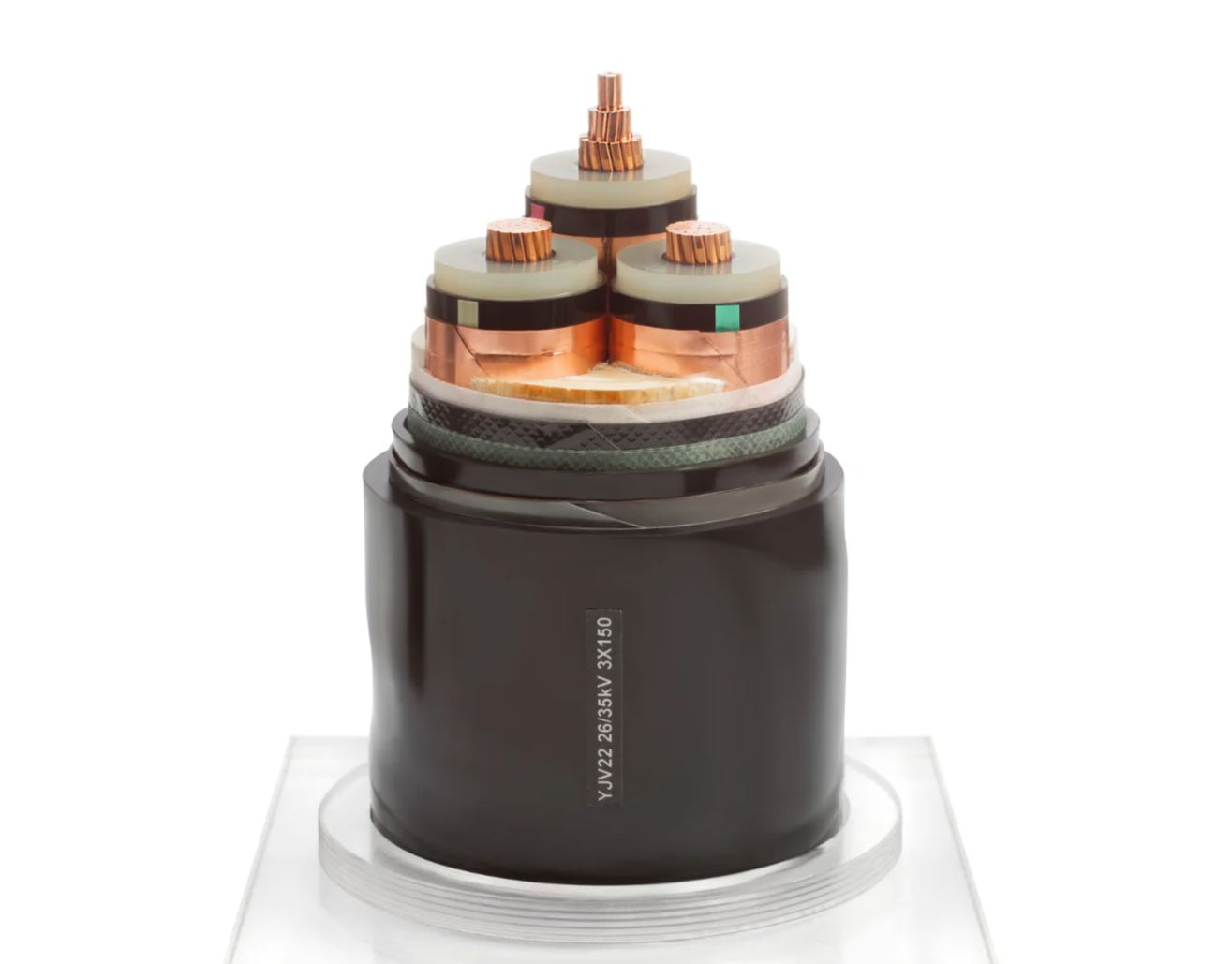

YJV32/VJLY32 0.6/1kV XLPE Insulated Steel Tape Armoured Power Cable Cu/Al FR NH LSZH Corrosion/Water/Abrasion/Crush Resistant

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Why Choose Us















Product Description

Standards Applied
International	IEC60502-1, IEC12706.1, IEC60332.1, IEC60332.2, IEC60332.3
National	GB/T 12706.1-2008   GB/T 2952
Usage Characteristics
Max.temperature conductorin service	90℃
Max.Short Circuit Temperature	250℃
Laying Temperature	While installation the ambient temperature should not be lower than 0C
Minimum bending radius when laying	Single core:r= 20x cable outer diameter
		Multi-core:r=15x cable outer diameter
Complements
Core identification (G- earth core,X - without earth core)	1x: White
		2x: Red, Yellow
		3x: Red, Yellow, Green
		3+1: Red, Yellow, Green& White or Black
		4x: Red, yellow, green, blue
		4+1: Red, Yellow, Green, Blue& White or Black
		5x: Red, Yellow, Green, Blue, Green/Yellow
Sheath Colour	The standard color is black, when required for a particular application, other colors are available
Package& Deliver	Package: Drum Lead time: 7 - 20 day
			Lead time: 7-20day

Key Property Comparison​
Feature	YJV22 (Steel Tape Armored)	YJV33 (Fine Steel Wire Armored)
​​Armor Type​​	Double-layer galvanized steel tape	Steel wire braid + composite armor
​​Tensile Strength​​	Moderate (general pressure)	Ultra-high (vertical installation)
​​Bending Radius​​	≥12×cable diameter	≥15×cable diameter (stricter)
​​Weight​​	Lighter (less steel)	Heavier (wire + tape structure)

Service characteristics

* The long-time working temperature of cable should not be highter than 10°c.
* When core is in short-circuit (max Ss) the temperature should not exceed 160°C.
* While installation the ambient teperature should not be lower than 0°C, and the bending radius shouldnot be less than 10 times of outer diameter of cable.

Application

The cable is used as power distribution and tra nsimssion line at rated voltage 0.6/lkV which can be fixed.

Installation

* The installation temperature should not over 20℃,if the ambient temperature is lower than 0℃,the cable should be preheated.
* The bending radius of cable should not less than 8 times.
* After installation,the cable should withstand voltage test for 15min.3.5kv d.c.

laying in the air

* As the single core cable laying inparallel,the distance between the cable:center is 2 times(forcables,which cross sectional area of conductor≤185mm2 ) and 90 mm,(for cables,which cross sectional area of conductor 240mm2 ).
* Ambient temperature:30℃ .
* Max.temperatureof conductor:70℃ .

Direct burial

* When the single core cables are installed separately,the distance between the cable:center is 2 times of the cable diameter.
* Ambient temperature:25℃ .
* Max.temperature of conductor:70℃ .
* Soil thermour resistivity:1.0℃.m/W.
* Depth:0.7 m.









Related Products

High and low voltage cross-linked cables
YJV YJLV	Copper-core or aluminum-core cross-linked polyethylene insulated, polyvinyl chloride sheathed power cable Cu and Al conductor,XLPE insulated,PVC sheathed electric cable
YJY YJLY	Copper-core or aluminum-core cross-linked polyethylene insulated polyethylene sheathed power cable Cu and Al conductor,XLPE insulated,PE sheathed electric cable
YJV22 23 YJLV22 23	Copper or aluminum core cross-linked polyethylene insulated steel tape armored PVC sheathed power cable Cu and Al conductor,XLPE insulated,steel tape armourd,PVC sheathed electric cable
YJV32 33 YJLV32 33	Copper or aluminum core cross-linked polyethylene insulated steel wire armored PVC polyethylene sheathed power cable Cu and Al conductor,XLPE insulated,steel wire armourd,PVC or PE sheathed electric cable
