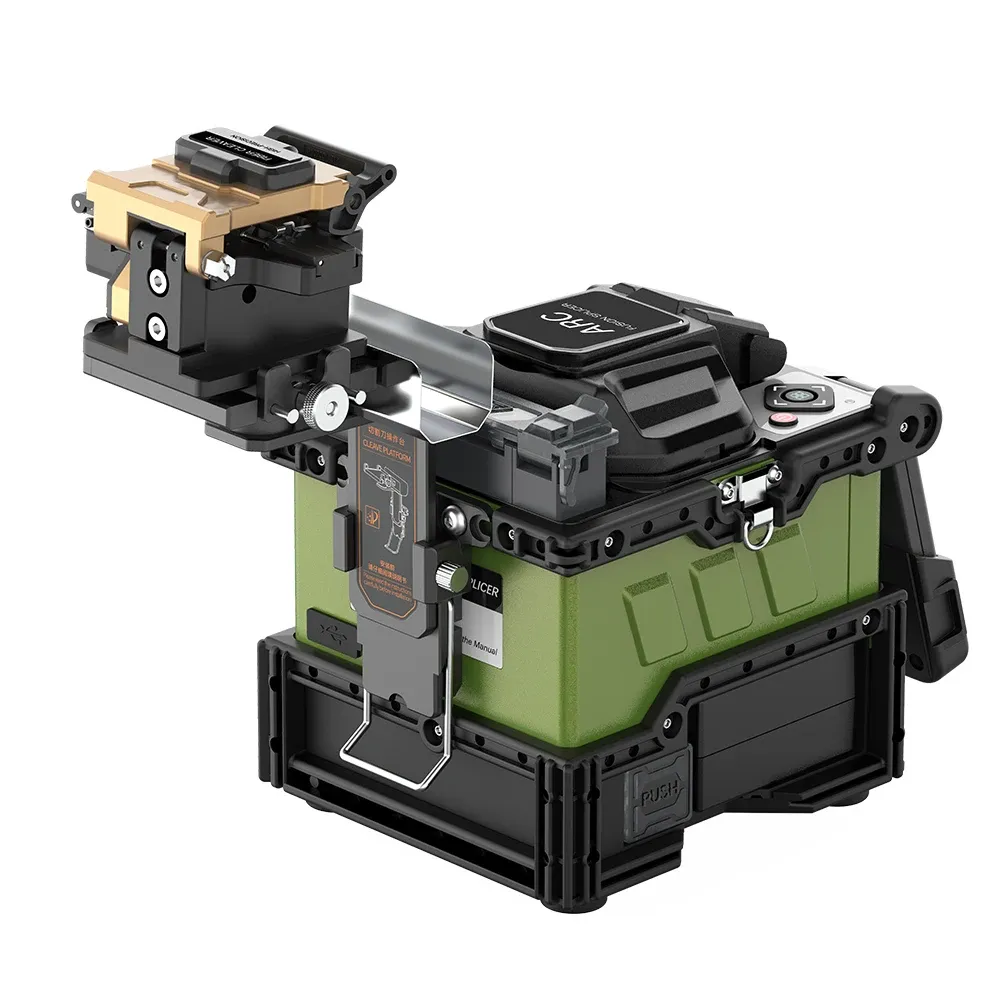

Komshine Factory Supply Optical Fiber Fusion Splicer MINI Handheld Fttx Fiber Splicing Machine FX39 Fusionadora De Fibra

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Specification

KomShine FX39 is a Six Motor Backbone Fusion Splicer, 6S fast splicing, 16S fast heating.Equipped with 6 motors and precise micro-step guides, less loss, faster time and higher work efficiency than 4-motor positioning fusion splicers.

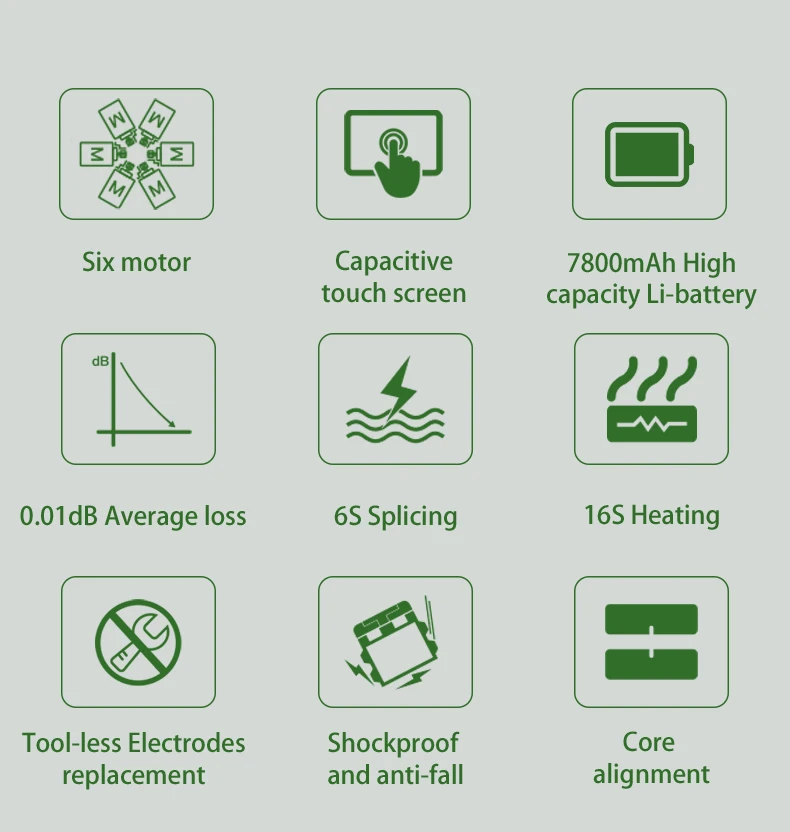

Features
1).High precision 6 motor backbone fusion splicer for FTTx project
2).Core alignment, which can clearly display the fiber core
3).High-capacity battery is 7800mAh, which can be used for about 400 cycles splicing and heating when fully charged
4).Can use for outdoor construction for 288& 128 core backbone cable
5).Appearance design closely follows the international counterparts

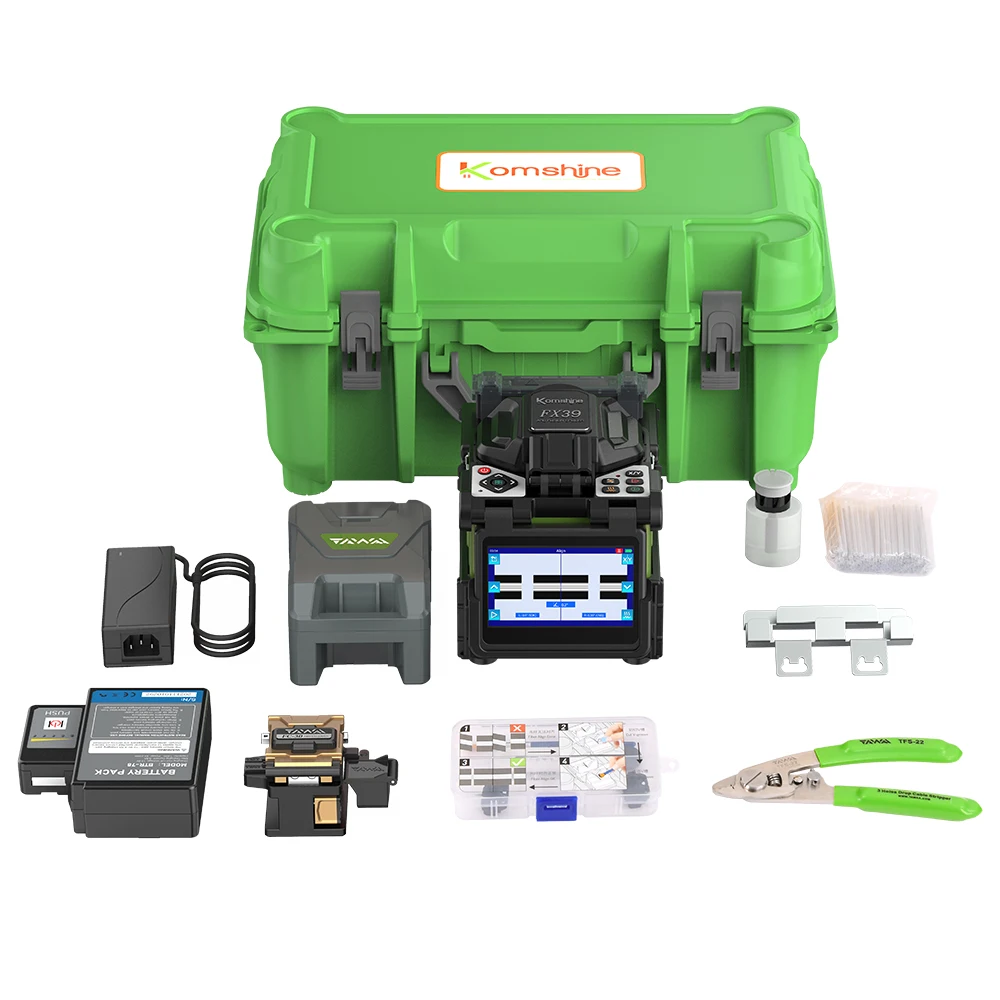

6).Carrying case designed with workbench, which can be loaded with more necessary construction tools (power meter,VFL, pliers,etc.



Fast charging, support more than400 times on one charge splicing +heating

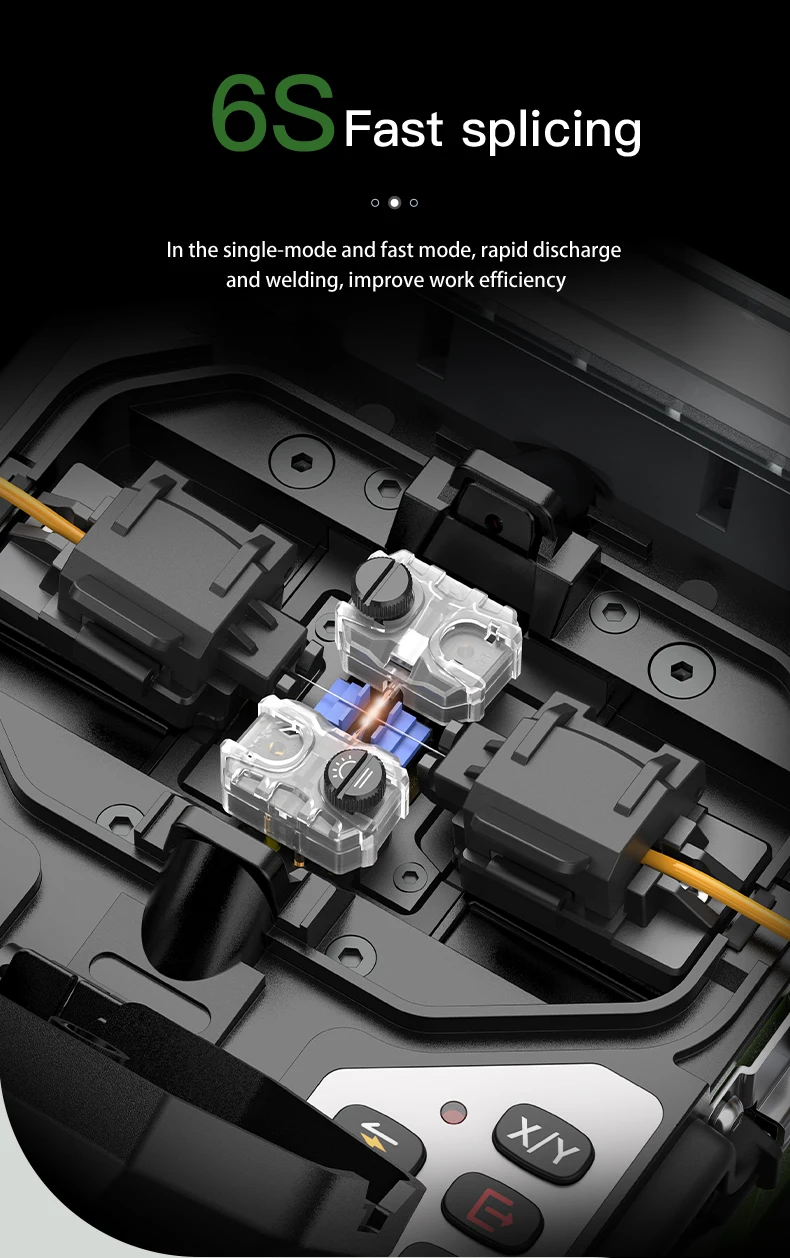

seconds fast splicing In the single-mode and fast mode,rapid dischargeand welding, improve work efficiency

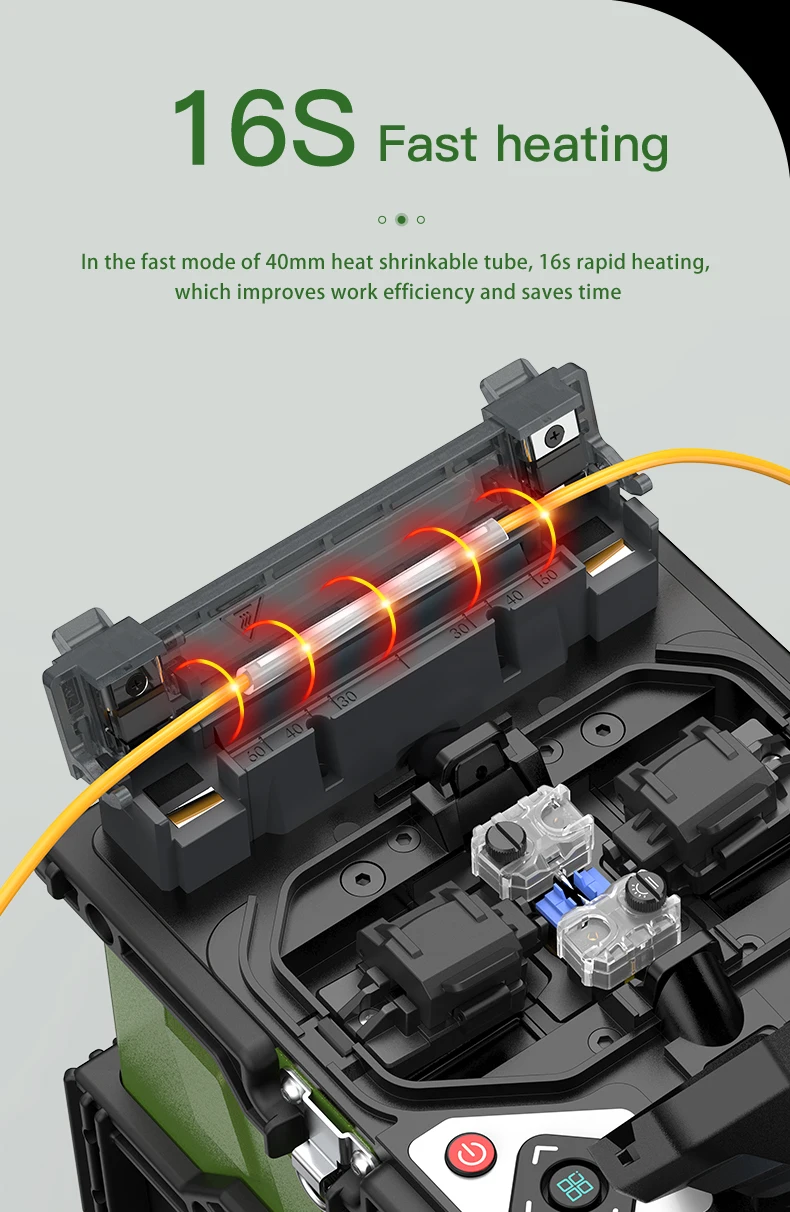

Fast heating in16 seconds In the fast mode of 40mm heat shrinkable tube, 16s rapid heating, which improveswork efficiency and saves time



6 motor positioning Equipped with 6 motors and precise micro-stepguides, less loss, faster time and higher workeffciency than 4-motor positioning fusion splicers

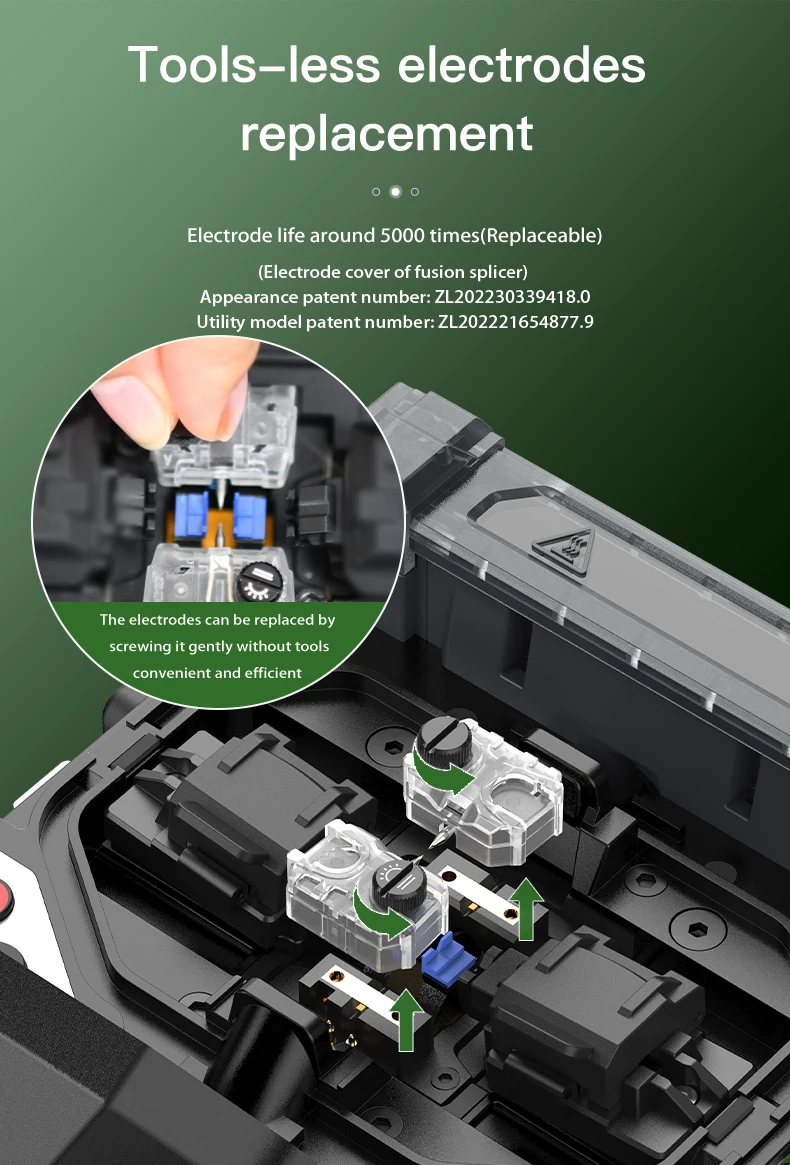

Innovatively no need tools to replace electrodes (Electrode cover of fusion splicer)Appearance patent application number:202230339418.0



Core alignment The 4.3-inch high-resolution color LCD is the display screen, providing customers with large and clear fiber core display images, splicing loss,core alignment,clear at a glance

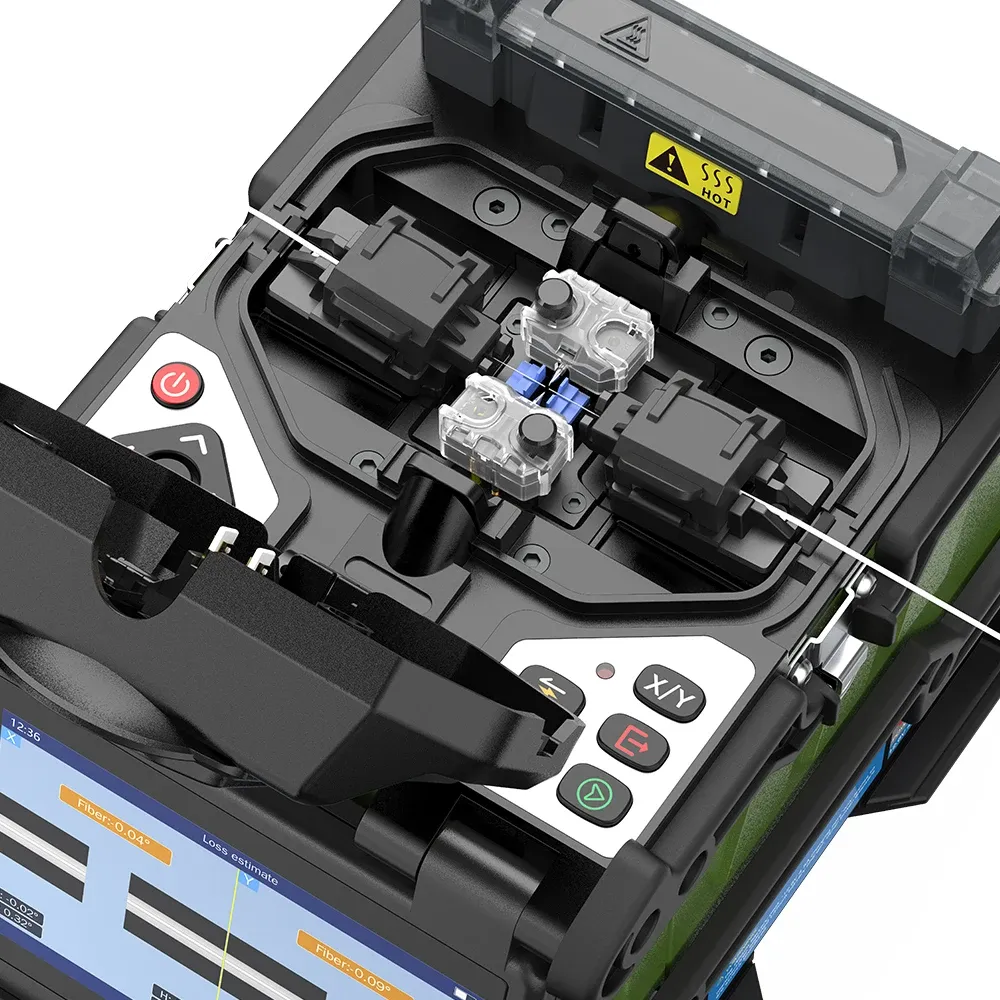

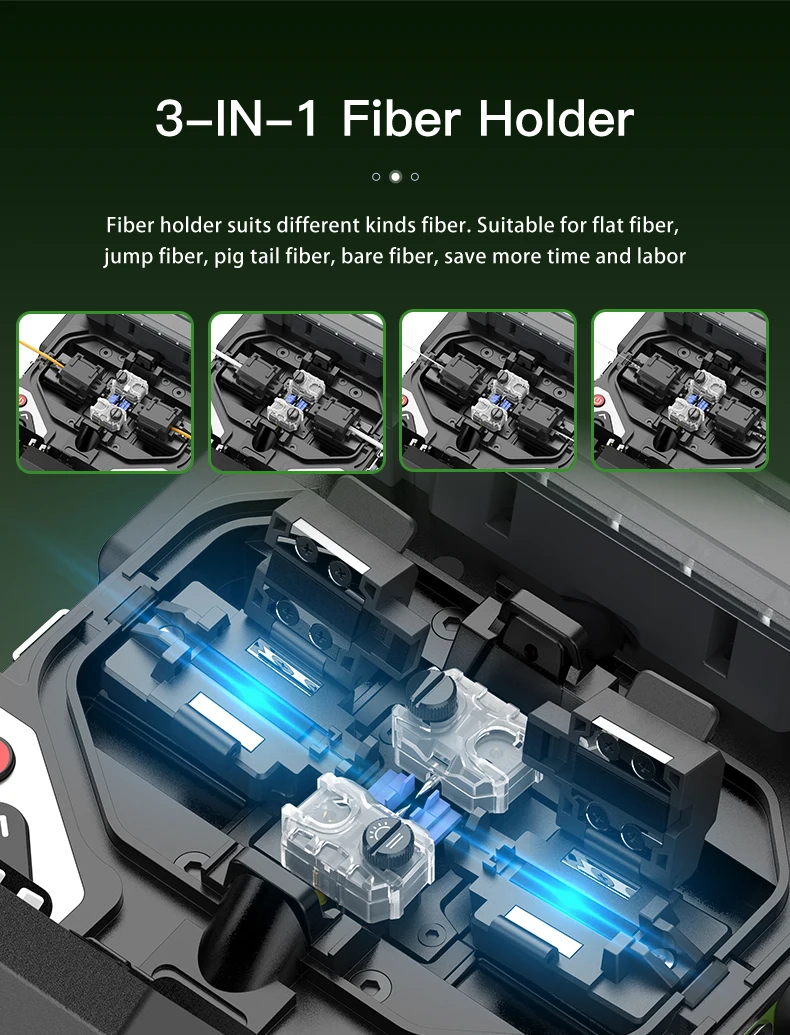

Three-in-one fxture Fully automatic splicing of optical fiber, savingtime and effort, splicing position with LED lighting

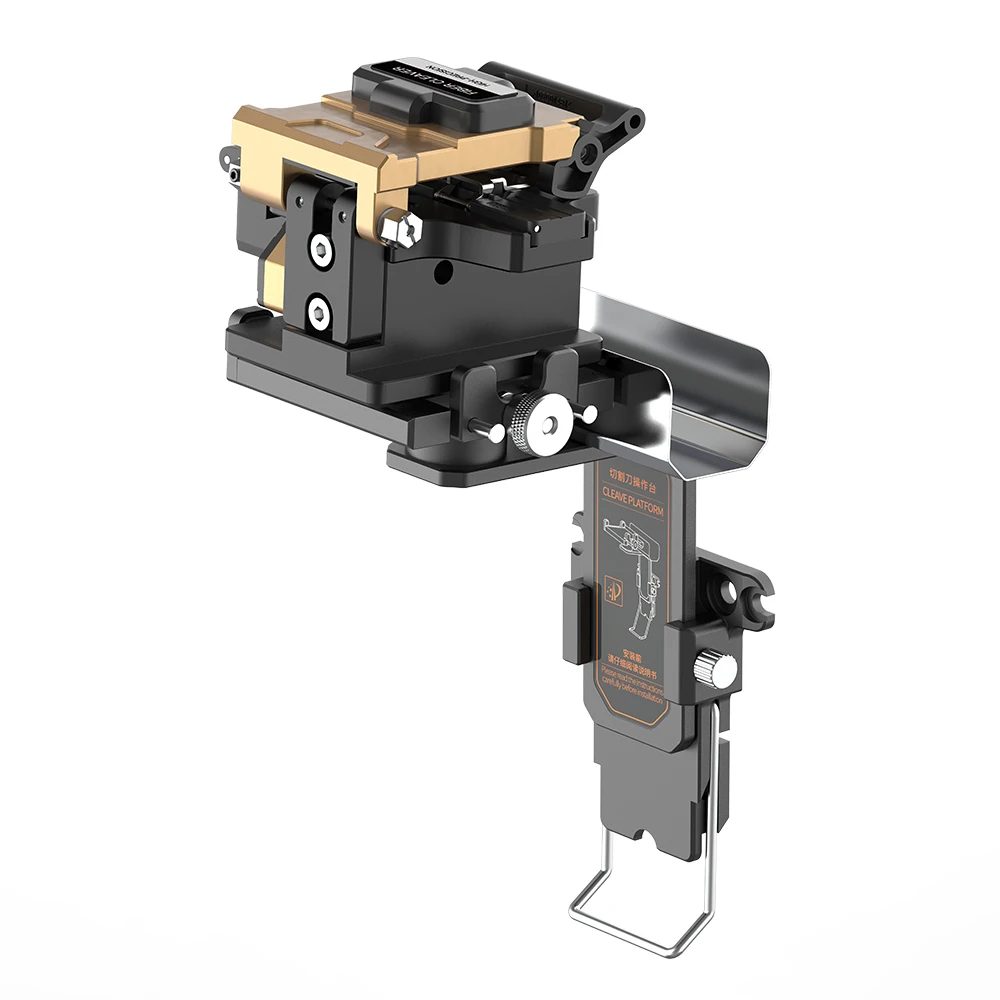

Rich expansibility fber opticcleaver operating platform Support the placement of cleaver operating platform,do cleaving and splicing work in one step

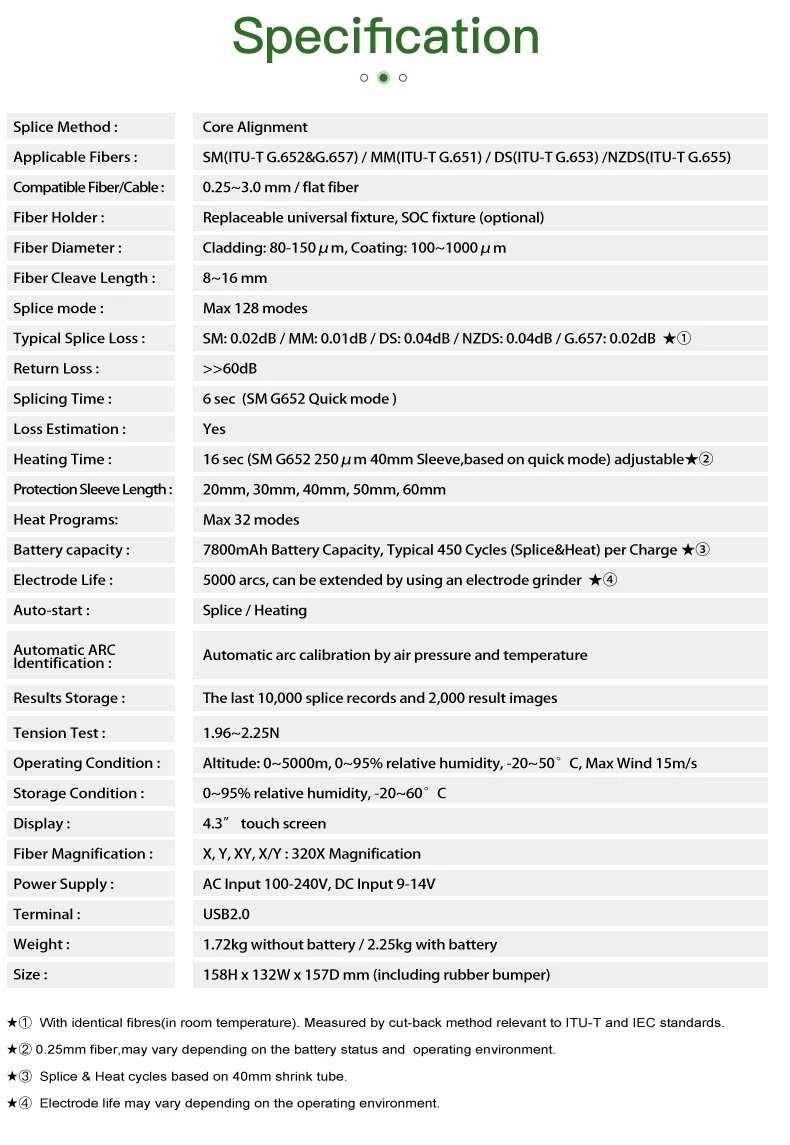

Splice Method	Core Alignment
Applicable Fibers	SM / MM / DS / NZDS
Compatible Fiber/Cable	0.25~3.0 mm / Rubber-insulated fiber cable
Fiber Holder	Replaceable universal fiber holder
Fiber Diameter	Cladding:80-150µm, Coating: 100-1000µm
Fiber Cleave Length	8~16 mm
Splice Mode	>>60dB
Splicing Time	6 sec (SM G652 Quick mode)
Estimated Splice Loss	Available
Heating Time	16 sec (SM G652 250μm 40mm Sleeve,based on quick mode) adjustable
Protection Sleeve Length	20mm, 30mm, 40mm, 50mm, 60mm
Heat Programs	Max 32 modes
Battery Capacity	7800mAh Battery Capacity, Typical 450 Cycles (Splice&Heat) per Charge
Electrode Life	5000 arcs, can be extended by using an electrode grinder
Auto-start	Splice / Heating
Display	4.3” touch screen
Power Supply	AC Input 100-240V, DC Input 9-14V
Terminal	USB2.0
Weight	1.72kg without battery / 2.25kg with battery
Size	158H x 132W x 157D mm (including rubber bumper)
