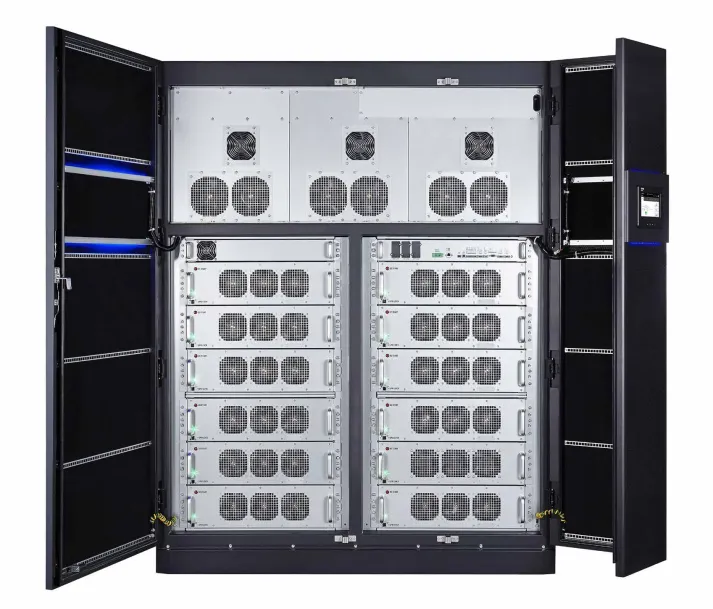

Eaton 9395XR Series Industrial Rechargeable Battery Pack with Fast Charging and Hot-Swappable Design
1601607912131_9395XR FRM 1.5MW DI TF RA 4W CN
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Eaton 9395XR UPS Technical Specifications
|
|
|
|
Power (kW)
|
125kW UPM
|
|
|
Rack Options
|
1500 / 1800；Optional Backfeed Protection
|
|
|
Efficiency in Energy Saving System (ESS) Mode
|
Up to 99%
|
|
|
Efficiency in Double Conversion Mode
|
Up to 97.5%
|
|
|
Parallel Function
|
Supports up to 4 units in external parallel operation
|
|
|
Battery Cold Start
|
Supported
|
|
|
Soft Start
|
Available for both utility and battery start; compatible with generator operation with customizable timing and power settings
|
|
|
General Characteristics
|
|
|
|
Withstand Current (Icc)
|
100 kA
|
|
|
Fault Recording Function
|
Supported
|
|
|
Critical Component Life Detection
|
Supported
|
|
|
Online Electronic Canary Test (ECT)
|
Supported
|
|
|
Energy Saving System (ESS) Parallel Operation
|
Supported
|
|
|
Input Characteristics
|
|
|
|
Voltage
|
380/400/415 V
|
|
|
Voltage Range
|
340-438 V line-to-line
196-253 V line-to-neutral |
|
|
Frequency Range
|
40-72 Hz
|
|
|
Power Factor
|
> 0.99
|
|
|
Input Current THD
|
< 3% @ 100% load capacity
|
|
|
Battery
|
|
|
|
Battery Type
|
Lithium battery, compatible with lead-acid and nickel-cadmium
|
|
|
Charging Method
|
Compatible with BMS, ABM or continuous float charging
|
|
|
Battery Voltage
|
Nominal 480 Vdc
|
|
|
Battery Connection
|
Supports parallel operation with 1+1 shared battery configuration
|
|
|
Output
|
|
|
|
Voltage
|
380/400/415V 4-wire
|
|
|
Frequency Range
|
50/60 Hz
|
|
|
Regulation
|
±1% steady state
|
|
|
Voltage THD
|
<1% (100% linear load)<3% (non-linear load)
|
|
|
Overload capacity
|
125% for 10 minutes
|
|
|
UPS Dimensions (mm)
|
|
|
|
1500kW
|
2000*865*1600
|
|
|
1800kW
|
2000*865*2400
|
|
|
Optional Accessories
|
• SNMP Card
• Modbus RTU • Industrial Relay Card • PXGMS Card • External Synchronization Control Box • Lithium Battery Cabinet • Wall-mount Kit and Top Exhaust Kit |
|
