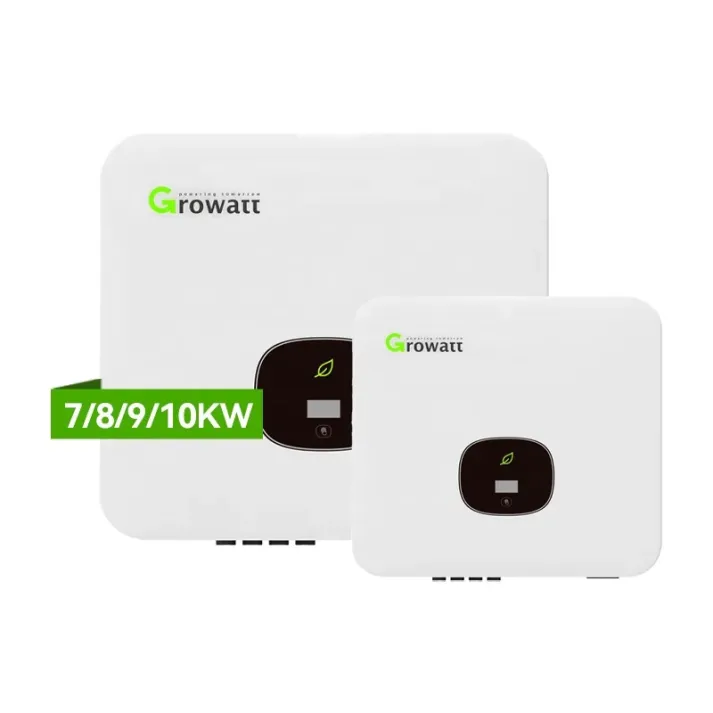

Solar Power System 10000w on Grid Inverter Residential Home Use 10kw Growatt Inverter Price
1600992937421_On-Grid Solar System_String Inverter
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Model Type
|
MIN 7000TL-X
|
MIN 8000TL-X
|
MIN 9000TL-X
|
MIN 10000TL-X
|
||||
|
Input Data(DC)
|
|
|
|
|
||||
|
Max.recommended PV power
(for modules STC) |
12000W
|
12000W
|
13500W
|
15000W
|
||||
|
Max.DC voltage
|
600V
|
|
|
|
||||
|
Start voltage
|
100V
|
|
|
|
||||
|
Nominal voltage
|
360V
|
|
|
|
||||
|
MPP voltage range
|
60-550V
|
|
|
|
||||
|
No.of MPP trackers
|
3
|
|
|
|
||||
|
No.of PV string per MPP tracker
|
1/1/1
|
|
1/1/2
|
|
||||
|
Max.input current per MPP tracker
|
13.5A/13.5A/13.5A
|
|
13.5A/13.5A/27A
|
|
||||
|
Max.short-circuit current per MPP tracker
|
16.9A/16.9A/16.9A
|
|
16.9A/16.9A/33.8A
|
|
||||
|
Output Data(AC)
|
|
|
|
|
||||
|
AC nominal power
|
7000W
|
8000W
|
9000W
|
10000W
|
||||
|
Max.AC apparent power
|
7000VA
|
8000VA
|
9000VA
|
10000VA
|
||||
|
Nominal AC voltage range
|
220V/160-300V
|
|
|
|
||||
|
AC grid frequency range
|
50/60Hz (44-55Hz/54-65Hz)
|
|
|
|
||||
|
Max.output current
|
33.5A
|
38.3A
|
43A
|
45.5A
|
||||
|
Adjustable power factor
|
0.8 leading…0.8 lagging
|
|
|
|
||||
|
THDi
|
﹤3%
|
|
|
|
||||
|
AC grid connection type
|
single phase
|
|
|
|
||||
|
Efficiency
|
|
|
|
|
||||
|
Max.efficiency
|
98.10%
|
|
|
|
||||
|
European efficiency
|
97.30%
|
|
97.60%
|
|
||||
|
MPPT efficiency
|
99.50%
|
|
|
|
||||
|
Protection Devices
|
|
|
|
|
||||
|
DC reverse polarity protection
|
yes
|
|
|
|
||||
|
DC switch
|
yes
|
|
|
|
||||
|
AC/DC surge protection
|
Type II/Type III
|
|
|
|
||||
|
Insulation resistance monitoring
|
yes
|
|
|
|
||||
|
AC short-circuit protection
|
yes
|
|
|
|
||||
|
Ground fault monitoring
|
yes
|
|
|
|
||||
|
Grid monitoring
|
yes
|
|
|
|
||||
|
Anti-islanding protection
|
yes
|
|
|
|
||||
|
Residual-current monitoring unit
|
yes
|
|
|
|
||||
|
AFCI protection
|
Optional
|
|
|
|
||||
|
General Data
|
|
|
|
|
||||
|
Dimensions(W/H/D)
|
425x387x180mm
|
|
|
|
||||
|
Weight
|
18.2kg
|
|
|
|
||||
|
Operating temperature range
|
-25℃-+60℃
|
|
|
|
||||
|
Nighttime power consumption
|
﹤1W
|
|
|
|
||||
|
Topology
|
Transformerless
|
|
|
|
||||
|
Cooling
|
Natural convection
|
|
|
|
||||
|
Protection degree
|
IP 66
|
|
|
|
||||
|
Relative humidity
|
0-100%
|
|
|
|
||||
|
Altitude
|
4000m
|
|
|
|
||||
|
DC connection
|
H4/MC4 (Optional)
|
|
|
|
||||
|
AC connection
|
Cable gland+OT terminal
|
|
|
|
||||
|
Display
|
OLED+LED/WIFI+APP
|
|
|
|
||||
|
Interfaces:RS485/USB/WIFI/GPRS/RF/LAN
|
Yes/Yes/Optional/Optional/Optional/Optional
|
|
|
|
||||
|
Warranty:5 years/10 years
|
Yes/Optional
|
|
|
|
||||
|
CE, IEC 62116, IEC 61727, IEC62109, INMETRO, AS4777
|
|
|
|
|
||||
