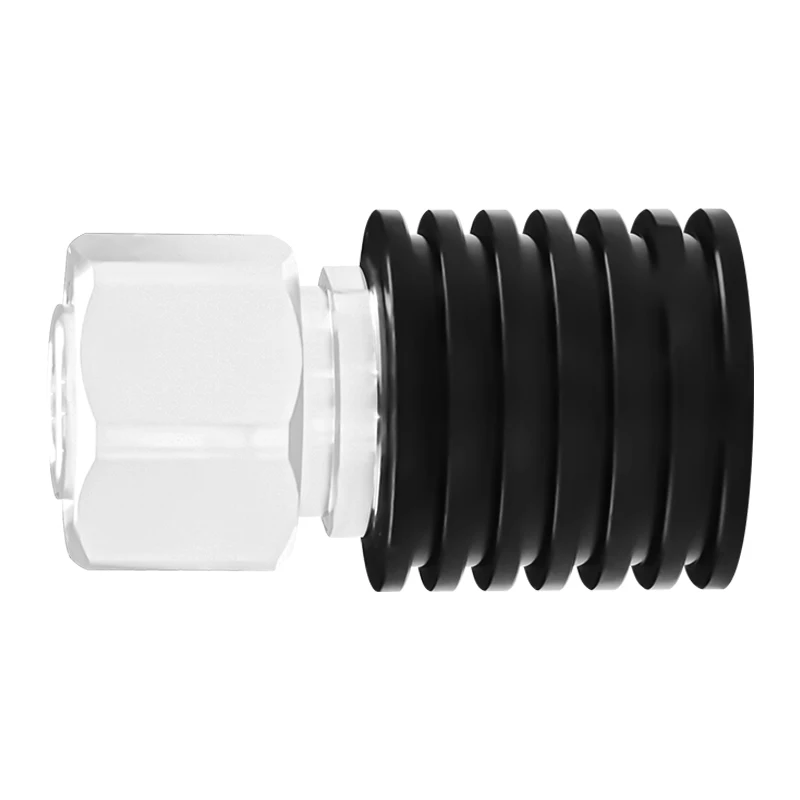

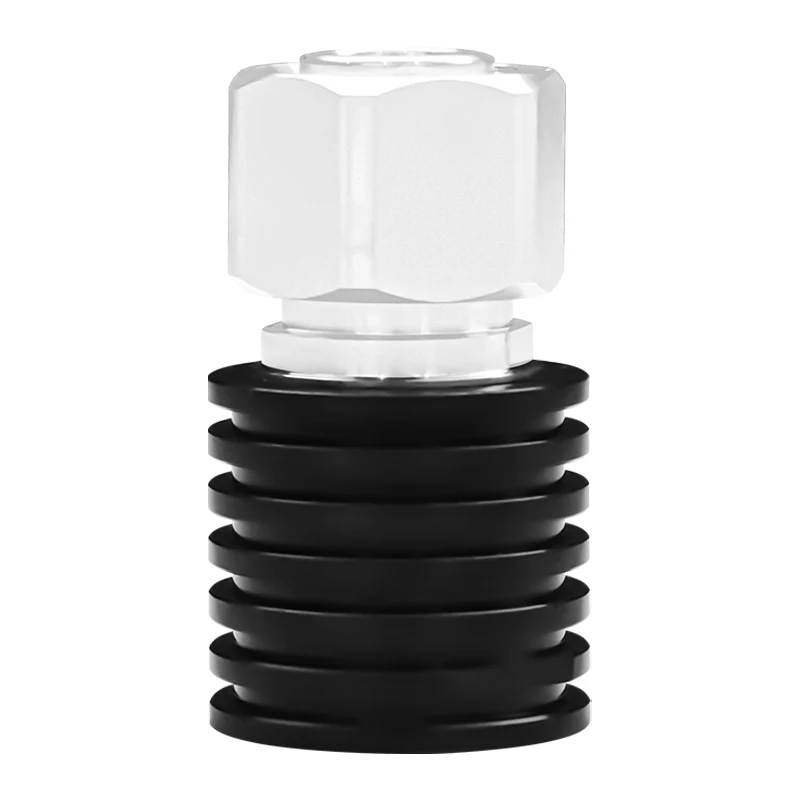

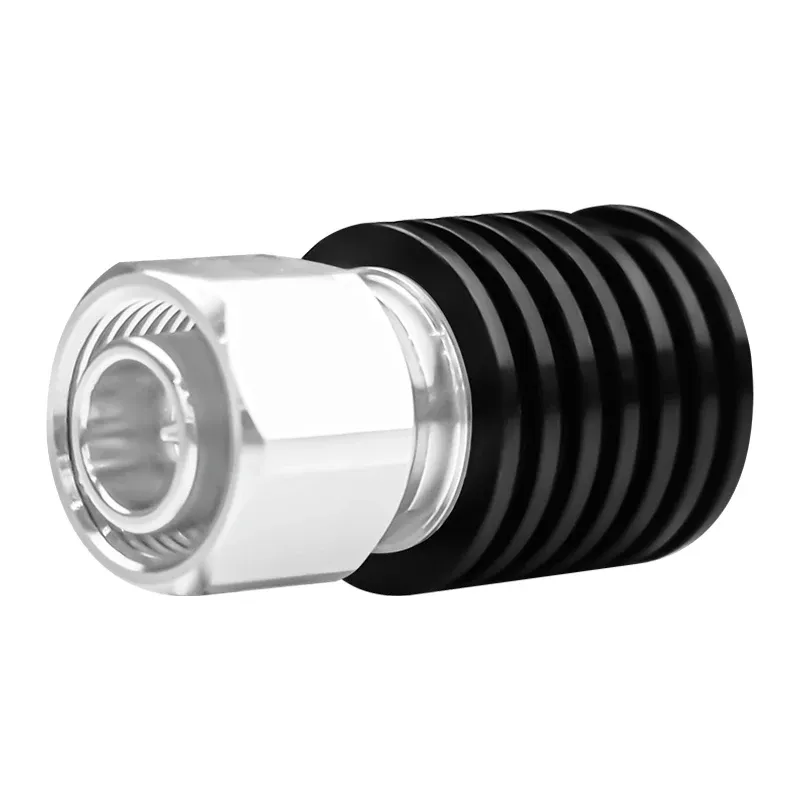

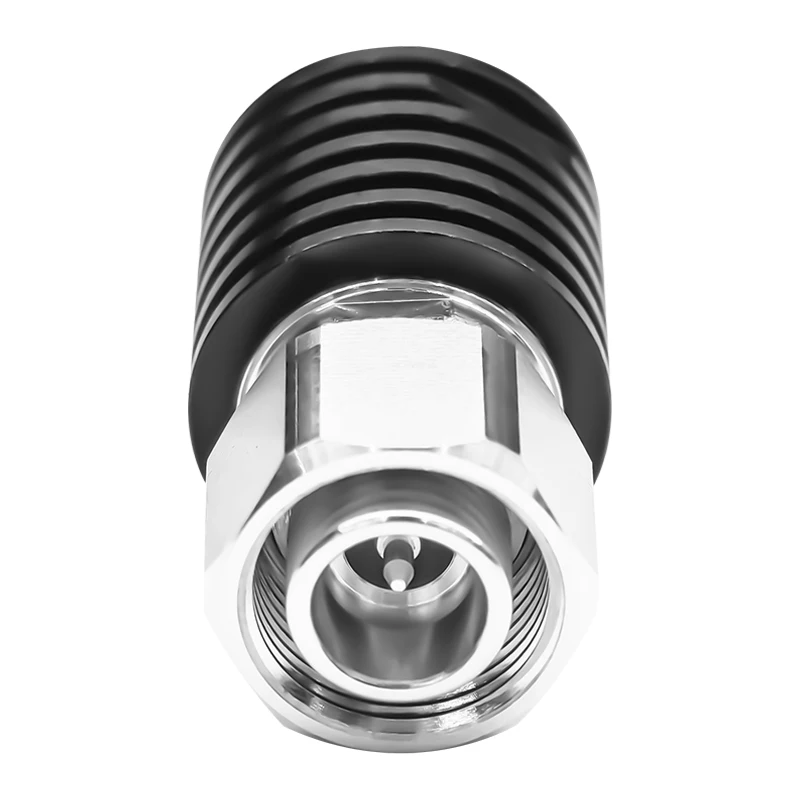

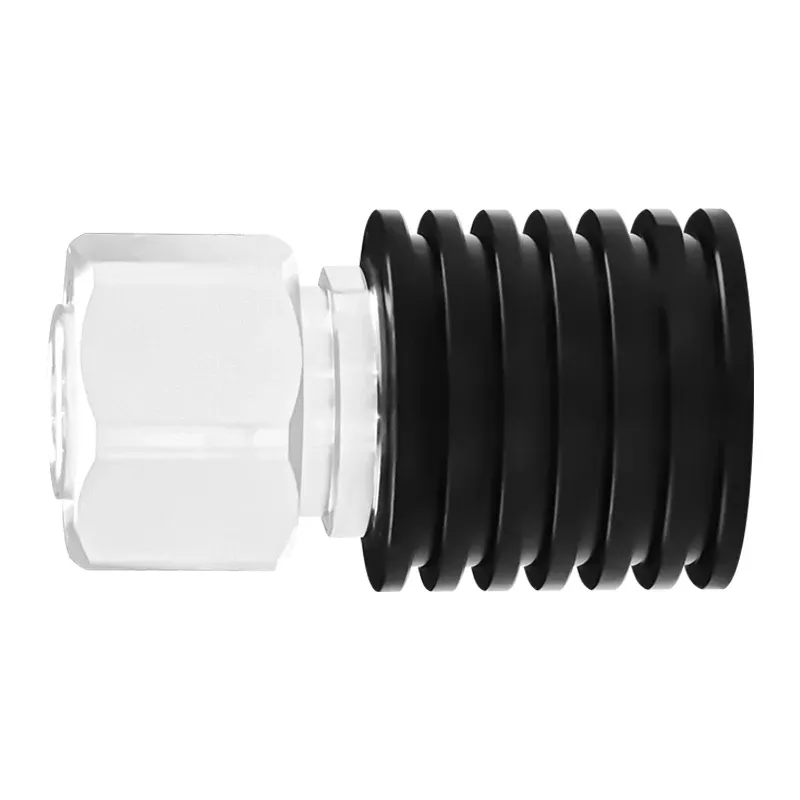

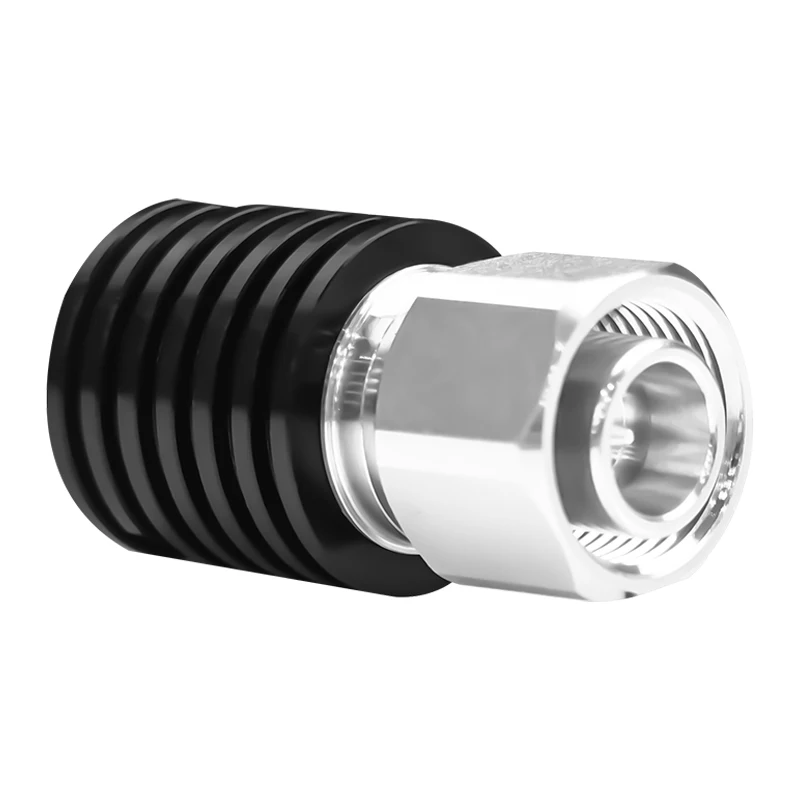

RF Dummy Load 2W DC-6GHz 50ohm 2.2-5 Type Termination Loads for Terminating Cell Site Radio Combiner and Unused Antenna Ports
1601669744586_MRDL-2-6G-2.2-5
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product descriptions from the supplier
Coaxial fixed Termination Load absorb RF/Microwave energy and are commonly used as dummy loads of antenna and transmitter.They are used as match ports in many multiport microwave device such as circulator and directional coupler to make these ports which are not involved in the measurement be terminated in the characteristic impedance in order to ensure an accurate measurement.
SETSAIL serial coaxial fixed dummy load average power 2W-10KW, frequency range DC-18GHz and feature wide frequency band, low VSWR., excellent capacity in anti-plusesand anti-burnout.
Technical Specifications for DC-6 GHz 2W Dummy Load/Termination Load 2.2-5 type:
|
Product Name |
DC-6GHz RF Dummy load |
|
Frequency(GHz) |
DC -6GHz |
|
Power Capacity (watt) |
2W |
|
VSWR |
1.2:1 |
|
Nominal Impedance(Ohm) |
50 Ohms |
|
Connector Type |
2.2-5 |
|
Male Pin |
BLACK |
|
Tem Range (degree) |
-25~+65 |
Notes:
1. Dimensions Tolerance: ±0.2
2.Dimensions and specifications refer to connector type N unless otherwise specified.
3. Custom designs available.
10W Coaixal Fixed Termination Load is just one of SETSAIL's RF Load Products Line. SETSAIL is capable of
manufacturing and providing 1W, 2W, 5W, 10W 15W, 20W, 25W, 30W 50W 100W 200W, 300W, 500W RF
Dummy Load. The Frequency can reach DC-3G, DC-6G, DC-8G, DC-12.4G ,DC-18G, DC-26G, DC-40G. RF Connectors can be N-type, SMA-type, DIN type, TNC-type and BNC-type.
DC -3 GHz 10W Dummy Load/Termination Load N type image:

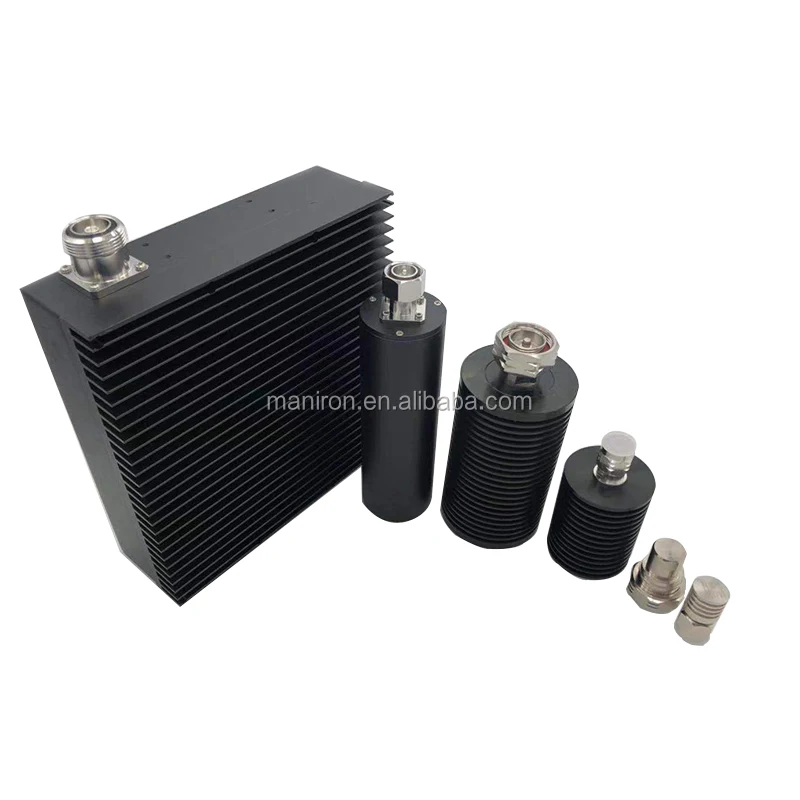

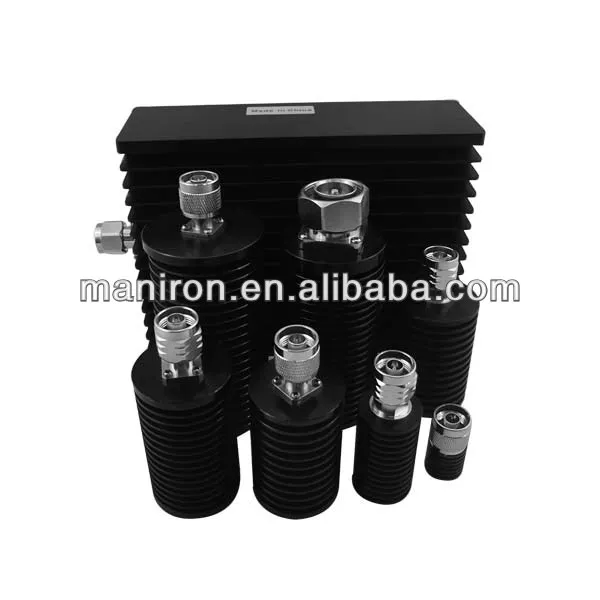

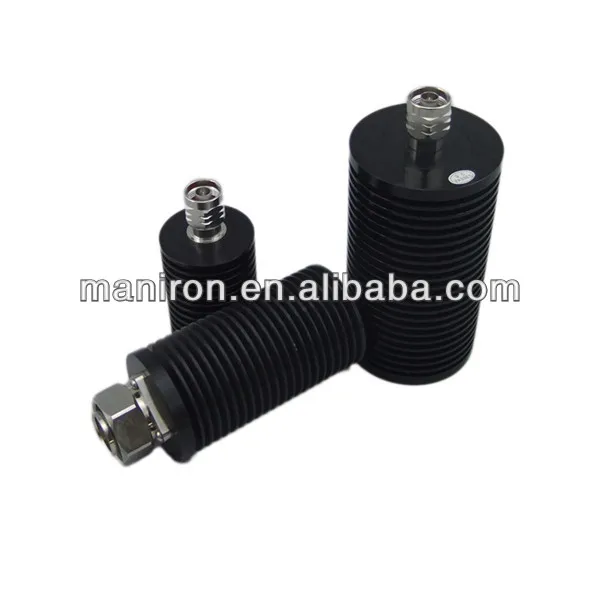

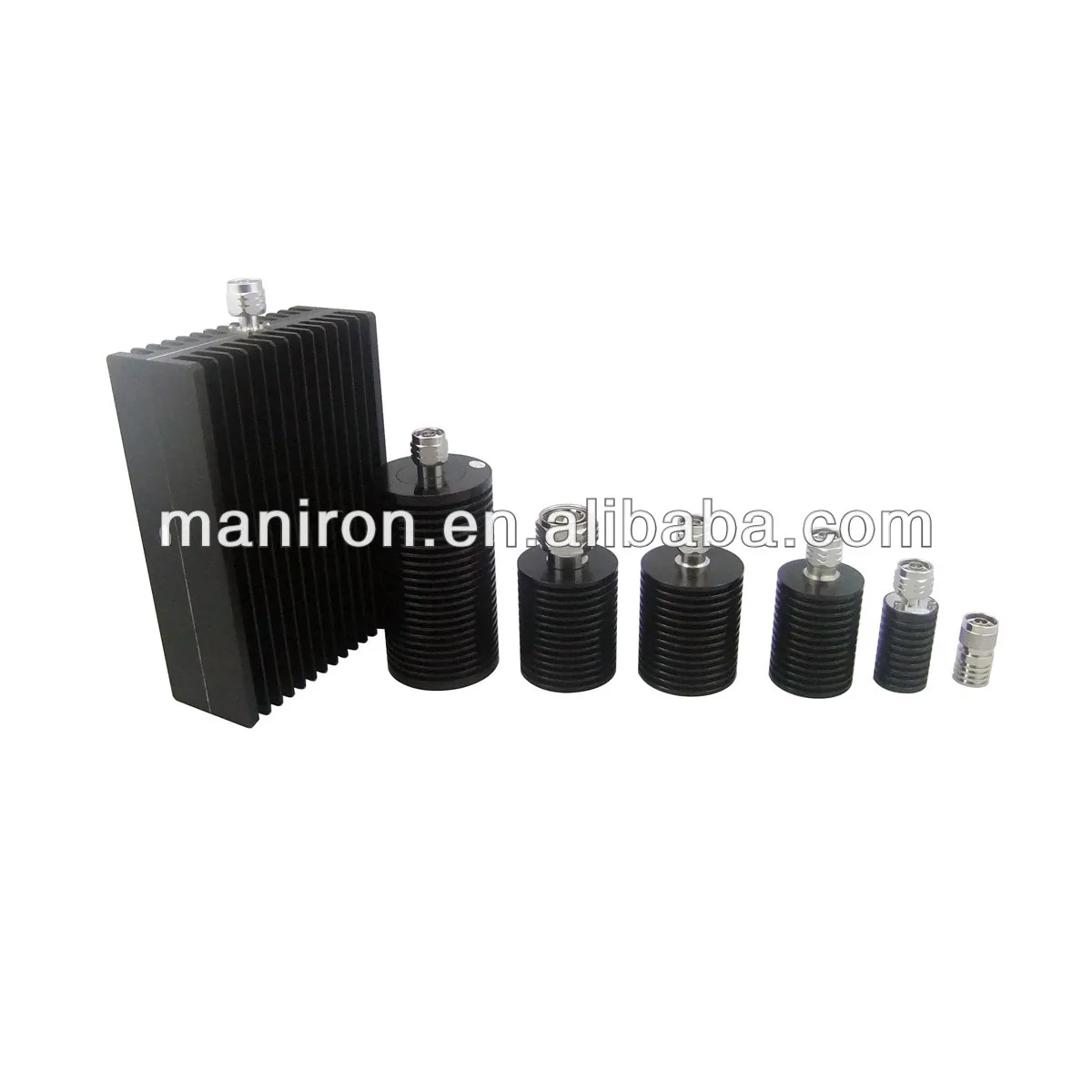

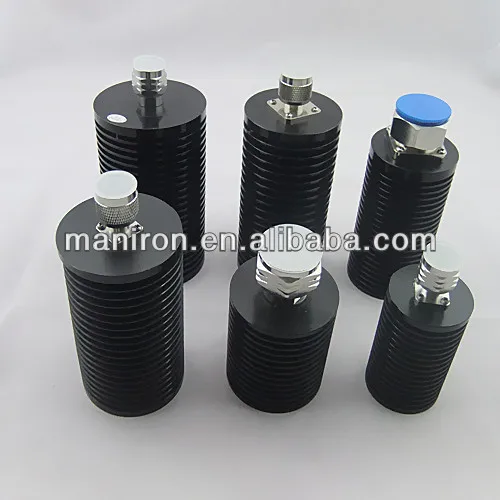

5w/10w/30w/50w/100w/200w Dummy load/Termination Load N-male or DIN-male:
Q:What is your payment terms?
A:We accept the T/T, Western Union, L/C and so on.
Q:When can you arrange the shipment after I have placed an order?
A: we can arrange shipment within 3days.If for the earphone and antenna, usually we can arrange the shipment 5-7days.
Q: Could you supply the sample for me to test first ?
A: Yes, we can supply the sample first, however, the customer should bear the cost.
Q: What is the MOQ of your products?
A: Usually, it is serious requirement.However, it depends on different products.
Q. Q: Can you accept Customized ?
A: OEM and ODM are welcomed
