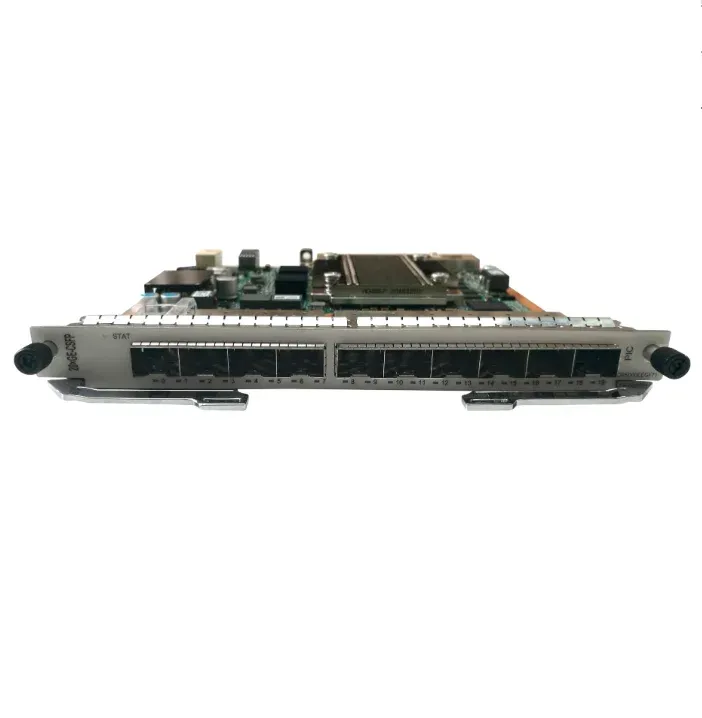

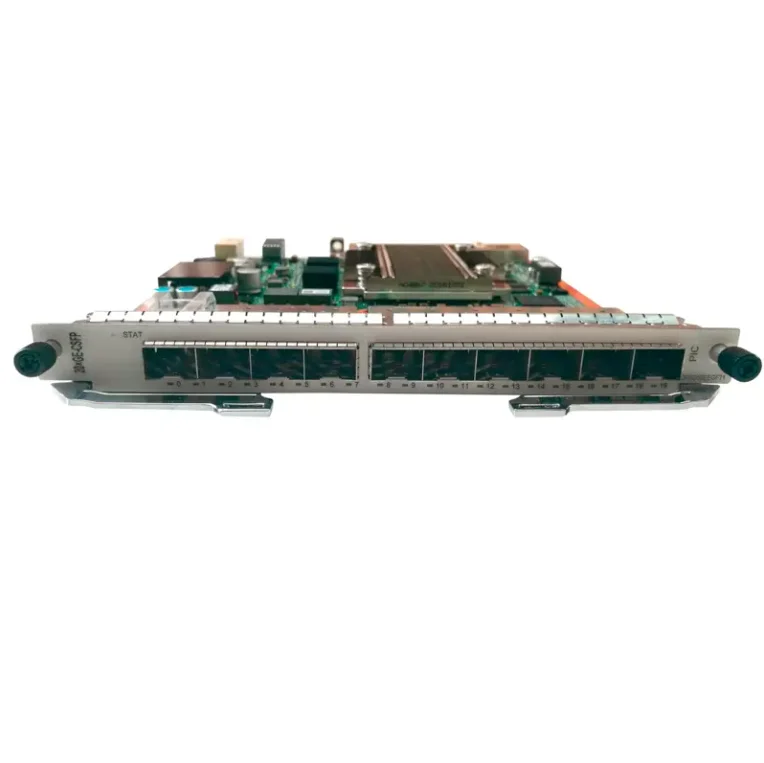

03032JLB CR5D00EEGF71 20xGE-CSFP Flexible Interface Card(FIC) for NE40E Service Routers
1601265034752_Piece/Pieces
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
Product Description
NetEngine 40E Series Routers Based on a 2T platform, equipped with NP chipsets, and powered by its Versatile Routing Platform (VRP), the NetEngine 40E series provides the industry’s highest capacity 2T routing line cards.Combining performance with low power consumption, innovative Internet Protocol (IP) hard pipe technology, and quick evolution capabilities, NetEngine 40E routers meet the low latency and high reliability requirements of business-critical services as well as mature Wide Area Network (WAN) Software-Defined Networking (SDN) solutions.They can serve as core nodes on enterprise WANs, access nodes on large-scale enterprise networks, interconnection and aggregation nodes on campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks.NetEngine 40E is an award-winning series widely adopted by governments and industries, including electric power, transportation, broadcasting and television, and finance.
Specification
Specification
|
Item |
Specification |
|
Cabinet installation standards |
ETSI 21-inch; IEC 19-inch |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
88.1 mm x 442 mm x 220 mm (3.47 in.x 17.4 in.x 8.66 in.) |
|
Chassis height [U] |
2 U |
|
Weight without packaging [kg(lb)] |
9.4 kg (20.72 lb) |
|
Weight without packaging (full configuration) [kg(lb)] |
DC: 11.0 kg (24.26 lb) |
|
AC: 12.2 kg (26.90 lb |
|
|
Typical power consumption (with configuration) [W] |
DC: 271 W |
|
AC: 309 W |
|
|
Typical heat dissipation (with configuration) [BTU/hour] |
DC: 879.2 BTU/hour |
|
AC: 1002.5 BTU/hour |
|
|
MTBF [year] |
26 year |
|
MTTR [hours] |
2 hour |
|
Availability |
0.999999614 |
|
CPU |
16-core, 2.0 GHz |
|
SDRAM |
16 G |
|
Flash memory |
128MB |
|
Power supply mode |
DC |
|
AC |
|
|
HVDC |
|
|
Rated input voltage [V] |
DC: -48 V/-60 V |
|
AC: 200 V to 240 V/100 V to 127 V dual live wires |
|
|
HVDC: 240 V |
|
|
Input voltage range [V] |
DC: -48 V/-72 V |
|
AC: 180 V to 264 V |
|
|
HYDC: 188 Vdc to 290 Vdc |
|
|
Maximum input current [A] |
DC: 18 A |
|
AC: 5.4 A |
|
|
HVDC: 4.8 A |
|
|
Maximum input cable size [mm²] |
DC: 6mm^2.4mm^2 (1-15 meters) recommended |
|
AC: 1.5mm^2 |
|
|
Front-end circuit breaker/fuse [A] |
DC: ≥20 A |
|
AC: ≥6 A |
|
|
HVDC: ≥6.3 A |
|
|
Heat dissipation mode |
Air cooling |
|
Airflow direction |
From left to right |
|
Noise at normal temperature (acoustic power) [dB(A)] |
< 72 dB (meeting the ETSI 72 dBA standard) |
|
Number of slots |
6 |
|
Number of service board slots |
2 |
|
Switching capacity |
1820 Gbit/s |
|
Redundant MPUs |
Fixed-configuration, not pluggable |
|
Redundant network processing units |
Fixed-configuration, not pluggable |
|
Redundant power supply |
1+1 |
|
Redundant fans |
If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
|
Long-term operating temperature [°C(°F)] |
DC: -20°C(-4°F) to 65°C(149°F) |
|
AC: 0°C(33.8°F) to 45°C(113°F) |
|
|
Short-term operating temperature [°C(°F)] |
AC:-5°C(23°F) to 55°C(131°F) |
|
Restriction on the operating temperature variation rate [°C(°F)] |
≤ 30°C/hour (54°F/hour) |
|
Storage temperature [°C(°F)] |
-40°C(-40°F) to 70°C(158°F) |
|
Long-term operating relative humidity [RH] |
5% RH to 90% RH, non-condensing |
|
Short-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
|
Storage relative humidity [RH] |
5% RH to 95% RH, non-condensing |
|
Long-term operating altitude [m(ft.)] |
≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature |
|
Storage altitude [m(ft.)] |
< 5000 m(< 16404.2 ft.) |
Company Introduction
We can provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products.We have extensive knowledge and experience in product operation and maintenance.We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect.It can reduce costs for your network maintenance.Looking forward to working with you.
Product Description
Packing & Shipping
Company Introduction
Contact Us
Yantai Boxin International Trade Co., Ltd.
Click the number to chat on WhatsApp or send an email. WeChat ID is the same as the phone number.
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
توضیحات محصول
توضیحات محصول
NetEngine 40E Series Routers Based on a 2T platform, equipped with NP chipsets, and powered by its Versatile Routing Platform (VRP), the NetEngine 40E series provides the industry’s highest capacity 2T routing line cards.Combining performance with low power consumption, innovative Internet Protocol (IP) hard pipe technology, and quick evolution capabilities, NetEngine 40E routers meet the low latency and high reliability requirements of business-critical services as well as mature Wide Area Network (WAN) Software-Defined Networking (SDN) solutions.They can serve as core nodes on enterprise WANs, access nodes on large-scale enterprise networks, interconnection and aggregation nodes on campus networks, and edge nodes on large-scale Internet Data Center (IDC) networks.NetEngine 40E is an award-winning series widely adopted by governments and industries, including electric power, transportation, broadcasting and television, and finance.
Specification
Specification
|
Item |
Specification |
|
Cabinet installation standards |
ETSI 21-inch; IEC 19-inch |
|
Dimensions without packaging (H x W x D) [mm(in.)] |
88.1 mm x 442 mm x 220 mm (3.47 in.x 17.4 in.x 8.66 in.) |
|
Chassis height [U] |
2 U |
|
Weight without packaging [kg(lb)] |
9.4 kg (20.72 lb) |
|
Weight without packaging (full configuration) [kg(lb)] |
DC: 11.0 kg (24.26 lb) |
|
AC: 12.2 kg (26.90 lb |
|
|
Typical power consumption (with configuration) [W] |
DC: 271 W |
|
AC: 309 W |
|
|
Typical heat dissipation (with configuration) [BTU/hour] |
DC: 879.2 BTU/hour |
|
AC: 1002.5 BTU/hour |
|
|
MTBF [year] |
26 year |
|
MTTR [hours] |
2 hour |
|
Availability |
0.999999614 |
|
CPU |
16-core, 2.0 GHz |
|
SDRAM |
16 G |
|
Flash memory |
128MB |
|
Power supply mode |
DC |
|
AC |
|
|
HVDC |
|
|
Rated input voltage [V] |
DC: -48 V/-60 V |
|
AC: 200 V to 240 V/100 V to 127 V dual live wires |
|
|
HVDC: 240 V |
|
|
Input voltage range [V] |
DC: -48 V/-72 V |
|
AC: 180 V to 264 V |
|
|
HYDC: 188 Vdc to 290 Vdc |
|
|
Maximum input current [A] |
DC: 18 A |
|
AC: 5.4 A |
|
|
HVDC: 4.8 A |
|
|
Maximum input cable size [mm²] |
DC: 6mm^2.4mm^2 (1-15 meters) recommended |
|
AC: 1.5mm^2 |
|
|
Front-end circuit breaker/fuse [A] |
DC: ≥20 A |
|
AC: ≥6 A |
|
|
HVDC: ≥6.3 A |
|
|
Heat dissipation mode |
Air cooling |
|
Airflow direction |
From left to right |
|
Noise at normal temperature (acoustic power) [dB(A)] |
< 72 dB (meeting the ETSI 72 dBA standard) |
|
Number of slots |
6 |
|
Number of service board slots |
2 |
|
Switching capacity |
1820 Gbit/s |
|
Redundant MPUs |
Fixed-configuration, not pluggable |
|
Redundant network processing units |
Fixed-configuration, not pluggable |
|
Redundant power supply |
1+1 |
|
Redundant fans |
If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
|
Long-term operating temperature [°C(°F)] |
DC: -20°C(-4°F) to 65°C(149°F) |
|
AC: 0°C(33.8°F) to 45°C(113°F) |
|
|
Short-term operating temperature [°C(°F)] |
AC:-5°C(23°F) to 55°C(131°F) |
|
Restriction on the operating temperature variation rate [°C(°F)] |
≤ 30°C/hour (54°F/hour) |
|
Storage temperature [°C(°F)] |
-40°C(-40°F) to 70°C(158°F) |
|
Long-term operating relative humidity [RH] |
5% RH to 90% RH, non-condensing |
|
Short-term operating relative humidity [RH] |
5% RH to 95% RH, non-condensing |
|
Storage relative humidity [RH] |
5% RH to 95% RH, non-condensing |
|
Long-term operating altitude [m(ft.)] |
≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature |
|
Storage altitude [m(ft.)] |
< 5000 m(< 16404.2 ft.) |
Company Introduction
We can provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products.We have extensive knowledge and experience in product operation and maintenance.We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect.It can reduce costs for your network maintenance.Looking forward to working with you.
توضیحات محصول
Packing & Shipping
Company Introduction
تماس با ما
Yantai Boxin International Trade Co., Ltd.
برای گفتگو در واتساپ روی شماره کلیک کنید یا ایمیل بفرستید. شناسه وی‌چت با شماره تلفن یکسان است.
Technical Specificationsمشخصات فنی
Frequency & Bandsفرکانس و باندها
Supports 2G/3G/4G/5G frequency bands. Detailed band specifications depend on the specific model and configuration. Contact our sales team for the exact band coverage of your target market.
Interfaces & Connectorsرابط‌ها و کانکتورها
Standard telecom interfaces including optical ports, RF connectors, Ethernet ports and power interfaces. Connector types and quantities vary by product model. Full interface specifications available in the product datasheet.
Power & Consumptionتوان و مصرف
Operating voltage range, power consumption and power supply requirements differ by equipment type. Typical operating temperature range: -40°C to +55°C. Detailed power specifications provided on request.
Certifications & Complianceگواهی‌ها و انطباق
Products comply with CE, RoHS, FCC and ISO 9001 standards where applicable. Certification documents and test reports are available for verified B2B customers upon request.
Compatibility & Deploymentسازگاری و استقرار
Compatible with major telecom infrastructure vendors. Suitable for indoor and outdoor deployment scenarios including base stations, transmission nodes and optical distribution networks. Custom configurations available for large-scale projects.
Request a Bulk Quoteدرخواست قیمت عمده
Need this product in volume? Contact our sales team for competitive B2B pricing, customization options and shipping arrangements. We respond within 24 hours.این محصول را به‌صورت عمده نیاز دارید؟ برای قیمت رقابتی B2B، سفارشی‌سازی و حمل با تیم فروش تماس بگیرید. ظرف ۲۴ ساعت پاسخ می‌دهیم.
