03056097 CR5D0SRUA870 Switch and Route Processing Unit A8 for NE40E-X8A SRUA-480-A 03057257 CR5D0SRUA871
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
03056097 CR5D0SRUA870 Switch and Route Processing Unit A8 for NE40E-X8A SRUA-480-A 03057257 CR5D0SRUA871

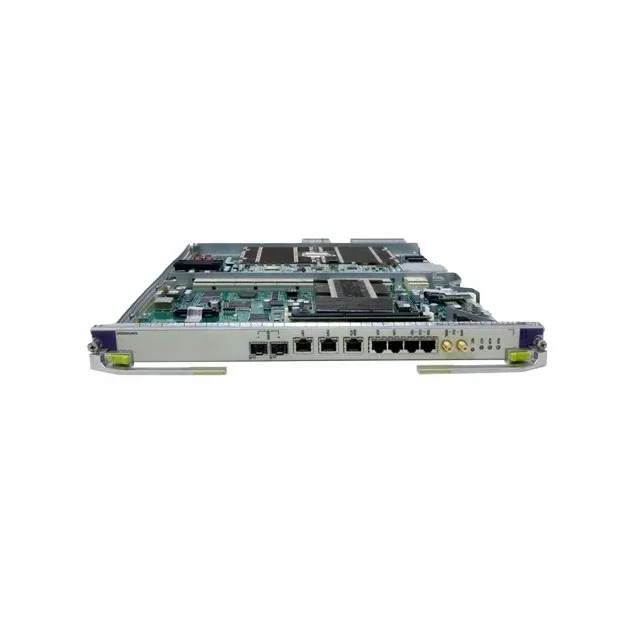

Switch and Route Processing Unit A8
|
Interface Name |
Interface Type |
Connector Type |
Description |
Cable |
|---|---|---|---|---|
|
FSP0, FSP1 |
Serial interface |
RJ45 |
Reserved.It functions as an interface for fast chassis switchovers. |
- |
|
GE/10GE |
GE/10GE |
SFP+/SFP |
Reserved cascading interface. |
- |
|
MGMT-ETH |
Ethernet interface (10M/100M/1000M Base-TX autonegotiation) |
RJ45 |
It connects to an NMS and can work in half-duplex or full-duplex mode. |
Super category 5 shielded twisted pair |
|
Console |
RS-232 serial interface |
RJ45 |
It connects to the console for on-site system configuration.Baud rate: 9600 bit/s (default value), which is configurable. |
8-core shielded cable |
|
AUX |
RS-232 serial interface |
RJ45 |
It connects to the modem for remote mainteN/Ance by means of dial-up.Baud rate: 9600 bit/s (default value), which is configurable. |
8-core shielded cable |
|
CLK/TOD0, CLK/TOD1 |
External synchronization interface |
RJ45 |
Used to input or output 2-Mbit/s clock signals, 2-MHz clock signals, 1pps+ASCII time signals, or two channels of DCLS time signals. |
120-ohm clock cable |
|
CLK/1PPS |
External synchronization interface |
SMB |
Used to input or output 2-Mbit/s clock signals, 2-MHz clock signals, or 1 PPS signals. |
75-ohm clock cable |
|
CLK/Serial |
External synchronization interface |
SMB |
Used to input or output 2-Mbit/s clock signals, 2-MHz clock signals, or RS-232 signals. |
75-ohm clock cable |
Functional Specifications
|
Functions and Features |
Remarks |
|---|---|
|
Reliability and availability |
1:1 backup mode |
|
Whether breakout is supported |
No |
Technical Specifications
|
Item |
Specification |
|---|---|
|
Dimensions (H x W x D) |
30 mm x 386.8 mm x 534.3 mm (1.18 in.)x 15.23 in.x 21.04 in.) |
|
Typical power consumption |
200.0 W |
|
Typical heat dissipation |
648.9 BTU/hour |
|
Weight |
6.3 kg (13.89 lb) |
|
Ambient temperature |
Long terms: 0 °C to 45 °C (32°F to 113°F) Short terms: -5 °C to 55 °C (23°F to 131°F) |
|
Processing unit |
Quad-core 2.0GHz |
|
SDRAM |
8 GB x 1 |
|
Flash |
16 MB |
|
Storage |
SSD card:8 GB |
All items are ORIGINAL and GENUINE only.
All items are fully tested with working conditions by engineer.
Trouble shooting support
Before returning goods, please contact us to tell the issues you are having.
If there are irremediable defects happening to the devices, you must contact your sales representative to verify product failure.
Our Technical team
we have experienced technical team can provide support over the phone, by chat, by email or by remotely login.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Cargo will be delivered within 3 day after payment arrived.
Tracking Number will be offered once delivery done.
|
Delivery Options
|
Estimated Delivery Time |
Delivery Options |
Estimated Delivery Time |
|
|
3-5 business days
|
|
5-8 business days
|
|
|
3-5 business days
|
|
5-8 business days
|
|
|
10-15 business days |
|
10-20 business days |
By Sea
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.
There are two delivery options available for by air and by sea:
Deliver to port:
we are responsible for transporting goods to port.All subsequent customs and transportation fees are the responsibility of the buyer.
we are will recommend trustworthy local freight forwarders to you.we can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
we are will quote all destination charge prior once we have confirmed order.
We are responsible for transporting goods to door after you have made the payment.
