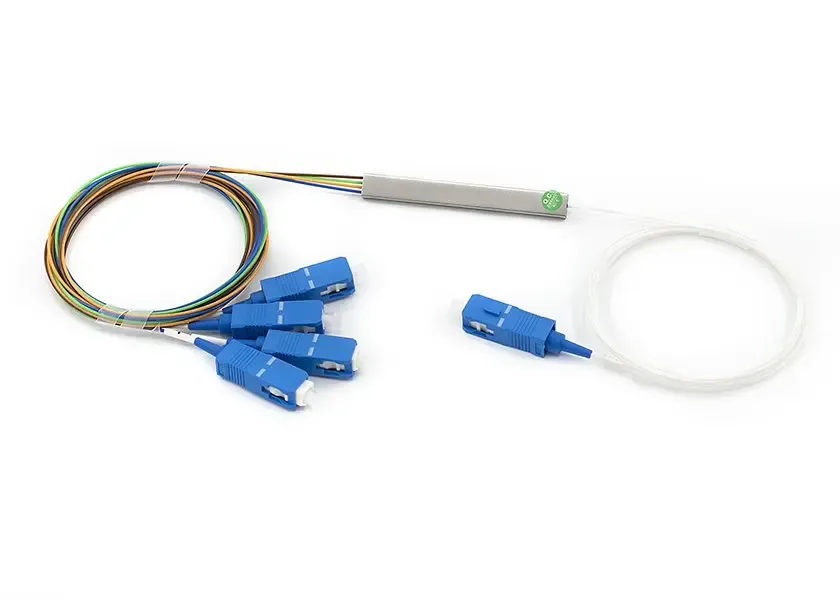

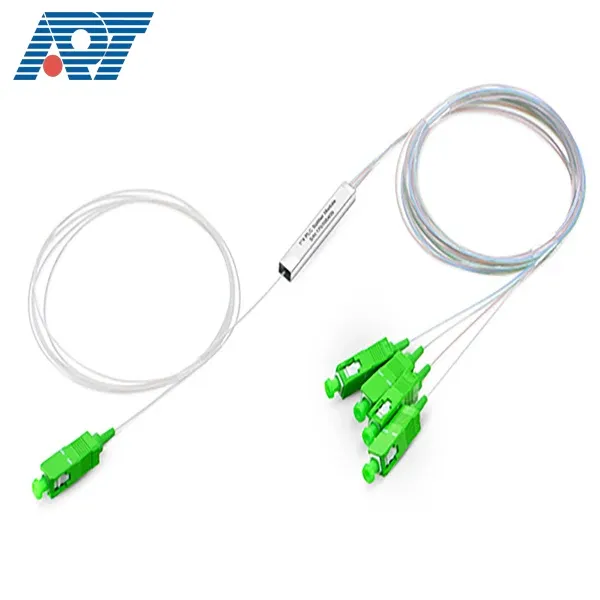

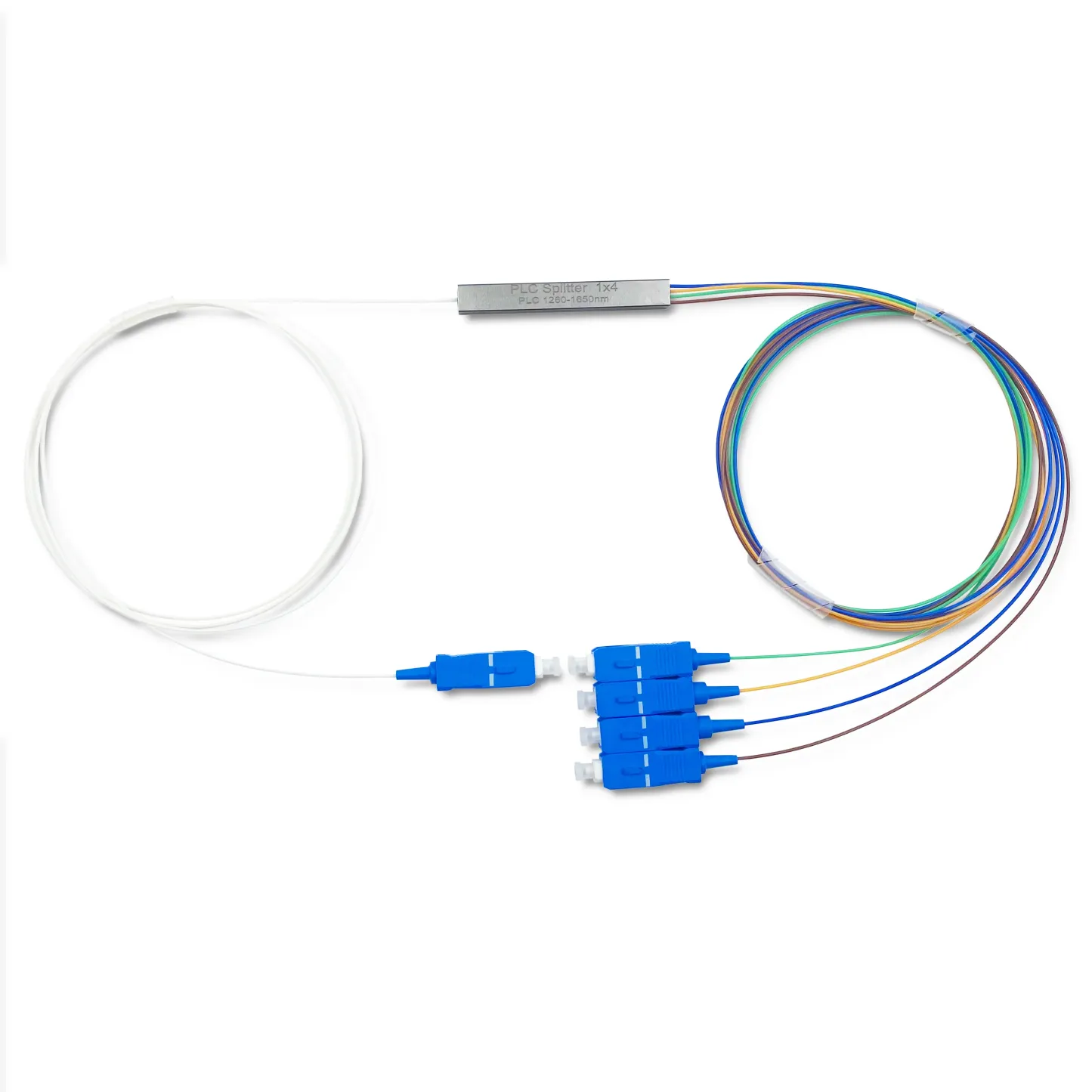

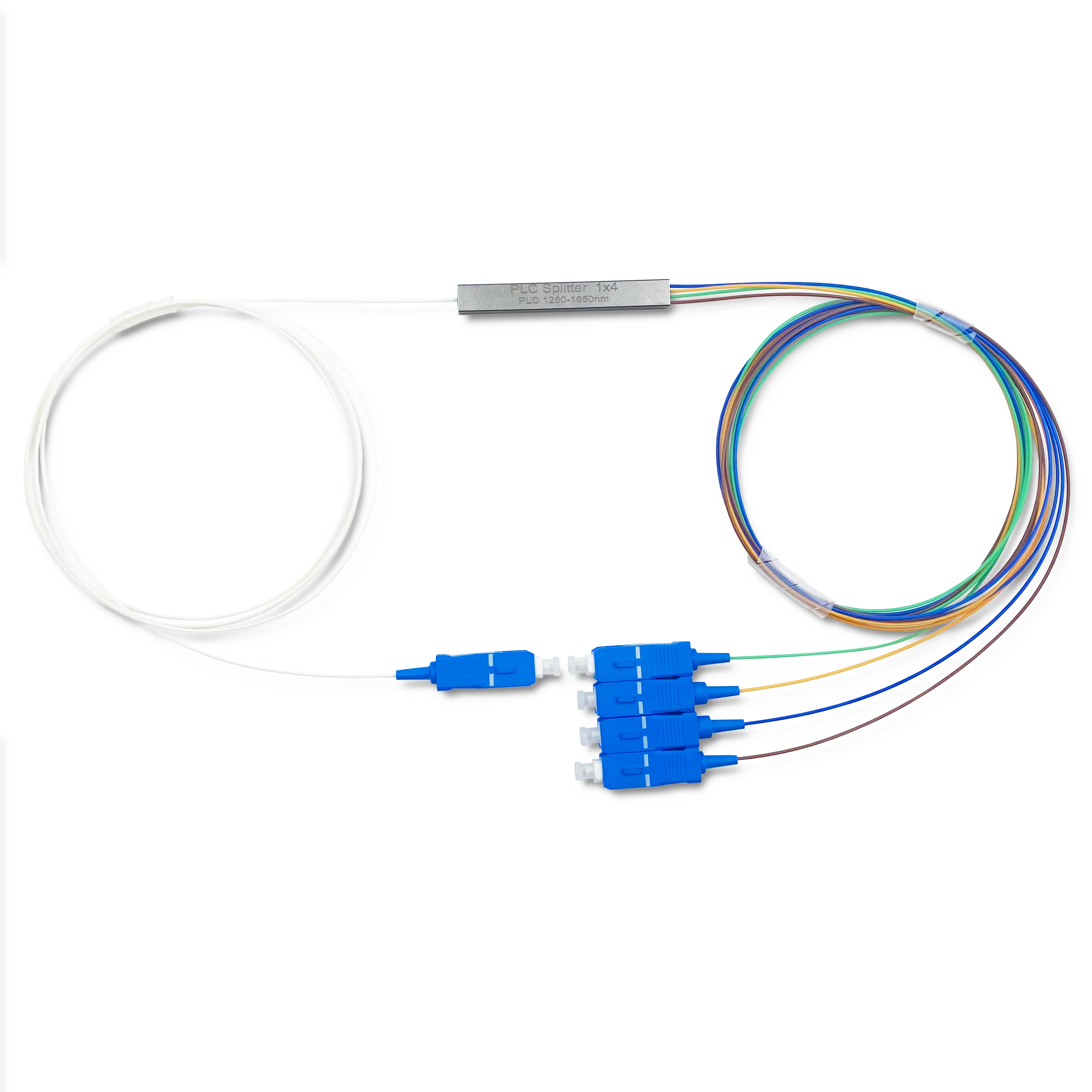

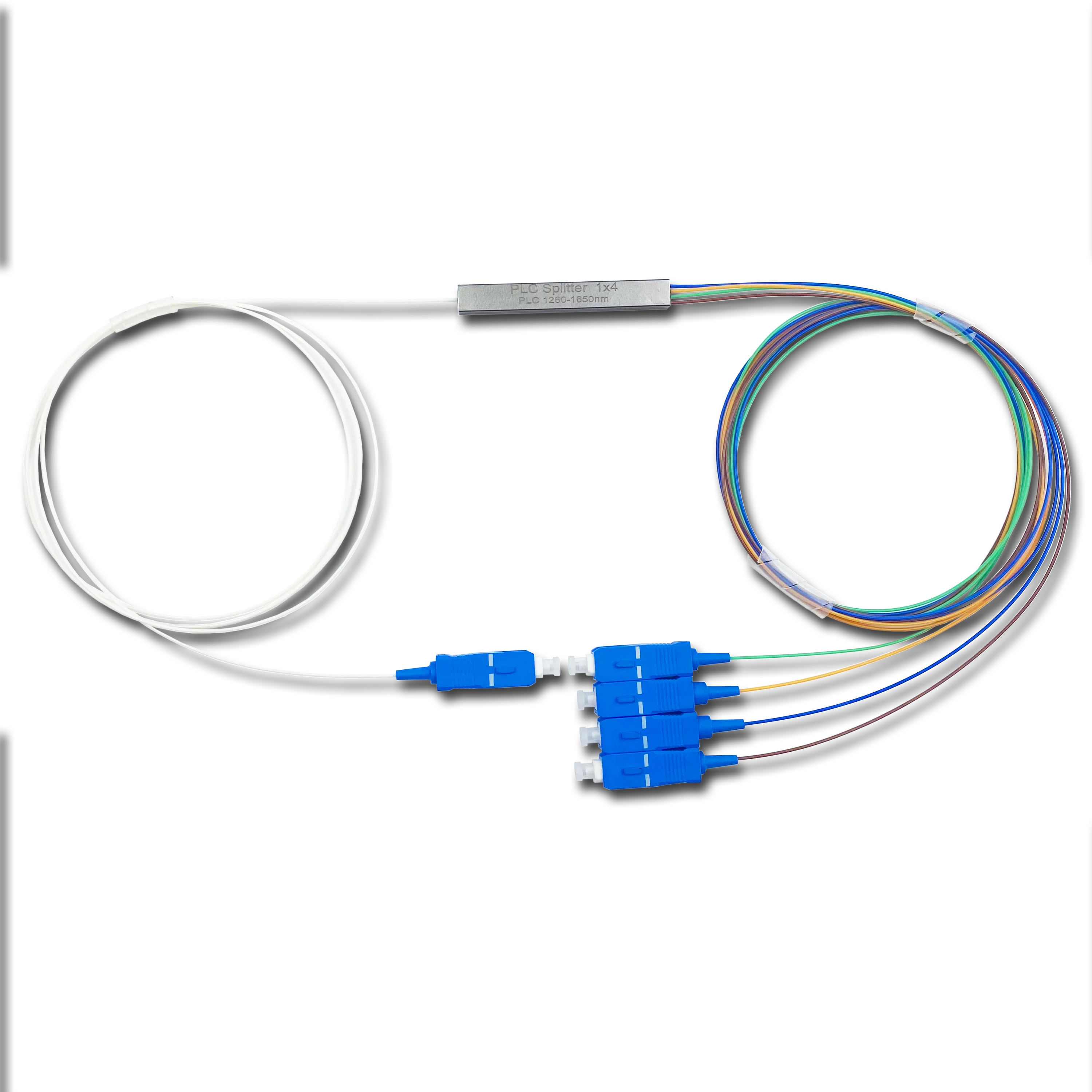

1x5 1x9 1x17 Minitypes Uneven PLC Fiber Splitter for FTTH Network SCAPC Fiber Optical Splitter
1601190415220_plc splitter 1:2 sc upc 1m plastic bag package
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
1x5 Mini PLC Splitter 0.9mm Steel Tube Fiber Optic 1x5 PLC Splitter
technology to distribute optical signals accurately and evenly with minimal loss providing a low cost light distribution solution with small form factor and high reliability.
Constructed with the highest quality Corning® Clearcurve Bend Insensitive Fiber (BIF) glass for the greatest installation speed and efficiency with high transmission rates and virtually no distortion.
Commonly used for connections in optical distribution box or network cabinet for Fiber to the point (FTTx) deployments, CATV links and other passive optical networks (e.g., GPON).
* 900 μm input/output G.657A1
* No splicing in PON system
* Ideal for GPON, FTTH/FTTx
* Corning Clearcurve XB Bend Insensitive Fiber (BIF) glass
Configuration Type: 1×5
Fiber Type: G.657A1
Glass: Corning® Clearcurve XB Bend Insensitive Fiber (BIF)
Fiber Diameter: 900 μm
Fiber Length: 1 m input/1 m output
Connector Type: SC/APC
Performance
Operating Wavelength: 1260-1650 nm
Insertion Loss: ≤10.7 dB
Polarization Dependent Loss (PDL): ≤0.3 dB
Return Loss: ≥55 dB
Uniformity: ≤1.5 dB
Directivity: ≥55 dB
Operating Temperature Range: -20 to 70°C (-4 to 158°F)
Storage Temperature Range: -20 to 70°C (-4 to 158°F)
Approvals
Telcordia GR-1221 and GR-1209
Manufacturing Facility: ISO-9001 and CE Certified
|
Name
|
fiber optic plc splitter mini stainess tube 1*2 1*4 1*8 1*16
|
|
connector
|
SC/UPC APC
|
|
package
|
plastic bag package or use the blister box packaged as the customized
|
|
Application
|
ftth odf ect.
|
|
type
|
mini（stainess tube），abs box ，card， frame ect.
|
|
loose tube color 0.9mm
|
as the customer request
|
|
mark ring
|
also as the customer request
|
|
fiber type
|
G.657A1, G.657A2
|
|
wave type
|
1260~1650nm
|
|
connector type
|
SC/FC/LC etc.
|
