brand new or used SL91ISX2 ISX2 Microwave RTN 910
1601029459173_Piece/Pieces
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
The Huawei 6– 42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry’ s first IP microwave that supports TDM/Hybrid/Packet/Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O & M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power.
Specification
|
Main specifications of RTN 910 |
||
|
Chassis height |
1U |
|
|
Pluggable |
Supported |
|
|
Support frequency |
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz |
|
|
Channel Spacing |
3.5/7/14/28/40/50/56MHz |
|
|
Large RF direction |
1U/2 direction/2U/6direction/5U/14direction |
|
|
Large throughput |
>600Mbps (without compression) |
|
|
Packet switching capability |
8/10/22Gbps |
|
|
interface type |
E1/STM-1/FE/GE E1/STM-1/STM-4/FE/GE |
|
|
Dimensions(H x W x D) |
442mm x 220mm x 88mm |
|
|
Weight |
5.4kg |
|
|
Dying gasp |
support |
|
|
VLAN |
IEEE 802.1q , IEEE 802.1p |
|
|
QinQ |
Support |
|
|
Ethernet OAM |
802.1ag, 802.3ah |
|
|
Network Management |
||
|
NMS |
Web Server, Mobile phone management, eSight, U2000 |
|
|
Environment |
||
|
Protection class |
IP67 |
|
|
Operation Temperature |
−40°C ~ +60°C |
|
|
Corrosion resistance of salt mist |
Comply IEC 60068-2-11, with highest standard of 4 weeks of salt mist corrosion test, applicable to the oshore scene |
|
|
Security |
||
|
Encryption |
AES 256-bit |
|
|
RT access control |
MAC address-based white list |
|
|
Authentication |
RADIUS |
|
|
The actual deployment specications need to be determined by network planning. |
||
Product Description

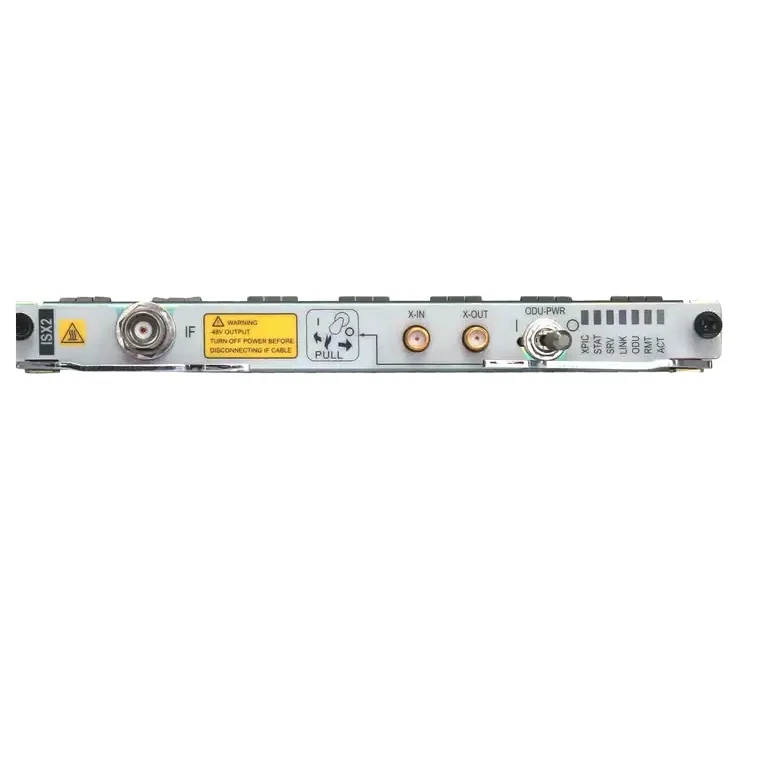

HUAWEI Rtn910 ISX2SL911-Port Universal IF board FOR Huawei
HUAWEI IFU2 SL91 1-Port Universal IF board FOR Huawei
Company Introduction
We can provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products.We have extensive knowledge and experience in product operation and maintenance.We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect.It can reduce costs for your network maintenance.Looking forward to working with you.
Product Description
Packing & Shipping
Company Introduction
Contact Us
Yantai Boxin International Trade Co., Ltd.
Click the number to chat on WhatsApp or send an email. WeChat ID is the same as the phone number.
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
توضیحات محصول
The Huawei 6– 42 GHz traditional frequency IP microwave has a maximum of 2 Gbit/s per carrier and 16 Gbit/s per antenna ultra-large transmission capacity, it is the industry’ s first IP microwave that supports TDM/Hybrid/Packet/Routing services on the unified platform, satisfying the requirements of large-capacity IP service transmission and IP-based evolving of traditional PDH/SDH microwave. The solution provides a flexible architecture that can be deployed in split, full-outdoor, or full-indoor scenarios. It features high reliability and end-to-end unified O & M management. It is widely used in broadband wireless transmission in vertical sectors, such as government, broadcasting, oil & gas, education, and electric power.
Specification
|
Main specifications of RTN 910 |
||
|
Chassis height |
1U |
|
|
Pluggable |
Supported |
|
|
Support frequency |
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz |
|
|
Channel Spacing |
3.5/7/14/28/40/50/56MHz |
|
|
Large RF direction |
1U/2 direction/2U/6direction/5U/14direction |
|
|
Large throughput |
>600Mbps (without compression) |
|
|
Packet switching capability |
8/10/22Gbps |
|
|
interface type |
E1/STM-1/FE/GE E1/STM-1/STM-4/FE/GE |
|
|
Dimensions(H x W x D) |
442mm x 220mm x 88mm |
|
|
Weight |
5.4kg |
|
|
Dying gasp |
support |
|
|
VLAN |
IEEE 802.1q , IEEE 802.1p |
|
|
QinQ |
Support |
|
|
Ethernet OAM |
802.1ag, 802.3ah |
|
|
Network Management |
||
|
NMS |
Web Server, Mobile phone management, eSight, U2000 |
|
|
Environment |
||
|
Protection class |
IP67 |
|
|
Operation Temperature |
−40°C ~ +60°C |
|
|
Corrosion resistance of salt mist |
Comply IEC 60068-2-11, with highest standard of 4 weeks of salt mist corrosion test, applicable to the oshore scene |
|
|
Security |
||
|
Encryption |
AES 256-bit |
|
|
RT access control |
MAC address-based white list |
|
|
Authentication |
RADIUS |
|
|
The actual deployment specications need to be determined by network planning. |
||
توضیحات محصول
HUAWEI Rtn910 ISX2SL911-Port Universal IF board FOR Huawei
HUAWEI IFU2 SL91 1-Port Universal IF board FOR Huawei
Company Introduction
We can provide sales of a large number of new or used transmission equipment, servers, communication power systems, routers, base station equipment, switches, SFPs, storage devices, and other communication products.We have extensive knowledge and experience in product operation and maintenance.We have multiple professional technical personnel to provide testing for our products, ensuring that every refurbished spare part is perfect.It can reduce costs for your network maintenance.Looking forward to working with you.
توضیحات محصول
Packing & Shipping
Company Introduction
تماس با ما
Yantai Boxin International Trade Co., Ltd.
برای گفتگو در واتساپ روی شماره کلیک کنید یا ایمیل بفرستید. شناسه وی‌چت با شماره تلفن یکسان است.
Technical Specificationsمشخصات فنی
Frequency & Bandsفرکانس و باندها
Supports 2G/3G/4G/5G frequency bands. Detailed band specifications depend on the specific model and configuration. Contact our sales team for the exact band coverage of your target market.
Interfaces & Connectorsرابط‌ها و کانکتورها
Standard telecom interfaces including optical ports, RF connectors, Ethernet ports and power interfaces. Connector types and quantities vary by product model. Full interface specifications available in the product datasheet.
Power & Consumptionتوان و مصرف
Operating voltage range, power consumption and power supply requirements differ by equipment type. Typical operating temperature range: -40°C to +55°C. Detailed power specifications provided on request.
Certifications & Complianceگواهی‌ها و انطباق
Products comply with CE, RoHS, FCC and ISO 9001 standards where applicable. Certification documents and test reports are available for verified B2B customers upon request.
Compatibility & Deploymentسازگاری و استقرار
Compatible with major telecom infrastructure vendors. Suitable for indoor and outdoor deployment scenarios including base stations, transmission nodes and optical distribution networks. Custom configurations available for large-scale projects.
