Product Description

1.Product Overview

1.Basic information of the board

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Board name: 9-port wavelength selection switch demultiplexing board (high-precision flexible grid version)

Functional positioning enables dynamic wavelength routing scheduling in ring or chain networks, supporting 12.5GHz fine and flexible grids, and expanding C-band applications

Board type: Optical layer wavelength selection switch, demultiplexing board

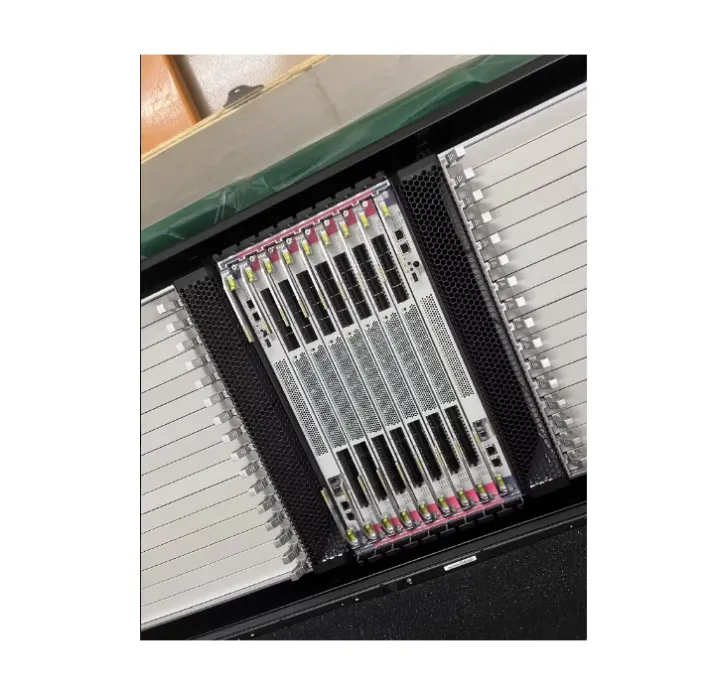

Compatible with subracks such as OSN 9800 U series/M series that support TN series cards

Front panel dimensions: height x width x depth: 264.6 mm x 50.8 mm x 220 mm

Weight 2.9 kg

Typical power consumption 25.0 W

Maximum power consumption of 27.5 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Key features include 9-port dynamic wavelength scheduling, high-precision flexible grid (12.5GHz slicing), extended C-band support, VOA attenuation adjustment per wavelength (0-15dB), online optical performance monitoring, and support for optical layer ASON

2.Interface and Port Definition

Interface Identification Interface Type Quantity Function Description

IN LC/UPC 1 line input port, receiving multiplexed signals from fiber optic lines

DM1~DM8 LC/UPC 8 downlink ports, which downlink dynamically scheduled wavelengths to local receivers

EXPO LC/UPC 1 expansion port, used for cascading or expanding applications

Monitoring port LC/UPC 2 online monitoring port, which can be connected to a spectral analyzer or spectral analysis unit to monitor signal performance without affecting business operations

3.Core functional characteristics

Functional Module Technical Description System Value

Dynamic wavelength scheduling can dynamically route any single wavelength or any combination of wavelengths to any downstream port to achieve wavelength level flexible scheduling, supporting dynamic wavelength allocation in ring or chain networks, greatly improving network configuration flexibility

High precision flexible grid supports flexible grid adjustment with a minimum slice size of 12.5GHz.Each channel can continuously occupy 2-32 slices (12.5 * n GHz, n=2-32) to achieve fine spectrum management at the sub wavelength level, perfectly adapting to various rate services of 100G~1.6T, maximizing spectrum efficiency

Extended C-band supports working wavelength range coverage.Extended C-band (1528.8 nm -1567.6 nm) supports 96 waves @ 50GHz or higher density DWDM systems, meeting the demand for spectrum efficiency improvement

Each wavelength VOA adjustment supports independent attenuation adjustment of 0-15dB for each downstream wavelength to achieve fine adjustment of downstream power, optimize receiver input power, and balance channel performance

Online optical performance monitoring provides 2 online monitoring ports, which can be connected to an external spectral analyzer to monitor signal spectra, optical power and other parameters in real time without interrupting business for optical layer performance diagnosis and optimization, greatly improving operation and maintenance efficiency

Alarm and performance event monitoring: Real time detection of optical power and reporting of board related alarms and performance events for rapid fault location, achieving preventive maintenance

Optical layer ASON supports automatic switching of optical layers, providing basic support for intelligent optical networks and achieving automated wavelength level business scheduling and protection

4.Optical performance parameters

Table 1: Optical Performance Parameters of TN96WSD9 (Flexible Grid Mode, 12.5GHz Slice)

Parameter condition specification remarks

Working wavelength range: All ports range from 1528.8 nm to 1567.6 nm.Extended C-band, supporting Super C evolution

Channel spacing -12.5 * n GHz (n=2~32) flexible grid, with 12.5 GHz as the minimum slice unit, each channel can continuously occupy 2~32 slices

-1dB spectral width ->2 * (6.25n-12.5) GHz n is the number of consecutive occupied slices, n=2~32

Insertion loss IN DMx/IN-EXPO (VOA=0dB) ≤ 8.0 dB Loss from input port to downstream/expansion port

Maximum channel insertion loss difference ≤ 1.5 dB between channels to ensure power balance among channels

Port isolation between adjacent channels>25 dB to suppress adjacent channel crosstalk

Port isolation greater than 30 dB for non adjacent channels provides higher isolation

Extinction ratio - ≥ 35 dB

Directionality -35 dB to prevent reverse light interference

Reconfigure time - ≤ 3 seconds wavelength scheduling response time

Maximum reflectivity -40 dB for all ports with excellent return loss characteristics, reducing reflection

Polarization related loss ≤ 1.0 dB for all ports, friendly to high-speed modulation signals

Table 2: Downward wavelength attenuation adjustment parameters

Parameter specification remarks

The attenuation range for each wavelength is 0-15 dB, and each downstream wavelength is independently adjustable

Attenuation adjustment accuracy ≤ 1 dB (0~10dB range) High precision adjustment within low attenuation range

Attenuation adjustment accuracy ≤ 1.5 dB (>10dB range) ensures performance within high attenuation range

5.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption 25.0 W

Maximum power consumption of 27.5 W (normal operation at maximum ambient temperature)

Front panel dimensions 264.6 mm (height) x 50.8 mm (width) x 220 mm (depth)

Weight 2.9 kg

Working temperature -5°C to+55°C

6.Comparison with the same series of WSD9 boards

Features TN12WSD9 TN13WSD9 TN16WSD9 TN96WSD9

Number of optical channels 40 80 80-

Channel spacing 100 GHz fixed 50 GHz fixed+flexible grid (50GHz slice) flexible grid (12.5GHz slice)

Slice granularity -50 GHz 12.5 GHz

-1dB spectral width>0.32 nm>0.16 nm>25 GHz (fixed)/>50 * n-25 GHz (flexible)>2 * (6.25n-12.5) GHz

Working wavelength range 1529-1561nm 1529-1561nm 1529-1561nm Extended C-band (1528.8-1567.6nm)

Attenuation adjustment for each wavelength 0-15 dB 0-15 dB 0-15 dB 0-15 dB 0-15 dB

Front panel width 50.8 mm 76.2 mm 50.8 mm 50.8 mm 50.8 mm

Weight 2.7 kg 2.9 kg 2.9 kg 2.9 kg

Typical power consumption 25.4 W 25.4 W 25.0 W 25.0 W

Applicable system 40 waves @ 100GHz C-band 80 waves @ 50GHz fixed C-band 80 waves @ 50GHz fixed+flexible grid C-band flexible grid extended C-band

7.Application scenarios

Core Value of Application Scenario Deployment Method

The super 100G flexible grid network deploys 12.5GHz fine spectrum management at intermediate nodes in ring or chain networks that need to carry ultra high speed services such as 400G/800G/1.6T, supporting efficient mixed transmission of services at any rate from 100G to 1.6T, maximizing spectrum utilization efficiency

Deploying the Extended C-band High Density System in the Extended C-band Network Supporting 96 Waves @ 50GHz, covering the full band of 1528.8-1567.6nm, to meet the requirements of high-density and high-capacity transmission

The next generation ROADM node supplements the downlink in the flexible grid ROADM node as a downlink extension unit, providing 8 downlink ports and supporting independent VOA adjustment for each wavelength, perfectly cooperating with WSS

Optical layer ASON intelligent network nodes serve as programmable downstream units in networks that require intelligent features.Optical layer ASON supports automated business scheduling and protection, reducing operation and maintenance costs

The dynamic spectrum leasing network deploys fine grids and power adjustment capabilities in spectrum sharing or leasing scenarios among operators to support spectrum slicing leasing and create new business models

The online performance monitoring point utilizes two monitoring ports to connect to the Optical Performance Monitoring Unit (OPM) for real-time monitoring of downstream channel power and spectrum, achieving optical layer visualization

8.Maintenance and ordering information

Project Information

Component code TN96WSD9

Ordering instructions: When placing an order, it is necessary to confirm the working band (extended C-band) and flexible grid configuration requirements

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

After the installation of VOA configuration, VOA attenuation calibration needs to be performed through the network management to ensure control accuracy

Two monitoring ports can be used to connect to a spectral analyzer for real-time monitoring of output spectra

After testing and verifying installation, insertion loss testing, port connectivity testing, wavelength scheduling function verification, and VOA function verification need to be conducted

Spare parts management, as the core board of ROADM nodes, is recommended to configure spare parts at critical network nodes

Quality Assurance Service Standard Warranty Period: 1 Year

Core Summary:

TN96WSD9 is a flagship 9-port wavelength selective switch demultiplexing board for ultra 100G/400G/800G flexible grid networks in the OSN 9800 platform, representing the highest level of technology in the WSD9 series, achieving two core enhancement features: 12.5GHz fine flexible grid and extended C-band.

Core values and positioning:

Ultimate Spectrum Efficiency: With a minimum slice size of 12.5GHz, it supports fine spectrum allocation for any rate business from 100G to 1.6T.Compared to 50GHz fixed grid, it can improve spectrum efficiency by more than 50%.

Extended C-band coverage: Operating wavelength range of 1528.8-1567.6nm, supporting 96 wave @ 50GHz or higher density DWDM systems to meet future high-capacity transmission needs.

Refined power management: Independent 0-15dB VOA adjustment for each downstream wavelength, allowing for remote and precise adjustment of received power, optimizing receiver performance.

Intelligent operation and maintenance support: Provides 2 online monitoring ports and comprehensive alarm monitoring functions, supports optical layer ASON, and provides a foundation for intelligent optical networks.

The essential difference from other models in the same series:

The 12.5GHz slice granularity of TN96WSD9 is a revolutionary improvement, shifting spectrum management accuracy from the"extensive" 50GHz to the"refined" 12.5GHz.At the same time, expanding C-band support to cover 96 wave high-density systems is truly a next-generation WSD9 board for the future.

Application suggestion:

This board is the downstream core component for over 100G flexible grid networks in the OSN 9800 wavelength division system, particularly suitable for scenarios that require fine spectrum management, multi rate hybrid transmission, and large capacity business aggregation, such as national backbone network core nodes, large data center interconnection hubs, next-generation ROADM nodes, etc. When deploying, it is necessary to combine the iMaster NCE intelligent control system to achieve automated operation and maintenance of the optical layer and dynamic management of spectrum resources. For existing networks that still use fixed grids, TN12WSD9/TN13WSD9 is a more cost-effective choice.
