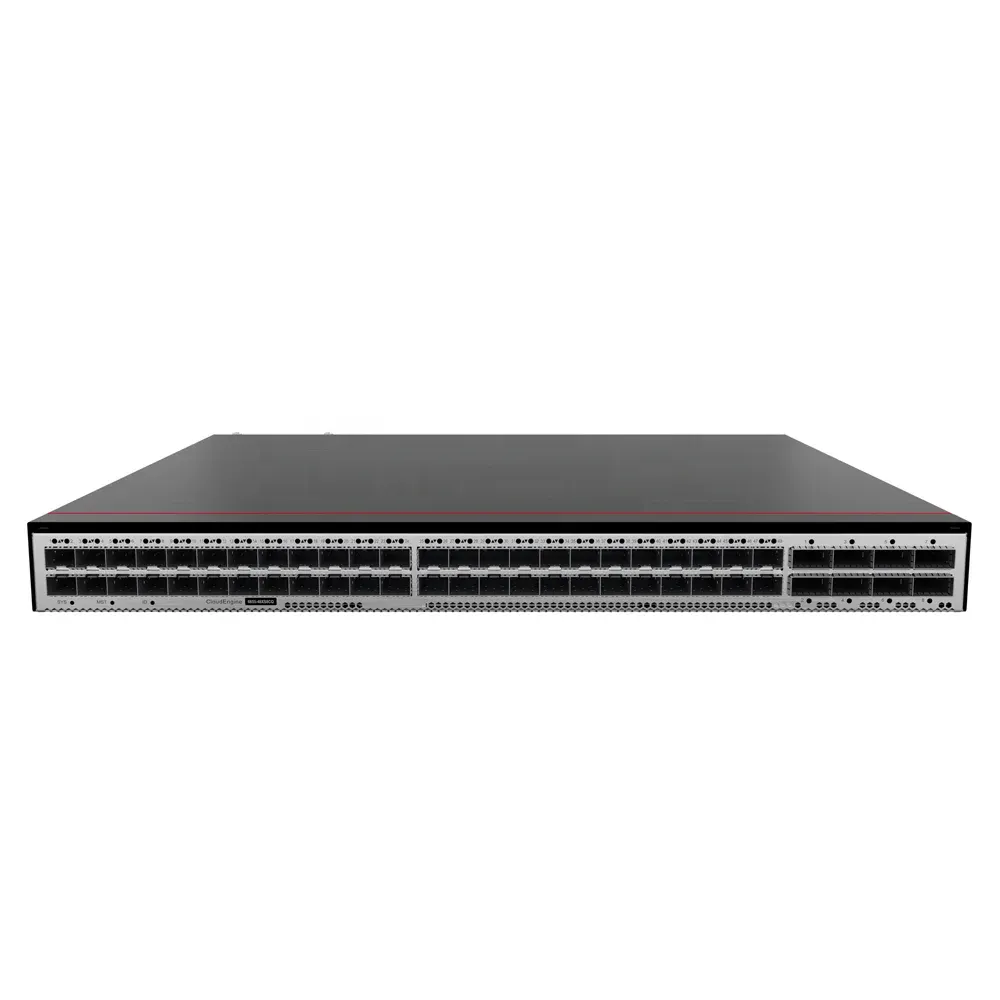

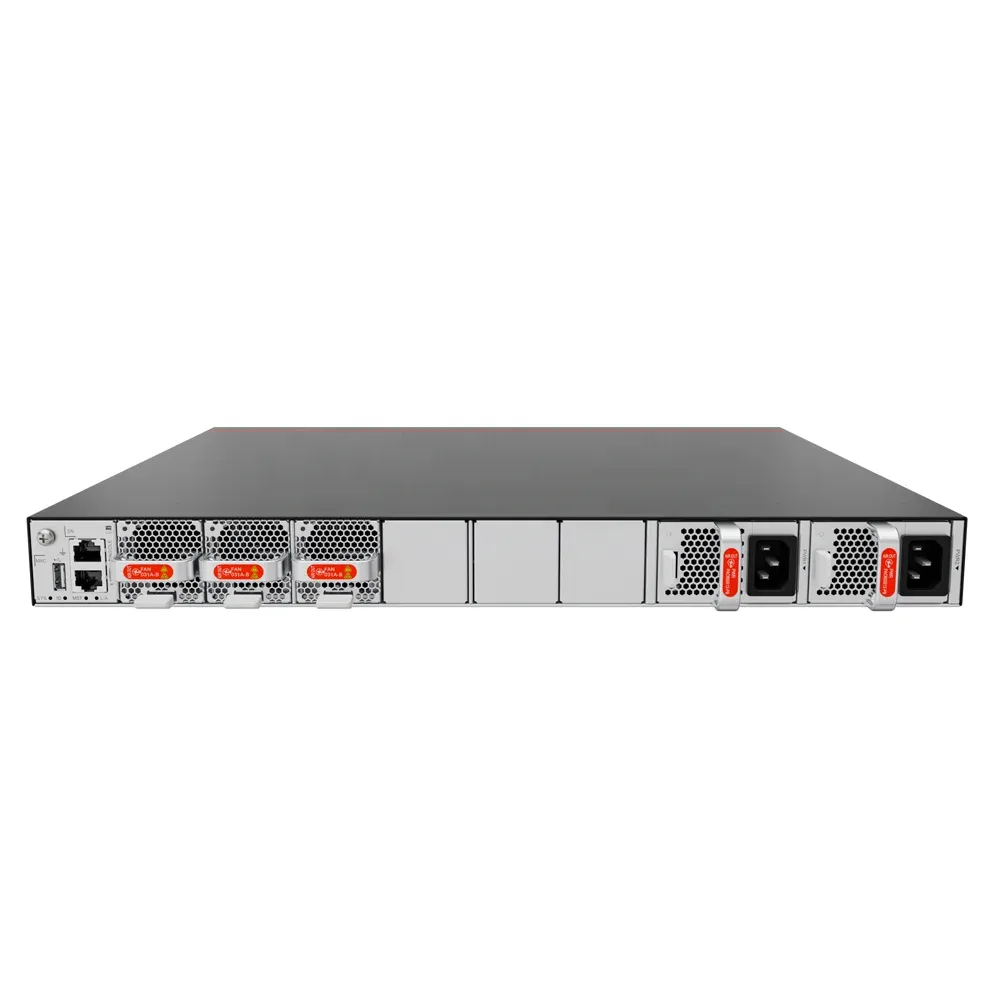

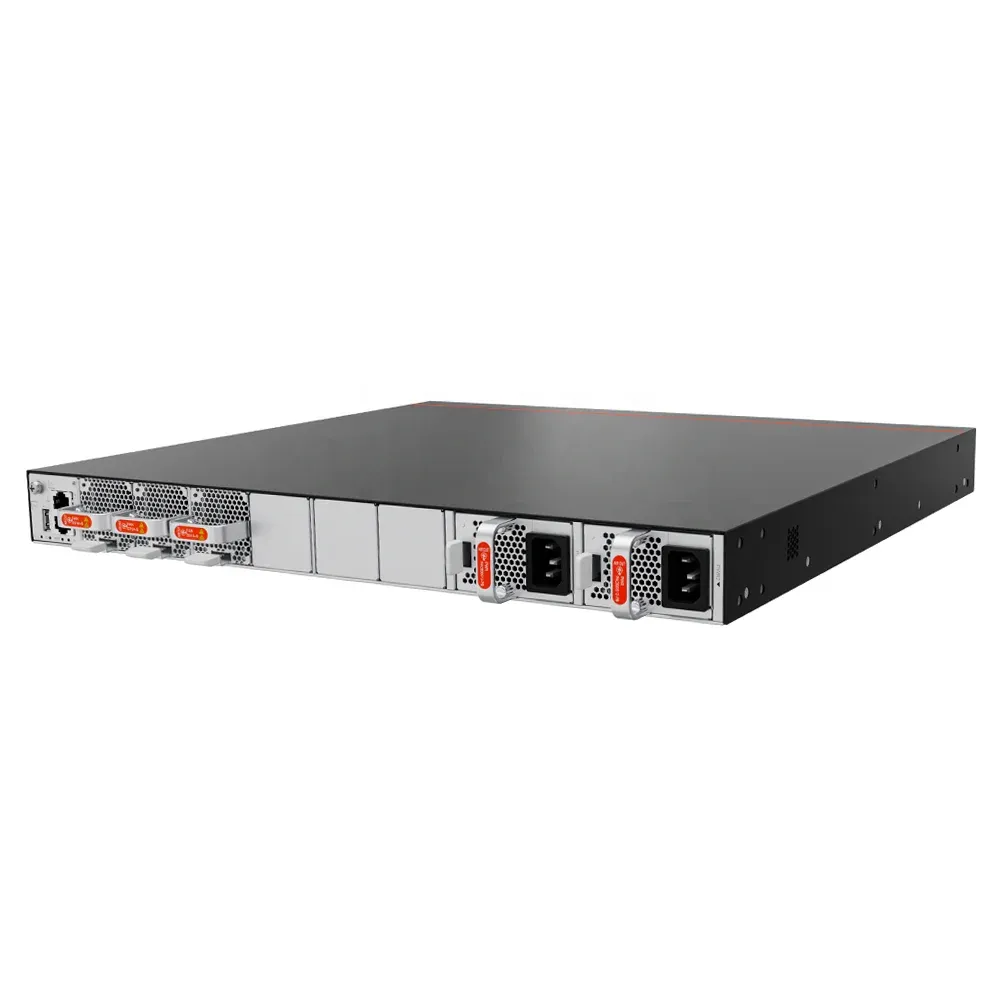

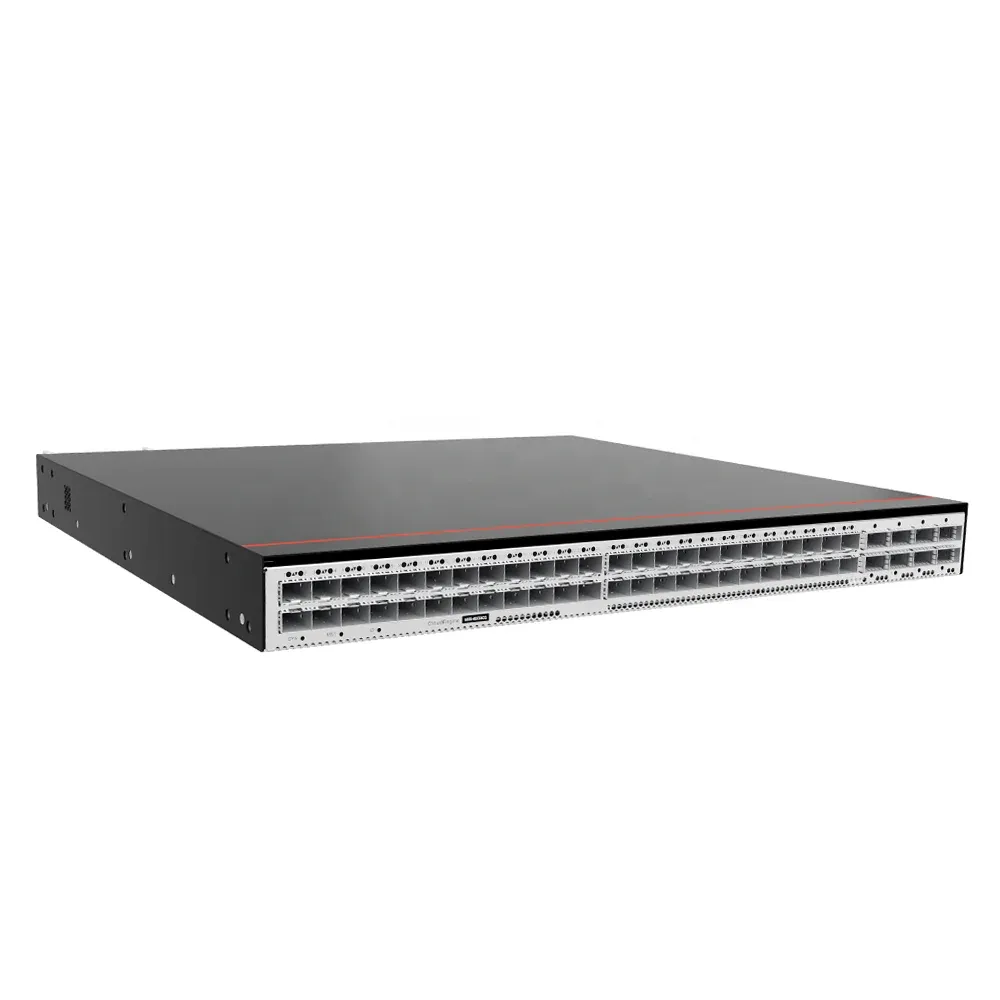

CloudEngine 6800 Series Network Switches CE6855-48XS8CQ (02355KTJ) 48*10GE SFP+ 8*100GE QSFP28 CE6855-48XS8CQ-F Switch
$3.00 USD
Shipping calculated at checkout.
Quantity
Product Description
Offering high-performance, high port density, and low latency, CloudEngine 6800 series switches enable enterprises and carriers alike to build cloud-oriented data center networks.The series features an advanced hardware design combined with either 10 GE, 25 GE, or 50 GE access ports, and 40 GE, 100 GE, or 200 GE uplink ports.Advanced data center features, high-performance stacking technologies, and flexible airflow capabilities complete the series.CloudEngine 6800 is well-suited to both the core and aggregation layers, and is fully compatible with CloudEngine 16800 and 12800 series switches, enabling enterprises to build scalable, simplified, open, and secure networks.
Specification
|
Basic Information
|
|
|
|
Part Number
|
02355KTL
|
|
|
Model
|
CE6855-48XS8CQ
|
|
|
Description
|
CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Exhaust)
|
|
|
Technical Specifications
|
|
|
|
Other part numbers
|
02355KTJ (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, Without Fan and Power Modules)) 02355KTK (CE6855-48XS8CQ switch (48*10GE SFP+, 8*100GE QSFP28, 2*AC Power Modules, 3*Fans, Port-side Intake))
|
|
|
Installation Type
|
Cabinet installation
|
|
|
Depth [mm]
|
420.0 mm
|
|
|
Chassis height [U]
|
1
|
|
|
Width [mm]
|
442.0 mm
|
|
|
Height [mm]
|
43.6 mm
|
|
|
Weight with packaging [kg(lb)]
|
10.63 kg (23.43 lb)
|
|
|
Weight without packaging [kg(lb)]
|
6.36 kg (14.02 lb) (excluding optical modules, power modules, and fan modules)
|
|
|
Maximum power consumption [W]
|
187 W (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) 298 W (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
|
|
|
Typical power consumption [W]
|
138 W (100% traffic load, copper cables on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules) 156 W (100% traffic load, short-distance optical modules on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules)
|
|
|
Static power consumption [W]
|
124 W
|
|
|
Heat dissipation mode
|
Air cooling
|
|
|
Maximum heat dissipation [BTU/hour]
|
- 638 BTU/hour (100% traffic load, short-distance optical modules on all ports, normal temperature, dual AC power modules) - 1017 BTU/hour (100% traffic load, long-distance optical modules on all ports, high temperature, dual AC power modules)
|
|
|
Typical heat dissipation [BTU/hour]
|
- 471 BTU/hour (100% traffic load, copper cables on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules) - 532 BTU/hour (100% traffic load, short-distance optical modules on 24 x 10GE + 4 x 100GE ports, normal temperature, dual AC power modules)
|
|
|
Static heat dissipation [BTU/hour]
|
423 BTU/hour
|
|
|
Power supply mode
|
AC pluggable,DC pluggable,HVDC pluggable
|
|
|
Rated input voltage [V]
|
- 600 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC - 400 W DC power module: –48 V DC to –60 V DC; +48 V DC - 2000 W high-voltage DC power module: 336 V DC
|
|
|
Input voltage range [V]
|
- 600 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz;DC: 190 V DC to 290 V DC - 1200 W DC power module: –38.4 V DC to –72 V DC;+40 V DC to +57 V DC - 400 W DC power module: –38.4 V DC to –72 V DC;+38.4 V DC to +57 V DC - 2000 W high-voltage DC power module: 260 V DC to 400 V DC
|
|
|
Maximum input current [A]
|
- 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC);4 A (240 V DC) - 1200 W DC power module: 38 A (–48 V DC is –60 V DC);38 A (+48 V DC) - 400 W DC power module: 12 A (–48 V DC is –60 V DC);12 A (+48 V DC) - 2000 W high-voltage DC power module: 10 A (336 V DC)
|
|
|
Rated output power [W]
|
- 600 W AC&240 V DC power module: 600 W - 1200 W DC power module: 1200 W - 400 W DC power module: 400 W - 2000 W high-voltage DC power module: 2000 W
|
|
|
Memory
|
DRAM: 8 GB
|
|
|
NOR Flash
|
64 MB
|
|
|
SSD Flash
|
4GB SSD
|
|
