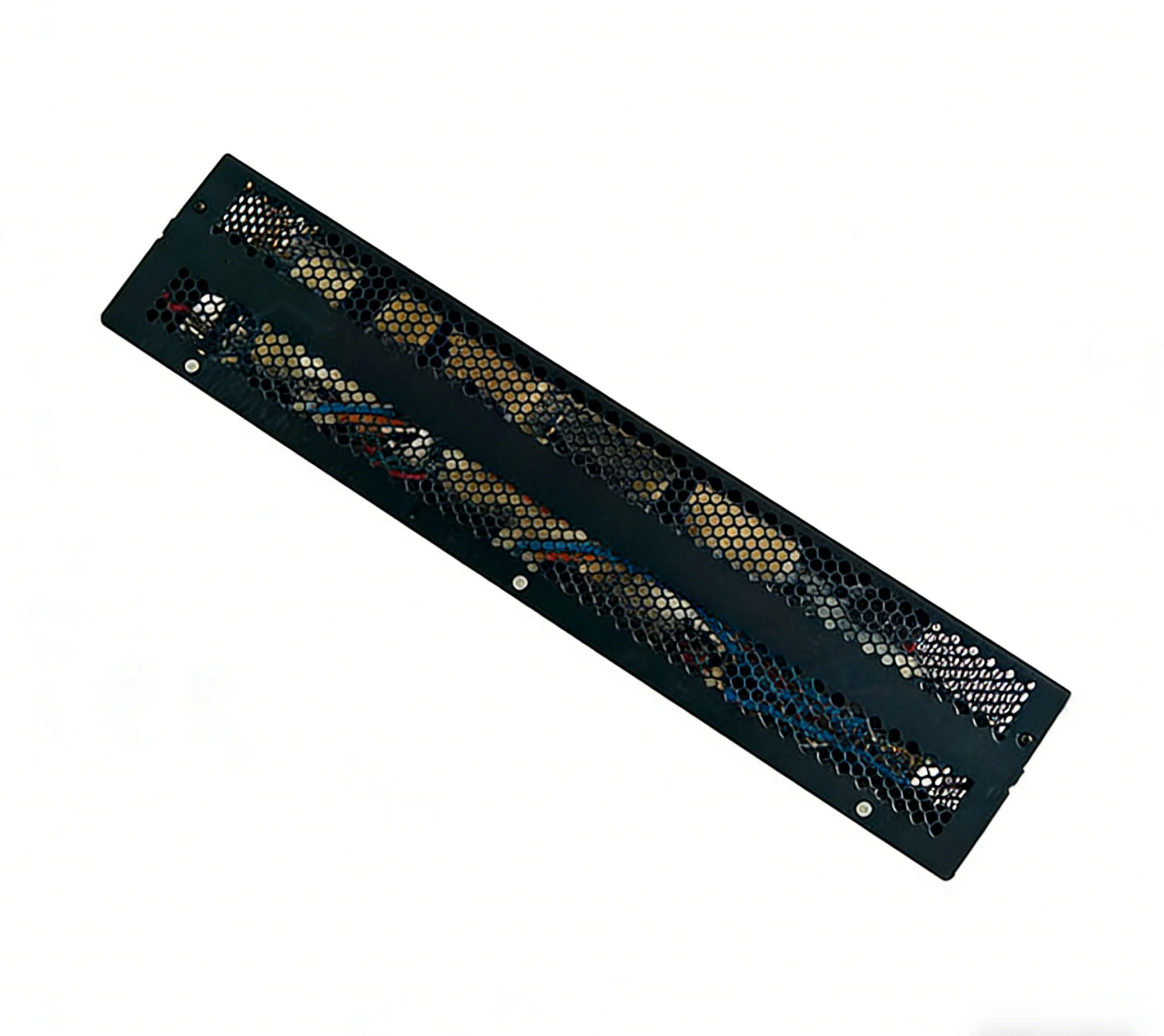

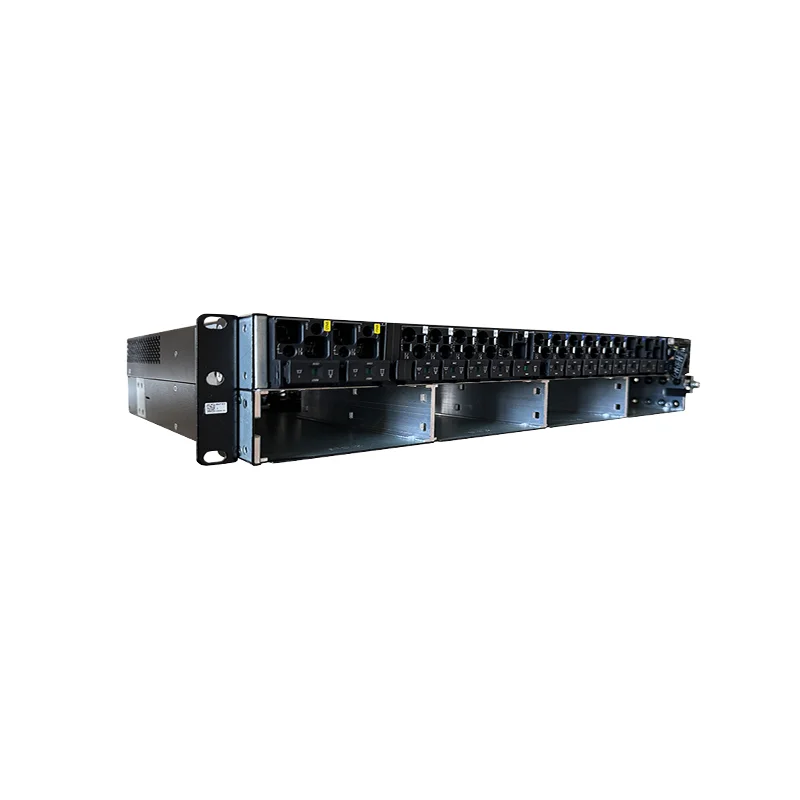

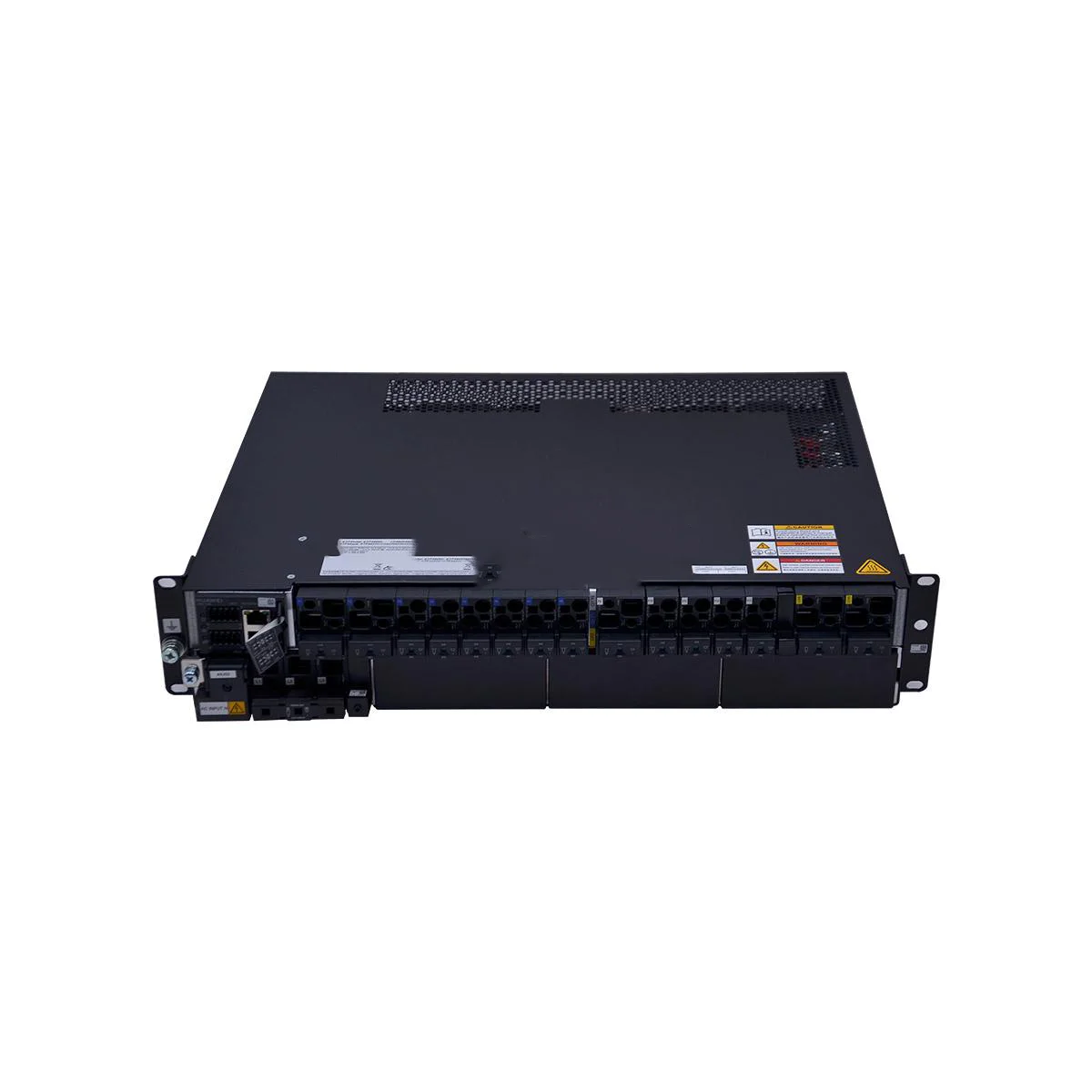

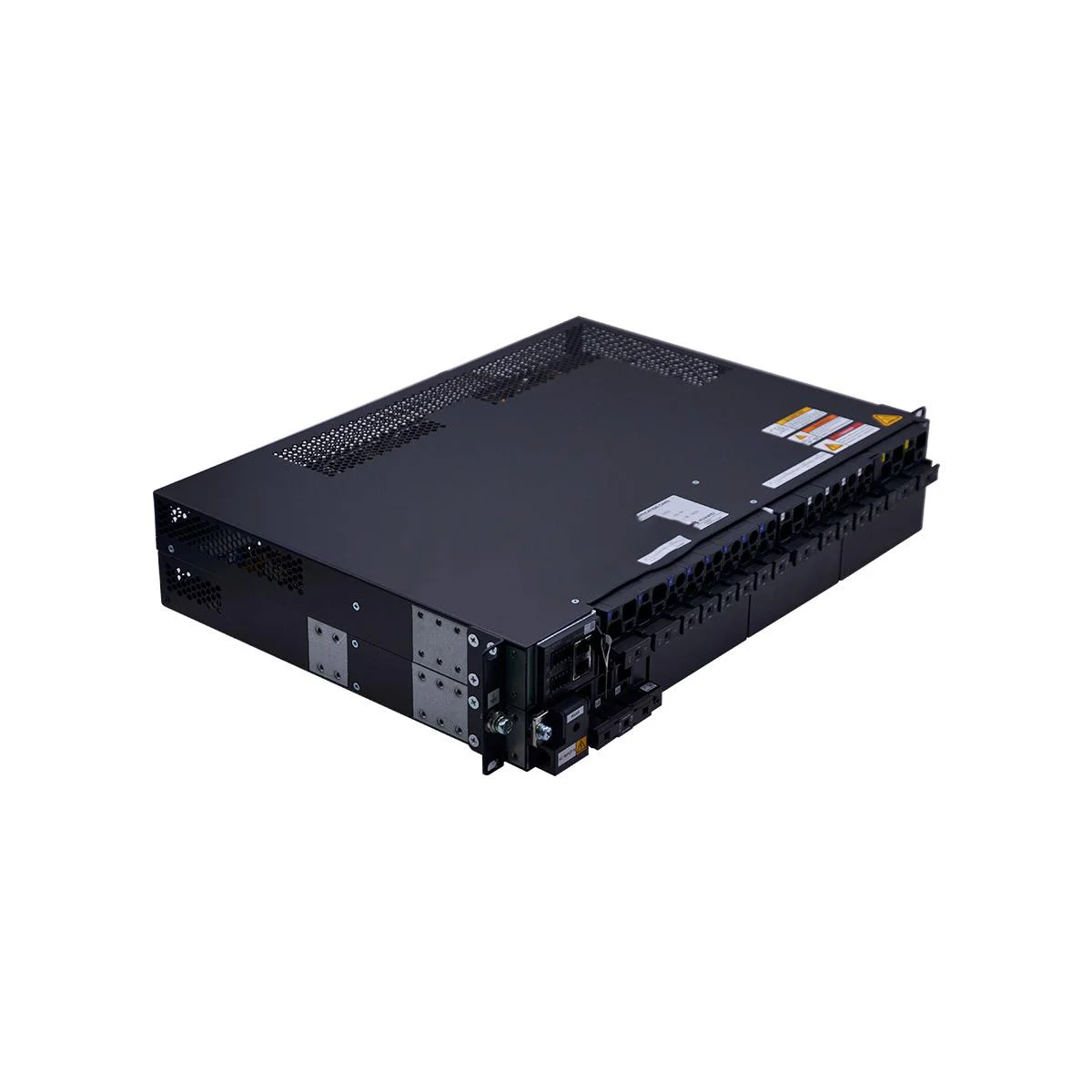

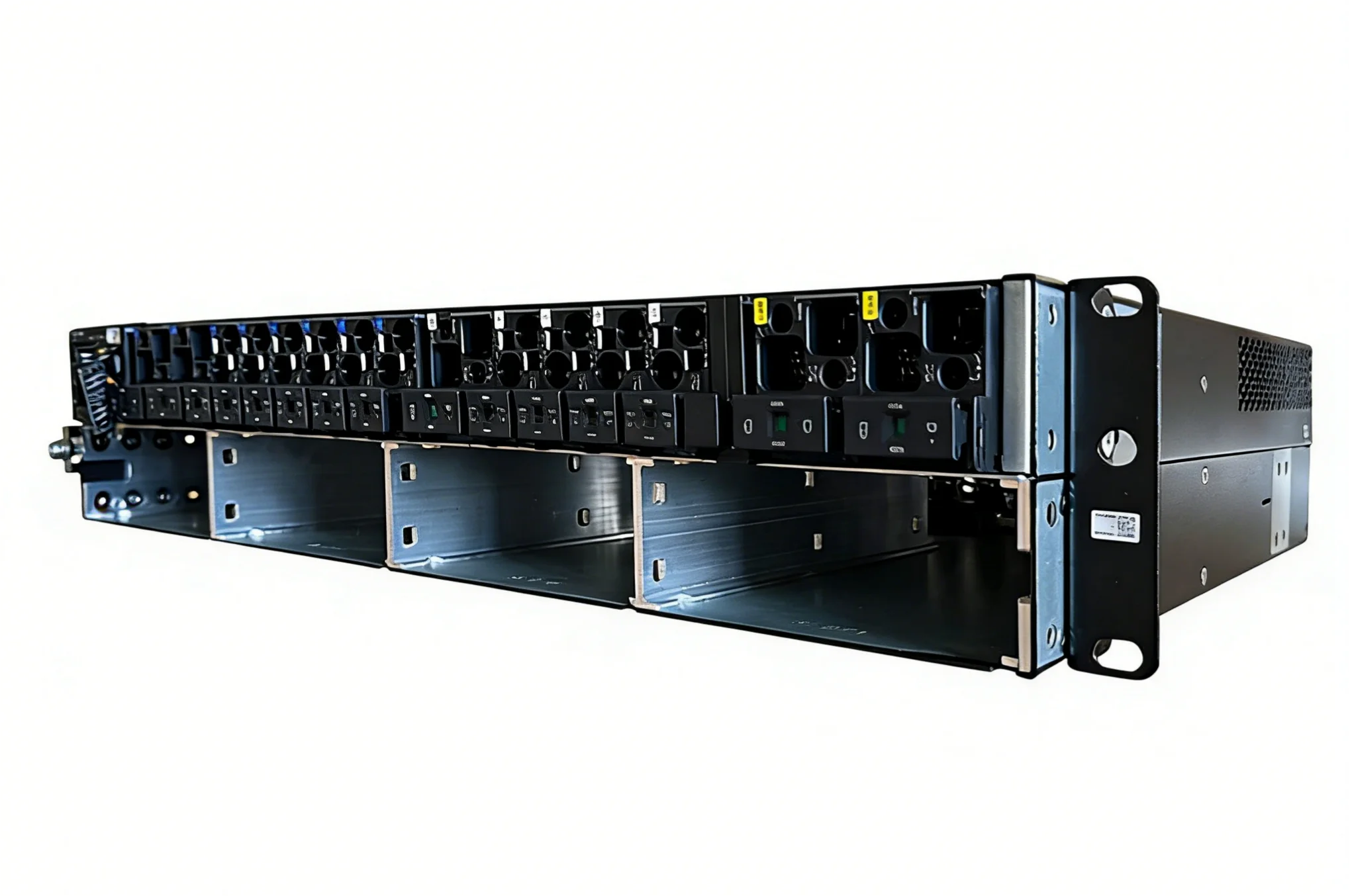

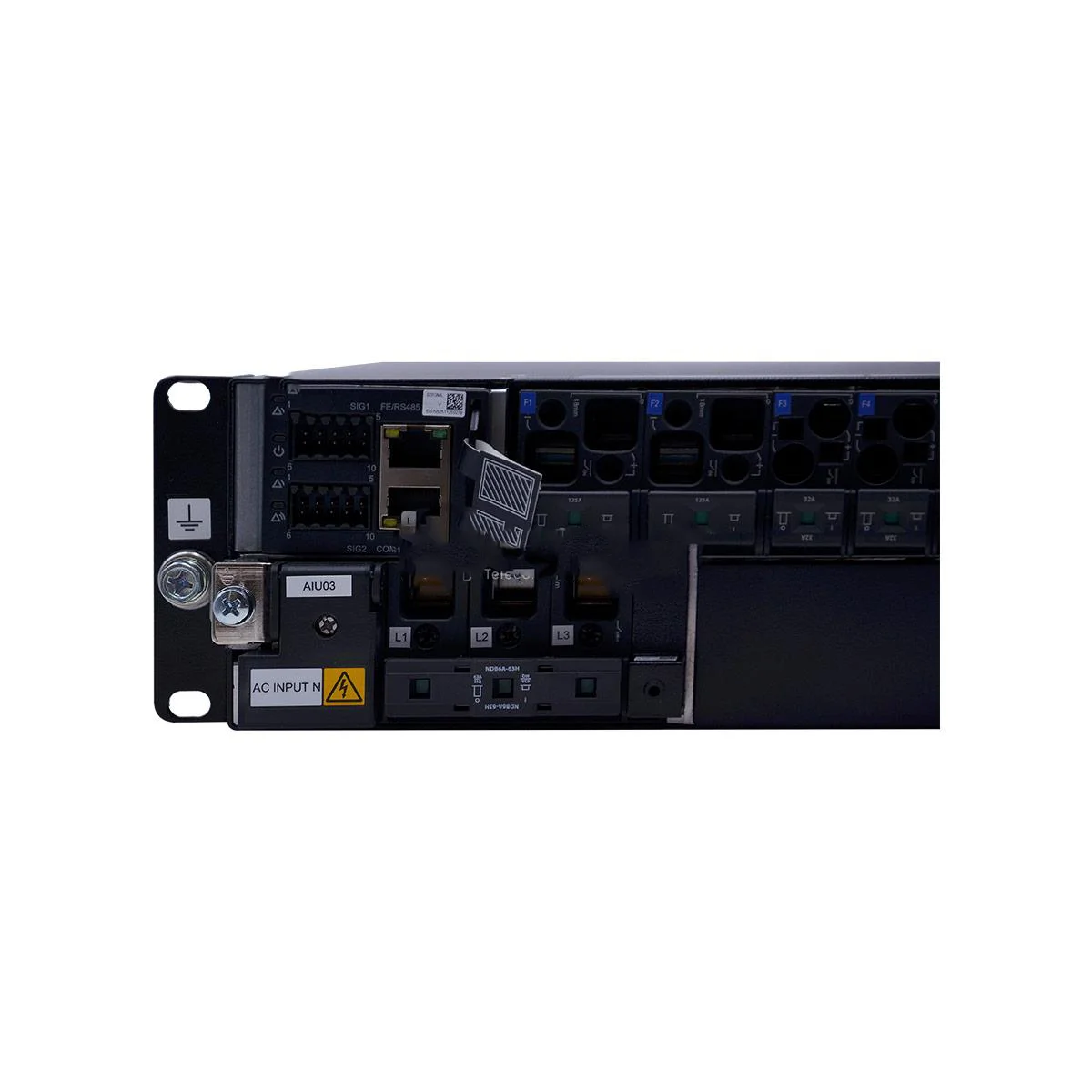

ETP48200-C2A6 High-Density Embedded Power Supply -48V/-57V 200A 12KW Switching Power for Communications
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Item | ETP484200-C2A6 | ||||
Basic parameter | Dimensions (Width Xdepth x height) | 482.6mm x330mm x86.4mm | |||
weight | ≤10 kg (Does not include rectifier module) | ||||
Installation mode | 19-inch rack mount | ||||
Routing mode | Forward out | ||||
Maintenance mode | Frontal maintenance | ||||
Class of protection | IP20 | ||||
AC distribution | Input standard | Three-phase compatible single-phase,three-phase: 147VAC ~ 519VAC; Single-phase:85VAC to 300VAC | Dual live wire,input voltage:85~300 VAC | ||
frequency | 45~66 Hz, rated frequency: 50/60 Hz | ||||
Input circuit breaker
| 1 X63A/3P MCB | 1X 125A/2P MCB | |||
Lightning protection
| Nominal discharge current:30kA (8/20us) | ||||
DC distribution | Output voltage | ommon mode:42VDC to 58VDC,rated:53.5VDC5G mode: 57VDC constant voltage(CloduLilithium battery is required to take effect) | |||
Maximum capacity
| 12kW (3x4kW) | ||||
Battery circuit breaker | 2X 125A/1P MCB | ||||
Power off the branchat a time |
2X 125A/1PMCB, 6 X 32A/1PMCB
| ||||
Power off the branchtwice
| 1X 80A/1PMCB, 3 X32A/1PMCB, 1 X16A/1PMCB | ||||
Dc lightning protection |
Nominal lightning discharge current: differential mode 10kA (8/20 p s),common mode 20kA (8/20s) | ||||
module Monitoring | Monitoring type | SMU11B | |||
Signal input
| 1 battery temperature, 1 door status sensor | ||||
Alamm output |
3 Dl+ 21O(Mixed Input/Output)
| ||||
Communicationinterface |
One northbound FE port and one southbound RS485 port
| ||||
environment | Operating temperature | -40℃to+65℃ | |||
Storage temperature |
-40℃ to+70℃ | ||||
Working humidity
|
5% ~ 95% (no condensation)
| ||||
Working altitude
| O~ 4000m (ffit is used at an altitude of 2000~ 4000m, the maximum operatingtemperature has derating,and it isreduced by 1℃ forevery 200 m rise) | ||||
