* Gas-tube Structure
* Easily Replaced Gas Tube Element
* Relaiable Performance from 380-512MHz

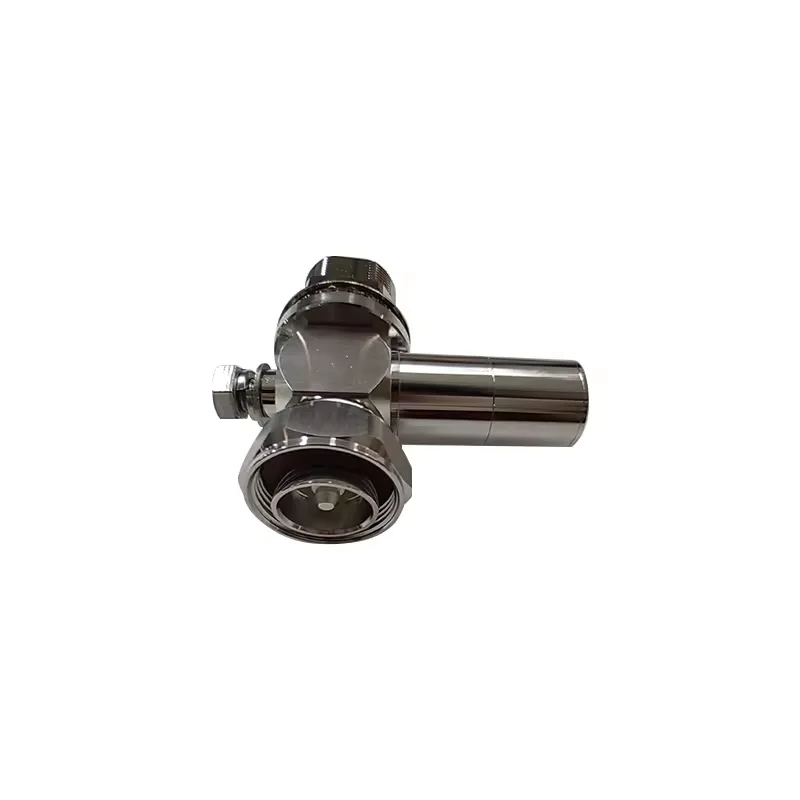

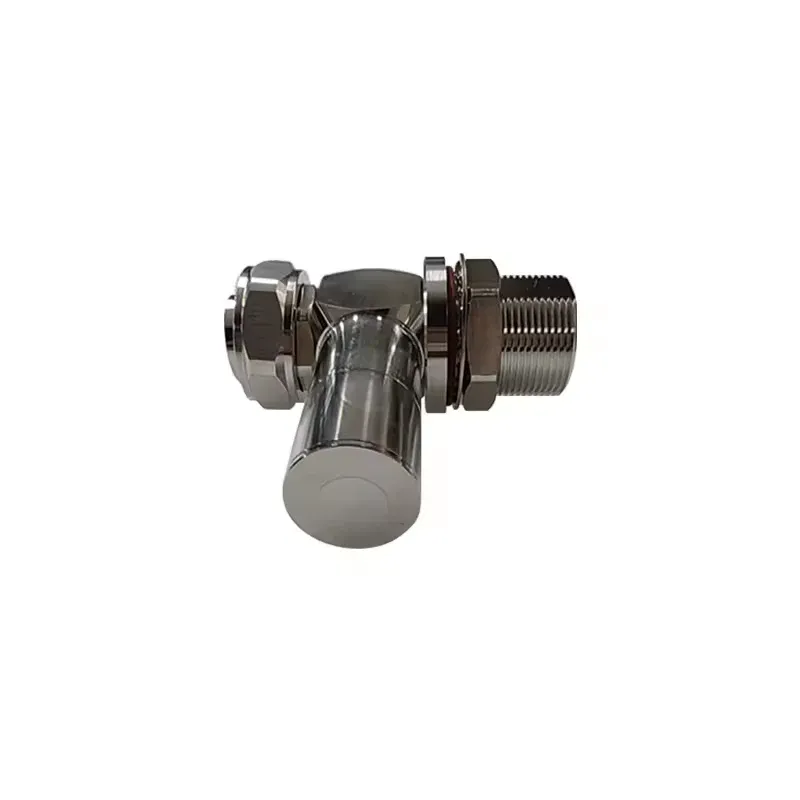

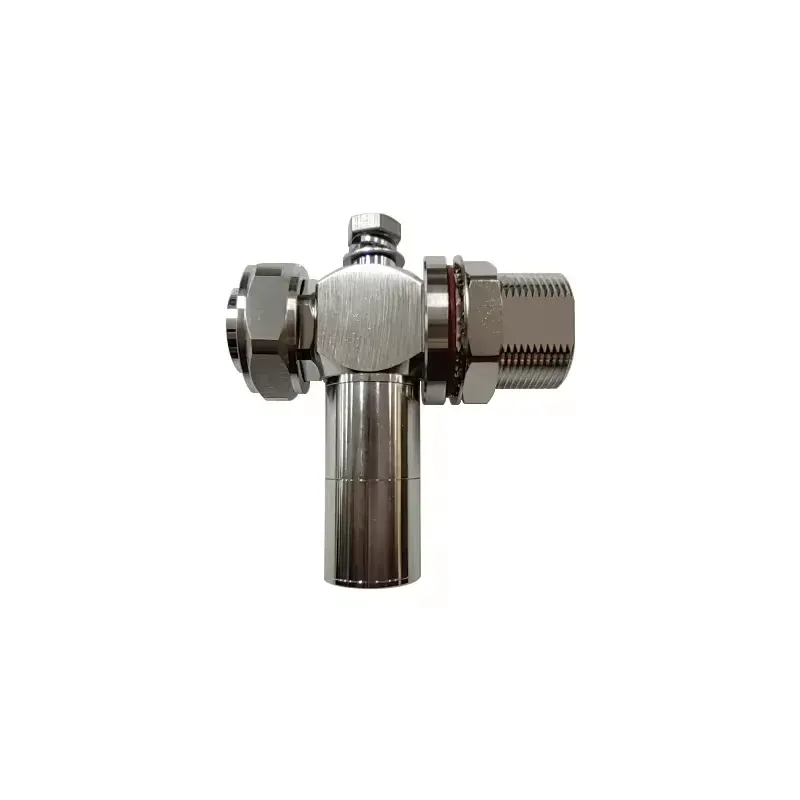

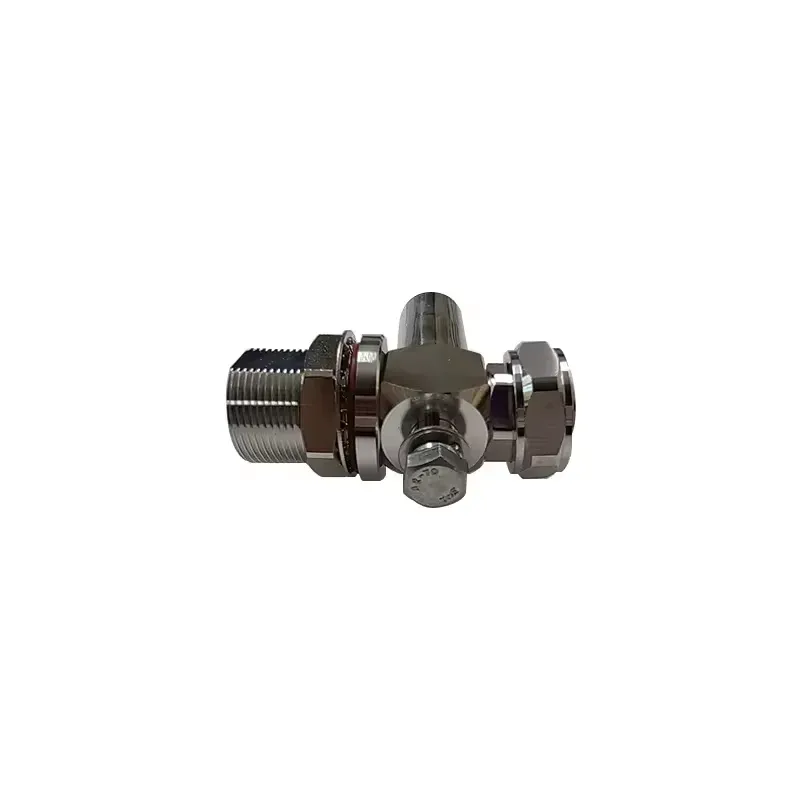

Factory Customized UHF 380-512MHz Coaxial RF Surge Protector Thunder Arrestor with DIN Connector
$60.00 USD
Quantityتعداد
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
Product Name: | Coaxial RF Surge Protector | ||||||
Working Frequency | 380-512 MHz | ||||||
Nominal Surge Current (In) (8/20μs ) | 20 KA | ||||||
Maximum Surge Current (Imax) (8/20μs) | 50 KA | ||||||
Response Time (Ta) | <10ns | ||||||
RF Power CW | 3000 Watts | ||||||
VSWR. | <1.20 | ||||||
Connector | 7/16 DIN@Female to Male | ||||||
Insulation Resistance | ≥5000 MΩ | ||||||
Ground Resistance Ω | ≤4Ω / ≥2.5mm² | ||||||
waterproof rating | IP67 | ||||||
Product performance description
Product performance description
❖Max Surge current 50KA
❖Max RF CW Power 3000W
❖Frequency range from 380-512MHz
❖Waterproof IP67 rated
❖DIN type connector @ female to male,
bulkhead@female.
❖VSWR < 1.2
Low insertion loss
Related Products
Company Introduction
Hefei Maniron Electronic And Technology Co LTD., Esatablished in 2002,is a leading manufacturer of RF components,We offer OEM
services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two
factories.At the same time,Maniron’s market network has been all over the world.The Maniron Electronic has a huge fellowship that
is composed of many high-level technologists.And also has established a research institution which cooperating with some famous
universities.high-level technologists.We also has established a Research Institution which is cooperting with some famous
universities in China.
services.Headquarters of Maniron Electronic is located at hi-tech developing district in Hefei Anhui,China.Includes two
factories.At the same time,Maniron’s market network has been all over the world.The Maniron Electronic has a huge fellowship that
is composed of many high-level technologists.And also has established a research institution which cooperating with some famous
universities.high-level technologists.We also has established a Research Institution which is cooperting with some famous
universities in China.
Product Usage
1.In-Building DAS systems requiring best PIM performace
2.Mobile Communication Network Optimization and In-door distribution
system
3.Cluster communication, satellite communication,shortwave communication and hopping radio.
4.Radar, electronic navigation and electronic confrontation.
system
3.Cluster communication, satellite communication,shortwave communication and hopping radio.
4.Radar, electronic navigation and electronic confrontation.
