Log-periodic antennas most be used at ultra-short wave frequency band, they can also be used as short-wave communication antenna and Medium wave, short wave broadcast transmission antenna.It has a high efficiency with an almost expected transmission value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.

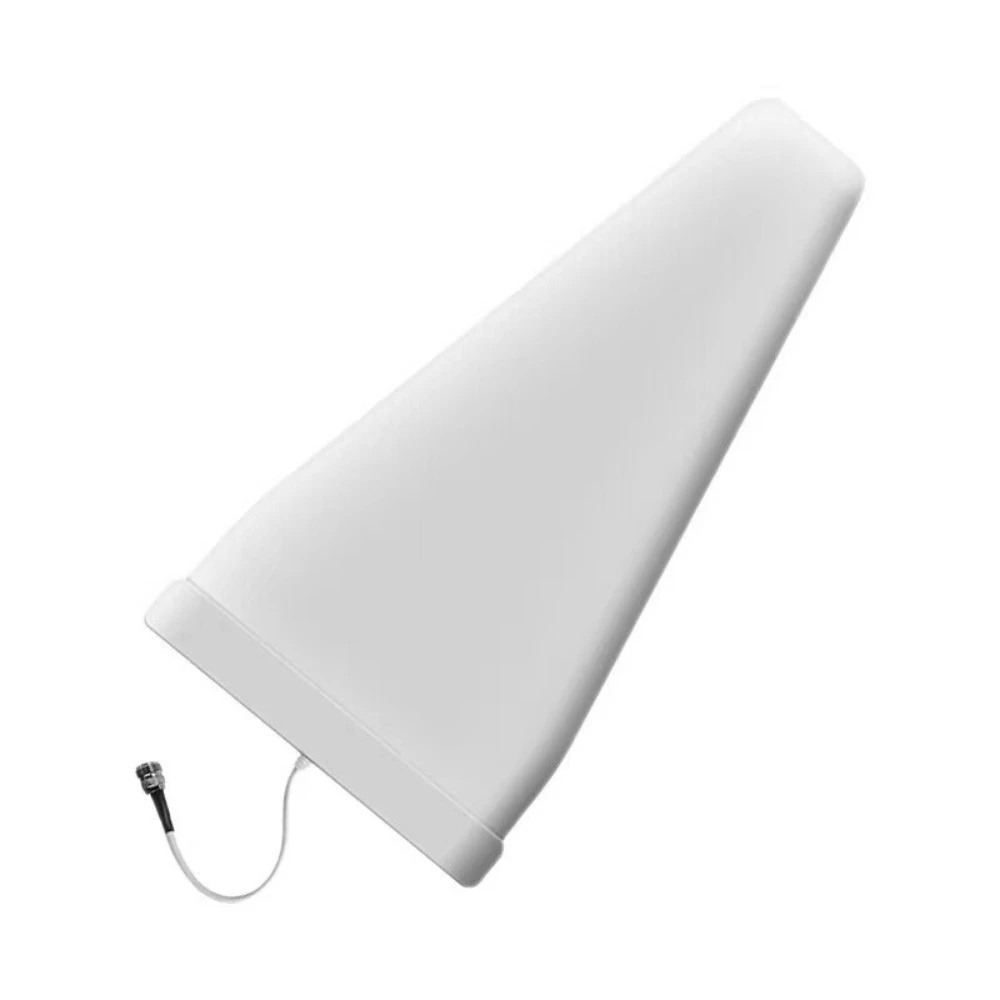

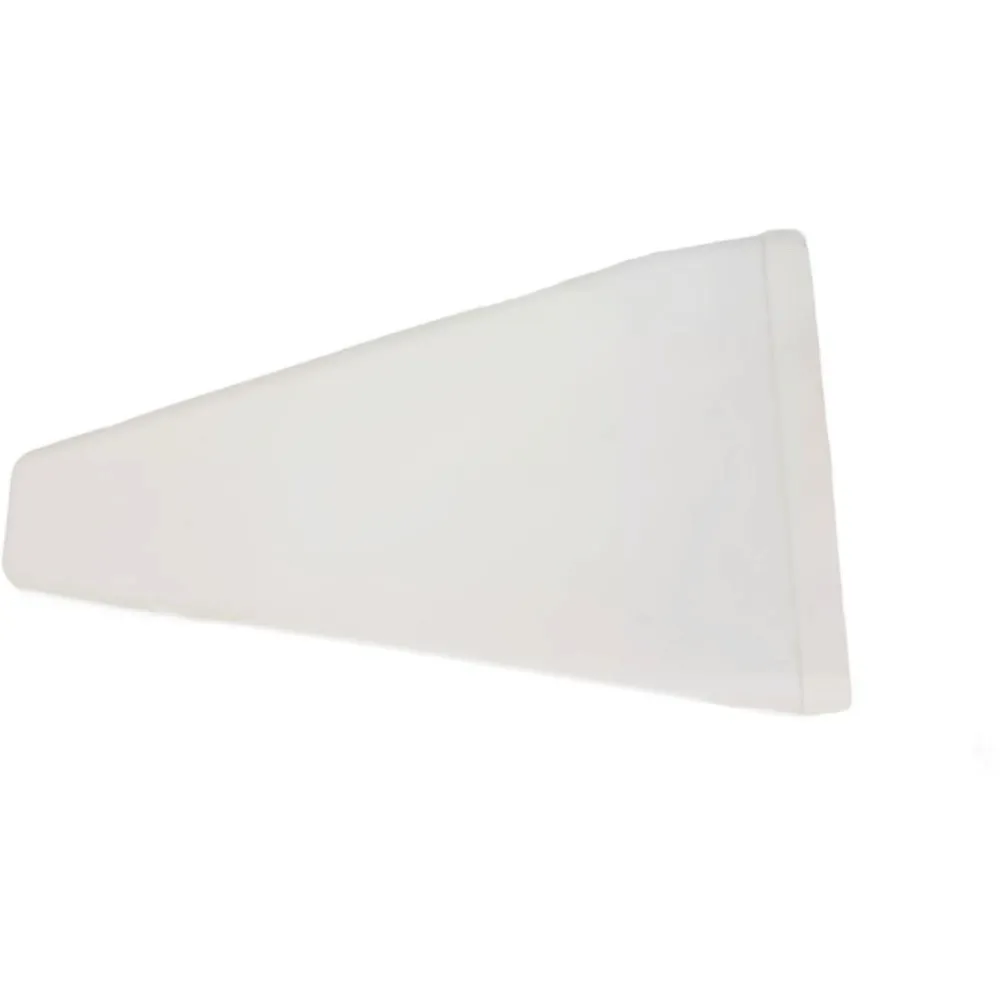

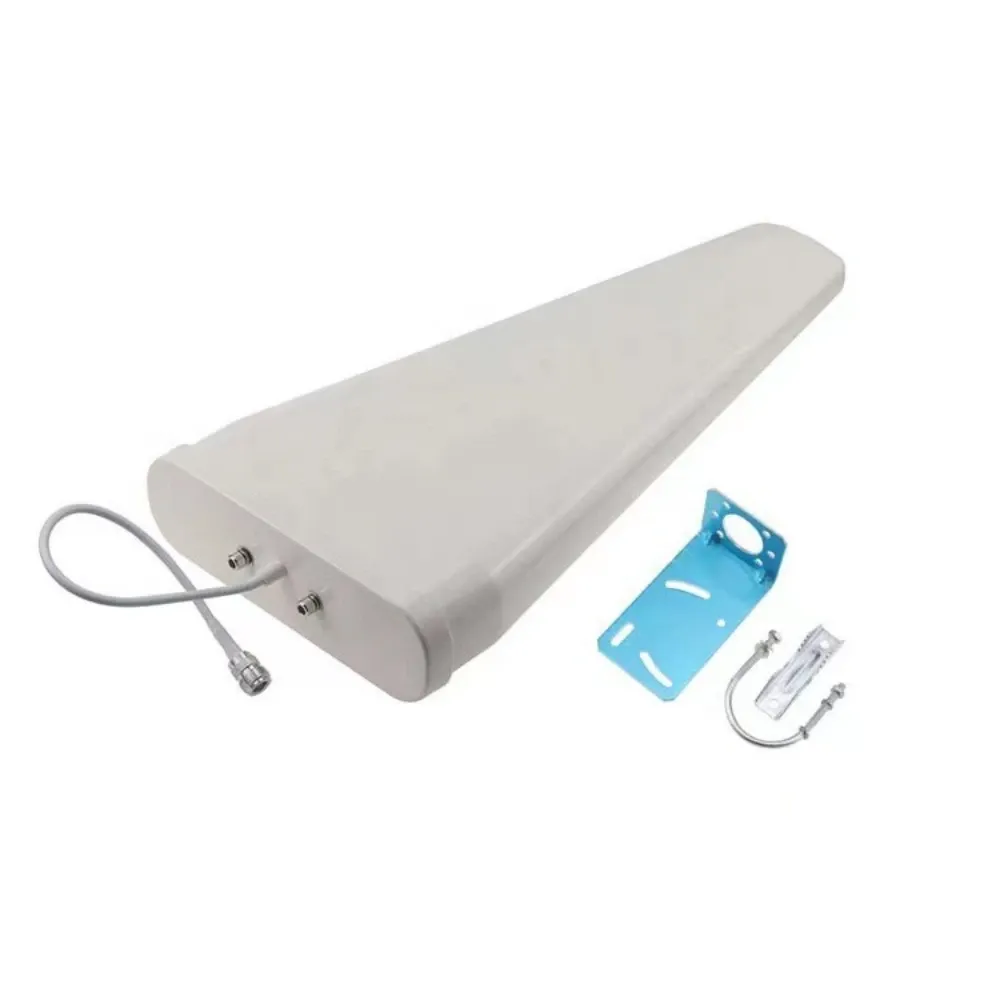

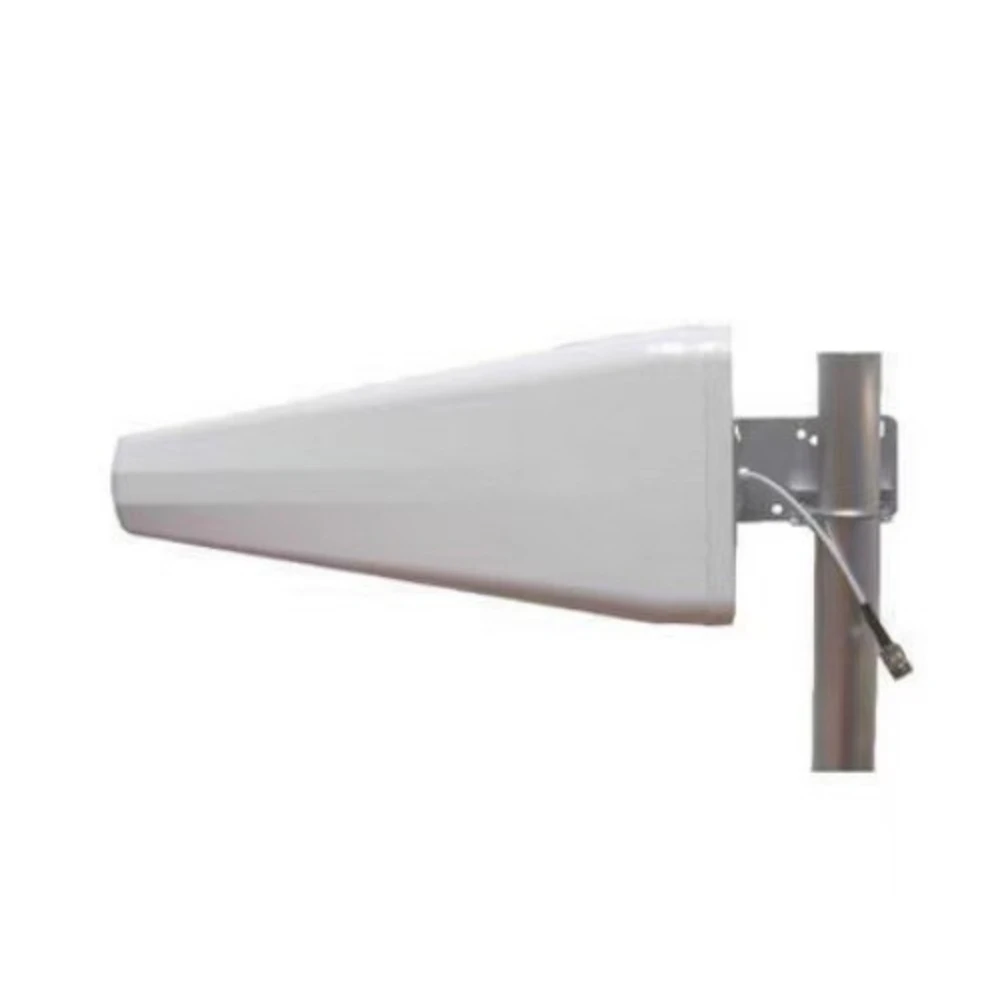

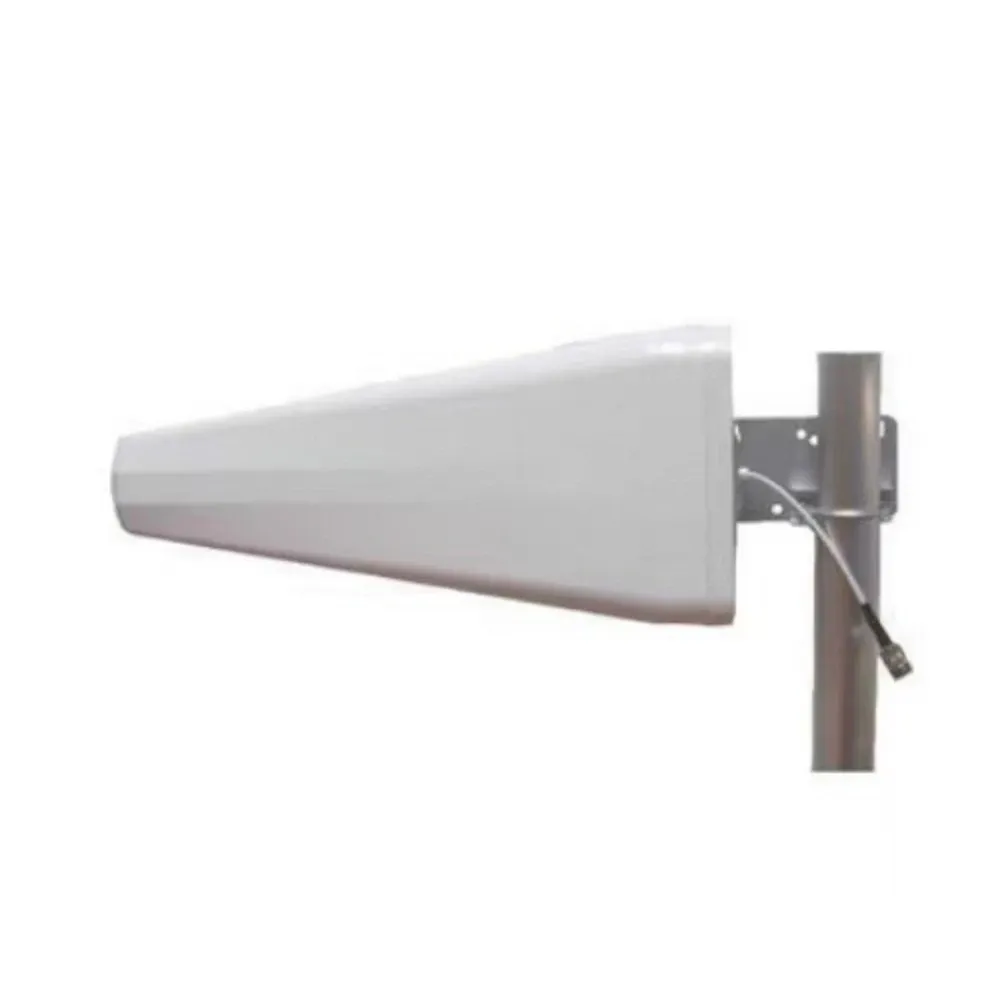

Full band 4g Yagi log-period wireless outdoor communication Lpda 12dbi antenna
$3.90 USD
Quantityتعداد
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
|
Product Name
|
Log Periodic Antenna
|
|
Model
|
698/3800LPD
|
|
Frequency range
|
600~960MHz/1710~3800MHz
|
|
Gain
|
10-12dBi
|
-
Product performance description
Specification
|
Frequency range
|
698~960MHz/1710~3800MHz
|
Gain
|
9+/-1dBi, 10+/-1dBi
|
|||
|
Standing wave ratio
|
≤1.5
|
The interface type
|
N-Female
|
|||
|
Third-order intermodulation
|
≤-107dBm(@33dBm)
|
Antenna size (mm)
|
410×210×55
|
|||
|
Front to back ratio
|
≥15dB
|
Antenna weight (kg)
|
0.6
|
|||
|
The input impedance
|
50Ω
|
Radome material
|
ABS
|
|||
|
Horizontal half-power beamwidth (°)
|
85±10°, 80±10°
|
Antenna shield color
|
White
|
|||
|
Vertical half-power beamwidth (°)
|
75°/60°
|
Ambient temperature (°C)
|
-40～+55
|
|||
|
Power capacity
|
50W
|
Polarization
|
Vertical
|
|||
|
Remarks: All above can be customized; Flexible support for high gain
|
|
|
|
|||

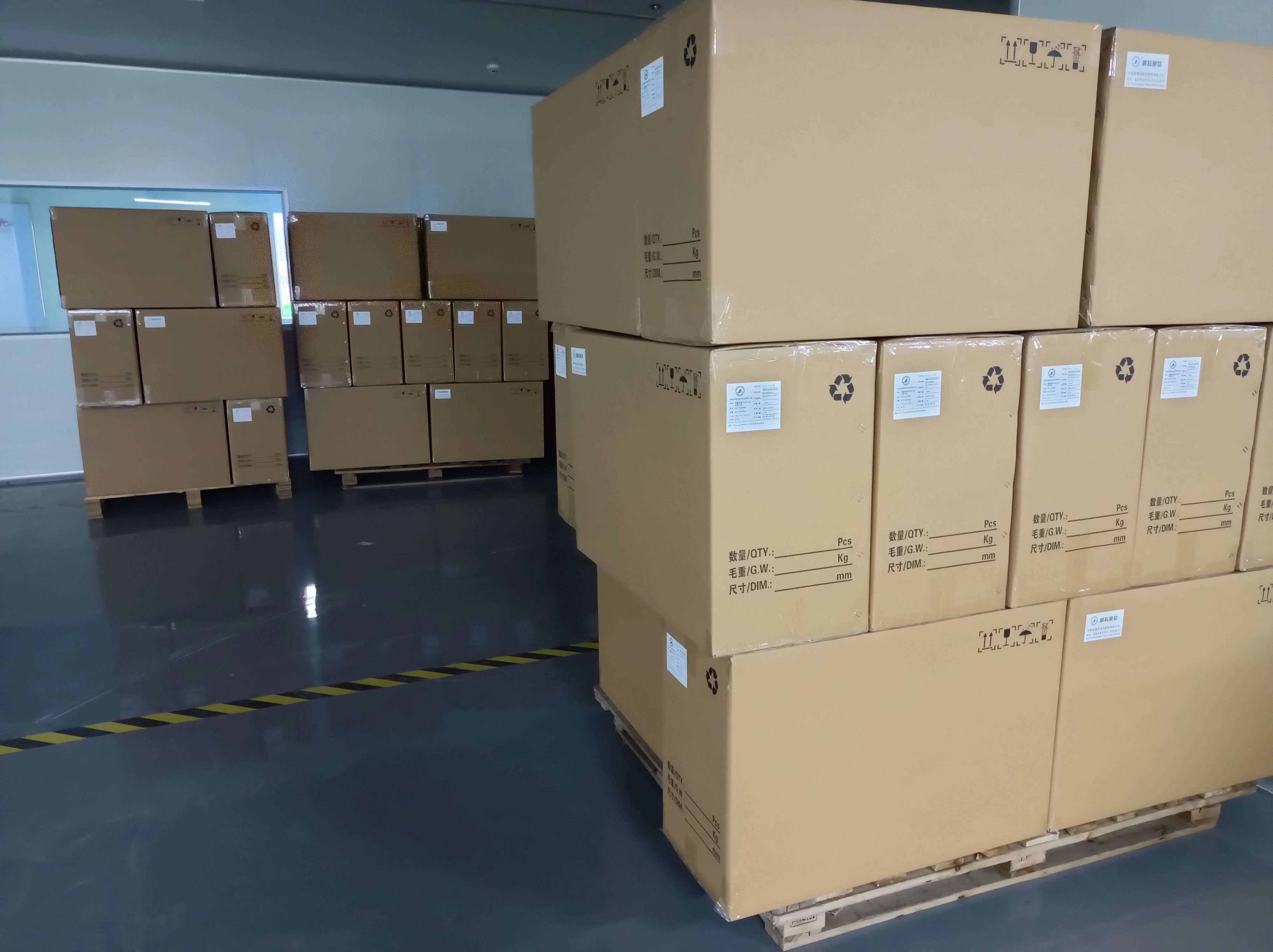

Packing & Shipping
The interior is made of customized pearl cotton, and the exterior is packed in thickened cartons to prevent damage during
transportation.
transportation.
Related Products
Contact Us
Yantai Boxin International Trade Co., Ltd.
Click the number to chat on WhatsApp or send an email. WeChat ID is the same as the phone number.
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
توضیحات محصول
|
Product Name
|
Log Periodic Antenna
|
|
Model
|
698/3800LPD
|
|
Frequency range
|
600~960MHz/1710~3800MHz
|
|
Gain
|
10-12dBi
|
-
Product performance description
Log-periodic antennas most be used at ultra-short wave frequency band, they can also be used as short-wave communication antenna and Medium wave, short wave broadcast transmission antenna.It has a high efficiency with an almost expected transmission value and better directivity, easy site construction and easy maintenance compared with other high gain antennas.
Specification
|
Frequency range
|
698~960MHz/1710~3800MHz
|
Gain
|
9+/-1dBi, 10+/-1dBi
|
|||
|
Standing wave ratio
|
≤1.5
|
The interface type
|
N-Female
|
|||
|
Third-order intermodulation
|
≤-107dBm(@33dBm)
|
Antenna size (mm)
|
410×210×55
|
|||
|
Front to back ratio
|
≥15dB
|
Antenna weight (kg)
|
0.6
|
|||
|
The input impedance
|
50Ω
|
Radome material
|
ABS
|
|||
|
Horizontal half-power beamwidth (°)
|
85±10°, 80±10°
|
Antenna shield color
|
White
|
|||
|
Vertical half-power beamwidth (°)
|
75°/60°
|
Ambient temperature (°C)
|
-40～+55
|
|||
|
Power capacity
|
50W
|
Polarization
|
Vertical
|
|||
|
Remarks: All above can be customized; Flexible support for high gain
|
|
|
|
|||
Packing & Shipping
The interior is made of customized pearl cotton, and the exterior is packed in thickened cartons to prevent damage during
transportation.
transportation.
