GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

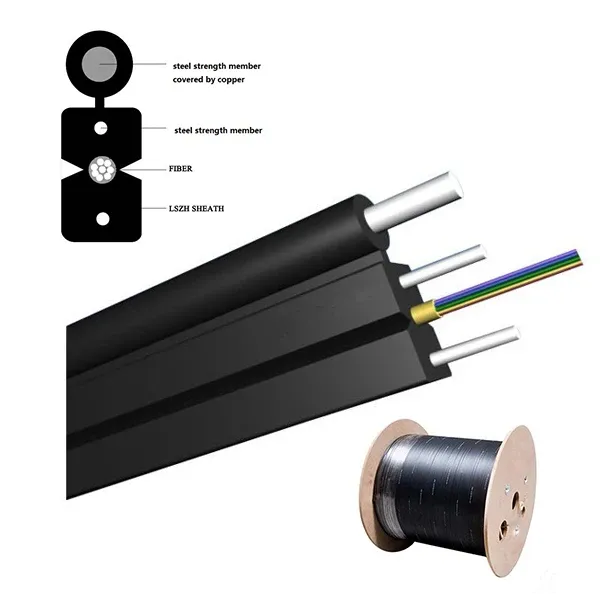

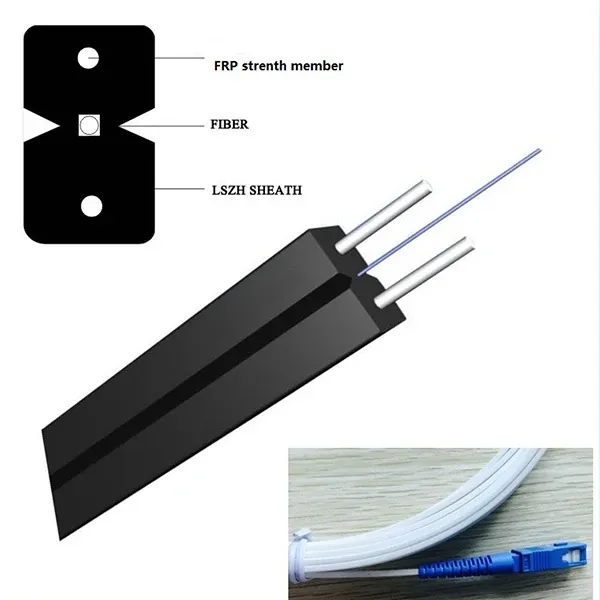

GJXH GJXCH 1,2,4,6,8,12 Cores FTTH flat indoor/outdoor fiber optic cable Drop Cable
Key Data
| Indoor model | GJXH |
Outdoor model | GJXCH |
Jacket | PVC or LSZH |
Cores available | 1,2,4,6,8,12 colors |
Dropping steel mesenger OD | 1x1.0mm |
Protecting inner wires(or FRP) OD | 2x0.45mm |
Jacket colors | Black,white etc., |
Fiber Type | G652D/G657A1/G657A2 |
Modes | Singlemode, Multimode |
Length | 1km/2km each roll |
Fiber Parameters
| No. | Items | Unit | Specification | |
G.652D | ||||
1 | Mode Field Diameter | 1310nm | μm | 9.0±0.4 |
1550nm | μm | 10.1±0.5 | ||
2 | Cladding Diameter | μm | 124.8±0.7 | |
3 | Cladding Non-Circularity | % | ≤0.7 | |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 | |
5 | Coating Diameter | μm | 245±5 | |
6 | Coating Non-Circularity | % | ≤6.0 | |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 | |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 | |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.35 |
1550nm | dB/km | ≤0.21 | ||
10 | Macro-Bending Loss | 1turn×10mm radius @1550nm | dB | ≤0.75 |
1turn×10mm radius@1625nm | dB | ≤1.5 | ||

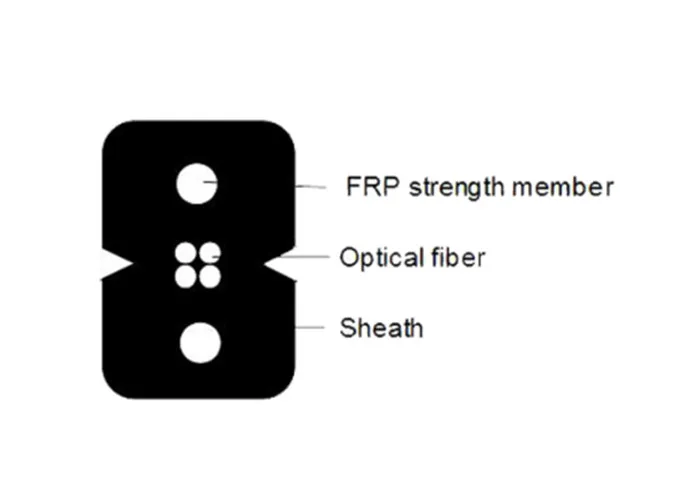

Cable Parameters
| Items | Specifications | ||
Fiber Count | 1,2,4 | ||
Colored Coating Fiber | Dimension | 250±15μm | |
Color | Blue, Orange | ||
Strength Member | Dimension | 0.5mm | |
Material | FRP | ||
Self-Supporting Member | Dimension | 1.0mm | |
Material | Steel Wire | ||
Jacket | Dimension | 5.2±0.2mm×2.0±0.1mm | |
Material | LSZH | ||
Color | Black | ||
1.Professional manufacturer, 100% tested.
2.Customers solutions in days, not weeks.
3.Warmly services with careful attentions.
4.Can provide your specific inquiry within 24 hours.
5.Save much costs, bring more benefit for customer to expand business.
6.We have been 12 years experience in this field.We are the prefessional supplier that you can trust.
