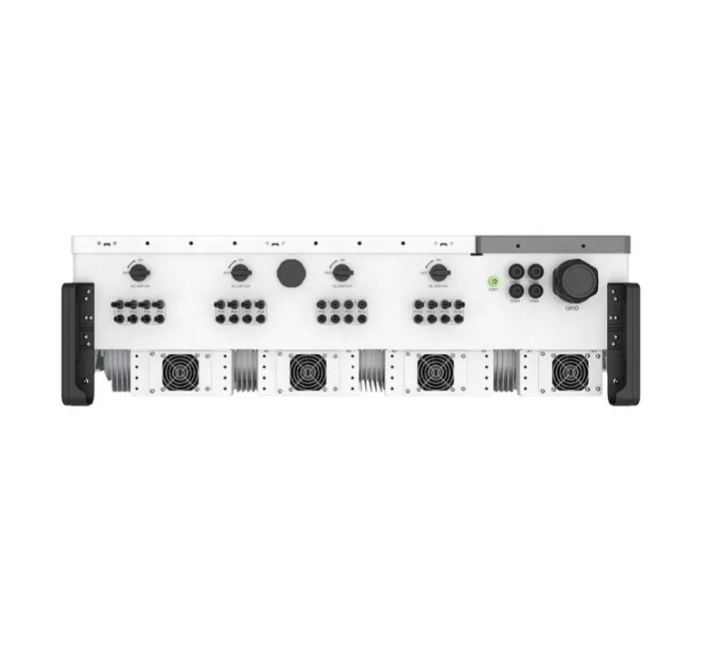

Hot Sell Solar Power Inverter Solar Grid Inverter 80kw for Home Energy System
1601273021180_On-Grid Solar System_String Inverter
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
|
Models
|
80K
|
|
Input DC
|
|
|
Max.input voltage
|
1100 V
|
|
Rated voltage
|
600 V
|
|
Start-up voltage
|
180 V
|
|
MPPT voltage range
|
160-1000 V
|
|
Max. input current
|
3*(40 A / 32 A)
|
|
Max.short circuit current
|
6*50 A
|
|
MPPT number / Max.input strings number
|
6/12
|
|
Output AC
|
|
|
Rated output power
|
80 kW
|
|
Max.apparent output power
|
88 kVA
|
|
Max.output power
|
88 kW
|
|
Rated grid voltage
|
3/N/PE, 220 V / 380 V, 230 V / 400 V
|
|
Rated grid frequency
|
50 Hz / 60 Hz
|
|
Rated grid output current
|
121.6 A / 115.5 A
|
|
Max.output current
|
133.7 A
|
|
Power factor
|
>0.99 (0.8 leading - 0.8 lagging)
|
|
THDi
|
<3%
|
|
Efficiency
|
|
|
Max.efficiency
|
98.5%
|
|
EU efficiency
|
98.0%
|
|
Protection
|
|
|
DC reverse-polarity protection
|
Yes
|
|
Short circuit protection
|
Yes
|
|
Output over current protection
|
Yes
|
|
Surge protection
|
DC Type II / AC Type II
|
|
Grid monitoring
|
Yes
|
|
Anti-islanding protection
|
Yes
|
|
Temperature protection
|
Yes
|
|
Strings monitoring
|
Yes
|
|
I/V Curve scanning
|
Yes
|
|
Integrated AFCI
|
Yes
|
|
Integrated PID recovery
|
Optional
|
|
Integrated DC switch
|
Yes
|
|
Integrated AC switch
|
Optional
|
|
General Data
|
|
|
Dimensions (W × H × D)
|
1065*585*363 mm
(with or without AC switch) |
|
Weight
|
78 kg
|
|
Topology
|
Transformerless
|
|
Self-consumption (night)
|
<2 W
|
|
Operating ambient temperature range
|
-30 ~ +60°C
|
|
Relative humidity
|
0-100%
|
|
Ingress protection
|
IP66
|
|
Cooling concept
|
Intelligent redundant fan-cooling
|
|
Max.operation altitude
|
4000 m
|
|
Grid connection standard
|
G99, IEC61727, EN50549-1/2
|
|
Safety / EMC standard
|
IEC/EN 62109-1/-2, IEC/EN 61000-6-2/-4
|
|
Features
|
|
|
DC connection
|
MC4 connector
|
|
AC connection
|
OT terminal (max.240 mm²
|
|
Display
|
LCD
|
|
Communication
|
RS485, Optional: Wi-Fi, GPRS, PLC
|
