Product Description

1.Product Overview

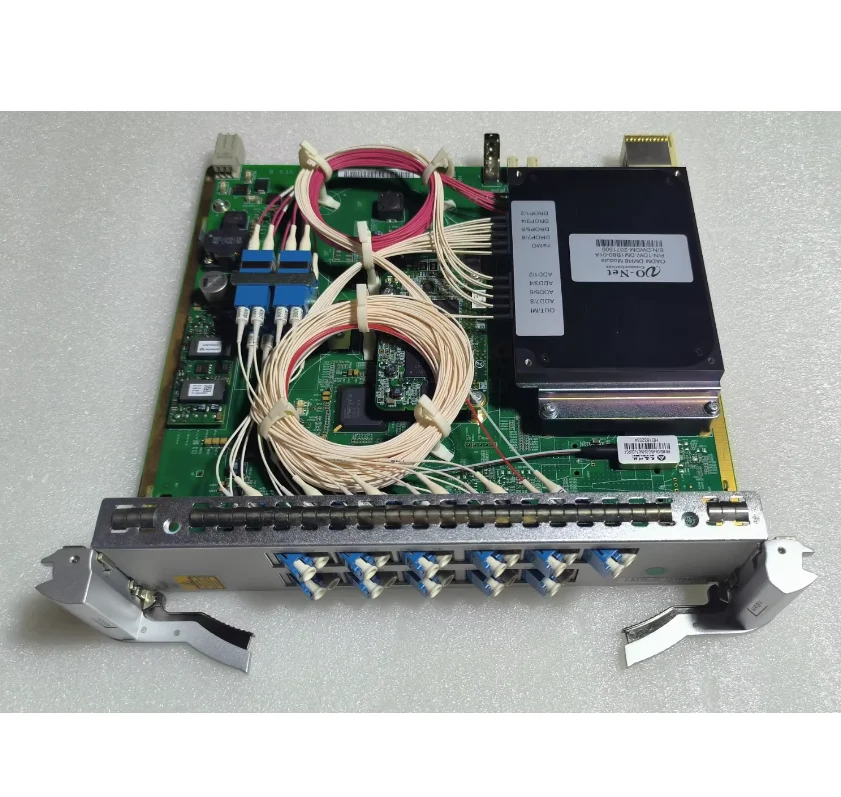

1.Basic information of the board

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Board name: 8-channel optical add/drop multiplexing board (with adjustable optical attenuation)

Function positioning realizes the uplink, downlink, and multiplexing functions of 8 consecutive wavelength channels in the DWDM system, and adjusts the attenuation control of the input optical power on the uplink channel and line side

Board type: Adjustable optical add/drop multiplexing board (OADM with VOA)

Compatible with subracks such as OSN 9800 U series/M series that support TN series cards

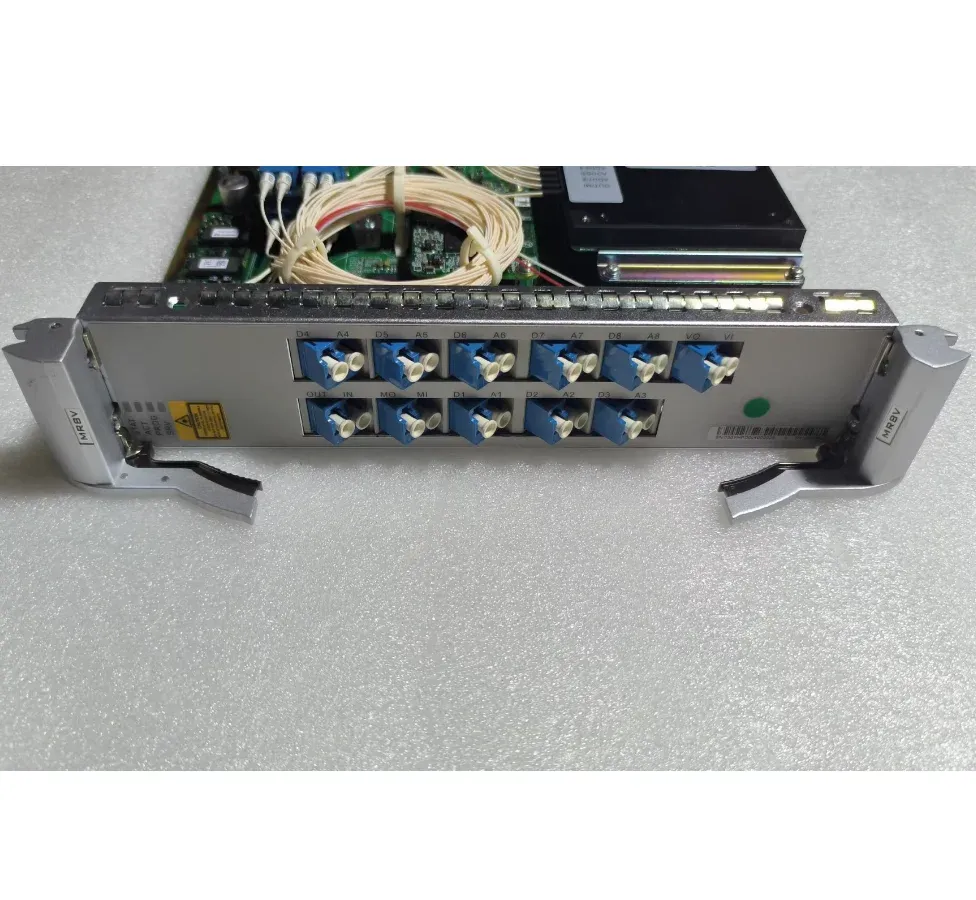

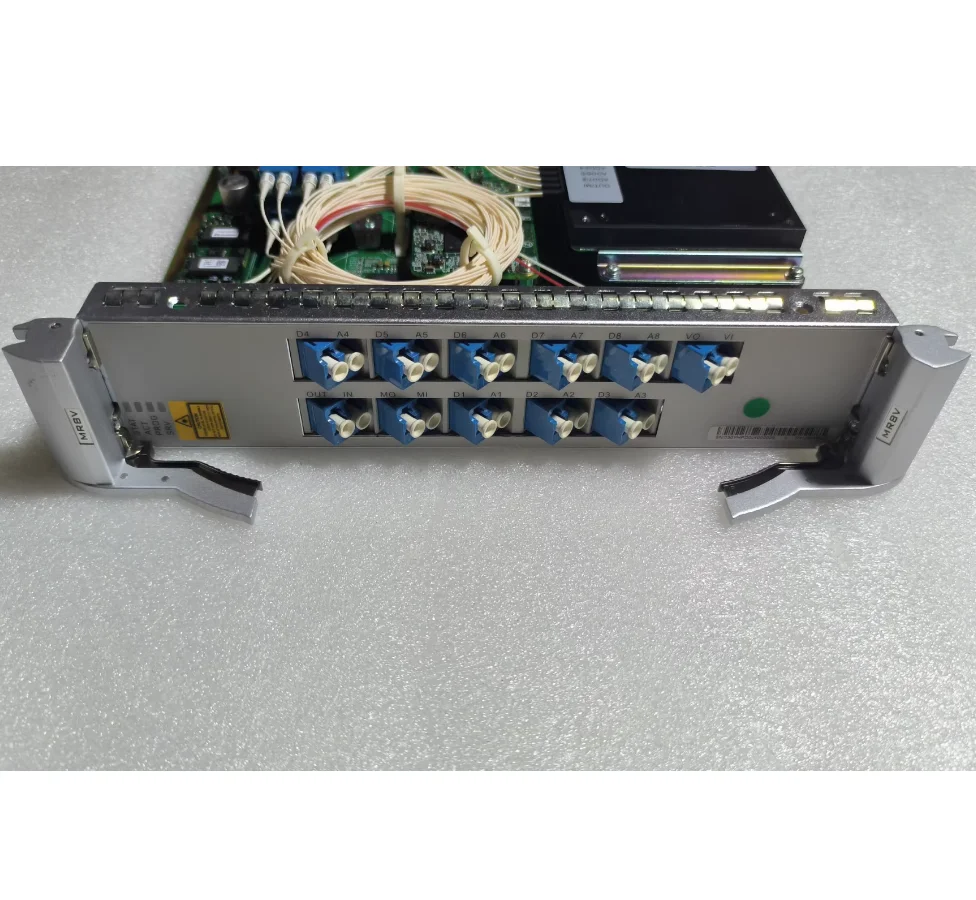

Front panel dimensions: height x width x depth: 264.6 mm x 50.8 mm x 220 mm

Weight 1.0 kg

Typical power consumption of 6.0 W

Maximum power consumption of 6.6 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Key features include 8-channel continuous uplink and downlink, DWDM support, built-in VOA (adjustable optical attenuation), optical layer ASON support, multiple fixed wavelength configurations, cascaded expansion interfaces, and wavelength query function

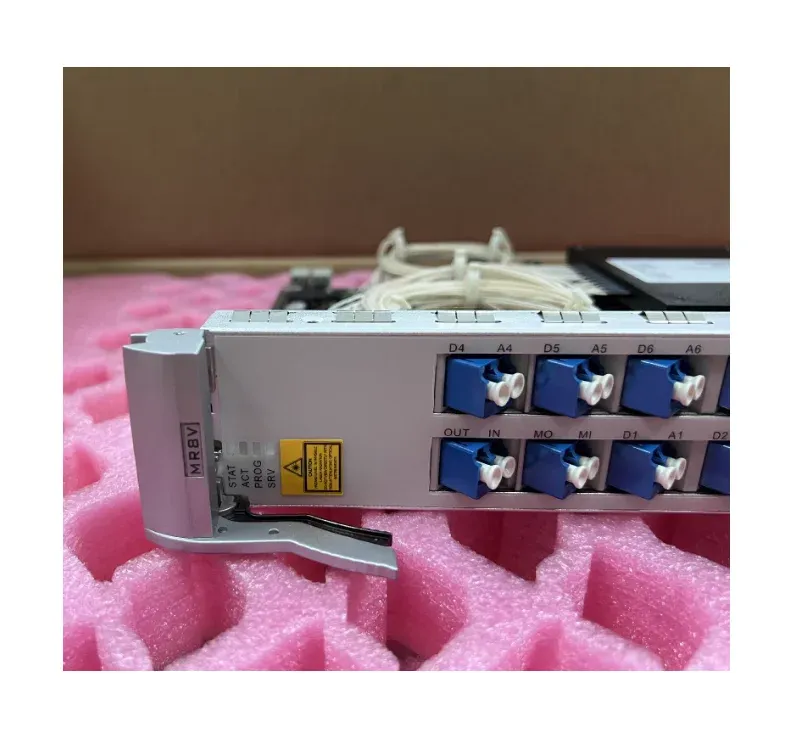

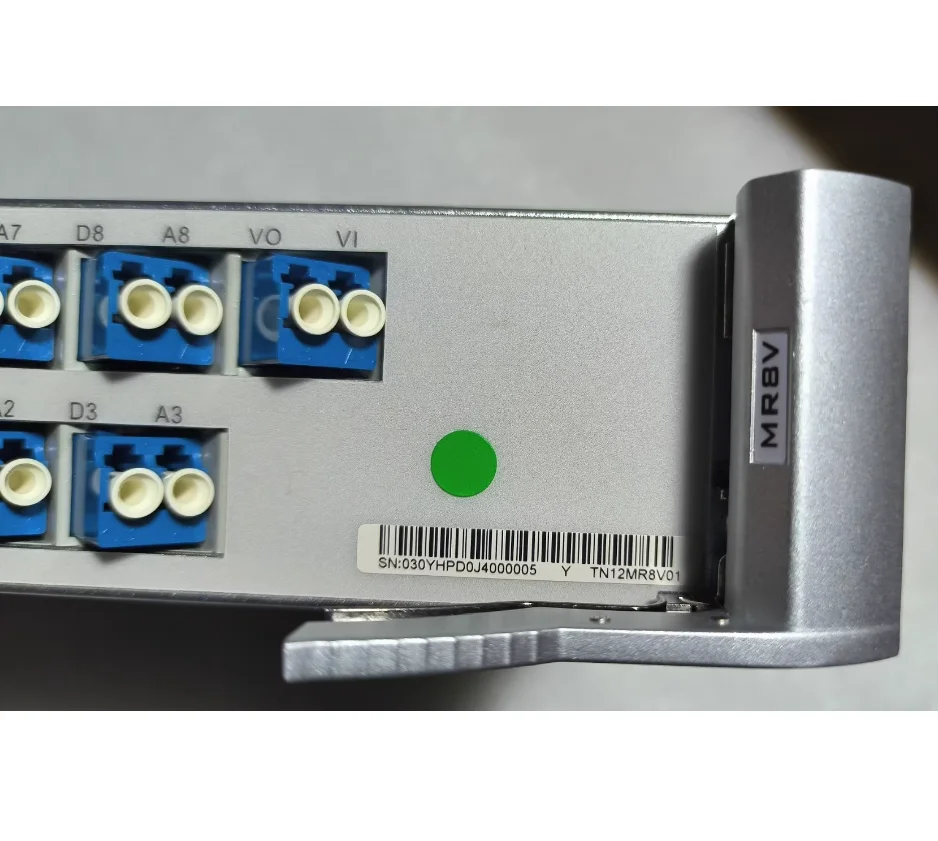

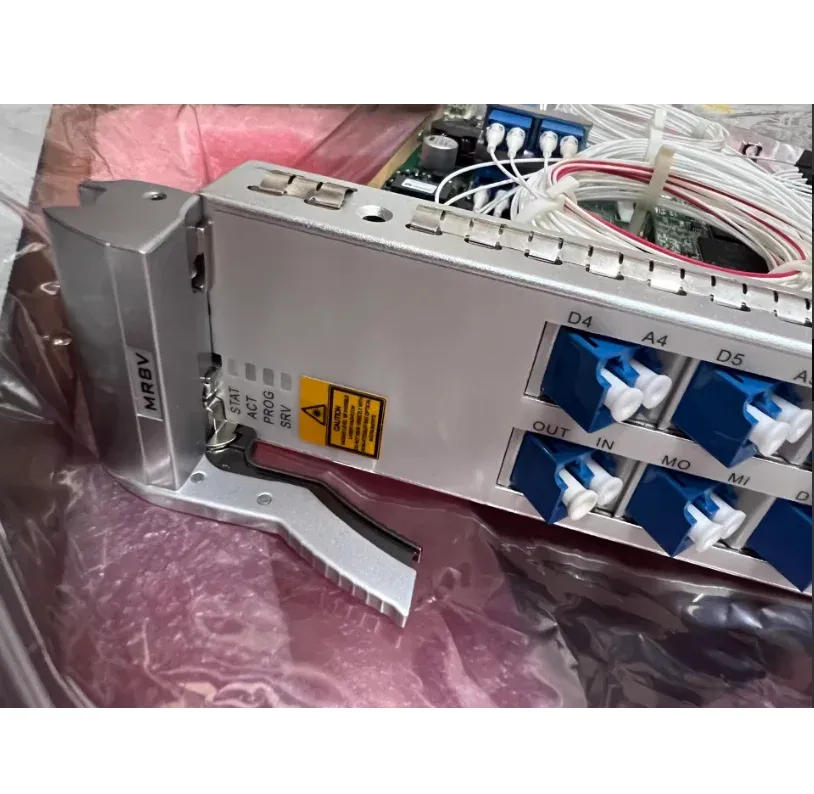

2.Interface and Port Definition

Interface Identification Interface Type Quantity Function Description

IN LC/UPC 1 line input port, receiving multiplexed signals from fiber optic lines

OUT LC/UPC 1 line output port, sending multiplexed signals to fiber optic lines

D1~D8 LC/UPC 8 downstream ports, which separate the specified 8 consecutive wavelengths from the multiplexed signal to the local receiver

A1~A8 LC/UPC 8 uplink ports, insert 8 consecutive wavelengths from the local transmitter into the multiplexed signal

VI/VO LC/UPC 2 VOA cascade interface, used to connect other VOA related ports

MI/MO LC/UPC 2 cascade interface, used to connect another OADM board for channel expansion

3.Core functional characteristics

Functional Module Technical Description System Value

Wavelength uplink and downlink enable the uplink and downlink functions of 8 consecutive DWDM wavelength channels, while other wavelengths can be directly routed locally or inserted with specific wavelength services without the need for complete wavelength splitting, saving costs

Integrated VOA adjustable optical attenuation provides a dynamic attenuation range of 20dB for 8 on road channels (A1~A8) and line side input signals (VI-VO) to achieve remote fine adjustment of optical power, optimize nonlinear effects, improve system performance margin, and balance the power of each channel

Optical layer ASON supports automatic switching of optical layers, providing basic support for intelligent optical networks and achieving automated wavelength level business scheduling and protection

Fixed wavelength grouping supports 5 consecutive 8-channel configurations, covering the main frequency range of the C-band and providing standardized wavelength combination selection, simplifying network planning and configuration

Cascade expansion capability provides MI/MO cascade interface, which can be connected to another OADM board to achieve channel expansion.It supports smooth expansion from 8 channels to 16/24/32 channels, adapting to network expansion needs

The wavelength query function supports querying the configuration information of upstream and downstream wavelengths, making it easy for operation and maintenance personnel to grasp the current channel configuration status

The DWDM standard supports compliance with DWDM technical specifications, with a channel spacing of 100GHz, fully compatible with mainstream DWDM systems, and suitable for backbone and metropolitan wavelength division networks

4.Optical performance parameters

Parameter Port/Channel Specification Remarks

The working wavelength range is 1529 nm -1561 nm for all ports in the C-band, which complies with the DWDM standard

Adjacent channel spacing -100 GHz DWDM standard channel spacing

-1dB spectral width IN-D1~D8 ≥ 0.2 nm downstream channel bandwidth

-1dB spectral width A1~A8-OUT ≥ 0.2 nm uplink channel bandwidth

The insertion loss of the downstream channel IN-D1~D8 ≤ 4.0 dB is the loss from the line downstream to the local receiver

On road channel insertion loss A1~A8-OUT ≤ 6.0 dB, including VOA inherent insertion loss

VOA dynamic range A1~A8-OUT 20 dB on road channel attenuation adjustable range

VOA adjustment accuracy A1~A8-OUT ≤ 1 dB (@ attenuation ≤ 10dB)

≤ 1.5 dB (@ attenuation ≤ 15dB)

≤ 1.8 dB (@ attenuation>15dB) attenuation adjustment accuracy

VI-VO intrinsic insertion loss VI-VO ≤ 1.5 dB VOA cascade interface intrinsic loss

VI-VO dynamic range VI-VO 20 dB VOA cascaded interface attenuation range

Direct channel insertion loss IN-MO/MI-OUT ≤ 3.5 dB Direct loss without upstream and downstream wavelengths

Isolation between adjacent channels with downstream ports>25 dB suppresses crosstalk between adjacent channels

Non adjacent channel isolation provides higher isolation when the downstream port is greater than 35 dB

Direct channel isolation IN-MO/MI-OUT>13 dB Direct channel inter isolation

Maximum reflectivity -40 dB for all ports with excellent return loss characteristics, reducing reflection

5.Wavelength grouping rules

The TN12MR8V board supports up and down channels for 8 consecutive channels, with a total of 5 predefined wavelength combinations:

Group 1 2 3 4 5

A1/D1    Ch80/1560.61nm/192.10THz     Ch64/1554.13nm/192.90THz       Ch48/1547.72nm/193.70THz     Ch32/1541.35nm/194.50THz       Ch16/1535.04nm/195.30THz

A2/D2    Ch78/1559.79nm/192.20THz     Ch62/1553.33nm/193.00THz       Ch46/1546.92nm/193.80THz     Ch30/1540.56nm/194.60THz       Ch14/1534.25nm/195.40THz

A3/D3    Ch76/1558.98nm/192.30THz     Ch60/1552.52nm/193.10THz       Ch44/1546.12nm/193.90THz     Ch28/1539.77nm/194.70THz       Ch12/1533.47nm/195.50THz

A4/D4    Ch74/1558.17nm/192.40THz     Ch58/1551.72nm/193.20THz       Ch42/1545.32nm/194.00THz     Ch26/1538.98nm/194.80THz       Ch10/1532.68nm/195.60THz

A5/D5    Ch72/1557.36nm/192.50THz     Ch56/1550.92nm/193.30THz       Ch40/1544.53nm/194.10THz     Ch24/1538.19nm/194.90THz       Ch8/1531.90nm/195.70THz

A6/D6    Ch70/1556.55nm/192.60THz     Ch54/1550.12nm/193.40THz       Ch38/1543.73nm/194.20THz     Ch22/1537.40nm/195.00THz       Ch6/1531.12nm/195.80THz

A7/D7    Ch68/1555.75nm/192.70THz     Ch52/1549.32nm/193.50THz       Ch36/1542.94nm/194.30THz     Ch20/1536.61nm/195.10THz       Ch4/1530.33nm/195.90THz

A8/D8    Ch66/1554.94nm/192.80THz     Ch50/1548.51nm/193.60THz       Ch34/1542.14nm/194.40THz     Ch18/1535.82nm/195.20THz       Ch2/1529.55nm/196.00THz

6.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption of 6.0 W

Maximum power consumption 6.6 W

Front panel dimensions 264.6 mm (height) x 50.8 mm (width) x 220 mm (depth)

Weight 1.0 kg

Working temperature -5°C to+55°C

7.Comparison with TN11MR8

Characteristics TN11MR8 TN12MR8V

Number of channels: 8 channels (continuous) 8 channels (continuous)

Built in VOA None (20dB dynamic range)

On road insertion loss ≤ 2.5 dB ≤ 6.0 dB (including VOA)

Direct insertion loss ≤ 1.8 dB ≤ 3.5 dB

Optical layer ASON support not supported

Typical power consumption 0.3 W 6.0 W

Working wavelength range: C-band, C-band

Applicable scenarios for fixed 8-wavelength uplink and downlink nodes that require power regulation and ASON intelligent features

8.Application scenarios

Core Value of Application Scenario Deployment Method

The DWDM core aggregation node is deployed in the middle node of the metropolitan core ring to achieve local business uplink and downlink of 8 consecutive wavelengths.The VOA power adjustment is used to achieve 8-channel wavelength uplink and downlink, while the VOA power is remotely adjusted to optimize nonlinear effects

ASON intelligent network nodes serve as manageable and adjustable OADM nodes in networks that require optical layer ASON functionality.Optical layer ASON supports automated wavelength level business scheduling and protection

The intermediate node of the long-distance trunk line is located at the intermediate station of the long-distance trunk line, and a continuous set of 8 wavelengths is sent to the local area.The VOA balanced power VOA can compensate for the power difference between different wavelengths and improve the system OSNR

Cascade expansion networking connects multiple MR8V boards through MI/MO cascade interfaces, building 16/24/32 channel OADM nodes that support smooth expansion of channel numbers to meet business growth needs

Power sensitive applications deploy a dynamic attenuation range of 20dB in complex links that require precise control of fiber input power, providing refined power management capabilities

9.Maintenance and ordering information

Project Information

Component code TN12MR8V (specific version such as TN12MR8V02)

Ordering instructions: When placing an order, it is necessary to confirm the wavelength grouping requirements (5 groups are optional).MR8V supports a fixed configuration of 5 consecutive 8 wavelengths

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

After the installation of VOA configuration, VOA attenuation calibration needs to be performed through the network management to ensure control accuracy

If the cascade connection needs to expand the number of channels, it is necessary to correctly connect the MI/MO cascade ports to ensure the correct direction of the optical path

After testing and verifying installation, insertion loss testing, VOA function testing, up and down channel connectivity testing, and cascading function verification are required

Spare parts management, as a key board in the intelligent optical layer, is recommended to configure spare parts at network critical nodes

Core Summary:

TN12MR8V is an 8-channel DWDM optical add/drop multiplexing board in the OSN 9800 platform.Based on the traditional OADM function, it integrates two core enhancement features: VOA (Variable Optical Attenuation) and optical layer ASON support.

Core values and positioning:

Integrating VOA to achieve intelligent power management: providing a dynamic attenuation range of 20dB, it can remotely fine tune the input power of the on road channel and line side, optimize nonlinear effects, balance the power of each channel, and improve the system OSNR.

Optical Layer ASON Intelligent Support: Supports automatic switching of optical network functions at the optical layer, providing a foundation for building an intelligent automatic switching optical network and achieving automated wavelength level business scheduling and protection.

High density wavelength uplink and downlink: Provides 8-channel continuous wavelength uplink and downlink capability, meeting the requirements of medium scale wavelength aggregation/add/drop, and is an efficient choice for intelligent OADM nodes.

Standardized wavelength grouping: supports 5 predefined continuous 8-wavelength configurations, covering the main frequency range of the C-band, simplifying network planning and configuration.

Cascade expansion capability: Through the MI/MO cascade interface, multiple MR8V boards can be connected to achieve smooth expansion of channel numbers, adapting to the progressive expansion needs of the network from 8 channels to 16/24/32 channels.

Difference from TN11MR8:

On the basis of TN11MR8, TN12MR8V has added two core functions: VOA adjustable optical attenuation and optical layer ASON support.However, at the same time, the power consumption has significantly increased from 0.3W to 6.0W, and the insertion loss has also increased.Choosing TN12MR8V means accepting higher power consumption and insertion loss when obtaining power regulation and intelligent features.

Application suggestion:

This board is an 8-channel OADM component for intelligent optical networks in the OSN 9800 wavelength division system. It is particularly suitable for scenarios that require precise power adjustment, ASON intelligent characteristics, and fixed 8-wavelength uplink and downlink, such as ASON intelligent network nodes, long-distance trunk intermediate stations, and power sensitive complex links. In conjunction with the iMaster NCE intelligent control system, intelligent operation and automated scheduling of the core layer optical network can be achieved.
