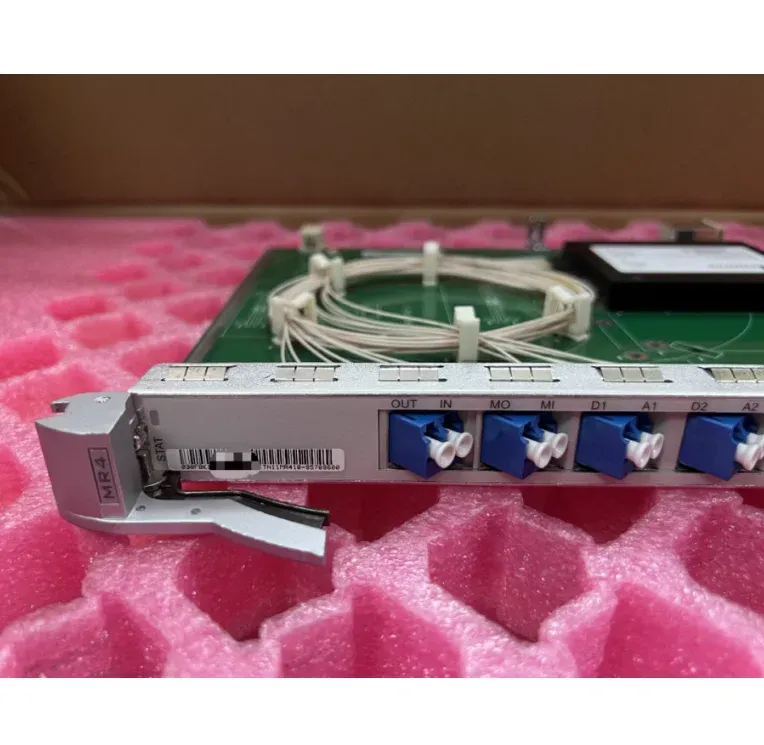

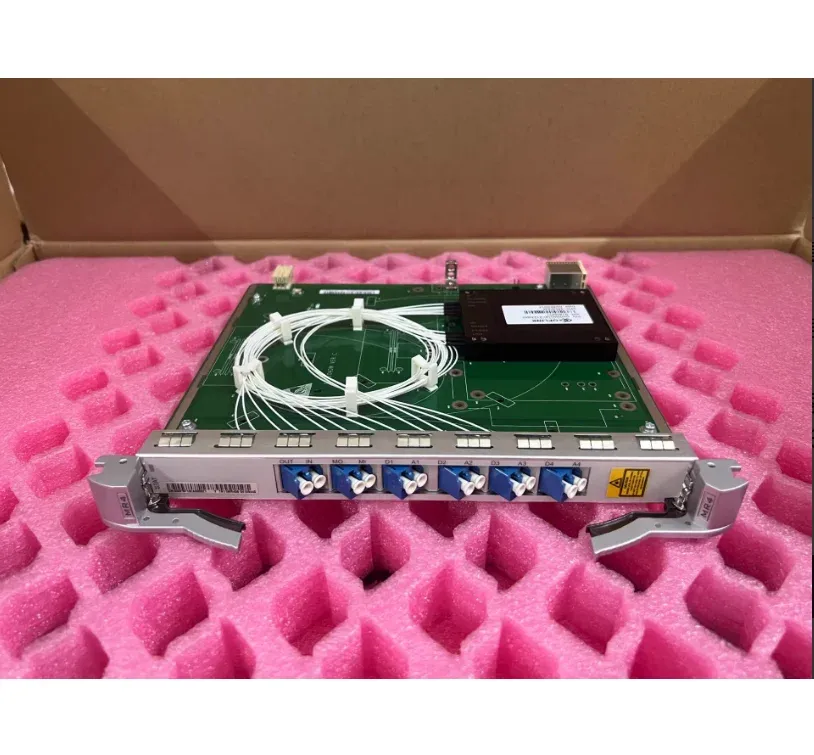

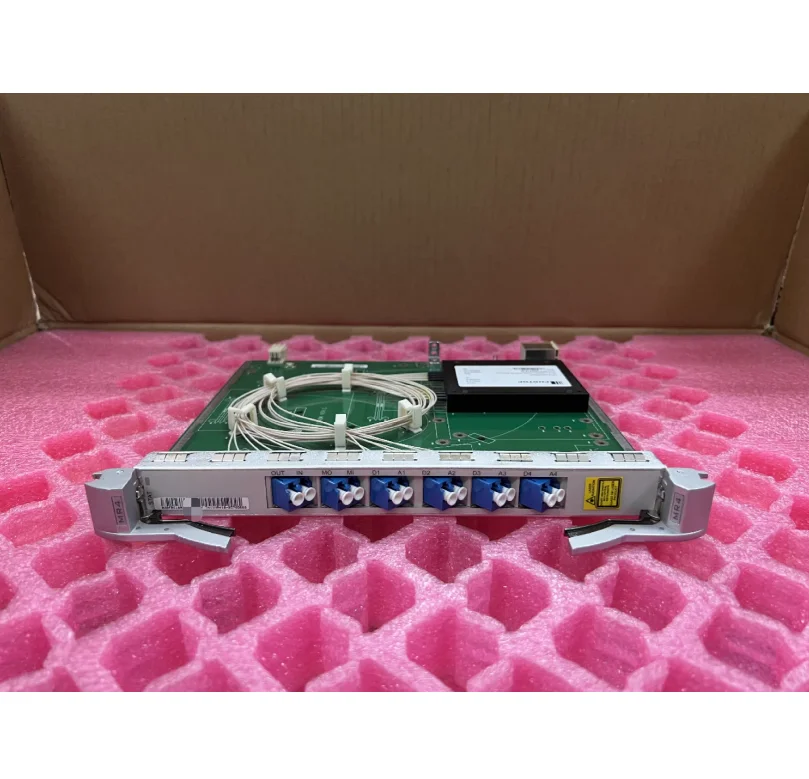

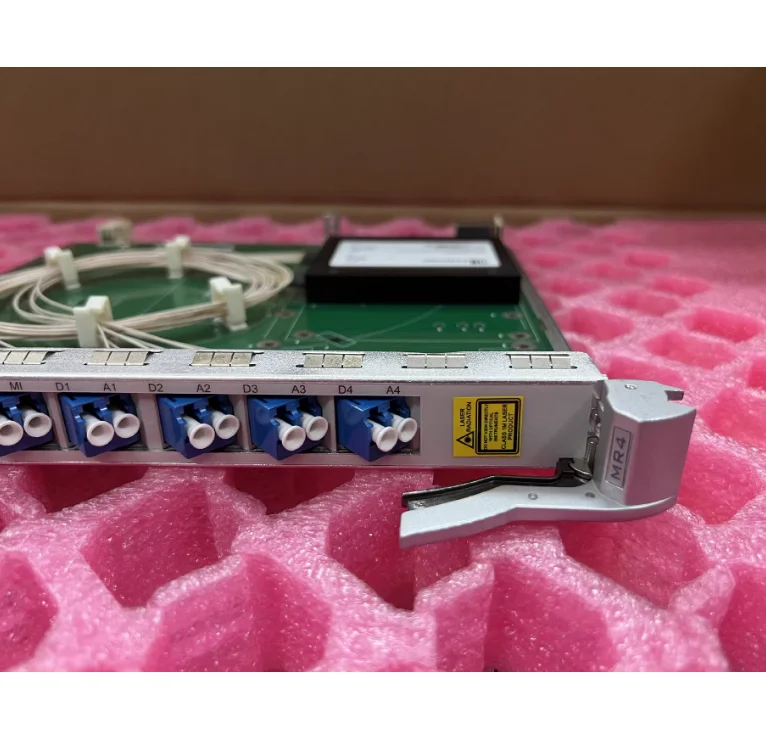

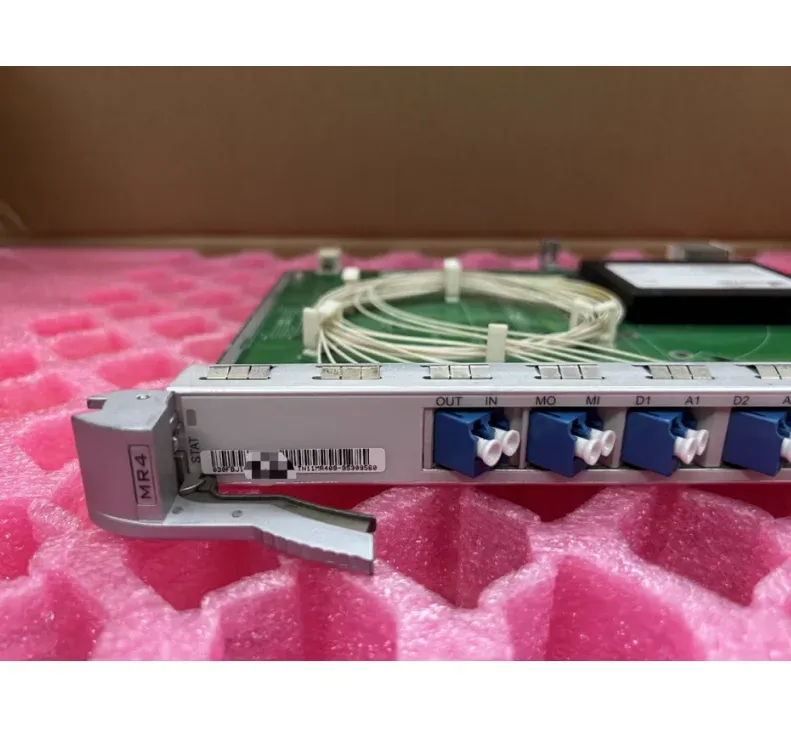

Original OSN3500 MR4 TN11MR4 4-channel Optical Add/drop Multiplexing Board

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

1.Basic information of the board

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Board name: 4-channel optical add/drop multiplexing board (DWDM)

Function positioning realizes the on/off and multiplexing functions of four consecutive wavelength channels in DWDM system

Type of board: Passive Optical Add/Drop Multiplexing Board (OADM)

Compatible with subracks such as OSN 9800 U series/M series that support TN series cards

Front panel dimensions: height x width x depth: 264.6 mm x 25.4 mm x 220 mm

Weight 0.9 kg

Typical power consumption 0.2 W

Maximum power consumption of 0.3 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Key features include 4-channel continuous uplink and downlink, DWDM support, passive design with zero power consumption, 10 fixed wavelength configurations, cascaded expansion interface, and wavelength query function

2.Interface and Port Definition

Interface Identification Interface Type Quantity Function Description

IN LC/UPC 1 line input port, receiving multiplexed signals from fiber optic lines

OUT LC/UPC 1 line output port, sending multiplexed signals to fiber optic lines

D1/D2/D3/D4 LC/UPC 4 downstream ports, which separate the specified 4 consecutive wavelengths from the multiplexed signal to the local receiver

A1/A2/A3/A4 LC/UPC 4 uplink port, insert the 4 consecutive wavelengths of the local transmitter into the multiplexed signal

MI/MO LC/UPC 2 cascade interface, used to connect another OADM board for channel expansion

3.Core functional characteristics

Functional Module Technical Description System Value

Wavelength uplink and downlink enable the uplink and downlink functions of four consecutive DWDM wavelength channels, while other wavelengths can be directly routed locally or inserted with specific wavelength services without the need for complete wavelength splitting, saving costs

Fixed wavelength grouping supports 10 consecutive 4-channel configurations, covering the range of 192.10 THz to 196.00 THz, providing standardized wavelength combination selection, simplifying network planning and configuration

Cascade expansion capability provides MI/MO cascade interface, which can be connected to another OADM board to achieve channel expansion.It supports smooth expansion from 4 channels to more channels, adapting to network expansion needs

The wavelength query function supports querying the configuration information of upstream and downstream wavelengths, making it easy for operation and maintenance personnel to grasp the current channel configuration status

The DWDM standard supports compliance with DWDM technical specifications, with a channel spacing of 100GHz, fully compatible with mainstream DWDM systems, and suitable for backbone and metropolitan wavelength division networks

Does the optical layer ASON support -

Passive design is mainly based on passive optical devices to achieve functions, with a power consumption of only 0.2W, ultra-high reliability, zero heat generation, and long service life, without the need for additional heat dissipation

4.Wavelength grouping rules

The TN11MR4 board supports up and down channels for 4 consecutive channels, with a total of 10 predefined wavelength combinations:

Group number feature code A1/D1 (THz) A2/D2 (THz) A3/D3 (THz) A4/D4 (THz)

1         92109240             192.10       192.20       192.30       192.40

2     92509280       192.50    192.60    192.70    192.80

3     92909320       192.90    193.00    193.10    193.20

4     93309360       193.30    193.40    193.50    193.60

5     93709400       193.70    193.80    193.90    194.00

6     94109440       194.10    194.20    194.30    194.40

7     94509480       194.50    194.60    194.70    194.80

8     94909520       194.90    195.00    195.10    195.20

9     95309560       195.30    195.40    195.50    195.60

10   95709600       195.70    195.80    195.90    196.00

5.Optical performance parameters

Parameter Port/Channel Specification Remarks

The working wavelength range is 1529 nm -1561 nm for all ports in the C-band, which complies with the DWDM standard

Adjacent channel spacing -100 GHz DWDM standard channel spacing

-1dB spectral width IN-D1/D2/D3/D4 ≥ 0.2 nm downstream channel bandwidth

-1dB spectral width A1/A2/A3/A4 OUT ≥ 0.2 nm on the road channel bandwidth

The insertion loss of the downstream channel IN-D1/D2/D3/D4 ≤ 2.2 dB is the loss from the line downstream to the local receiver

On road channel insertion loss A1/A2/A3/A4-OUT ≤ 2.2 dB Loss from local transmitter on the road to the line

Direct channel insertion loss IN-MO/MI-OUT ≤ 1.5 dB Direct loss without upstream and downstream wavelengths

Isolation between adjacent channels with downstream ports>25 dB suppresses crosstalk between adjacent channels

Non adjacent channel isolation provides higher isolation when the downstream port is greater than 35 dB

Direct channel isolation IN-MO/MI-OUT>13 dB Direct channel inter isolation

Maximum reflectivity -40 dB for all ports with excellent return loss characteristics, reducing reflection

6.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption 0.2 W

Maximum power consumption 0.3 W

Front panel dimensions 264.6 mm (height) x 25.4 mm (width) x 220 mm (depth)

Weight 0.9 kg

Working temperature -5°C to+55°C

Storage temperature -40°C to+70°C

7.Comparison with TN11MR2

Characteristics TN11MR4 TN11MR2

Number of channels: 4 channels, 2 channels

Up and down rules: 4 consecutive channels, 10 fixed configurations, any 2 channels randomly configured

Up and down path insertion loss ≤ 2.2 dB ≤ 1.5 dB

Direct insertion loss ≤ 1.5 dB ≤ 1.0 dB

Optical layer ASON support not supported

Working wavelength range 1529-1561nm (C-band) 1529-1561nm (C-band)

Typical power consumption 0.2 W 0.2 W

Flexible uplink and downlink nodes with random wavelength configuration are required for 4-channel fixed wavelength planning in applicable scenarios

8.Application scenarios

Core Value of Application Scenario Deployment Method

The DWDM metropolitan core ring is deployed at the intermediate node of the metropolitan core ring, enabling flexible up and down of local services with four consecutive wavelengths at a low cost, without the need to deploy large multiplexing and demultiplexing equipment

The intermediate node of the long-distance trunk line is located at the intermediate station of the long-distance trunk line, and a continuous set of 4 wavelengths is sent to the local area to save the wavelength resources of the trunk line and avoid the construction of large terminal stations

Fixed OADM nodes are used as fixed 4-channel OADMs at sites that do not require reconfigurability, providing low-cost wavelength uplink and downlink solutions for collaborative networking with ROADM networks

Cascaded expansion networking uses MI/MO interfaces to cascade multiple MR4 boards, constructing 8/12/16 channel OADM nodes that support smooth expansion from 4 channels to more channels, adapting to business growth needs

The regional aggregation node is located at the regional aggregation point and routes 4 wavelengths down to the local business access ring to achieve wavelength level business scheduling between the backbone layer and the access layer

9.Maintenance and ordering information

Project Information

Component code TN11MR4

Ordering instructions: When placing an order, it is necessary to confirm the wavelength grouping requirements.MR4 supports a fixed configuration of 10 consecutive 4 wavelengths

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

Wavelength configuration does not require on-site configuration. According to the wavelength grouping at the time of ordering, the board has been fixed to correspond to 4 consecutive wavelength channels

If the cascade connection needs to expand the number of channels, it is necessary to correctly connect the MI/MO cascade ports to ensure the correct direction of the optical path

After testing and verifying installation, insertion loss testing, upper and lower channel connectivity testing, and cascading function verification are required

Spare parts management, as a passive component, has high reliability and can appropriately reduce the proportion of spare parts, but key nodes can be configured with spare parts

Warranty service standard: The warranty period is 1 year, and technical support can be obtained through authorized Huawei distributors

Core Summary:

TN11MR4 is a 4-channel DWDM optical add/drop multiplexing board in the OSN 9800 platform.Based on passive optical device design, it realizes the uplink, downlink, and multiplexing functions of four consecutive wavelength channels in the DWDM system.

Core values and positioning:

4-channel DWDM wavelength uplink and downlink solution: It achieves flexible uplink and downlink of 4 consecutive wavelengths at low cost without the need to deploy large multiplexing and demultiplexing equipment, especially suitable for scenarios such as urban core rings and trunk intermediate nodes.

Standardized wavelength grouping: Supports 10 pre-defined continuous 4 wavelength configurations, covering the range of 192.10 THz~196.00 THz, providing standardized wavelength combination selection, simplifying network planning and configuration.

Cascade expansion capability: Through the MI/MO cascade interface, multiple MR4 boards can be connected to achieve smooth expansion of channel numbers, adapting to the progressive expansion needs of the network from 4 channels to 8/12/16 channels.

Zero power consumption and high reliability: Based on passive optical device design, with a power consumption of only 0.2W, it has extremely high reliability and long service life, without the need for heat dissipation considerations.

Comprehensive operation and maintenance support: Supports wavelength query function, making it easy for operation and maintenance personnel to grasp the current channel configuration status.

Technical features:

4-channel continuous up and down capability, supporting 10 sets of fixed wavelength configurations

Working wavelength range 1529-1561nm (C-band), channel spacing 100GHz

Up and down path insertion loss ≤ 2.2dB, direct insertion loss ≤ 1.5dB

Adjacent channel isolation>25dB, non-adjacent>35dB

Provide MI/MO cascade interface, supporting multi board cascade expansion

Passive design, power consumption only 0.2W, zero heat generation

Application suggestion:

This board is a 4-channel OADM component for the DWDM core/aggregation layer in the OSN 9800 wavelength division system. It is particularly suitable for scenarios that require fixed wavelength planning and continuous 4-channel uplink and downlink, such as intermediate nodes in urban core rings, intermediate stations in long-distance trunk lines, and regional aggregation nodes. For scenarios that require more channels, smooth expansion can be achieved by cascading multiple MR4 boards. In conjunction with the iMaster NCE intelligent control system, unified management and operation of the core layer optical network can be achieved. For scenarios that require random wavelength configuration or optical layer ASON support, TN11MR2 is a more suitable choice.
