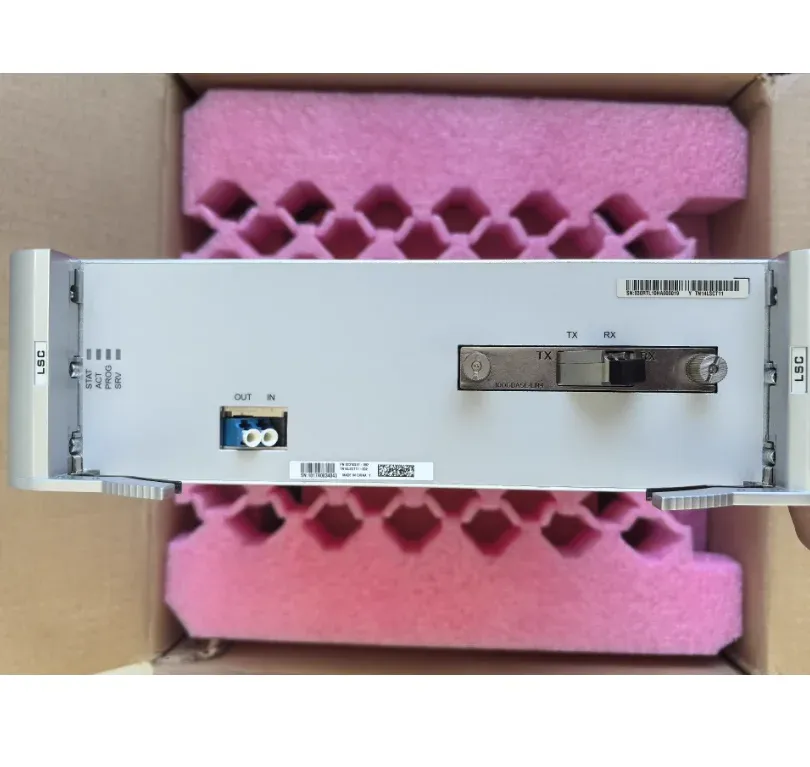

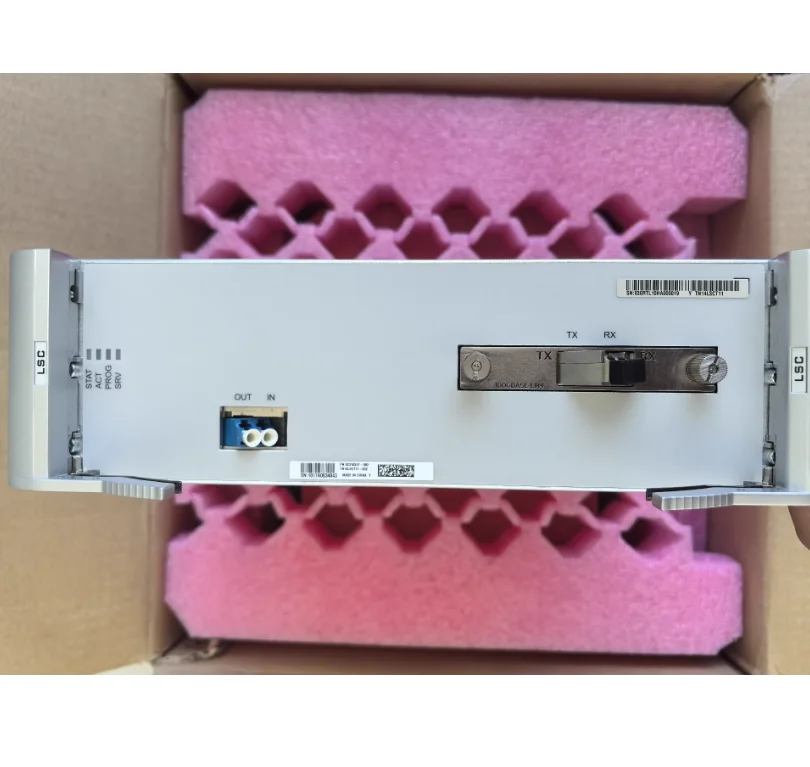

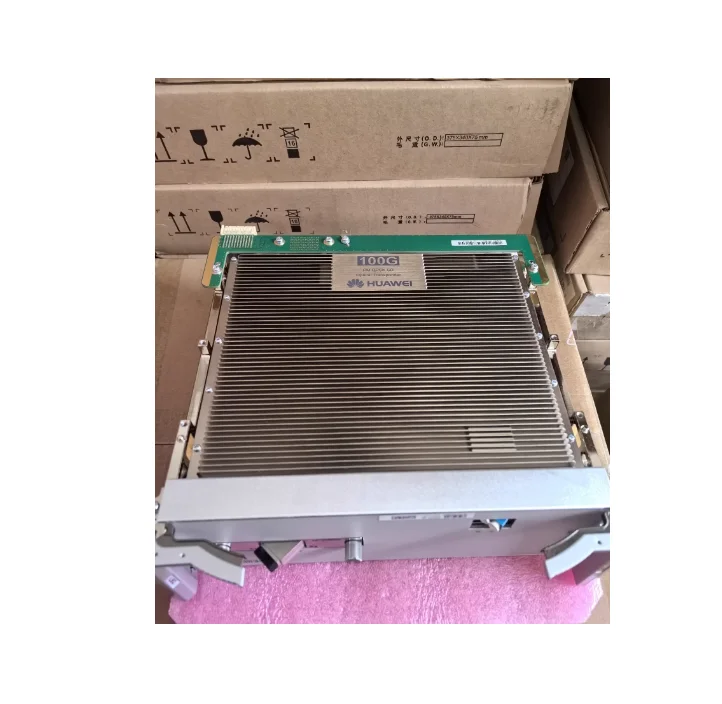

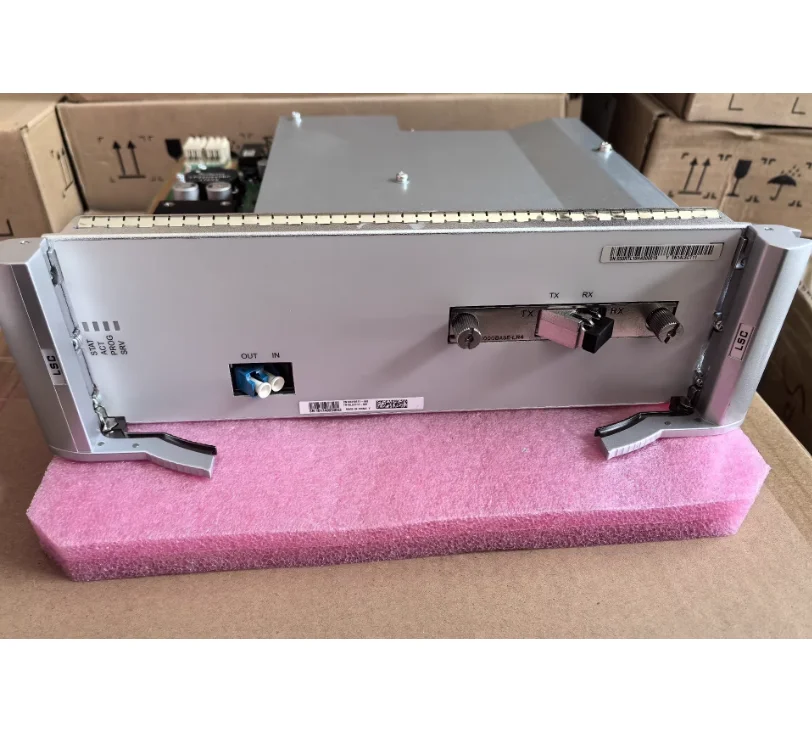

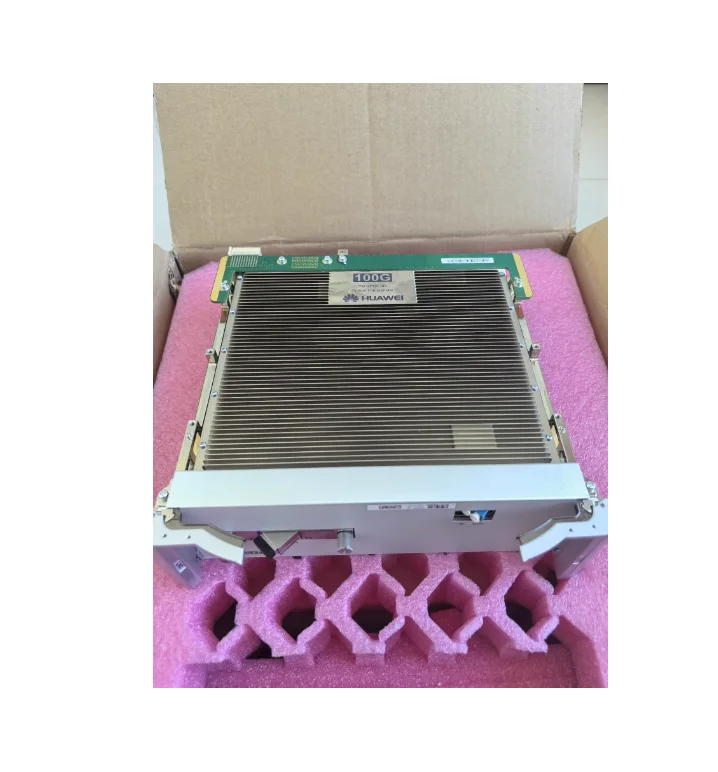

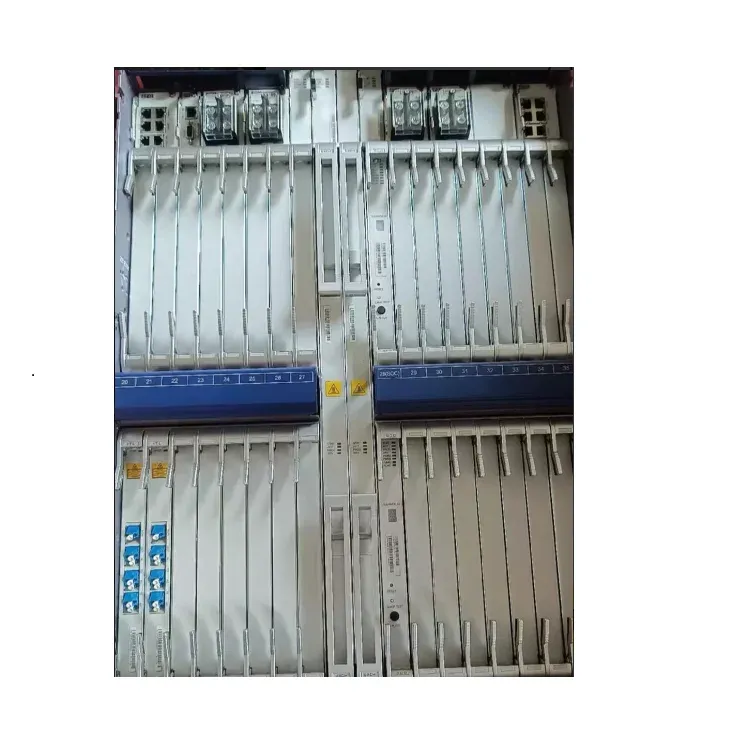

DWDM OSN8800 LSC 03030NLE TN12LSCT01 TN13LSC 03031KBA TN17LSCT51 TN18LSC TN16LSC TN14LSC TN13LSC TN19LSC TN15LSC 100Gbit/s Wavelength

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

Table 1: Basic Identification and Specifications

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform

Board name: 400G high-power pluggable coherent optical module (QSFP-DD package, enhanced output type)

Module type QSFP-DD digital coherent optical module

Functional positioning: Medium to long distance 400G line side transmission, high output power and performance enhanced version

Physical dimensions comply with QSFP-DD MSA standard packaging

Adaptation board for OSN 9800 TN series 400G circuit board supporting QSFP-DD interface

Operating temperature commercial grade: 0 ° C to+70 ° C (module shell temperature)

The power demand is supplied by the host board through the QSFP-DD interface, with a typical power consumption of less than 18W

Interface type: Dual LC single-mode fiber interface

Key features include high output power (+2 to+4dBm), compact packaging, and optimized mid-range transmission

2.Optical interface and transmission characteristics

Table 2: Key Optical Layer Parameters

Parameter specifications

Line speed 400 Gbit/s

Modulation Format Probability Shaping -16QAM (PS-16QAM)

Optional mode can be software switched to 8QAM mode to extend the distance

Fixed wavelength or limited tunability of wavelength characteristics (depending on specific model variants)

Output optical power high-power version:+2 dBm to+4 dBm (adjustable by software)

Receiving sensitivity ≤ -8.5 dBm (PS-16QAM mode under BER=2E-2 conditions)

Receiving sensitivity ≤ -10.5 dBm (under BER=2E-2 conditions, 8QAM mode)

Transmission distance can reach 300-500km (G.652 fiber, PS-16QAM mode)

Transmission distance can reach 600-800km (G.652 fiber, 8QAM mode)

Dispersion tolerance>± 25000 ps/nm (with built-in full digital compensation)

3.Core Enhancement Technology

Table 3: High power and mid-range enhancement design

Technical characteristics, technical specifications, performance advantages

High power laser and driver optimization design improve output optical power and linearity, support 400G high-order modulation to provide sufficient input power for 400G signals, compensate for the high OSNR requirements of high-order modulation, and support longer relay free distances

Enhanced Nonlinear Management DSP Algorithm for 400G High Order Modulation and High Power Scenarios Optimization, Enhanced Nonlinear Digital Compensation (NLC) effectively suppresses nonlinear effects under high baud rates and high power (such as SPM, XPM), ensuring signal quality

Intelligent thermal and power management for efficient heat dissipation and dynamic power optimization design in 400G high-power scenarios, ensuring the long-term reliability and performance stability of the module under continuous high-power and high computing power (DSP) operation

Accurate power and bias control, high-precision output power and modulator bias control loop ensure the quality of high-order modulation signals (such as EVM), facilitating fine management of system level optical power

4.Performance indicators

Table 4: Detailed Performance Parameters

Performance indicators PS-16QAM mode 8QAM mode

Typical transmission distance 300-400 km 600-700 km

Received optical power range -8 dBm to+4 dBm -10 dBm to+4 dBm

Optical signal-to-noise ratio requirement>14.5 dB @ 0.1nm>11.5 dB @ 0.1nm

Power efficiency<45 mW/Gb/s<40 mW/Gb/s

Baud rate~60-70 GBaud~60-70 GBaud

Polarization mode dispersion tolerance>18 ps>20 ps

Module life (MTBF)>400000 hours>400000 hours

5.Management and monitoring functions

Table 5: Monitoring and Management Capability

Monitoring Category Monitoring Parameter Management Function

Enhance real-time input/output optical power, laser multiple bias and temperature parameters, DSP chip temperature and power consumption, and comprehensive health monitoring under high power and complexity for enhanced power and health monitoring

Advanced performance monitoring provides deep diagnostic capabilities for real-time bit error rate (before and after FEC), signal-to-noise ratio estimation, modulation error rate (EVM), and nonlinear damage coefficient for 400G high-performance transmission

Multi point and multi-level temperature monitoring for thermal management, evaluation of heat dissipation efficiency, and dynamic thermal management to prevent overheating, degradation, or damage

Alarm and warning for high temperature, power exceeding limit, modulator bias point drift, nonlinear warning, and performance degradation trend alarm to achieve predictive maintenance and maximize network availability

Configure and manage output power settings, modulation format switching, advanced DSP parameter tuning (such as NLC strength), support remote fine-grained policy configuration, and adapt to different link conditions

6.Application scenarios

Table 6: Typical Application Scenarios

Recommended Modulation Format Core Value and Deployment Advantages for Application Scenarios

Regional/provincial 400G backbone PS-16QAM high power overcomes the high loss of high-order modulation and achieves single wave 400G at a distance of 300-400km, greatly improving spectral efficiency

Large metropolitan area core/super core PS-16QAM meets the requirements of ultra large capacity hub interconnection in metropolitan areas, with high density and high performance, reducing relay nodes

Long distance DCI interconnection with 8QAM provides a high bandwidth, low latency, and simplified operation and maintenance solution for 600-800km data center interconnection

Network Smooth Evolution Anchor Point Adaptation is inserted as a key 400G anchor point in existing 100G/200G networks, providing necessary system margin with high power

7.Compatibility and configuration requirements

Table 7: System Compatibility and Deployment Requirements

Specific description of the required category

The compatibility of the host board must be used for the QSFP-DD interface of the host board, and the power supply and heat dissipation design of the board must meet the strict requirements of 400G high-power modules

The software version requires that the host board software and network management clearly support the management, monitoring, and optimization functions of this specific high-power 400G module

The highest level of safety warning in optical safety regulations requires compliance with high-power laser safety regulations during operation.Only after confirming safety with an optical power meter can operations be carried out

The sub rack of the heat dissipation and airflow design equipment must have strong heat dissipation capabilities.It is recommended to plan a dedicated heat dissipation area to avoid heat accumulation

Fiber optic and link evaluation must use G.652.D or G.654.E ultra-low loss fibers.Strict nonlinear simulation and OSNR budget analysis are required before deployment

Power and nonlinear optimization require optimizing the transmission power and optical amplifier configuration at the system level, achieving the best balance between increasing distance and suppressing nonlinearity

8.Maintenance and ordering information

Table 8: Maintenance and Ordering Points

Project Information

Component code TN14LSC

The model identification module label clearly identifies"400G","High Power", and maximum output power level

Mandatory safety operation process: 1.Network management software shuts down the laser; 2.Physical measurement confirms no light; 3.Wear professional protective goggles; 4.Perform operations

On site deployment and replacement support hot plugging, but it is strongly recommended to perform it in the business maintenance window and conduct heat dissipation checks in advance

Testing and acceptance are required after installation, including emission spectroscopy, output power calibration, EVM testing, 72 hour error stability testing, and system level nonlinear verification

Spare parts and upgrade strategies are key high-performance spare parts for 400G medium to long-distance scenarios.Upgrading from a regular 400G module to this requires a complete network power and nonlinear optimization

Core Summary:

TN14LSC is a high-power QSFP-DD coherent optical module solution designed for the challenge of 400G medium to long distance transmission.It faces the strict requirements of 400G high-order modulation (such as 16QAM) on OSNR and the accompanying power budget pressure.By increasing the output optical power and integrating enhanced digital signal processing, it effectively extends the practical transmission distance of 400G.

Strategic Value:

Pushing 400G from short-term to long-term: Enabling single wave 400G to practically cover regional backbone and even some long-distance trunk scenarios is a key component for 400G technology to enter the mainstream.

The unity of high density and high performance: Within the compact space of QSFP-DD, it achieves transmission performance close to earlier larger packaging (such as CFP2) 400G modules, supporting high port density design for next-generation devices.

Simplify network architecture: A higher power budget helps reduce the number of cascaded optical amplifiers or allows for the use of lower gain/cost amplifiers, thereby simplifying system design and reducing total cost of ownership.

Key considerations:

The application of this module is not just simple " plug and play " , but involves system level optical power and nonlinear re optimization. It is mainly aimed at building new high-performance 400G trunk lines, core DCI links, or serving as a key capacity upgrade anchor for existing networks. Successful deployment relies on precise link simulation in the early stage, strict optical security operations, and the improvement of the operation and maintenance team& # 39;s management capabilities for high-order modulation systems.
