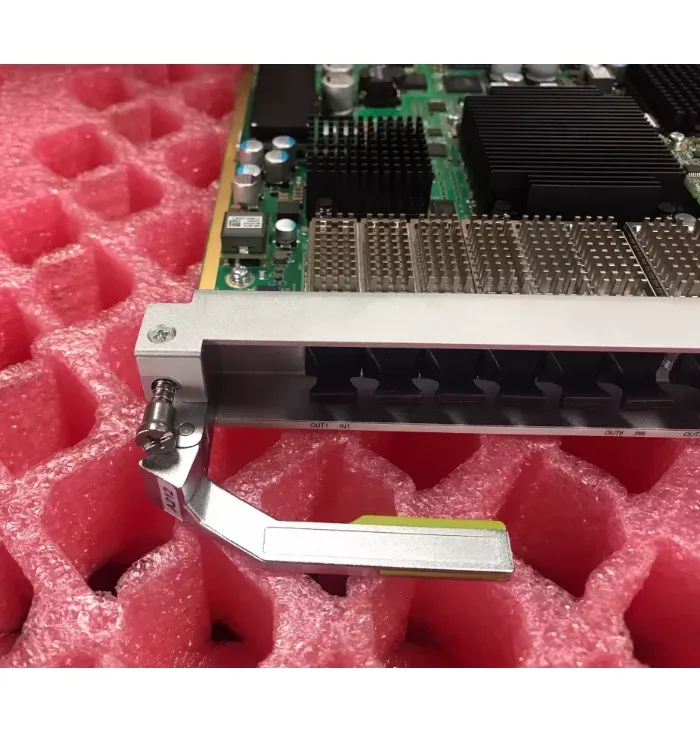

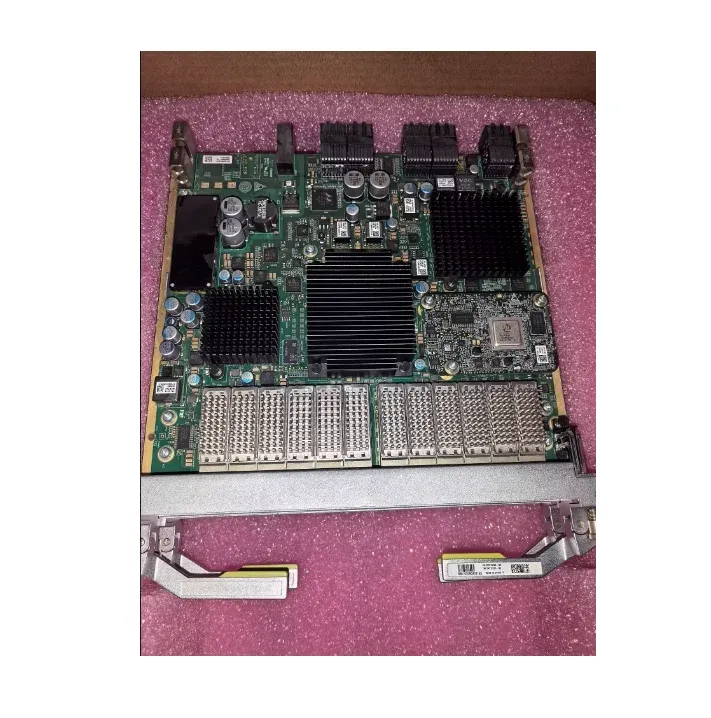

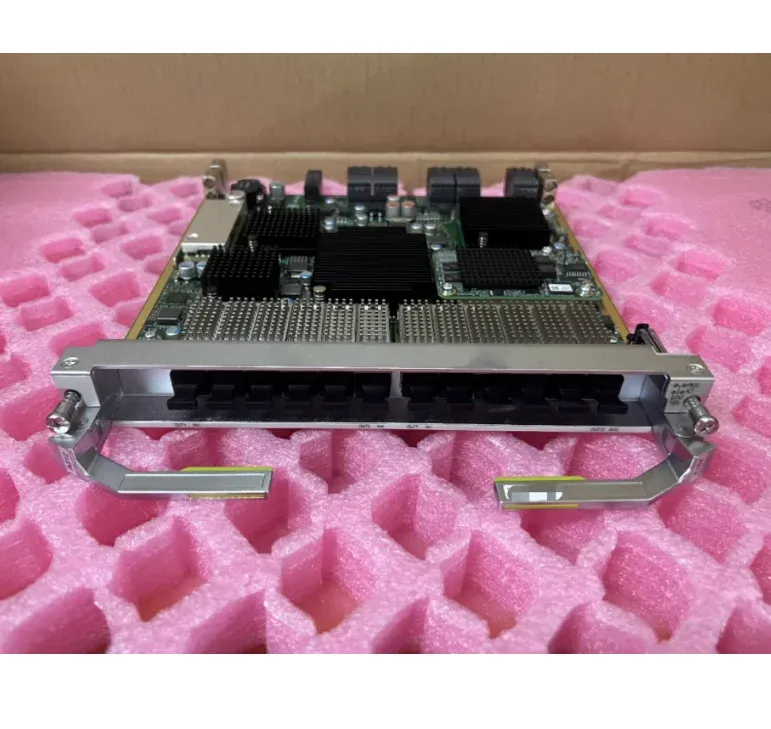

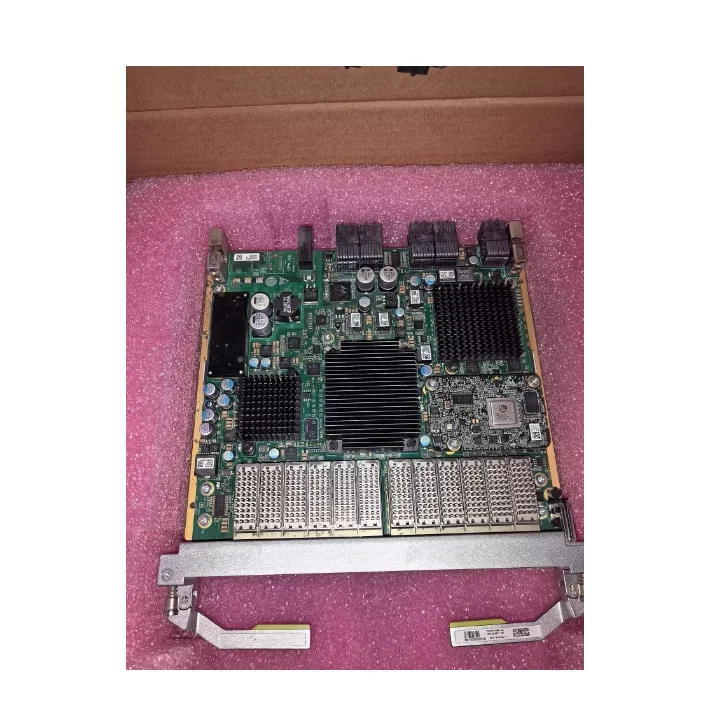

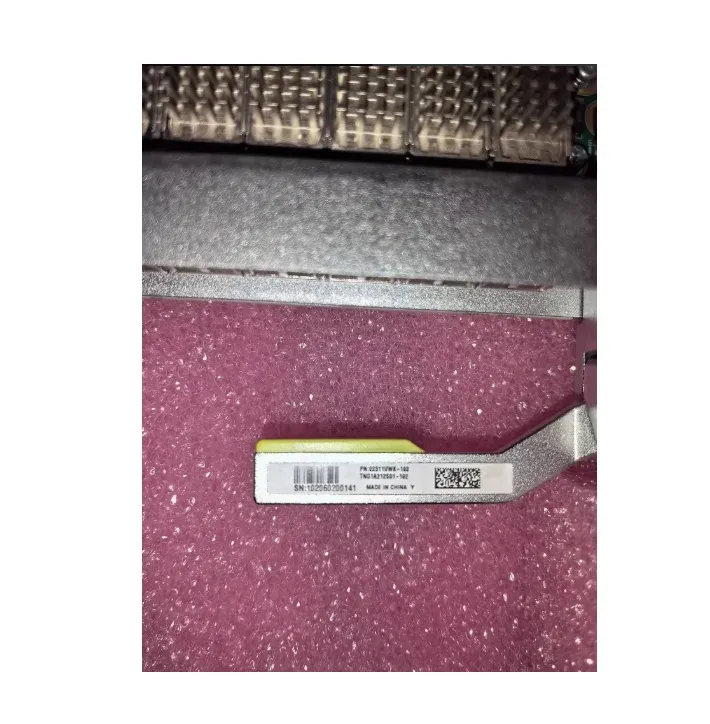

OSN9800 Business Board Card, TNG1A212 Brand New Original Packaging

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

Table 1: Basic Identification and Specifications

Attribute specification description

Device Platform OptiX OSN 9800 V Series Intelligent Optical Transmission Platform

Board name: 200G Dual Carrier Tunable Line Side Panel Card

Functional positioning: pure line side wavelength conversion and transmission unit (balancing capacity and distance)

Physical dimensions: height x depth: 30.0 mm x 220.0 mm

The slot requirement requires one TN subrack business card slot

Typical power consumption of 105W (full load working state)

Working temperature -5°C to+55°C

Power input -48 V DC (-38.4 V to -72 V range)

2.Interface and speed characteristics

Table 2: Interface Specification Details

Key characteristics of the number of interface type connectors on the interface side

System side (east/west direction) 200Gb/s electrical interface -2 channels receive 200G OTL4.4 electrical signals from the crossover board

Line side (optical port) 200G DWDM optical interface CFP2-DCO pluggable 1-channel output dual carrier 200G DWDM optical signal, adjustable wavelength, supports digital coherent optical module

Table 3: Line side optical module specifications (CFP2-DCO)

Parameter specifications

Line rate of 200 Gbit/s (2x 100G carrier aggregation)

Default Modulation Format: Dual Carrier Probability Shape-16 Orthogonal Amplitude Modulation (DP-PCS-16QAM)

The optional modulation format can be software switched to DP-QPSK mode to meet the requirements of ultra long distance transmission

Wavelength tuning range for the entire C-band (1528.77 nm to 1566.31 nm)

Channel spacing supports 75 GHz flexible grid

Output optical power -2 dBm to+3 dBm (adjustable)

Symbol rate of approximately 32 GBaud per carrier

3.Signal Processing and Key Technologies

Table 4: Core Signal Processing Technologies

Advantages of Technical Description

Probability shaping technology optimizes the probability distribution of 16QAM signals, reducing average power and cubic metric by about 0.8-1.2dB OSNR margin compared to standard 16QAM, and extending transmission distance by 15-25%

Dual carrier aggregation uses two phase locked 100G optical carriers to transmit 200G signals, reducing the requirement for single carrier characteristics and improving system performance and reliability

High performance soft decision FEC adopts advanced soft decision forward error correction algorithm with gain>11dB, which significantly improves the error correction capability and is a key guarantee for 200G long-distance transmission

Fully digital coherent receiver integrated with high-performance DSP chip, realizing real-time compensation of dispersion, polarization mode dispersion and nonlinear effects for fully digital signal processing and damage compensation, simplifying optical layer design

4.Transmission performance parameters

Table 5: Optical performance indicators (based on DP-PCS-16QAM, using high-performance SD-FEC)

Parameter conditions/typical values for description

Receiver sensitivity BER ≤ 2E-2 (FEC threshold) about -12 dBm (note: under 200G high-order modulation, this value is the standard operating point)

Optical signal-to-noise ratio margin 75GHz grid, reaching a BER threshold of approximately 10.5 dB before FEC (@ PCS-16QAM mode)

The optical signal-to-noise ratio margin is 75GHz grid, reaching a BER threshold of about 7.0 dB before FEC (@ switch to DP-QPSK mode)

Dispersion tolerance range (fully compensated)>± 40000 ps/nm (compensated by DSP)

Polarization mode dispersion tolerance range>25 ps

Typical non electric relay distance G.652.D fiber, based on PCS-16QAM, considering a typical optical amplifier segment loss of about 1000-1200 kilometers

Typical non electric relay distance G.652.D fiber, switching to DP-QPSK mode for about 2000 kilometers or more

5.Key characteristics and network roles

Table 6: Core Functions and Values

Characteristics Description Network Value

Single wave 200G capacity single board provides excellent balance between capacity and transmission distance for single wave channel 200G transmission capability, making it an ideal choice for current regional backbone and long-distance trunk lines

Adaptive modulation supports software switching between 16QAM and QPSK modes to achieve"on-demand configuration", and flexibly selects the optimal capacity distance combination based on the actual optical link quality

The pluggable coherent optical module adopts CFP2-DCO packaging, and the module is hot swappable and easy to maintain, supporting on-site replacement and future upgrades

Highly integrated design with a complete 200G line side processing function on a single board saves slots, simplifies system configuration, and reduces power consumption and space occupation

6.Typical application scenarios

Table 7: Application Scenarios

The advantages of scene networking roles are reflected

The regional/provincial backbone network, as the core transmission layer, doubles the capacity of the line side driver unit compared to 100G, has a longer transmission distance and wider coverage compared to 400G, making it the mainstream choice for network upgrades

The metropolitan core ring network is used to connect core data centers or aggregation nodes to provide sufficient capacity and meet the transmission distance requirements within the metropolitan area, with high cost-effectiveness

The submarine cable landing station is used for medium distance international submarine cables or domestic cross sea links, providing higher single fiber capacity than 100G under limited power budget

5G backhaul aggregation carries aggregated traffic from multiple metropolitan access rings to the core network to meet the high bandwidth and low latency requirements of pre - and mid transmission aggregation in the 5G era

7.Management and Maintenance

Table 8: OAM and Maintenance Functions

Category support function

Real time performance monitoring of optical power OSNR, Carrier frequency offset, modulation error rate, DSP pre-processing error rate, FEC error rate after correction, etc

Alarm management LOS, LOF, OTU-AIS, SD (signal degradation), laser failure, module communication failure, FEC overload, etc

Diagnosis and testing of laser switch, loopback, error insertion, modulation format switching, transmission power adjustment, wavelength tuning and query

Intelligent function supports performance trend analysis and warning (requires network level software support)

8.Compatibility and ordering

Table 9: Compliance with Standards and Compatibility

Category standards/specifications/instructions

OTN standards ITU-T G.709, G.798.1, G.872.1

Optical Layer Standard OIF 200G ZR/Zr+Implementation Protocol, ITU-T G.698.2

The management interface supports SNMP, TL1, NETCONF/YANG models

Device compatibility needs to be plugged into the OSN 9800 V series TN subrack

Software version requirements require device software version support (such as V100R019C10 and later versions)

The supporting requirements need to be used in conjunction with crossover boards that support 200G crossover capacity and corresponding customer side panel cards (such as aggregation boards)

Note:

TNG1A212 is the main line side card of 200G speed level, with high technological maturity, playing a key role in network capacity upgrade.

The core advantage lies in balance: it provides the best capacity and distance balance point between single wave 100G and 400G.By adopting PCS-16QAM mode, the capacity can be doubled while meeting the distance requirements of most long-distance trunk lines.

Good system compatibility: Its 75GHz grid and tunable features enable seamless integration into existing 100G or earlier DWDM systems, achieving hybrid transmission and smooth upgrades.
