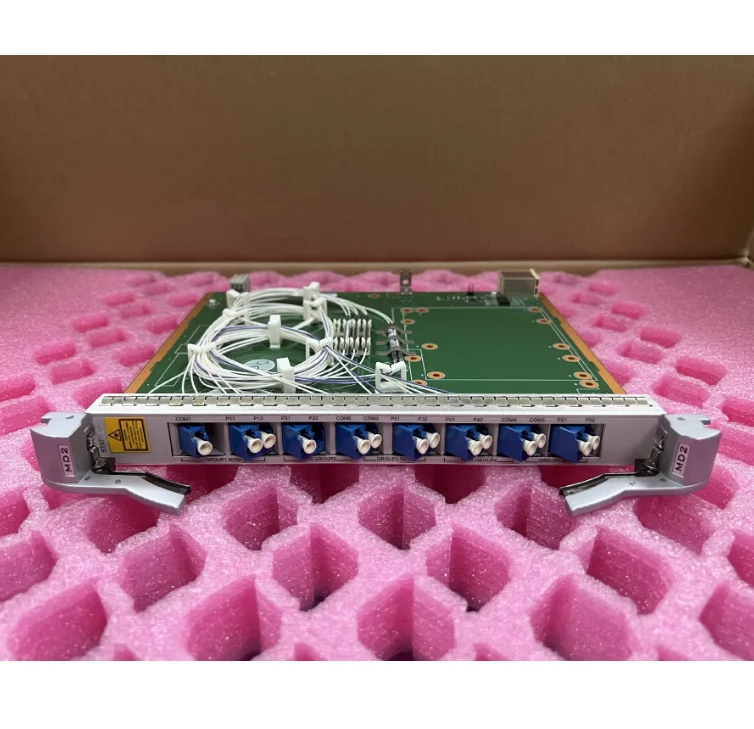

OSN9800 MD2 TN97MD2 TN97MD201 2-port Multiplexing and Demultiplexing Board (Extended C Band)

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

Table 1: Basic Identification and Specifications

Attribute specification description

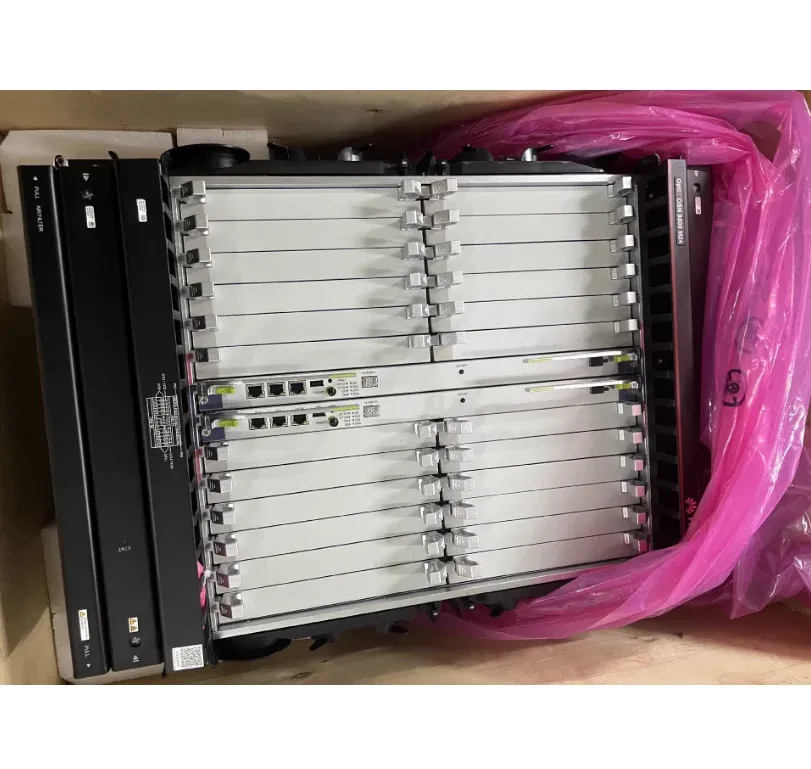

OptiX OSN 9800 series intelligent optical transmission platform (compatible with UPS/U64/U32/U16 subracks)

Board name: 2-port splitter board (extended C-band)

Functional positioning enables wavelength multiplexing and splitting of extended C-band signals in DWDM systems, and supports alarm and performance event monitoring

Type of board: Passive multiplexing and demultiplexing processing board

Compatible with subracks such as OSN 9800 UPS/U64/U32/U16 that support TN series cards

Front panel dimensions: height x width x depth: 264.6 mm x 25.4 mm x 220 mm

Weight 0.6 kg

Typical power consumption 1.0 W

Maximum power consumption of 1.0 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C (short-term); 5°C to 45°C (long-term)

Relative humidity ranging from 5% to 95% (short-term); 5% to 85% (long-term)

Key features include extended C-band multiplexing, five sets of 1x2 couplers, 50:50/90:10 splitting ratio, ultra-low power consumption, and passive design

2.Interface and Port Definition

Table 2: Port Configuration Description

Port Group Port Identification Function Description Spectral Ratio

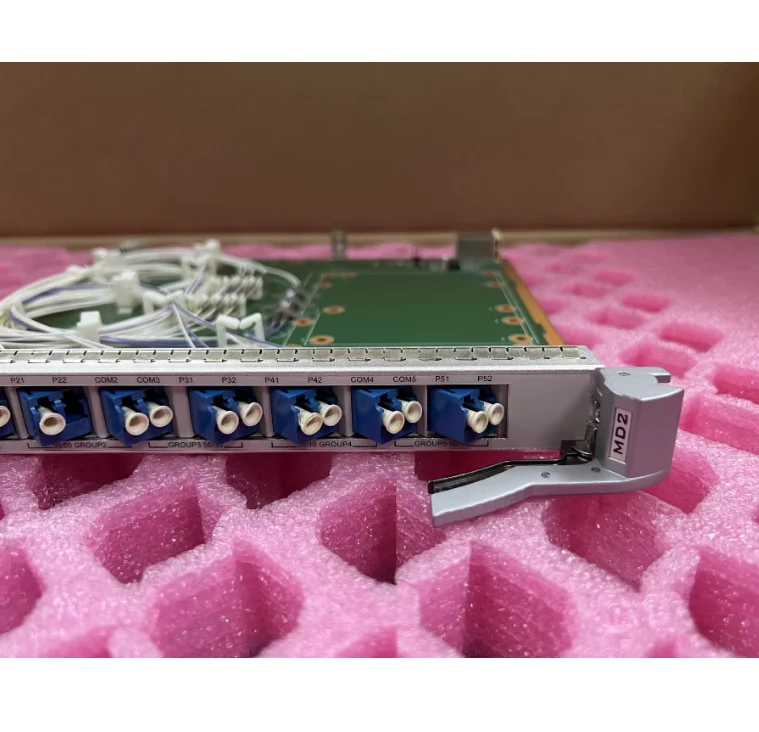

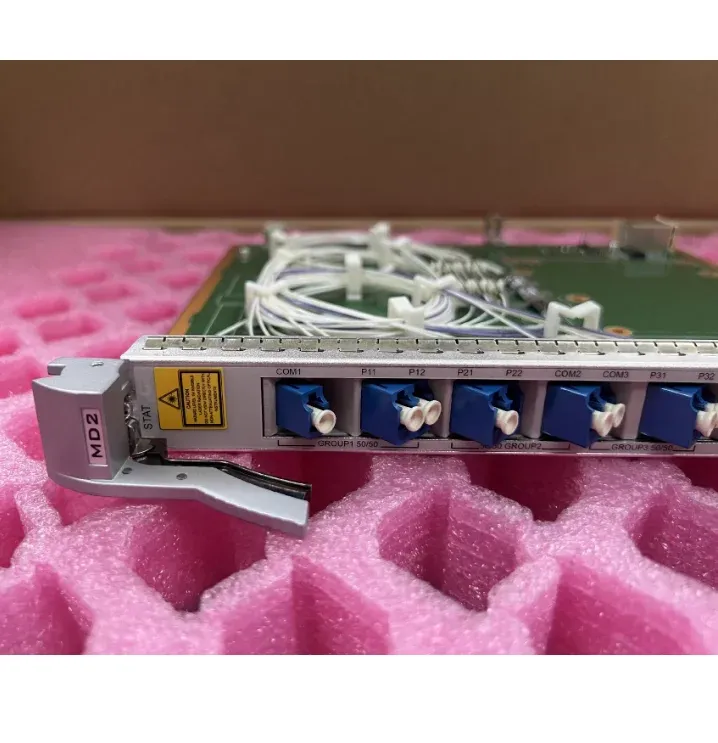

The first set of COM1-P11/P12 provides a 1x2 coupler to achieve wavelength combining and splitting function 50:50

The second group COM2-P21/P22 provides a 1x2 coupler to achieve wavelength combining and splitting function 50:50

The third group COM3-P31/P32 provides a 1x2 coupler to achieve wavelength combining and splitting function 50:50

The fourth group COM4-P41/P42 provides a 1x2 coupler to achieve wavelength combining and splitting function at a ratio of 90:10

The fifth group COM5-P51/P52 provides a 1x2 coupler to achieve wavelength combining and splitting function at a ratio of 90:10

Note: The MD2 board achieves multiplexing and demultiplexing of extended C-band signals through a combination of five sets of 1x2 couplers.

3.Core functional characteristics

Table 3: Detailed Function Explanation

Functional Module Technical Description System Value

Wavelength division multiplexing provides five sets of 1x2 couplers for multiplexing and demultiplexing of extended C-band signals, achieving the multiplexing and splitting of multi wavelength signals.It is the fundamental optical layer component of DWDM systems

Multi split ratio supports three sets of 50:50 couplers and two sets of 90:10 couplers to meet different application requirements.The 90:10 coupler can be used for monitoring ports to extract a small amount of optical power for monitoring without significantly affecting the main optical channel

Alarm and performance monitoring support the monitoring of board related alarms and performance events to quickly locate optical layer faults and improve network maintainability

Extended C-band coverage with a working wavelength range of 1528.8nm to 1567.6nm (Extended C-band) supports high-capacity DWDM systems with 96 wave @ 50GHz grids, meeting the demand for improving spectral efficiency

Passive design is mainly based on passive optocouplers to achieve ultra-low power consumption (1W), high reliability, and almost no need for heat dissipation considerations

4.Optical performance parameters

Table 4: Key Optical Indicators

Parameter Port Specification Remarks

All ports within the working wavelength range of 1528.8 nm to 1567.6 nm in the extended C-band comply with the ITU-T G.694.1 standard

Insertion loss COM1-P11/P12<4.0 dB 50:50 splitting ratio coupler insertion loss

Insertion loss COM2-P21/P22<4.0 dB 50:50 splitting ratio coupler insertion loss

Insertion loss COM3-P31/P32<4.0 dB 50:50 splitting ratio coupler insertion loss

Insertion loss COM4-P41<1.0 dB 90:10 splitting ratio main output port (90% branch)

Insertion loss COM4-P42<12.0 dB 90:10 splitting ratio monitoring port (10% branch)

Insertion loss COM5-P51<1.0 dB 90:10 splitting ratio main output port (90% branch)

Insertion loss COM5-P52<12.0 dB 90:10 splitting ratio monitoring port (10% branch)

5.Power consumption and mechanical parameters

Table 5: Power consumption indicators

Typical power consumption of board version, maximum power consumption note

TN97MD2 1.0 W 1.0 W Passive Design, Extremely Low Power Consumption, Basically negligible

Table 6: Mechanical and Environmental Parameters

Parameter specifications

Front panel dimensions 264.6 mm (height) x 25.4 mm (width) x 220 mm (depth)

Weight 0.6 kg

Working temperature (long-term) 5°C to 45°C

Working temperature (short-term) -5°C to 55°C

Storage temperature -40°C to 70°C (according to TN series universal standards)

Relative humidity (long-term) 5% to 85% RH, no condensation

Relative humidity (short-term) 5% to 95% RH, no condensation

Air pressure requirement: 70 kPa to 106 kPa

6.Application scenarios

Table 7: Typical Application Scenarios

Core Value of Application Scenario Deployment Method

DWDM terminal station (OTM) is used in the terminal station to combine signals of multiple wavelengths into one path for transmission, or to decompose the received combined signal into a single wavelength as a multiplexer/demultiplexer, constructing the core optical layer of the DWDM system

Optical amplification station (OLA) is used in conjunction with optical amplifiers in line amplification stations to achieve power compensation of multi wavelength signals and provide multiplexing and demultiplexing functions, supporting long-distance transmission across multiple spans

The ROADM node serves as the fundamental optical layer multiplexing and division unit in the reconfigurable optical add/drop multiplexer node, providing the optical path foundation for wavelength level dynamic scheduling

The optical performance monitoring point utilizes the 10% monitoring port of the 90:10 coupler to connect to the optical performance monitoring unit (OPM) for uninterrupted online spectral monitoring of services, obtaining key parameters such as wavelength power and OSNR in real time

In the newly built extended C-band system, as a standard multiplexing component, it supports high-capacity systems with 96 wave @ 50GHz grids, maximizing fiber spectrum utilization

7.Maintenance and ordering information

Table 8: Maintenance and Ordering Points

Project Information

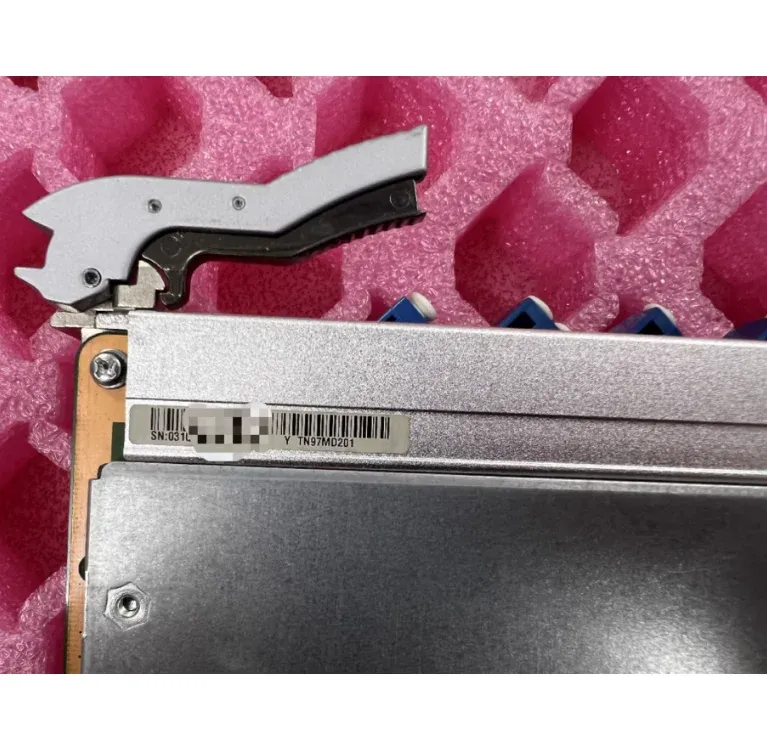

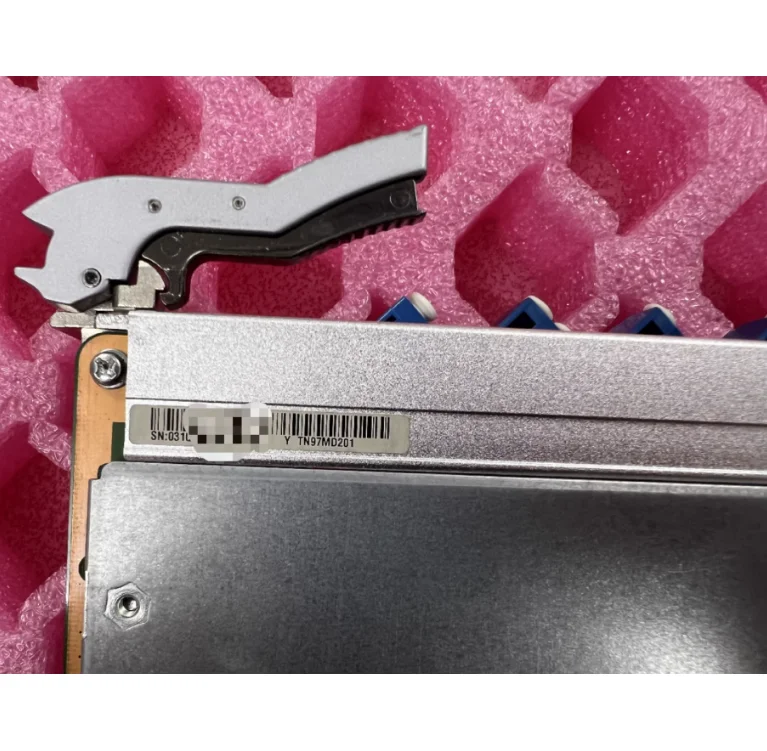

Component code TN97MD2 (specific version such as TN97MD201)

Ordering instructions: When ordering, please specify the board version.The MD2 board does not need to be configured with an optical module

On site operation supports hot plugging, and anti-static wrist straps should be worn during operation.Pay attention to cleaning the fiber optic connectors

Port 90:10 uses 10% branch ports (P42/P52) which can be used to connect monitoring devices.When using, pay attention to the input power range to avoid damaging the monitoring instrument

Test and verify that insertion loss testing and port connectivity testing are required after installation

Spare parts management, as a standard optical passive board, has extremely high reliability.The proportion of spare parts can be appropriately reduced, but it is recommended to retain spare parts at critical nodes

Core Summary:

TN97MD2 is a 2-port multiplexing and demultiplexing board in the OSN 9800 platform, which achieves multiplexing and demultiplexing of extended C-band signals through five sets of 1x2 couplers.

Core values and positioning:

Standard optical layer multiplexing and splitting module: As the basic passive component of DWDM system, MD2 board undertakes the multiplexing and splitting functions of multi wavelength signals, and is an indispensable component for building wavelength division system.

Flexible adaptation of multi split ratio: Provides couplers with two split ratios of 50:50 and 90:10.The 90:10 port is particularly suitable for use as an online optical performance monitoring point, which can extract a small amount of optical power for spectral analysis without affecting the main business.

Extended C-band support: The working wavelength covers 1528.8nm to 1567.6nm, supporting high-capacity systems with 96 wave @ 50GHz grids to meet the demand for improving spectral efficiency.

Ultra low power consumption and high reliability: Based on passive design, the power consumption is only 1W, and almost no heat is generated, with extremely high reliability and long service life.

Technical features:

Five sets of 1x2 couplers (three sets 50:50, two sets 90:10)

Insertion loss: 50:50 branch<4.0dB, 90:10 main output<1.0dB, monitoring output<12.0dB

Ultra thin design (25.4mm wide), saving space in sub rack slots

Support alarm and performance event monitoring to enhance maintainability

Application suggestion:

This board is the standard multiplexing and demultiplexing component of the OSN 9800 wavelength division system, and is used in various sites such as OTM, OLA, ROADM, etc. Of particular note is the monitoring port of its 90:10 coupler. It is recommended to use these ports to connect optical performance monitoring units (such as OPM cards) at critical nodes in the network, to build a visual intelligent optical layer that provides real-time data support for preventive maintenance and dynamic optimization of the network.
