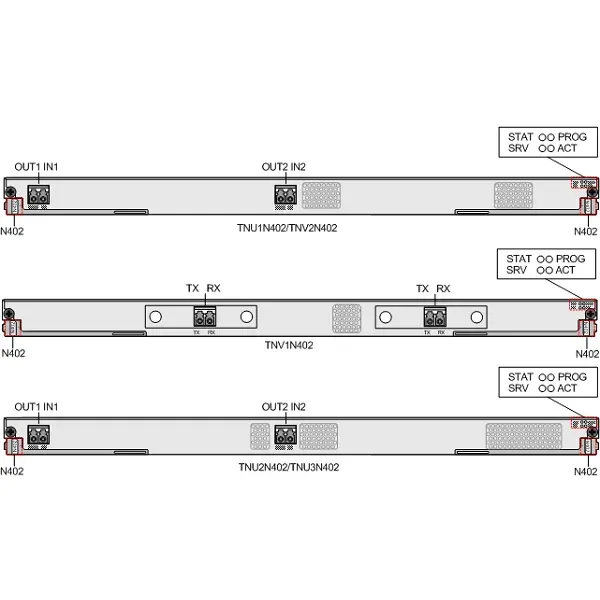

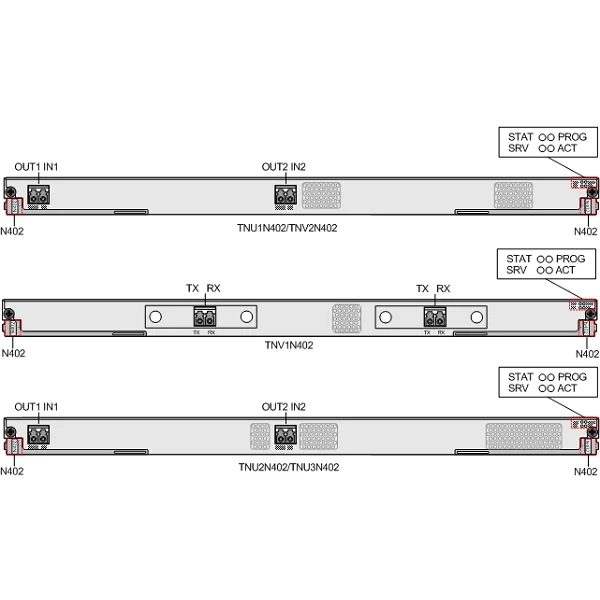

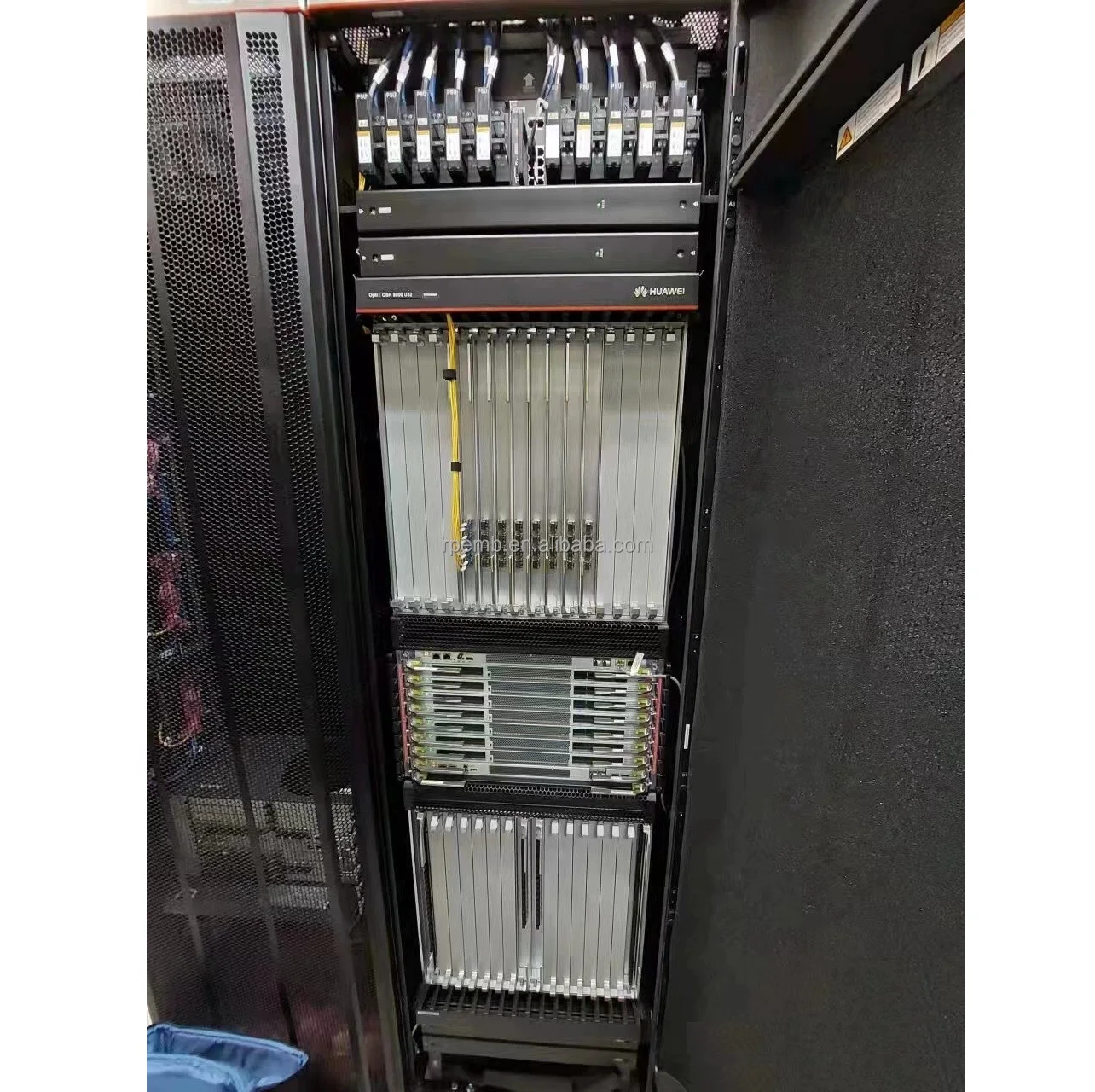

OSN9800 N402 03030VHY TNU2N402T51 TNU2N402 2 x 100 Gbit/s Line Service Processing Board Line Boards
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Mapping Between the Board and OptiX OSN 9800 U64/U32/U16/M24
The following provides the board(s) supported by the OptiX OSN 9800 U64/U32/U16/U16/M24.However, the availability of the board(s) is subject to PCNs.For PCN information, contact the product manager at your local Huawei office.
|
Board
|
Initial Version
|
9800 U64 Standard Subrack
|
9800 U64 Enhanced Subrack |
9800 U32 Standard Subrack
|
9800 U32 Enhanced Subrack |
9800 U16 Subrack |
9800 M24 Subrack |
||
|---|---|---|---|---|---|---|---|---|---|
|
U1CTU |
U2CTU /U4CTU |
U2CTU/ U4CTU |
U1CTU |
U2CTU/ U4CTU |
U2CTU/ U4CTU |
S1CTU |
G1CXP/ G3CXP |
||
|
TNU1N402 |
V100R001C00 |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
|
TNU2N402 |
T61/T65: V100R001C20SPC300 Other: V100R001C20 |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
|
TNV1N402 |
V100R001C01 |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
|
TNV2N402 |
V100R001C20 |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
|
TNU3N402a |
T58/T68:V100R002C10 & V100R002C00SPC810 T50: V100R003C10 Other: V100R001C20SPC360 |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
Not supported |
Supported |
Not supported |
|
TNU5N402b |
T5U/T62/T65/TxA/Gray light: V100R002C10SPC300 T65HPc/T69HPcV100R006C00 T51/T61: V100R006C10 T52HPc/T53HPc/T63HPc: V100R007C00SPC500 Other: V100R007C00SPC300 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
|
a: The TNU3N402 boards are not supported by V100R001C30. b: The TNU5N402 boards are not supported by V100R003C00. c: HP stands for high power. |
|||||||||
For details about mapping between the service boards and cross-connect boards, see Mapping Between Service Boards and Cross-Connect Boards.
Variants
- The boards using different optical line modulation formats, such as QPSK, QPSK wDCM, and QPSK wDCM-Enhanced, cannot be interconnected.For example, T51 using QPSK cannot be interconnected to T61 using QPSK wDCM.
- T6x supports the setting of parameter AFEC Grade.Interconnection is supported only when parameters AFEC Grade at two ends are set to the same value. .The T6x boards are sorted by transmission distance in the following sequence: T61> T62> T65.When different types of boards are interconnected, the actual short-haul transmission distance prevails.
- The boards using different error correction coding modes, such as HFEC, SDFEC, and SDFEC2, cannot be interconnected.
|
Variants |
WDM-Side Fixed Optical Module |
FEC encoding |
|---|---|---|
|
T11 |
55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC)-PIN |
SDFEC |
|
Board |
Variants |
WDM-Side Fixed Optical Module |
FEC encoding |
|---|---|---|---|
|
TNU2N402 TNU3N402 |
T51 |
150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN |
SDFEC2 |
|
T52 |
55000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN |
||
|
T53 |
40000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN |
||
|
T61 |
150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN |
||
|
T65 |
12000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM-Metro)-PIN |
||
|
TNU3N402 |
T58 |
120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN |
|
|
T68 |
120000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2,wDCM)-PIN |
||
|
T50 |
150000 ps/nm-C Band-Tunable Wavelength-ePDM-QPSK(SDFEC2)-PIN |
||
|
NOTE:
The T65 variant of the TNU2N402/TNU3N402 board applies to metro networks, and its WDM-side module requires the use of the same wavelength at the transmit and receive ends and does not support wavelength change by configuring regeneration boards. |
|||
Mechanical Specifications
- Dimensions of the front panel (H x W x D): 477.3 mm (18.8 in.)x 30.5 mm (1.2 in.)x 220.0 mm (8.7 in.)
- Weight:
- TNU1N402: 5.1 kg (11.3 lb.)
- TNU2N402: 4.98 kg (10.96 lb.)
- TNU3N402: 4.5 kg (9.92 lb.)
- TNU5N402: 3.62 kg (7.98 lb.)
- TNV1N402: 3.5 kg (7.7 lb.)
- TNV2N402: 4.92 kg (10.82 lb.)
Power Consumption
|
Board |
Typical Power Consumption (W) |
Maximum Power Consumptiona (W) |
|
|---|---|---|---|
|
TNU1N402T11 |
269 |
295 |
|
|
TNU2N402 |
283 |
298 |
|
|
TNU3N402 |
183 |
194 |
|
|
TNU5N402 |
CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP |
114 |
175 |
|
other optical modules |
167 |
||
|
TNV1N402C01 |
155 |
190 |
|
|
TNV2N402T01 |
270 |
293 |
|
|
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. |
|||
