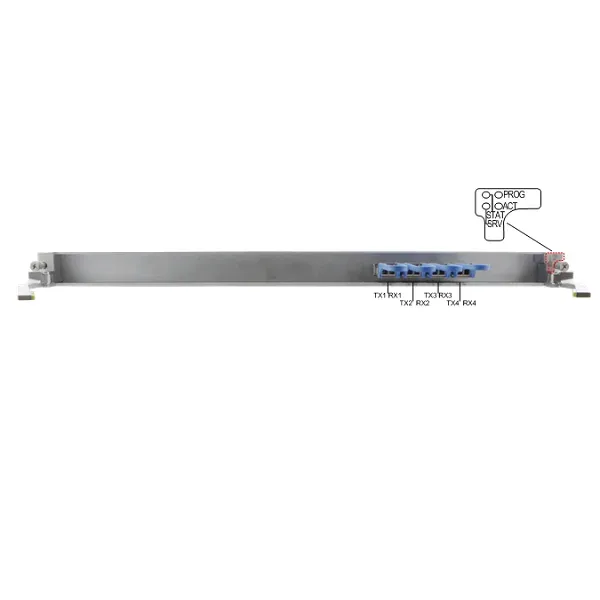

OSN9800 T404 03033AMK TNV5T404Q01 TNV5T404 4*100G Tributary Service Processing Board(QSFP28) OTN Tributary Boards
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

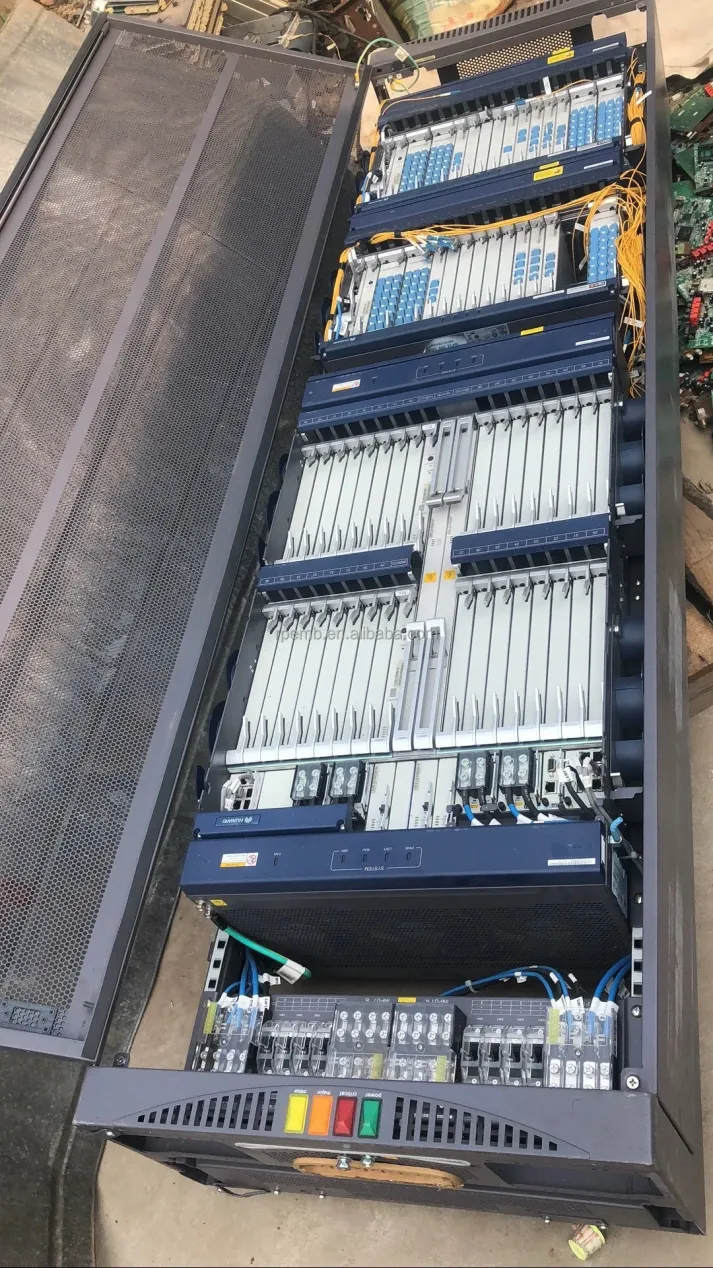

Mapping Between the Board and OptiX OSN 9800 U64/U32/U16/M24
The following provides the board(s) supported by the OptiX OSN 9800 U64/U32/U16/M24.However, the availability of the board(s) is subject to PCNs.For PCN information, contact the product manager at your local Huawei office.
|
Board
|
Initial Version
|
9800 U64 Standard Subrack |
9800 U64 Enhanced Subrack |
9800 U32 Standard Subrack |
9800 U32 Enhanced Subrack |
9800 U16 Subrack |
9800 M24 Subrack |
||
|---|---|---|---|---|---|---|---|---|---|
|
U1CTU |
U2CTU/U4CTU |
U2CTU/U4CTU |
U1CTU |
U2CTU/U4CTU |
U2CTU/U4CTU |
S1CTU |
G1CXP/G3CXP |
||
|
TNV5T401Q01 |
V100R007C00SPC500 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
|
TNV5T402Q01 |
V100R007C00SPC500 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
|
TNV5T404Q01 |
V100R007C00SPC300 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
For details about mapping between the service boards and cross-connect boards, see Mapping Between Service Boards and Cross-Connect Boards.
A maximum of 80 Gbit/s SDH services are supported.While matching TNU1CTU and TNS1CTU does not support SDH services.
Variants
The TNV5T401/TNV5T402/TNV5T404 board has only one variant: TNV5T401Q01/TNV5T402Q01/TNV5T404Q01.
Substitution Relationship
|
Original Board |
Substitute Board |
Substitution Rules |
|---|---|---|
|
TNV2T404/TNV3T404 |
TNV5T404 |
The TNV5T404 can be created as TNV2T404/TNV3T404 on the NMS.The former can substitute for the latter, without any software upgrade.After substitution, the TNV5T404 functions as the TNV2T404/TNV3T404. NOTE:
For details about the module substitution relationship, see Module Substitution Relationship. The TNV5T404 board in V100R007C00SPC500 and later versions can substitute for TNV2T404/TNV3T404 board. When working with the U2CTU/U4CTU board, a TNV5T404 board can substitute for a TNV3T404 board using the version replacement function only in V100R006C00SPC600 and later versions. |
Module Substitution Relationship
|
Original Board Module |
Substitute Board Module |
|---|---|
|
V2T404: CFP-100G(4x25G)-1295nm to 1310nm(LR4)-SMF-10km-SP CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP V3T404: CFP2-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km |
QSFP28-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km |
|
V3T404 QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km |
QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km |
|
V3T404: QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km |
QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km |
|
Other modules: CFP2-100G(10x10G)-850nm(SR10)-MMF-0.1km CFP2-100G(4x25G)-1295nm to 1310nm(ER4)-SMF-40km CFP-100G(4x25G)-1295nm to 1310nm(ER4)-SMF-40km-SP |
None |
RTU
|
Model |
RTU Description |
Description |
|---|---|---|
|
RTU-LNSDQSFPP01 |
Line Port Enable RTU for 100G QSFP Port |
When ports are used as line ports , by default, no line port can be used on the T401/T402/T404 board.One RTU item is required for every 100G QSFP28 port. |
|
RTU-LNSDRTUQ01 |
Client Port Enable RTU for 100G QSFP Port |
When ports are used as tributary ports ,by default, no tributary port can be used on the T401/T402/T404 board.One RTU item is required for every 100G QSFP28 port. |
|
RTU-LNSDRTUQ02 |
Client Port Enable RTU for 40G QSFP Port |
By default, no client-side port can be used on the T401/T402/T404 board.One RTU item is required for every client-side 40G QSFP+ port. |
Mechanical Specifications
- Dimensions of front panel (H x W x D): 477.3 mm (18.8 in.)x 30.5 mm (1.2 in.)x 220.0 mm (8.7 in.)
- Weight:
T401: 2.22 kg (4.9 lb.)
T402: 2.8 kg (6.2 lb.)
T404: 2.5 kg (5.5 lb.)
Power Consumption
|
Board |
Typical Power Consumption (W) |
Maximum Power Consumptiona (W) |
|---|---|---|
|
T401 |
68 |
72 |
|
T402 |
78 |
83 |
|
T404 |
96 |
101 |
|
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. |
||
All items are ORIGINAL and GENUINE only.
All items are fully tested with working conditions by engineer.
Trouble shooting support
Before returning goods, please contact us to tell the issues you are having.
If there are irremediable defects happening to the devices, you must contact your sales representative to verify product failure.
Our Technical team
we have experienced technical team can provide support over the phone, by chat, by email or by remotely login.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Cargo will be delivered within 3 day after payment arrived.
Tracking Number will be offered once delivery done.
|
Delivery Options
|
Estimated Delivery Time |
Delivery Options |
Estimated Delivery Time |
|
|
3-5 business days
|
|
5-8 business days
|
|
|
3-5 business days
|
|
5-8 business days
|
|
|
10-15 business days |
|
10-20 business days |
By Sea
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.
There are two delivery options available for by air and by sea:
Deliver to port:
we are responsible for transporting goods to port.All subsequent customs and transportation fees are the responsibility of the buyer.
we are will recommend trustworthy local freight forwarders to you.we can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
we are will quote all destination charge prior once we have confirmed order.
We are responsible for transporting goods to door after you have made the payment.
Contact Us
Yantai Boxin International Trade Co., Ltd.
Click the number to chat on WhatsApp or send an email. WeChat ID is the same as the phone number.
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Mapping Between the Board and OptiX OSN 9800 U64/U32/U16/M24
The following provides the board(s) supported by the OptiX OSN 9800 U64/U32/U16/M24.However, the availability of the board(s) is subject to PCNs.For PCN information, contact the product manager at your local Huawei office.
|
Board
|
Initial Version
|
9800 U64 Standard Subrack |
9800 U64 Enhanced Subrack |
9800 U32 Standard Subrack |
9800 U32 Enhanced Subrack |
9800 U16 Subrack |
9800 M24 Subrack |
||
|---|---|---|---|---|---|---|---|---|---|
|
U1CTU |
U2CTU/U4CTU |
U2CTU/U4CTU |
U1CTU |
U2CTU/U4CTU |
U2CTU/U4CTU |
S1CTU |
G1CXP/G3CXP |
||
|
TNV5T401Q01 |
V100R007C00SPC500 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
|
TNV5T402Q01 |
V100R007C00SPC500 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
|
TNV5T404Q01 |
V100R007C00SPC300 |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
Supported |
For details about mapping between the service boards and cross-connect boards, see Mapping Between Service Boards and Cross-Connect Boards.
A maximum of 80 Gbit/s SDH services are supported.While matching TNU1CTU and TNS1CTU does not support SDH services.
Variants
The TNV5T401/TNV5T402/TNV5T404 board has only one variant: TNV5T401Q01/TNV5T402Q01/TNV5T404Q01.
Substitution Relationship
|
Original Board |
Substitute Board |
Substitution Rules |
|---|---|---|
|
TNV2T404/TNV3T404 |
TNV5T404 |
The TNV5T404 can be created as TNV2T404/TNV3T404 on the NMS.The former can substitute for the latter, without any software upgrade.After substitution, the TNV5T404 functions as the TNV2T404/TNV3T404. NOTE:
For details about the module substitution relationship, see Module Substitution Relationship. The TNV5T404 board in V100R007C00SPC500 and later versions can substitute for TNV2T404/TNV3T404 board. When working with the U2CTU/U4CTU board, a TNV5T404 board can substitute for a TNV3T404 board using the version replacement function only in V100R006C00SPC600 and later versions. |
Module Substitution Relationship
|
Original Board Module |
Substitute Board Module |
|---|---|
|
V2T404: CFP-100G(4x25G)-1295nm to 1310nm(LR4)-SMF-10km-SP CFP-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km-SP V3T404: CFP2-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km |
QSFP28-100G(4x25G/28G,Dualrate)-1295nm to 1310nm(LR4)-SMF-10km |
|
V3T404 QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km |
QSFP28-100G(4x25G)-1271 to 1331nm(CLR4)-SMF-2km |
|
V3T404: QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km |
QSFP28-100G(4x25G)-850nm(SR4)-MPO-MMF-0.1km |
|
Other modules: CFP2-100G(10x10G)-850nm(SR10)-MMF-0.1km CFP2-100G(4x25G)-1295nm to 1310nm(ER4)-SMF-40km CFP-100G(4x25G)-1295nm to 1310nm(ER4)-SMF-40km-SP |
None |
RTU
|
Model |
RTU Description |
Description |
|---|---|---|
|
RTU-LNSDQSFPP01 |
Line Port Enable RTU for 100G QSFP Port |
When ports are used as line ports , by default, no line port can be used on the T401/T402/T404 board.One RTU item is required for every 100G QSFP28 port. |
|
RTU-LNSDRTUQ01 |
Client Port Enable RTU for 100G QSFP Port |
When ports are used as tributary ports ,by default, no tributary port can be used on the T401/T402/T404 board.One RTU item is required for every 100G QSFP28 port. |
|
RTU-LNSDRTUQ02 |
Client Port Enable RTU for 40G QSFP Port |
By default, no client-side port can be used on the T401/T402/T404 board.One RTU item is required for every client-side 40G QSFP+ port. |
Mechanical Specifications
- Dimensions of front panel (H x W x D): 477.3 mm (18.8 in.)x 30.5 mm (1.2 in.)x 220.0 mm (8.7 in.)
- Weight:
T401: 2.22 kg (4.9 lb.)
T402: 2.8 kg (6.2 lb.)
T404: 2.5 kg (5.5 lb.)
Power Consumption
|
Board |
Typical Power Consumption (W) |
Maximum Power Consumptiona (W) |
|---|---|---|
|
T401 |
68 |
72 |
|
T402 |
78 |
83 |
|
T404 |
96 |
101 |
|
a: The maximum power consumption is the power consumed by the board when it works normally under the highest ambient temperature. |
||
All items are ORIGINAL and GENUINE only.
All items are fully tested with working conditions by engineer.
Trouble shooting support
Before returning goods, please contact us to tell the issues you are having.
If there are irremediable defects happening to the devices, you must contact your sales representative to verify product failure.
Our Technical team
we have experienced technical team can provide support over the phone, by chat, by email or by remotely login.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Cargo will be delivered within 3 day after payment arrived.
Tracking Number will be offered once delivery done.
|
Delivery Options
|
Estimated Delivery Time |
Delivery Options |
Estimated Delivery Time |
|
|
3-5 business days
|
|
5-8 business days
|
|
|
3-5 business days
|
|
5-8 business days
|
|
|
10-15 business days |
|
10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.
There are two delivery options available for by air and by sea:
Deliver to port:
we are responsible for transporting goods to port.All subsequent customs and transportation fees are the responsibility of the buyer.
we are will recommend trustworthy local freight forwarders to you.we can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
we are will quote all destination charge prior once we have confirmed order.
We are responsible for transporting goods to door after you have made the payment.
