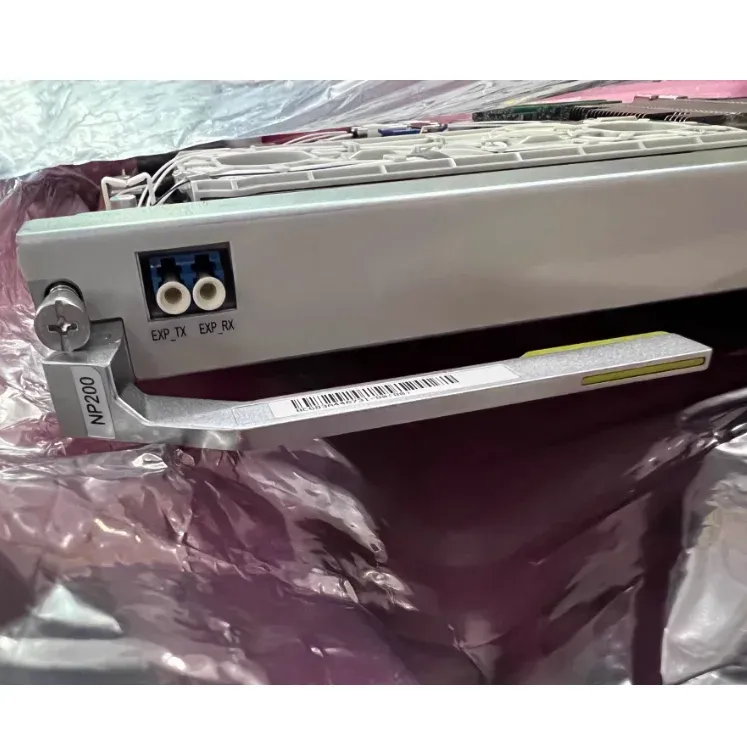

OSN9800 TNU1NP200 200G Wavelength Division Board Supports Custom Business Processing

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

TNU1NP200 is a high-performance network processor enhanced 200G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board is designed for high-value network edges and aggregation nodes that require deep business perception, flexible traffic engineering, and intelligent processing.It deeply integrates the single wave 200G high-speed transmission capability with programmable network processor units.It not only provides a large capacity transmission pipeline, but also an open intelligent business processing platform aimed at meeting the high-order requirements of network programmability and business agility for cloud network integration, computing power networks, and customized industry applications.

2.Core features and platform positioning

Programmable Network Processor Core

Integrated high-performance programmable network processor (NP) chip, supporting flexible business processing logic through software definition, such as custom packet header parsing, deep business recognition, traffic collection and mirroring, etc.

Provide open programming interfaces to support users or third-party development of customized network functions and applications.

High performance 200G transmission and intelligent processing integration

Provide reliable long-distance transmission capability based on mature 200G coherent transmission technology.

Efficient collaboration between transmission and processing units enables real-time execution of complex strategies during data stream forwarding, achieving a fusion architecture of"transmission as processing".

Deep business perception and refined traffic engineering

Ability to identify and classify traffic based on application layer information, such as quintuples and specific protocol fields.

Support fine-grained Quality of Service (QoS) policies, congestion avoidance, and load balancing based on business flow, achieving precise allocation and optimization of network resources.

Service oriented capability for intelligent networks

It can serve as an edge hosting platform for Network Function Virtualization (NFV), allowing for flexible deployment of virtualized network functions such as virtual firewalls and performance probes.

Deeply collaborate with SDN controllers to achieve global optimization of network behavior and dynamic policy issuance.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNU1NP200

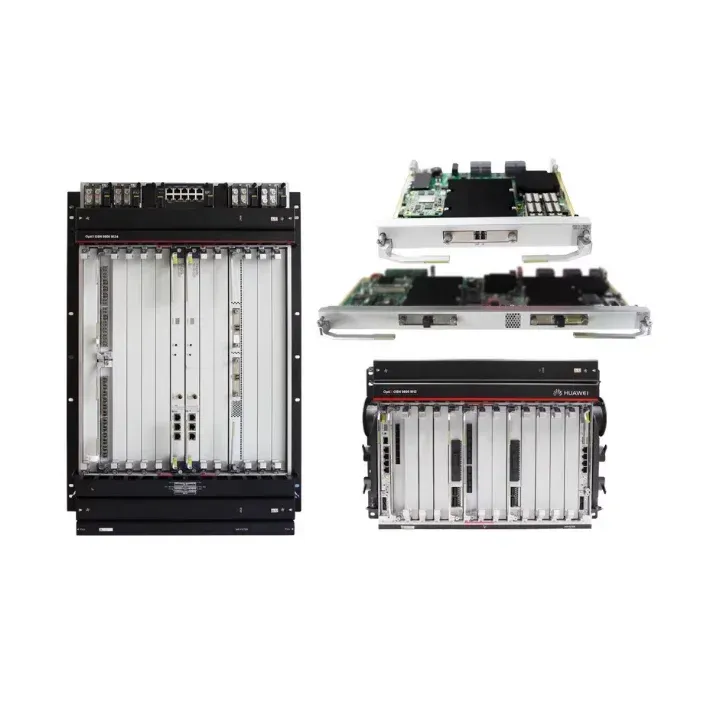

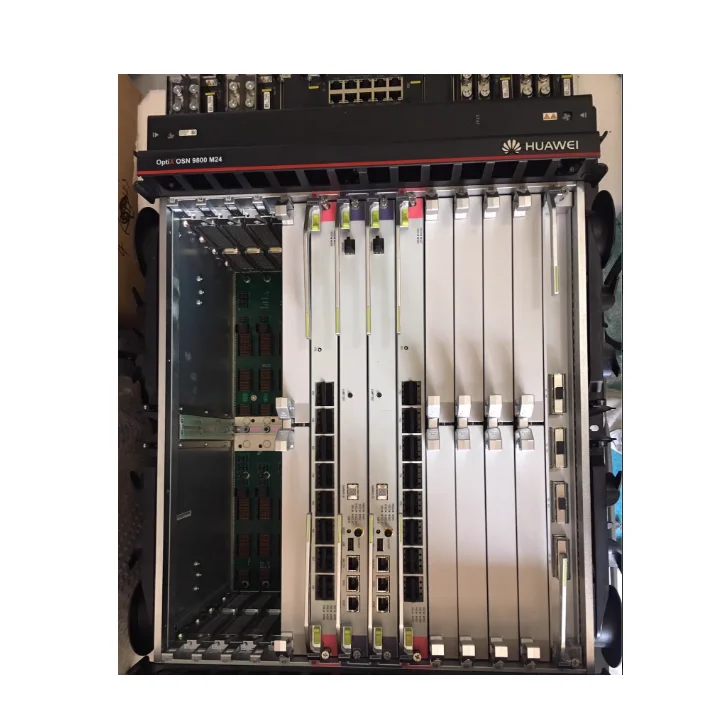

Applicable platform: OSN 9800 series subrack

Board type: Network Processor Enhanced 200G Circuit Processing Board

Typical power consumption:<130W

Working temperature: -5°C to+55°C

Core chip: Integrated programmable network processor unit.

2.Customer side interface and business characteristics

Interface configuration: Provides high-speed Ethernet customer side interface, supporting speeds such as 100GE and 40GE.

Core processing capability:

Programmable processing: supports programmable parsing, modification, and forwarding of Ethernet/IP packets.

Advanced features: Supports NetFlow/sFlow traffic collection, message mirroring, timestamp insertion, policy routing, etc.

Service quality: Supports multi-level and refined queue scheduling and congestion management mechanisms.

3.Line side transmission performance

Line speed: 200G

Modulation format: Software configurable, supports DP-16QAM, DP-QPSK, etc.

Line side optical interface: Supports CFP2 coherent optical modules.

Typical transmission distance: Meet regional and trunk transmission requirements, such as 200G (DP-QPSK) ≥ 1000 km.

4.Management and software development

Open programming environment: Provides standard software development kits (SDKs) or P4 programming environments, supporting the development and deployment of custom data plane functions.

Unified control: Unified lifecycle management, policy orchestration, and functional deployment through iMaster NCE.

4.Typical application scenarios

Intelligent urban edge/cloud edge collaborative node: As an intelligent gateway connecting enterprises, parks, and central clouds, it executes differentiated cloud deployment policies, security policies, and local streaming policies.

Intelligent access and scheduling point for computing power network: At the edge of the computing power network, based on computing power demand and network status, it intelligently schedules business traffic to the optimal computing power node and ensures the service quality of computing task flow.

Advanced Industry Private Network Control Node: Provides programmable data surfaces for specialized networks in industries such as finance, energy, and transportation, enabling customized network processing that complies with industry-specific protocols and business processes.

Network Visualization and Security Analysis Front end: As a high-performance traffic collection and preprocessing node, it mirrors or samples key business flows and sends them to the backend analysis system to achieve full network business visualization and security threat detection.

New Network Protocol Test Bed: Provides a programmable hardware platform for research institutions or standard organizations to validate cutting-edge network protocols and algorithms such as SRv6, APN6, and deterministic networks.

5.Summary of Core Values

Programmable network capabilities: breaking the limitations of hardware functionality and enabling networks to quickly adapt and create new businesses through software.

Business Perception and Intelligence: Upgrade the network from a"dumb pipeline" to an"intelligent pipeline" with deep business understanding and processing capabilities.

Architecture openness and ecological innovation: Open programming interfaces attract developers and partners to jointly build a rich network application ecosystem.

Future oriented network infrastructure: provides the underlying hardware foundation for highly dynamic and customized networks required for future applications such as 6G, holographic communication, and metaverse.

6, Ordering and Development Instructions

Basic board model: TNU1NP200.

This product provides a combination of " hardware platform+software development capabilities " , and ordering requires clear application scenarios and preliminary functional requirements.
