OSN9800 TNU1NP400 400G Programmable Network Platform Board High Performance NP Processing Engine

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

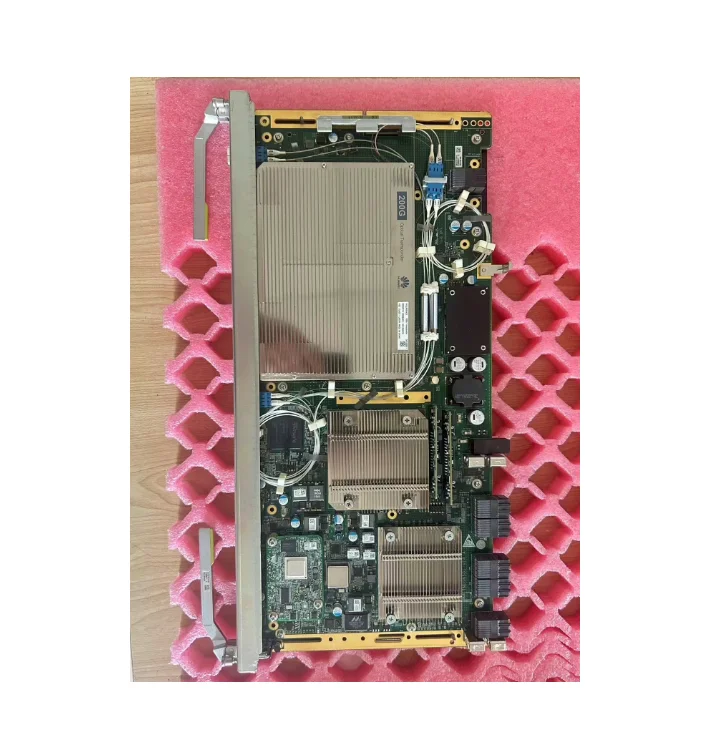

TNU1NP400 is a high-performance programmable network processor 400G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board deeply integrates advanced single wave 400G coherent optical transmission technology with an open programmable network processor core, aiming to provide an ultra wide intelligent platform with flexible data plane processing capabilities for intelligent edge, computing power networks, and highly customized industry applications.It is not only a high-speed transmission unit, but also an open business innovation engine that enables the network to perform user-defined deep message processing, traffic engineering, and business logic at 400G line speed, providing core hardware support for building highly flexible, autonomous, and controllable future network infrastructure.

2.Core Features and Platformization Value

Open programmable network processor core

Integrated high-performance multi-core programmable network processor (NP), supporting flexible programming and customized development of data plane forwarding logic through high-level languages such as P4 (Programming Protocol Independent Packet Processor) or specific SDKs.

Breaking the limitations of traditional transmission equipment's fixed data plane functions, enabling the network to quickly adapt to new protocols, algorithms, and business requirements.

Intelligent processing fusion at 400G line speed

While providing a stable and reliable 400G high-capacity transmission channel, the NP engine can perform real-time and in-depth business perception and processing of line speed traffic.

Support the implementation of complex functions such as custom protocol parsing, message modification, traffic measurement, policy routing, load balancing, etc.during the transmission process, achieving"transmission as a service, programmable processing".

Optimization design for integrated computing and networking

The hardware architecture is optimized for low latency and high throughput computing traffic scheduling, supporting collaboration with computing management platforms.

Intelligent traffic guidance and SLA guarantee based on application or computing power requirements can be implemented through programming, becoming a key programmable node connecting computing power and network.

Developer friendly open ecosystem

Provide a complete software development kit (SDK), including compilers, debuggers, simulation environments, and rich API libraries, to lower the development threshold.

Aiming to jointly build an innovative application ecosystem with partners and research institutions, and accelerate the innovation and commercialization of network technology.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNU1NP400

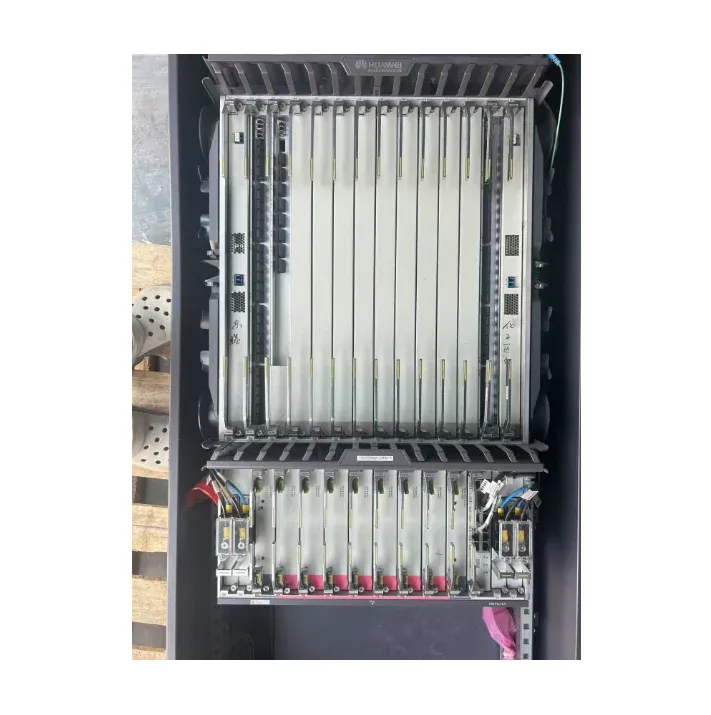

Applicable platform: OSN 9800 U64 and above high-performance platforms

Board type: Programmable Network Processor Enhanced 400G Line Processing Platform

Typical power consumption:<200W

Working temperature: -5°C to+55°C

Core engine: High performance programmable network processor (NP) unit.

2.Customer side interface and programmable capability

Interface configuration: Supports high-speed Ethernet customer side interfaces, such as 100GE and 400GE.

Core programmable features:

Flexible data surface: supports custom message parsing, editing, classification, and forwarding actions.

State storage and operation: Supports programmable traffic state maintenance, statistical counting, and complex flow table operations.

Advanced features: Programmable implementation of deep traffic analysis, dynamic traffic engineering, network telemetry data generation, etc.

3.Line side transmission performance

Line speed: 400G

Modulation format: Software configurable, supports efficient modulation.

Line side optical interface: Supports CFP2-DCO coherent optical modules.

Typical transmission distance: meets the backbone requirements of urban and regional areas, with a typical support of ≥ 400 km.

4.Software Development and Management

Development environment: Provides SDK based on mainstream programming models, supporting the full process development from functional design, simulation verification to deployment and launch.

Lifecycle Management: Supports loading, upgrading, monitoring, and resource management of programmable logic through iMaster NCE or a dedicated management platform.

4.Typical application scenarios

Intelligent edge computing gateway: deployed in the enterprise park or the edge data center exit, it can realize the protocol conversion of specific industries, local business diversion, differentiated security strategy and low delay guarantee through programming.

Intelligent scheduling node for computing power network: At critical locations in the computing power network, it dynamically optimizes traffic scheduling strategies by programming real-time perception of computing power status and network conditions, achieving optimal matching between computing tasks and network resources.

Advanced industry private network core controller: provide fully customized data plane processing logic for industries with special network requirements, such as financial transactions, smart grids, and industrial Internet, to meet their unique delay, reliability, and security isolation requirements.

New network protocol and algorithm testbed: providing a real high-speed hardware environment for scientific research institutions and standard organizations to verify cutting-edge technologies and algorithms such as SRv6, APN6, deterministic networks (DetNet), AI driven routing, etc.

High performance network visualization and security probe: Through programming, it achieves line speed traffic collection, filtering, desensitization, and preprocessing, providing high-quality data sources for network situational awareness and security analysis platforms.

5.Summary of Core Values

Reshaping network agility: By defining data planes through software, networks can respond to new business needs on a weekly or even daily basis, rather than relying on years long hardware replacement cycles.

Unlocking business innovation potential: Providing network operators and enterprise customers with the ability to directly embed unique business logic into network infrastructure, creating differentiated competitive advantages.

Building an open collaborative ecosystem: Transforming network devices from"black boxes" to"open platforms", attracting developers and partners, and jointly promoting innovation in network applications.

Future oriented strategic investment: It is an essential core technology component for building adaptive, self optimizing, and service-oriented future networks (such as 6G and computing native networks).

6.Ordering and cooperation mode

Basic platform model: TNU1NP400.

This product adopts a cooperative model of " platform sales+technical support+joint development " . Customers not only purchase hardware, but also gain technical capabilities and support for deep customization.
