Product Description

1.Product Overview

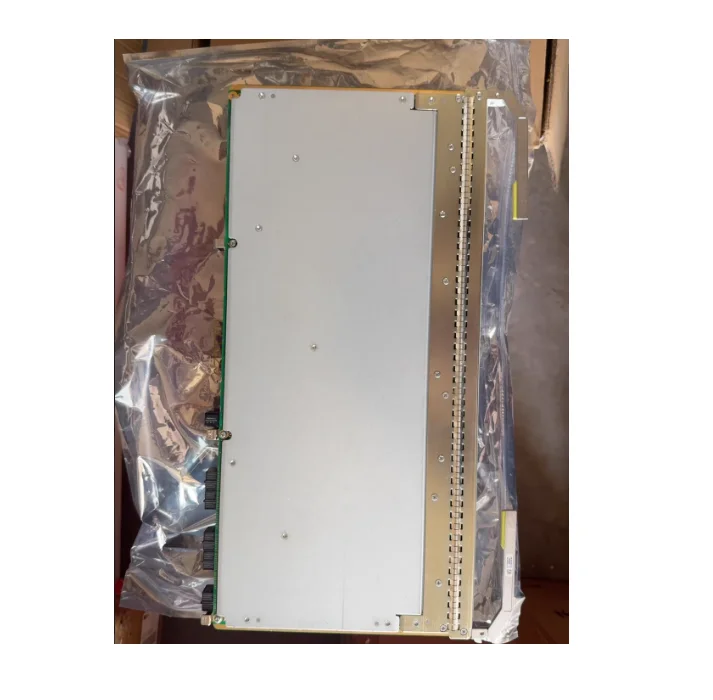

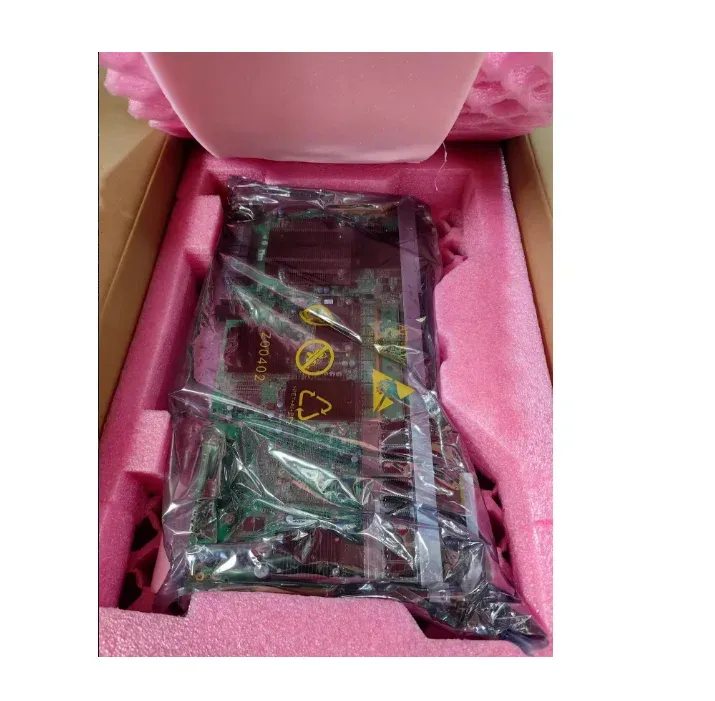

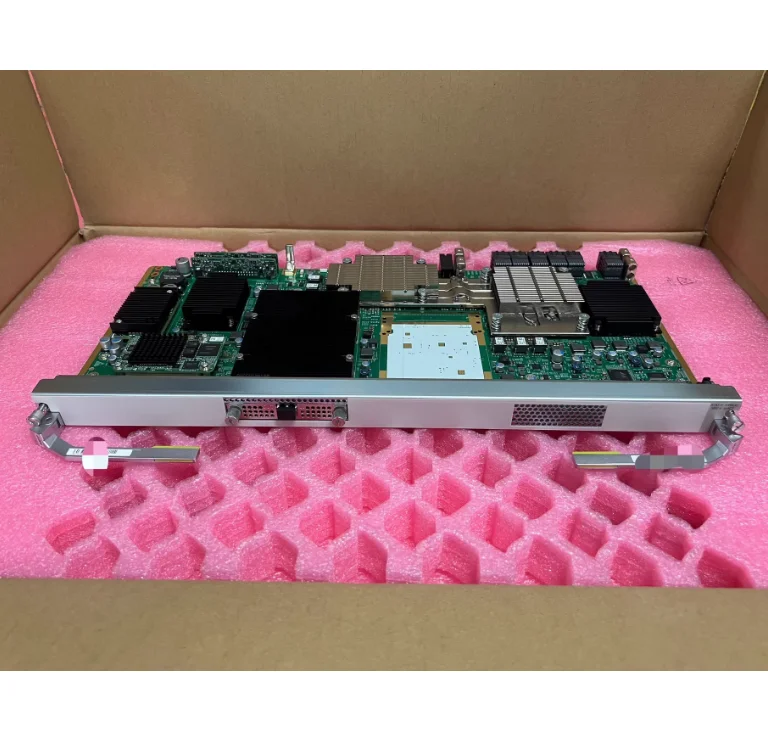

TNU2U401 is a compact universal 400G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.The board adopts high-density and integrated design, providing efficient 400G line side transmission capability within the standard board space, while maintaining good universality and scene adaptability.It aims to provide stable, reliable, and space saving basic transmission solutions for urban core edges, large aggregation nodes, and scenarios that require cost-effective 400G access.It is an ideal universal component for building dense wavelength division networks and achieving smooth network capacity upgrades.

2.Core Features and Value Positioning

Compact high-density design

By adopting advanced hardware integration technology, a complete 400G coherent optical transmission engine has been achieved within a compact board size.

High density design helps to improve the port capacity and total throughput of the entire equipment, especially suitable for scenarios such as data centers and core data centers with limited cabinet space or high requirements for single cabinet capacity.

Strong universality and flexible deployment

The design follows the general specifications of the platform, has good compatibility, and can be flexibly deployed in multiple sub rack slots of the OSN9800 platform.

Supporting standard 400G OTN line interfaces, it can collaborate with various customer side business boards within the platform, carrying mainstream services such as Ethernet and OTN, and has a wide range of application scenarios.

Mature and stable 400G transmission performance

Based on Huawei's mature 400G coherent transmission technology platform, it supports software configurable modulation formats (such as DP-16QAM) and can optimize performance according to transmission distance.

Provide stable and reliable 400G long-distance transmission capability (typical distance ≥ 400km) to meet the needs of urban and regional trunk applications.

Excellent overall cost of ownership

The high integration design reduces the power consumption and unit bit cost of the single board.

The universal design reduces the types of spare parts and operational complexity, providing excellent cost-effectiveness throughout the entire lifecycle from procurement, deployment to long-term operation and maintenance.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNU2U401

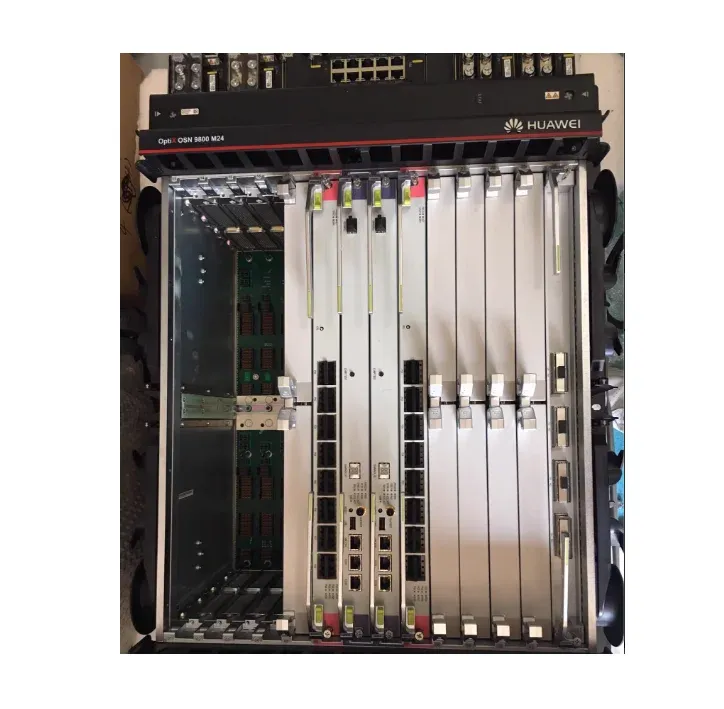

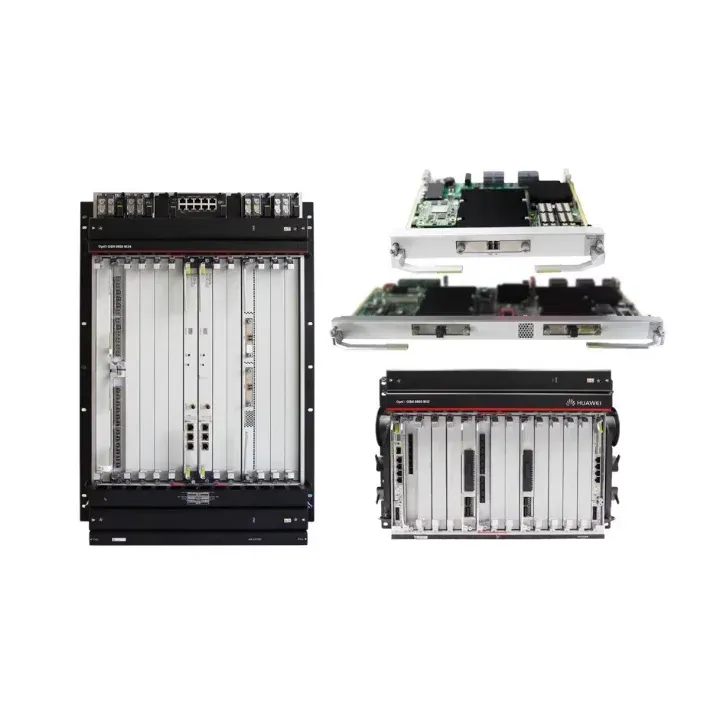

Applicable platform: OSN 9800 series subrack

Board type: Compact universal 400G coherent line interface board

Typical power consumption:<160W

Working temperature: -5°C to+55°C

Optical module type: Supports CFP2-DCO coherent optical module

2.Line side transmission performance

Line speed: 400G

Modulation format: Software configurable, typically supporting DP-16QAM, can be switched to a more robust format as needed to adapt to different distances.

Line side optical interface: Supports CFP2-DCO pluggable coherent optical modules.

Working band: C-band

Typical relay free transmission distance (based on DP-16QAM, G.652 fiber):

≥ 400 km (suitable for the vast majority of urban and regional trunk applications)

3.Customer side and business characteristics

Customer side connection: Interconnected with independent customer side business processing boards (such as branch boards supporting 400GE and OTU4) through high-speed backboards.

Support business: Support various high-speed customer businesses such as 400GE, 200GE, 100GE, OTU4, etc. through the business board.

Standard bearer: Supports OTN standard encapsulation and reuse, as well as enhanced features such as FlexE.

4.Management and Operations

Unified Network Management: Supports iManager U2000/NCE series network management to achieve unified management of configuration, alarm, and performance monitoring.

Simplified operation and maintenance: Provide standardized performance indicator monitoring (optical power, OSNR, bit error rate) and fault diagnosis functions.

4.Typical application scenarios

Edge interconnection of metropolitan core network: used to connect metropolitan core routers with wavelength division transmission equipment, or for close range high-speed interconnection between core computer rooms.

Large scale aggregation node uplink: At the business aggregation node, the aggregated high-speed traffic is directly uploaded to the core network through a 400G wavelength.

Data Center Campus Interconnection (DCI): Provides high-density, cost-effective 400G interconnection channels between data center campuses within the same city.

Existing 100G/200G network expansion: Inserted into deployed networks as a capacity upgrade solution for critical links to achieve smooth evolution.

5.Summary of Core Values

High space efficiency: Compact design improves cabinet space utilization and helps build high-capacity nodes.

Universal reliability: Based on mature platforms, strong universality, stable operation, and reduced technical risks.

Cost optimization: Provide excellent return on investment (ROI) throughout the entire lifecycle.

Easy deployment: Standardized interfaces and universal design simplify network planning and installation processes.

6.Ordering and Deployment Instructions

Basic board model: TNU2U401.

A specific model of CFP2-DCO coherent optical module needs to be configured separately.

Corresponding customer side business processing boards are required to connect to the final business.

It is recommended to conduct a basic optical power budget and system compatibility check before deployment. Provide standard warranty and technical support services.
