OSN9800 TNU3N402 Board 800G Data Center Interconnection Wavelength Division Circuit Board

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

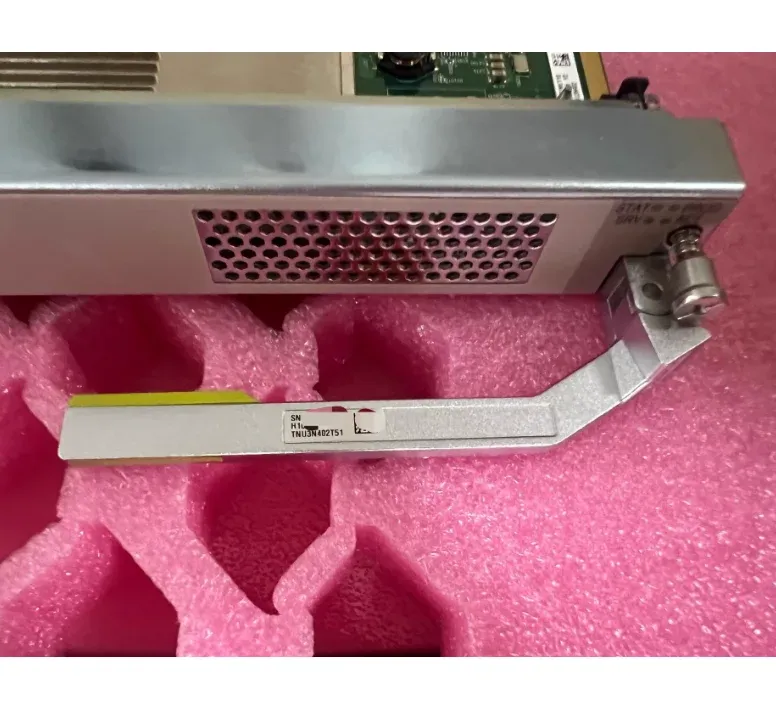

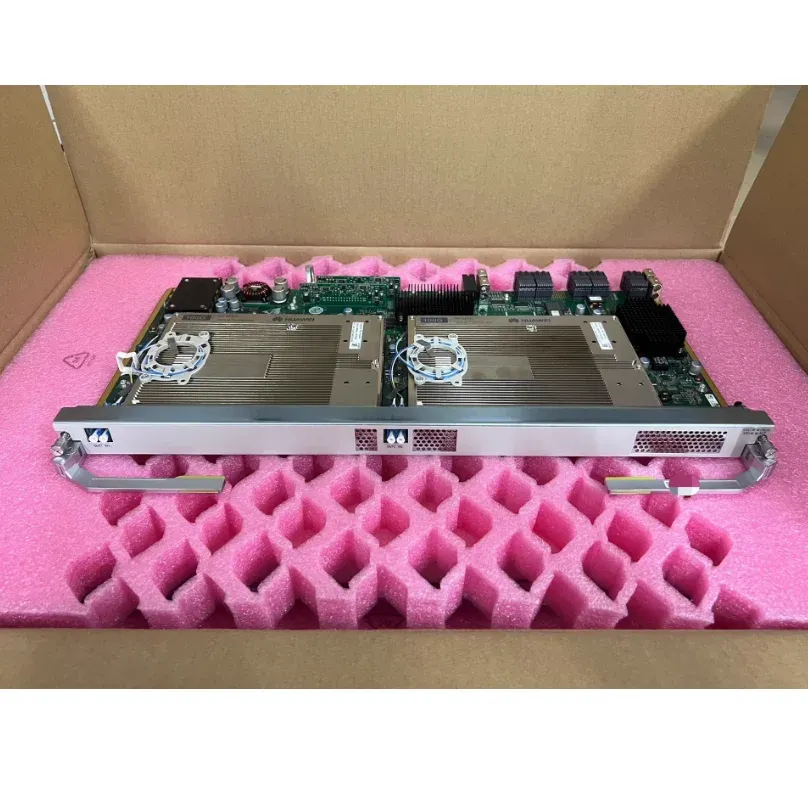

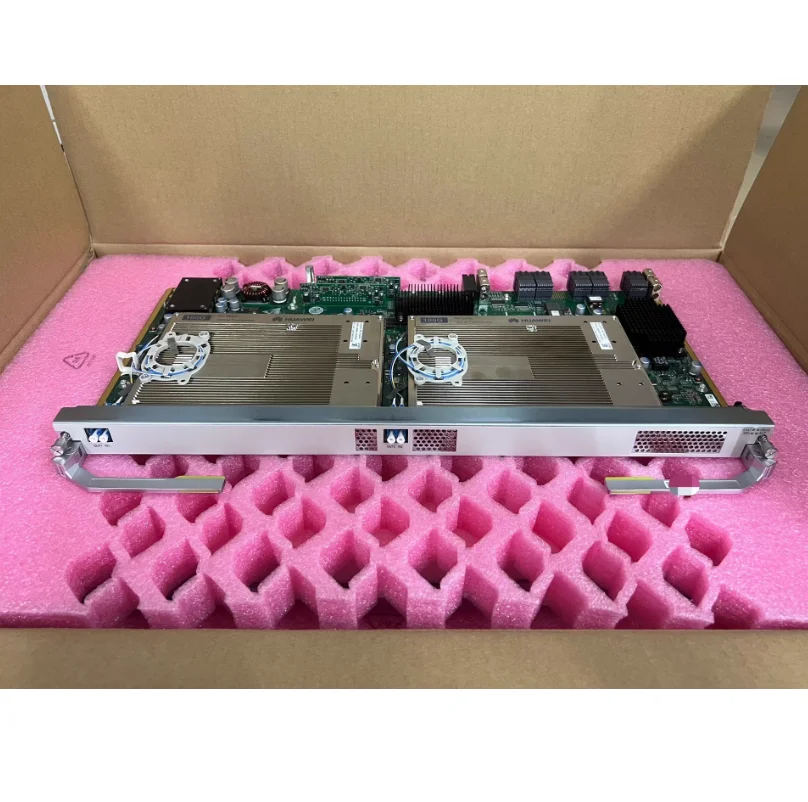

TNU3N402 is a high-performance, high-density single wave 800G coherent wavelength division multiplexing circuit board launched by Huawei OSN 9800 series optical transmission platform for data center interconnection and computing power networks.This board is deeply optimized for the needs of ultra-high bandwidth, ultra-low latency, and ultimate energy efficiency in modern large-scale data centers, artificial intelligence computing clusters, and"East West Computing" scenarios.It is the core engine for building high-speed, flexible, and green computing power optical networks, aiming to provide the best cost and power consumption per bit with industry-leading single wave 800G transmission capacity.

2.Core features and differentiated positioning

Ultimate single wave 800G performance and density

Supporting a single channel 800Gbps line rate and providing industry-leading transmission capacity within a single slot, it is an ideal choice for data centers to cope with burst traffic of up to 100 terabytes generated by AI model training, data lake synchronization, and other applications.

High density design maximizes the transmission capacity of a single cabinet, effectively reduces the occupation of data center space, and conforms to the trend of high-density deployment in data centers.

Deep optimization for DCI scenarios

Ultra low latency design: adopting optimized hardware architecture and signal processing algorithms to minimize transmission latency, meeting the strict requirements of latency sensitivity in financial transactions, AI collaborative computing, and other fields.

High power budget and simplified design: Enhance transmit optical power and receive sensitivity, support longer relay free transmission distances (typical 80-120km), reduce relay stations, and achieve simplified point-to-point or ROADM networking.

Intelligent rapid deployment: supports zero contact activation and one click debugging, significantly reducing business launch time and adapting to the rapid iteration needs of data centers.

Advanced coherent transmission and spectral efficiency

Equipped with Huawei's latest generation of high-efficiency oDSP chips, it supports programmable ultra-high order modulation formats (such as 128QAM, 64QAM) and enhanced probability shaping technology, achieving spectrum efficiency close to theoretical limits within the metropolitan DCI distance.

Having excellent nonlinear compensation capability and anti damage performance, ensuring stable operation in complex fiber optic environments.

Openness and flexibility towards computing power networks

Fully supports FlexE (Flexible Ethernet) hard slicing technology, providing dedicated channels with physical isolation and flexible bandwidth adjustment for different computing tasks or tenants.

Collaborating with Huawei's all-optical switching OXC technology, it supports dynamic and flexible scheduling at wavelength and sub wavelength levels, meeting the needs of dynamic connections after computing resource pooling.

Support smooth expansion to C-band and C+L band, leaving sufficient space for future capacity growth.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNU3N402

Applicable platform: Huawei OSN 9800 U64 and subsequent high-performance platforms

Board type: High performance 800G coherent line interface board

Typical power consumption:<220W (in typical DCI modulation mode)

Working temperature: 5°C to 45°C (meets typical environmental requirements for data centers)

2.Line side transmission performance

Line speed: 800G (software configurable to 600G, 400G, etc., suitable for different distances)

Modulation format: Software definable, supports 128QAM, 64QAM, 16QAM, QPSK, etc., with adaptive capability.

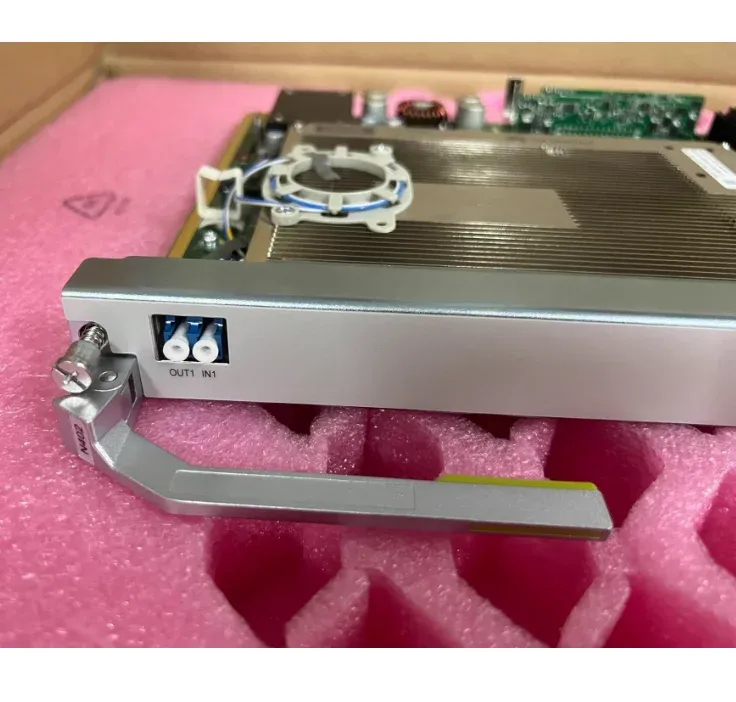

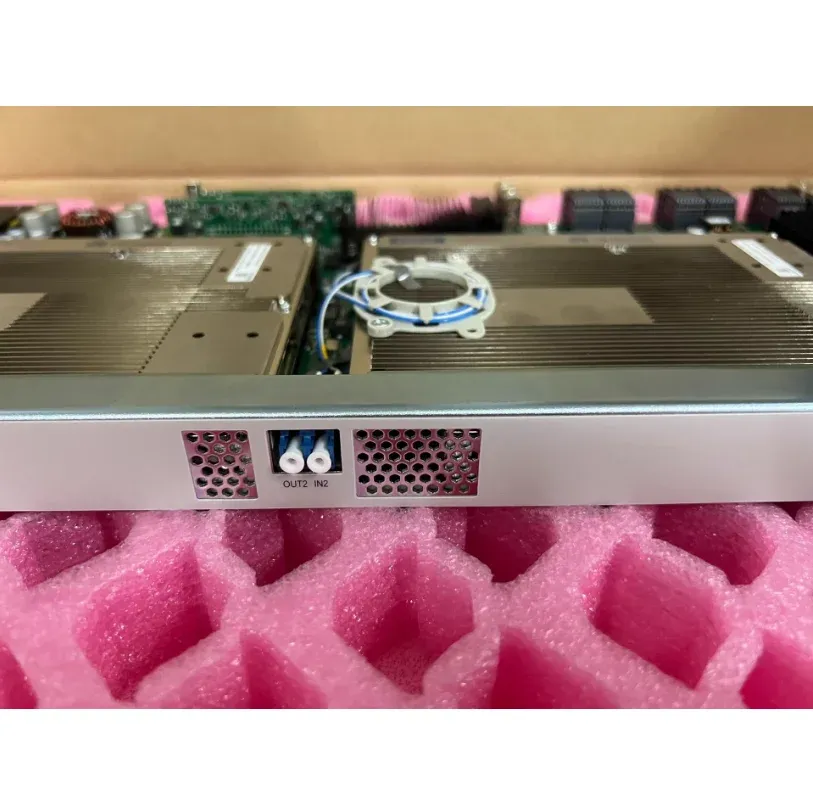

Line side optical interface: supports advanced pluggable coherent optical modules such as CFP2-DCO.

Working band: C band (standard), can support C+L band system.

Target DCI transmission distance:

800G (64QAM/128QAM): Suitable for metropolitan DCI ≤ 80-120 km.

800G (16QAM): Suitable for interconnection in areas ≤ 400 km.

Receiver sensitivity: superior to similar 800G solutions in the industry, providing a higher power budget.

3.Customer side and business characteristics

Customer side interface: Connected to the customer side business board through a high bandwidth inter board interconnection channel.

Support customer side protocols: 800GE, 400GE, FlexE, OTUCn.

Key features: Supports ultra-low latency mapping, FlexE Channel binding, and crossover.

4.Management and Operations

Cloud based network management: Deeply integrated with Huawei iManager NCE, supporting intent based business distribution and full network resource visualization.

Intelligent operation and maintenance: supports digital twins, performance prediction, fault self localization, and achieves automated operation and maintenance.

Open Interface: Provides standardized northbound APIs, supports integration with third-party orchestrators (such as Kubernetes), and achieves integrated scheduling of"computing power+network".

4.Typical application scenarios

Ultra large scale data center interconnection: connecting multiple data center parks within the same city or region, building high-speed data synchronization and backup networks, supporting distributed computing and storage.

Artificial intelligence computing cluster networking: connecting thousands of AI training servers, providing a high bandwidth, low latency"computing bus", and eliminating network bottlenecks.

Computing power center (hub node) interconnection: As the core interconnection board of the backbone network within or between hub nodes, it carries computing power scheduling traffic.

High performance computing and research networks: meeting the massive data transmission needs of major scientific projects such as astronomy, high-energy physics, and gene sequencing.

5.Summary of Core Values

Bandwidth leap: A single wave of 800G increases the capacity of DCI backbone links to new heights, enabling them to handle data floods with ease.

Leading in latency and energy efficiency: Targeted optimization brings ultimate low latency and high energy efficiency performance, reducing overall operating costs.

Agile deployment: Simplified design and intelligent operation tools enable networks to be quickly deployed and adjusted like computing resources.

Future oriented: Supports FlexE and OXC, with the genes to evolve towards computing power networks, ensuring long-term investment value.

6.Ordering and Service

Basic board model: TNU3N402.

It is necessary to cooperate with the designated model of CFP2 coherent optical module and corresponding power and heat dissipation configurations.

Suggest using Huawei's software and hardware version combination optimized for DCI to achieve optimal performance.

We can provide end-to-end professional services covering planning, design, deployment, and optimization.
