Product Description

1.Product Overview

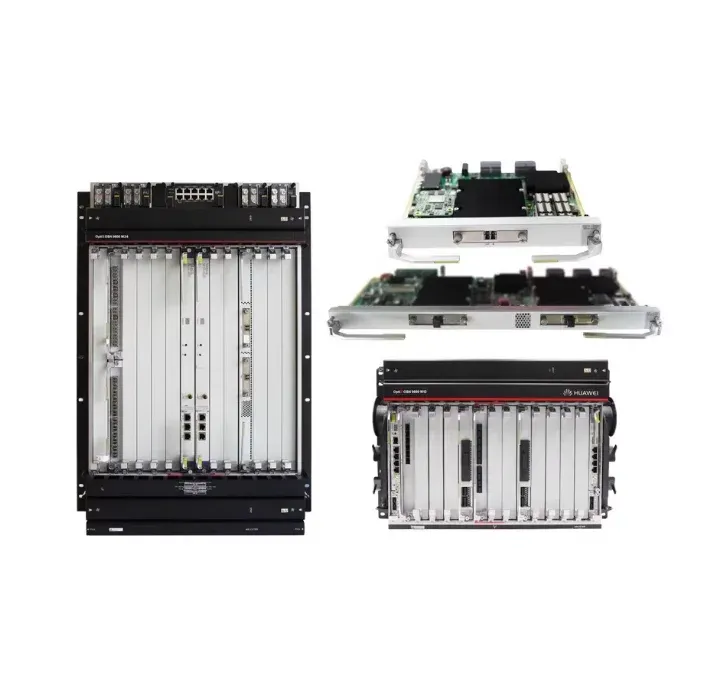

TNU4N404 is a high-density, high-performance dual channel 800G coherent wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board adopts a breakthrough high-density integration design, integrating two completely independent 800G coherent transmission engines in a single slot, providing a total single slot line capacity of up to 1.6Tbps.It is designed specifically for the interconnection of hyperscale data centers (Hyperscale DCI), core nodes of national computing backbone networks, and future network scenarios facing TB level single slot capacity.It aims to meet the exponential growth of bandwidth demand with ultimate space efficiency and energy efficiency, and is a strategic product for building the next generation of ultra high speed optical transmission infrastructure.

2.Core Features and Breakthrough Design

Industry leading single board 1.6T capacity

The single board integrates dual channel 800G line interfaces, providing a total output capacity of 1.6Tbps and increasing the single slot transmission density to a new height.

This design significantly increases the overall capacity of the equipment, enabling the same total network capacity to be achieved with fewer cabinets in a space limited core data center, significantly reducing space and power consumption costs.

High density integration and advanced heat dissipation

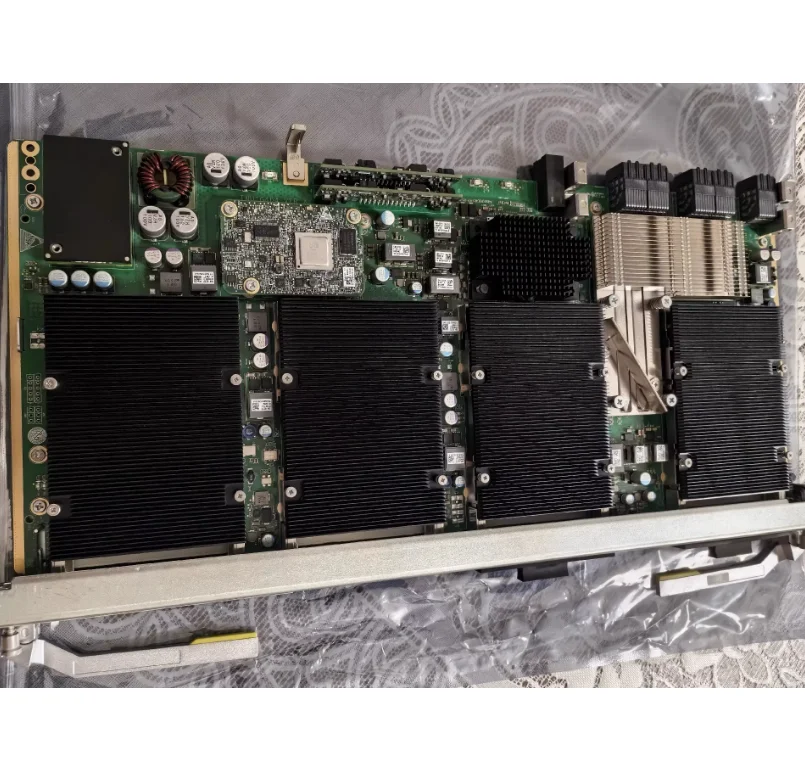

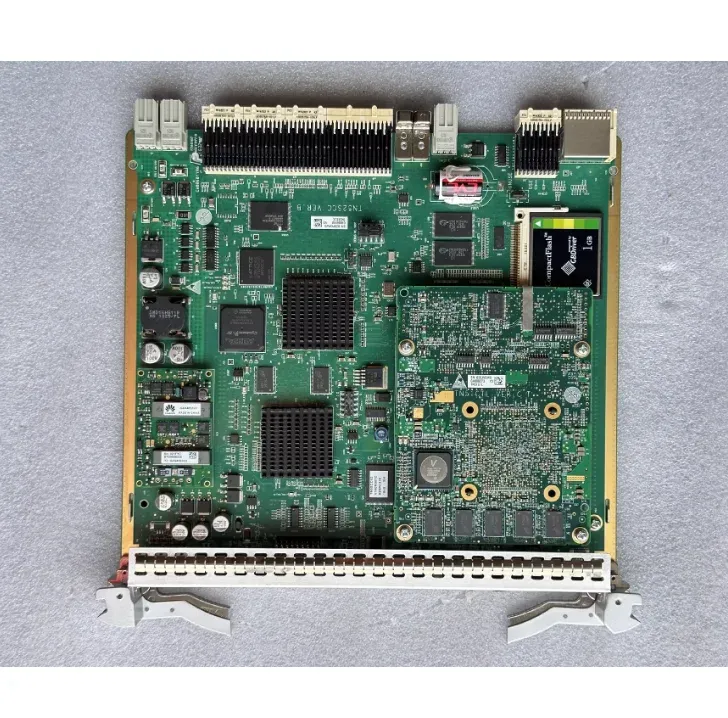

Using innovative photonic integrated circuit (PIC) and electronic integrated circuit designs, two complete sets of high-performance coherent optical engine integrations are achieved within standard board sizes.

Equipped with an intelligent and efficient cooling system to ensure long-term stable operation of dual channels under high loads, meeting the reliability requirements of telecommunications grade.

Independently programmable dual channel architecture

The two 800G channels are completely independent in hardware and management, and can be configured with different line rates (such as 800G/600G/400G), modulation formats, and wavelengths.

Support business isolation between channels, which can be carried to different destinations separately, providing extremely high deployment flexibility and resource utilization.

Ultimate performance for computing power networks

Each channel has the same transmission performance as high-end single channel 800G cards, supporting high-order modulation (such as 64QAM/128QAM) and advanced probability shaping (PCS) technology to optimize the spectral efficiency of medium to short distance transmission.

Fully supports hard slicing technologies such as FlexE and OSUflex, meeting the requirements of deterministic low latency and bandwidth isolation in scenarios such as AI clusters and supercomputing.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNU4N404

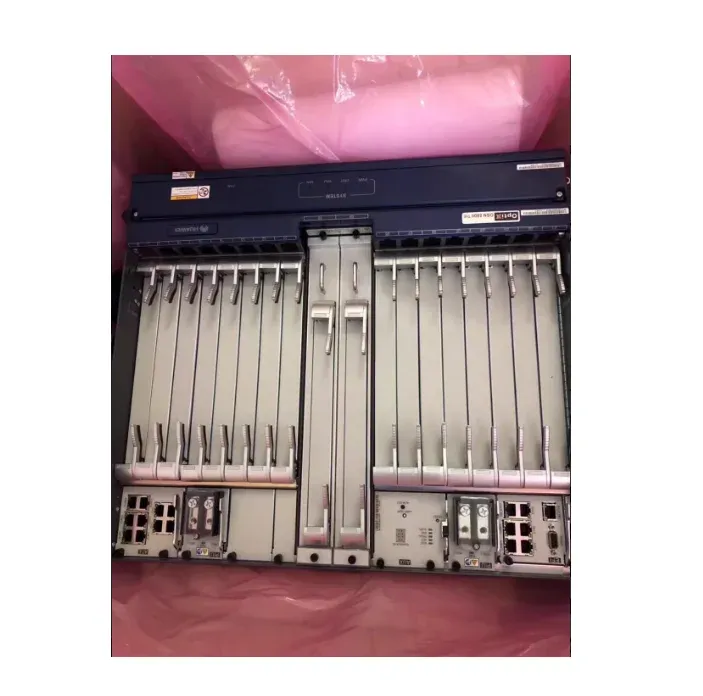

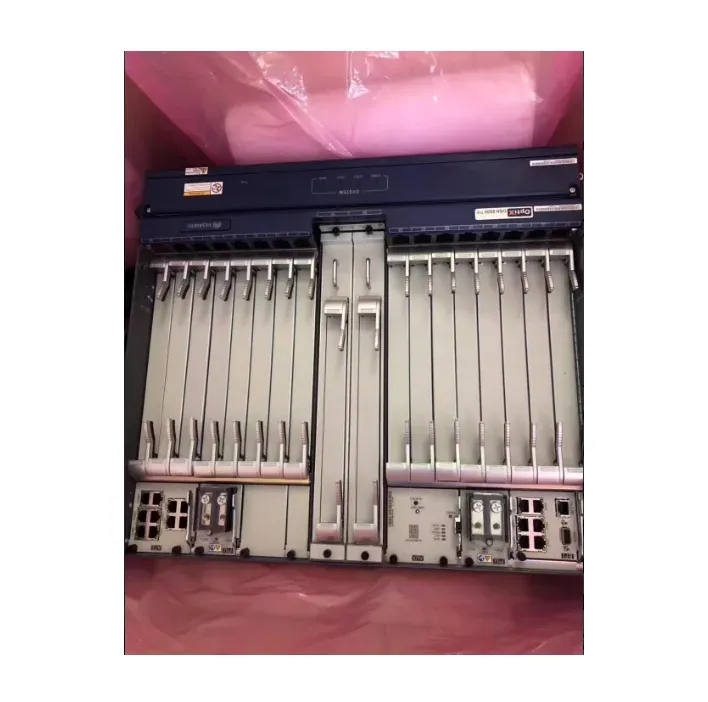

Applicable platform: Huawei OSN 9800 U64 or higher performance platform

Board type: High density dual 800G coherent line interface board

Number of Line Channels: 2

Single slot total capacity: 1.6 Tbps (2 x 800G)

Typical power consumption (dual channel full load):<400W

Working temperature: 5°C to 45°C (meets the requirements of high-density computer room environment)

2.Single channel line side performance (per channel)

Line speed: 800G (can be software downgraded)

Modulation format: Software definable, supports 64QAM, 16QAM, QPSK, etc.

Line side optical interface: Each channel supports high-performance pluggable coherent optical modules such as CFP2-DCO.

Working band: C-band, can support C+L band extension.

Target transmission distance: For DCI and computing network optimization, typical scenarios support:

800G (high-order modulation): ≥ 80-150 km (metropolitan/regional DCI)

800G (robust modulation): ≥ 400-600 km (regional backbone)

3.Customer side and business characteristics

Customer side interface: Interconnected with the business board through an ultra-high bandwidth backplane, supporting flexible business distribution.

Support customer side protocols: 800GE, 400GE, FlexE, OTUCn.

Key feature: Supports two channels to independently carry different services, or to collaboratively carry ultra large service flows exceeding the capacity of a single channel through cross board collaboration.

4.Management and Operations

Independent management: Two channels can independently monitor performance parameters such as optical power OSNR,Error rate, etc.

Intelligent operation and maintenance: integrated into Huawei iManager NCE intelligent control system, supporting capacity visualization, automatic power optimization, and predictive maintenance.

High reliability design: supports multiple protection and redundancy mechanisms at the channel level and board level.

4.Typical application scenarios

Ultra large scale data center cluster interconnection: in the DCI backbone network of top Internet companies or cloud service providers, it is used to connect the core data center park and respond to the EB level data exchange demand with high density of single boards.

Interconnection of computing power hub nodes: As the core transmission equipment between hubs, it undertakes massive computing power scheduling traffic, maximizing the transmission efficiency of single fiber and single device.

High end router cluster backplane interconnection: provides ultra-high bandwidth, low latency internal interconnection or external uplink for core router clusters or switching matrices.

Future optical switching node: As the core line interface unit of the next generation all-optical switching (OXC) node, it provides a super large capacity foundation for single port multi-dimensional scheduling.

5.Summary of Core Values

Density Revolution: Leading the industry with 1.6T single board capacity, greatly improving the bandwidth density and energy efficiency of data centers, and reducing TCO per bit.

Agile and flexible: The dual channel independent programmable architecture provides nearly double deployment flexibility and network planning freedom.

Facing the future: We have prepared the platform to support applications with a single wave speed of 1.2T and higher, as well as a single business flow exceeding 800G.

Green and energy-saving: Through high integration design, it has more advantages in power consumption and heat dissipation compared to deploying two single channel boards.

6.Ordering and Service

Basic board model: TNU4N404.

Each channel needs to be independently configured with coherent optical modules.

Usually used in the highest end network scenarios, it is recommended to collaborate with Huawei's professional technical team for joint planning and design.

Provide top-level expert services covering architecture design, deployment testing, and long-term optimization.
