Product Description

1.Product Overview

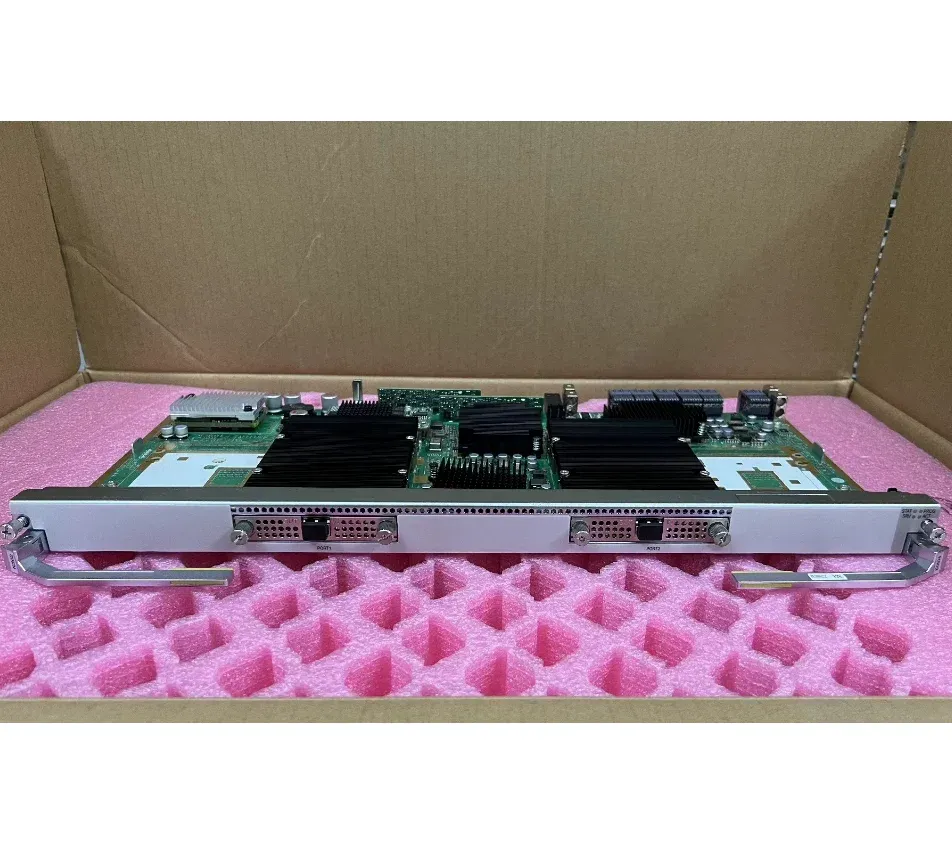

TNV1E124 is an enhanced intelligent compact multi service 10G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.On the basis of a standard compact design, this board deeply integrates layer 2 Ethernet switching and flexible OTN layer crossing functions, aiming to provide a highly integrated intelligent node solution that integrates"access, switching, aggregation, and transmission" for scenarios such as urban edge, enterprise comprehensive access, and multi service aggregation points.It not only simplifies the network architecture, but also enhances the business processing flexibility and operational efficiency of edge networks.

2.Core Features and Value Positioning

Integrated intelligent edge architecture

The single board integrates multiple business interfaces, layer 2 Ethernet switching units, OTN mapping and electrical crossover units, and 10G line side transmission units to achieve true"All in One".

Integrating traditional functions that require stacking multiple devices onto a single board greatly saves data center space, power consumption, and wiring complexity.

Enhanced business processing and scheduling capabilities

Layer 2 Switching and Policy Execution: Supports comprehensive L2 functionality, including VLAN, VLAN stacking (QinQ), traffic shaping, priority mapping, port based ACL access control, etc., to meet the needs of enterprise multi business isolation and management.

Flexible wavelet long electric crossover: Built in OTN electric layer crossover matrix, supporting flexible guidance, aggregation, and scheduling of sub wavelength services such as ODU0/ODU1/ODUflex, improving bandwidth utilization and business deployment agility.

Unified access and hosting of multiple services

Supports mixed access and unified bearer of various services such as Ethernet (10GE/GE), SDH/SONET (STM-64/16/4), and OTN (OTU2/OTU1).

Capable of aggregating services of different types and speeds onto 10G line wavelengths through the optimal mapping path, achieving efficient transmission.

Simplified deployment and intelligent operation and maintenance

Plug and play hardware design, combined with unified intelligent network management, supports business configuration templating and batch distribution, greatly reducing business activation time.

Provide end-to-end business path visibility, performance monitoring, and fault demarcation capabilities to lower the technical threshold for edge network operations.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNV1E124

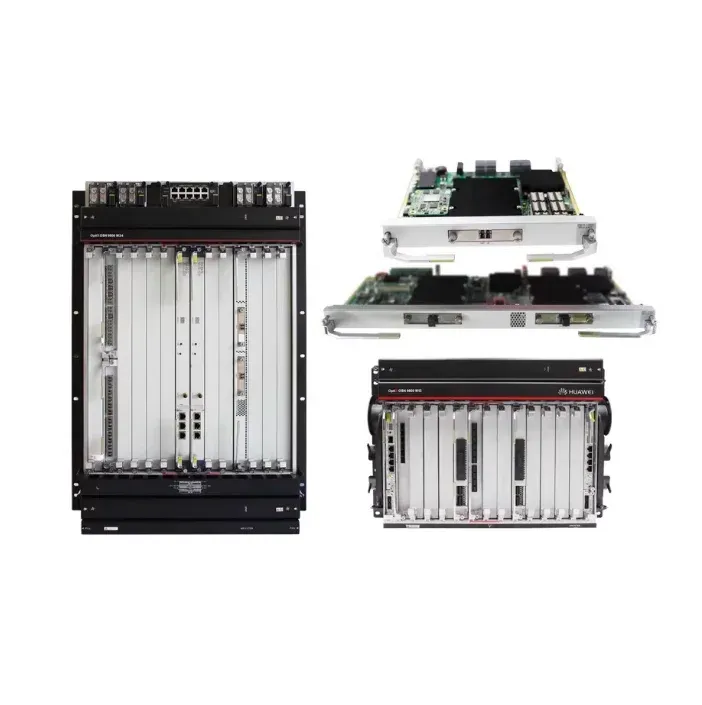

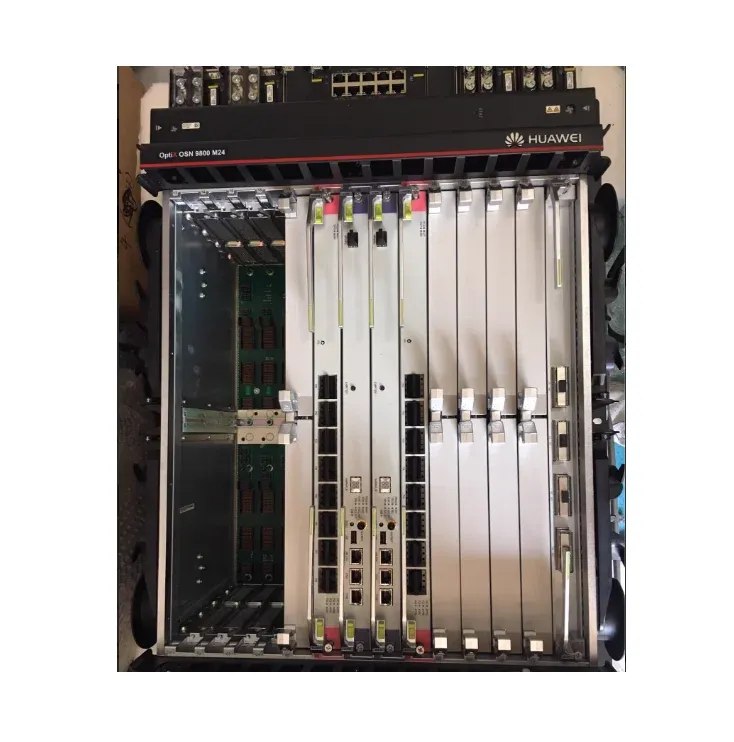

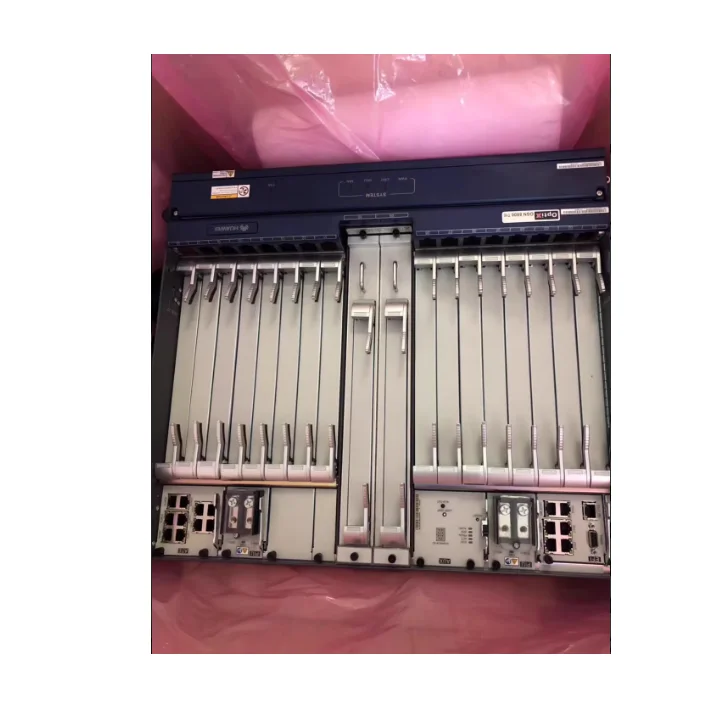

Applicable platform: OSN 9800 series subrack

Board type: Enhanced intelligent compact multi service 10G line processing board

Typical power consumption:<70W

Working temperature: -5°C to+55°C

2.Customer side interface and business characteristics

Interface configuration: Multiple SFP/SFP+customer side interfaces onboard, supporting flexible selection of optical modules.

Supported business types:

Ethernet: 10GE, GE.

TDM: STM-64, STM-16, STM-4.

OTN: OTU2, OTU1e.

Enhance processing capability:

L2 switching capability: Supports line speed L2 switching, and the MAC address table capacity meets the requirements of edge nodes.

OTN electrical crossover capability: Supports ODU0/1/2/2e level crossover, with crossover capacity typically ranging from several Gbps to tens of Gbps.

3.Line side transmission performance

Line speed: 10G

Line side wavelength: Supports tunable or fixed wavelengths.

Transmission distance: Meet the urban access and aggregation transmission requirements of standard 10G DWDM systems.

4.Management and Operations

Unified Intelligent Network Management: Supports iManager NCE or U2000 series network management to achieve unified management and visualization of networks, businesses, and policies.

Centralized configuration of policies: VLANs, QoS policies, and cross connections can be centrally configured through network management to simplify operations and maintenance.

4.Typical application scenarios

Intelligent urban edge access/aggregation node: In the edge data center of the urban network, it terminates various services from enterprises, base stations, and residential areas, performs local switching and aggregation, and efficiently uploads through 10G wavelength.

Comprehensive business gateway for large enterprises/parks: deployed at the exit of the enterprise headquarters, serving as a unified business gateway to achieve comprehensive access, strategic management, and security isolation of internal data, voice, video, and cloud dedicated lines.

Modernization of Multi Service Access Points: Replace traditional pure transparent transmission or single function access devices, upgrade to fusion nodes with intelligent processing capabilities, and enhance network value.

Mobile backhaul carrying edge nodes: at the convergence point near the base station, access and flexibly schedule mixed backhaul traffic from multiple base stations.

5.Summary of Core Values

Minimalist architecture, better investment: replacing multiple devices with a single board significantly reduces CAPEX and OPEX, and improves return on investment.

Business agility and rapid deployment: Strong local processing capabilities make business activation, adjustment, and fault recovery more efficient and flexible.

Intelligent operation and maintenance, doubled efficiency: a unified management interface and automated tools free operation and maintenance personnel from tedious configurations.

Smooth Evolution, Future oriented: As an intelligent edge platform, it lays a solid foundation for the smooth evolution of the network towards SDN/NFV and cloudification.

6.Ordering and Deployment Instructions

Basic board model: TNV1E124.

Customer side light modules need to be selected based on actual business planning.

Detailed business traffic analysis, VLAN planning, and cross connection design are required before deployment.

We can provide solution design, data configuration, and optimization services for intelligent edge networking scenarios.
