Product Description

1.Product Overview

TNV1E401 is an enhanced intelligent compact multi service 400G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board is designed for urban core edges, large data centers, and high-value aggregation nodes.It combines a single wave 400G ultra-high transmission bandwidth with powerful edge intelligent processing capabilities in a compact design.It aims to break through the architectural limitations of traditional edge nodes' separation of"high-speed transmission" and"business processing", and provide a comprehensive solution that integrates ultra large capacity, flexible scheduling, and business perception for the next generation of high bandwidth and high intelligence edge networks.

2.Core Features and Fusion Innovation

400G intelligent edge transmission center

Provide a single wave 400G ultra large bandwidth transmission capability to meet the surge demand for edge traffic brought by emerging businesses such as AI computing power, 5G core, and ultra high definition video.

Adopting mature and stable 400G coherent transmission technology to ensure reliable and high-performance transmission in urban and regional areas.

Integrated intelligent business processing platform

The board integrates high-performance multi-core processors and synchronously supports packet enhancement (L2/L3 Lite) and OTN/OSUflex layer crossing functionality.

It can intelligently aggregate, exchange, slice, and execute policies for multiple high-speed services (such as 100GE, 400GE, OTU4) downstream, achieving deep optimization and flexible scheduling of business flows at edge nodes.

Enhanced features for cloud network integration

Supporting FlexE and OSUflex hard slicing technologies, it can provide deterministic low latency, hard isolated channels for cloud network services and computing power networks.

Capable of business perception, able to identify critical application traffic and implement differentiated Quality of Service (QoS) assurance strategies.

Compact high-value architecture

The highly integrated triple function of"ultra high speed access, intelligent switching, and large capacity transmission" is achieved within the standard size, greatly simplifying the network hierarchy, reducing the number of devices, data center space, and overall energy consumption.

Provide better total cost of ownership (TCO) and operational efficiency than a separated architecture.

3.Detailed technical specifications

1.Physical and General Specifications

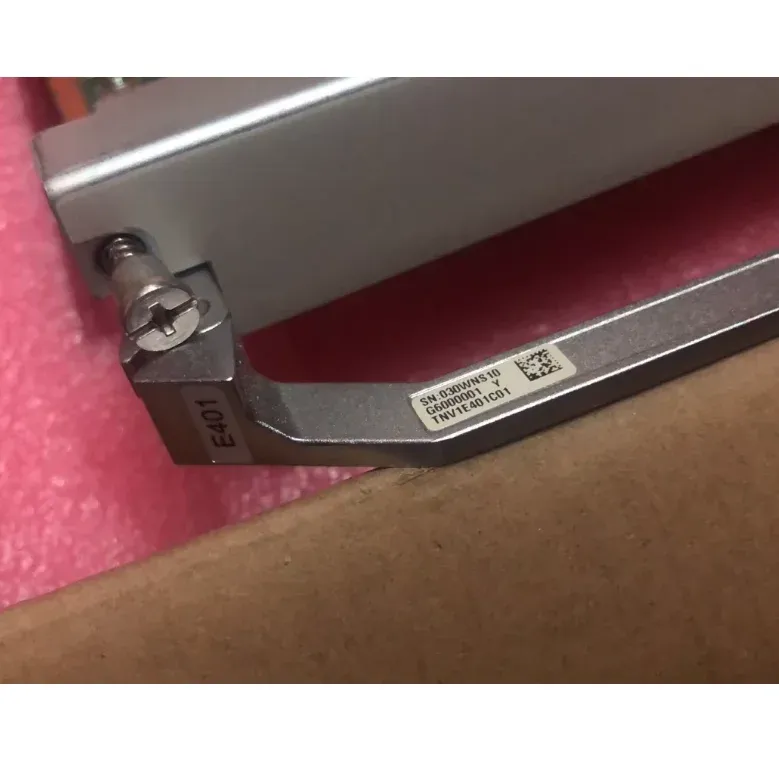

Model: TNV1E401

Applicable platform: OSN 9800 U64 and other high-performance sub racks

Board type: Enhanced intelligent compact multi service 400G line processing board

Typical power consumption:<180W

Working temperature: -5°C to+55°C

2.Customer side interface and business characteristics

Interface configuration: Multiple high-speed customer side interfaces are onboard, supporting modules such as QSFP28/QSFP-DD, and can be connected to combinations such as 4x100GE or 1x400GE.

Supported business types:

Ethernet: 400GE, 200GE, 100GE, 50GE, 40GE, 25GE.

OTN: OTU4, OTUCn.

Enhance processing capability:

Grouping processing: Supports VLAN, ACL, traffic statistics, and basic L3 routing functions.

Hard slicing and crossover: Supports FlexE Channel binding and crossover, as well as OSUflex level fine-grained hard pipeline slicing and crossover scheduling.

3.Line side transmission performance

Line speed: 400G

Modulation format: Software configurable, supports high-efficiency modulation such as DP-16QAM.

Line side optical interface: Supports CFP2-DCO coherent optical modules.

Typical transmission distance: For intelligent edge optimization, it typically supports metropolitan and regional backbone transmission of ≥ 400 km.

4.Management and Operations

Cloud based intelligent control: deeply integrated into the iMaster NCE autonomous driving network management system, supporting intent based business distribution and intelligent operation and maintenance.

Full dimensional visualization: achieving end-to-end panoramic visualization and real-time monitoring from physical ports, logical slicing to business SLA.

4.Typical application scenarios

Urban core intelligent edge node: As an intelligent hub between the urban core and large-scale access networks, it aggregates and processes massive high bandwidth business flows, and efficiently connects to the core cloud pool through 400G channels.

Large data center park/cloud computing export gateway: deployed at the exit of large data centers or cloud resource pools, it undertakes the core tasks of east-west traffic scheduling and north-south high-speed uplink, realizing intelligent traffic engineering and cloud network collaboration.

Core Convergence Layer of 5G Bearer Network: Provides ultra large bandwidth backhaul pipelines at the core layer or large aggregation points of the 5G bearer network, and provides differentiated bearer guarantees for different 5G services through hard slicing technology.

Computing network edge access point: At the edge of the computing hub, it enables intelligent access, aggregation, and efficient delivery of diverse computing resources to the backbone network.

5.Summary of Core Values

Edge capacity revolution: simultaneously sinking 400G ultra wide pipelines and intelligent processing capabilities to the network edge to meet the explosive bandwidth demands of future businesses.

Deep simplification of architecture: One board replaces multiple devices, achieving network flattening and significantly reducing construction and operation complexity.

Ultimate agility in business: By using hard slicing and intelligent scheduling, we provide promising and customizable network service capabilities for thousands of industries.

Facing the era of computing power: becoming a key edge intelligent infrastructure that connects computing and networks, and supports efficient flow of computing power.

6.Ordering and Deployment Instructions

Basic board model: TNV1E401.

Customer side and line side optical modules need to be selected based on specific business models.

Careful business traffic planning, slicing strategy design, and cross connection planning are required before deployment.

It is recommended that a professional service team provide full process support from solution design, deployment and testing to optimized operation and maintenance, in order to fully leverage its comprehensive effectiveness.
