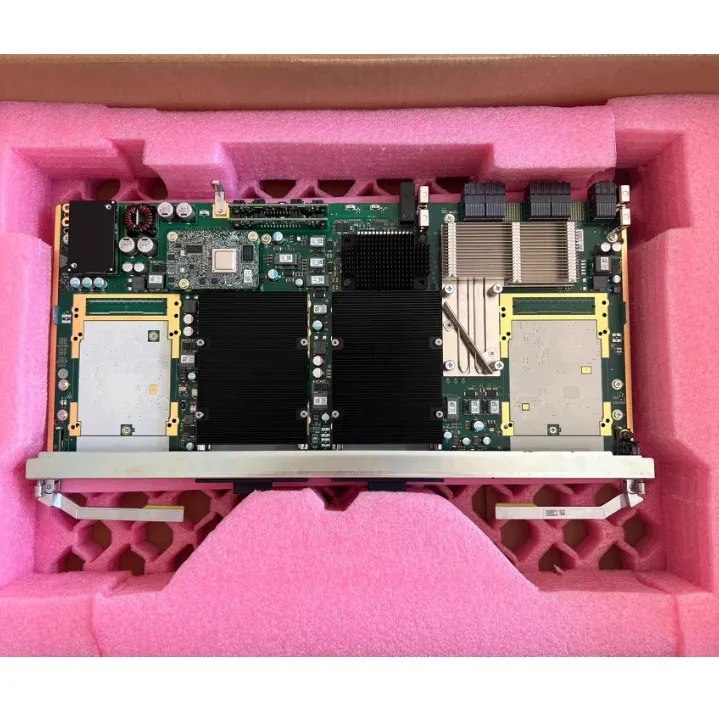

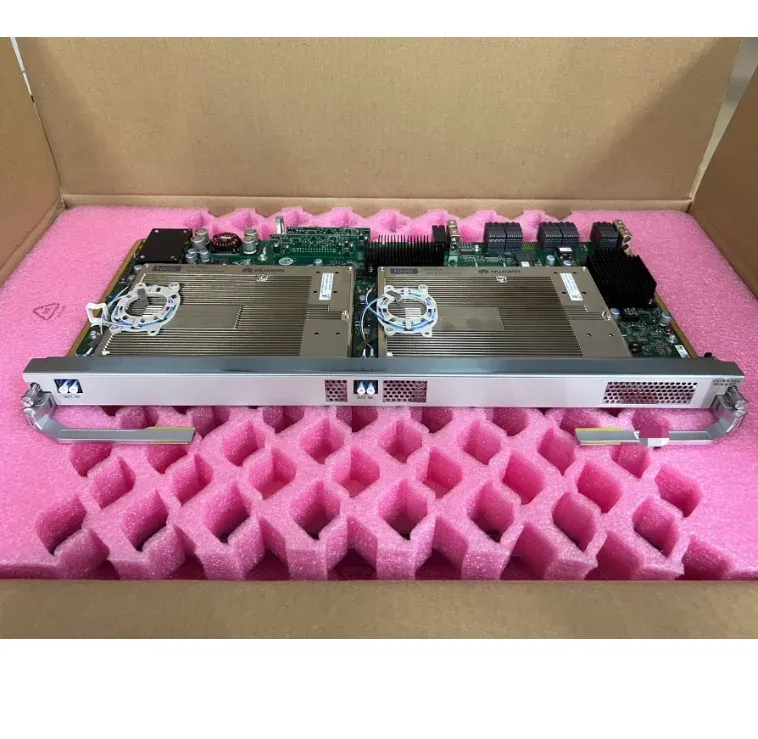

OSN9800 TNV1EC116 Board 100G Compact Ethernet Converged Wavelength Division Circuit Board

Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.

Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.

We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.

Product Description

1.Product Overview

TNV1EC116 is an enhanced high-density Ethernet aggregation 100G wavelength division multiplexing circuit board on the OSN 9800 series optical transmission platform.This board is designed specifically for network edge scenarios that require large-scale Ethernet service access and aggregation.It integrates multiple Ethernet client side interfaces in compact hardware and has powerful layer 2 switching and aggregation capabilities.It aims to efficiently solve the high-speed uplink requirements of massive Ethernet ports in enterprise parks, urban access points, and data centers through a single board solution, and is an ideal choice for building a simple, economical, and high-performance Ethernet aggregation layer.

2.Core features and scene positioning

High density Ethernet service access

Onboard multiple (usually 8 or more) 10GE/GE Ethernet optical interfaces, providing high-density Ethernet service access capabilities to meet the centralized uplink requirements of a large number of terminals or access devices.

The port supports adaptive speed (1000M/10G), which can be flexibly configured according to actual access devices to enhance deployment flexibility.

Intelligent Layer 2 Switching and Aggregation

Integrated high-performance layer 2 switching engine, supporting complete Ethernet functions including VLAN, VLAN Stacking (QinQ), traffic statistics, port mirroring, link aggregation (LAG), etc.

It can intelligently aggregate, switch, and process multiple Ethernet traffic streams, and efficiently map them to 100G line side wavelengths, greatly improving bandwidth utilization efficiency.

Compact integrated design

The high-density Ethernet access, layer 2 switching, and 100G wavelength division transmission functions are deeply integrated into a single board, avoiding the stacked architecture of"access switch+transmission equipment" in traditional solutions.

Significantly saving data center space, equipment quantity, and overall power consumption, reducing procurement and operation costs.

Optimization for Enterprises and Edge Networks

Design to consider the operational habits of enterprise networks and metropolitan access networks, and provide simplified configuration management and fault diagnosis tools.

Support port based rich management features to meet common needs such as multi tenancy and multi business isolation.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNV1EC116

Applicable platform: OSN 9800 series subrack

Board type: Enhanced high-density Ethernet aggregation 100G line processing board

Ethernet port density: high-density configuration (such as 8-port 10GE/GE or higher).

Typical power consumption:<90W (depending on the number of enabled ports and traffic load)

Working temperature: -5°C to+55°C

2.Customer side interface and business characteristics

Interface configuration: Onboard high-density SFP+/SFP Ethernet optical interface.

Supporting protocols and speeds:

10GE (10GBASE-R/LR/ER)

GE (1000BASE-SX/LX/ZX)

Second layer exchange capability:

VLAN: Supports 4K VLAN and QinQ.

Traffic management: supports port speed limit, traffic statistics, and broadcast storm suppression.

Reliability: Supports Ethernet LAG (Link Aggregation Group) STP/RSTP/MSTP.

3.Line side transmission performance

Line speed: 100G

Line side wavelength: Supports tunable or fixed wavelengths.

Transmission distance: meets typical transmission requirements for metropolitan and regional aggregation.

4.Management and Operations

Unified Network Management: Supports Ethernet port management, VLAN configuration, performance monitoring, and fault management through iManager U2000/NCE series network management.

Simplified operation and maintenance: Provides port grouping management, configuration templates, and one click diagnostic functions to reduce operation and maintenance complexity.

4.Typical application scenarios

Core aggregation of large enterprise/park networks: deployed in the enterprise headquarters or core computer rooms of large parks, aggregating all upstream traffic from access switches on various floors and buildings, and connecting to data centers or wide area networks through 100G high-speed channels.

Multi Service Access Point (MSPP) Ethernet Convergence in Metropolitan Area: At the operator's metropolitan area access point, high-density Ethernet dedicated line access is provided to numerous small and medium-sized enterprise customers, office buildings, and residential areas, and after aggregation, it is connected to the metropolitan area core.

Internal Leaf Spine Network Aggregation in Data Centers: As a device at the Spine layer or aggregation layer of the data center's internal network, it connects multiple Leaf switches to provide high bandwidth cross rack interconnection.

Upgrade of existing network Ethernet aggregation capability: used to replace multiple low-density Ethernet cards or external aggregation switches, simplify the architecture, and improve upstream bandwidth.

5.Summary of Core Values

Optimal density and cost: The high-density solution of a single board significantly reduces the cost per port and space occupation of multi port Ethernet aggregation.

Minimalist architecture and efficient operation and maintenance: The integration of"access+exchange+transmission" eliminates the complexity of multi device interconnection, and the unified management interface improves operation and maintenance efficiency.

Flexible business and fast deployment: Rich layer 2 features support quickly meeting the network strategy requirements of multi tenant and multi business scenarios.

Smooth Evolution, Investment Protection: As part of the intelligent edge platform, it supports the smooth evolution of the network towards higher speeds and cloudification.

6.Ordering and Deployment Instructions

Basic board model: TNV1EC116.

Customer side Ethernet optical modules (SFP+/SFP) need to be selected according to actual access requirements.

Detailed VLAN planning, IP address planning, and upstream bandwidth planning are required before deployment.

We can provide specialized design and configuration optimization services for high-density Ethernet convergence scenarios
