Product Description

1.Product Overview

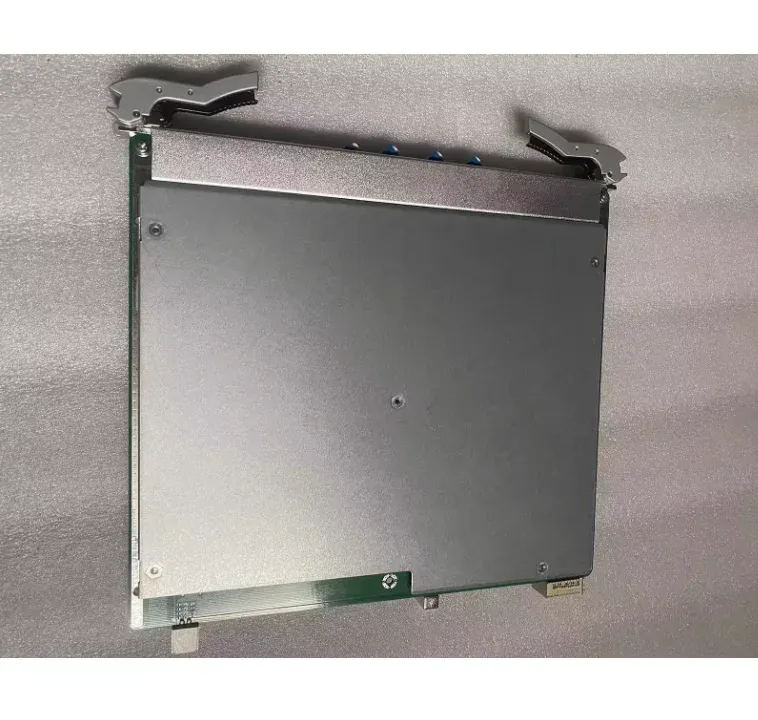

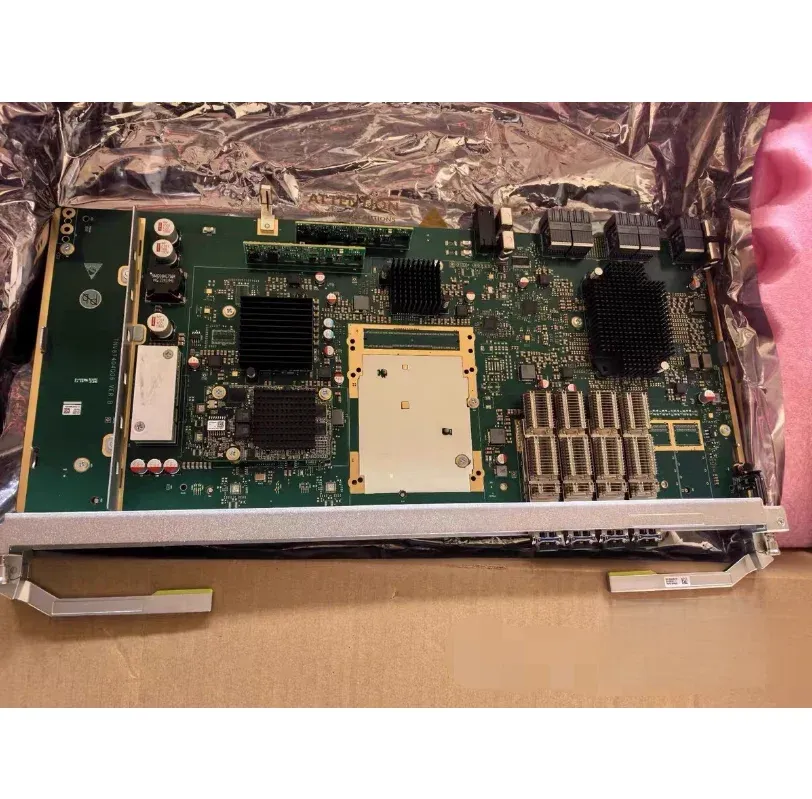

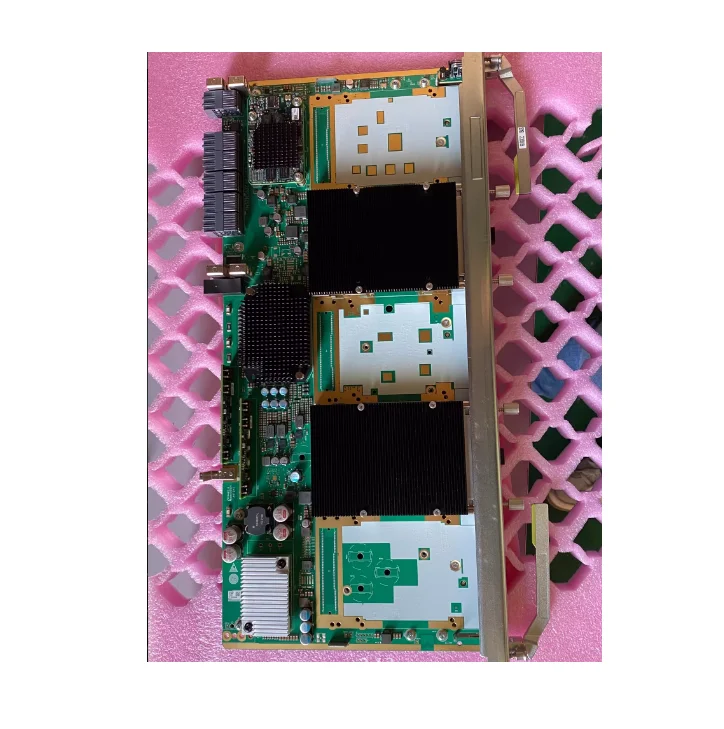

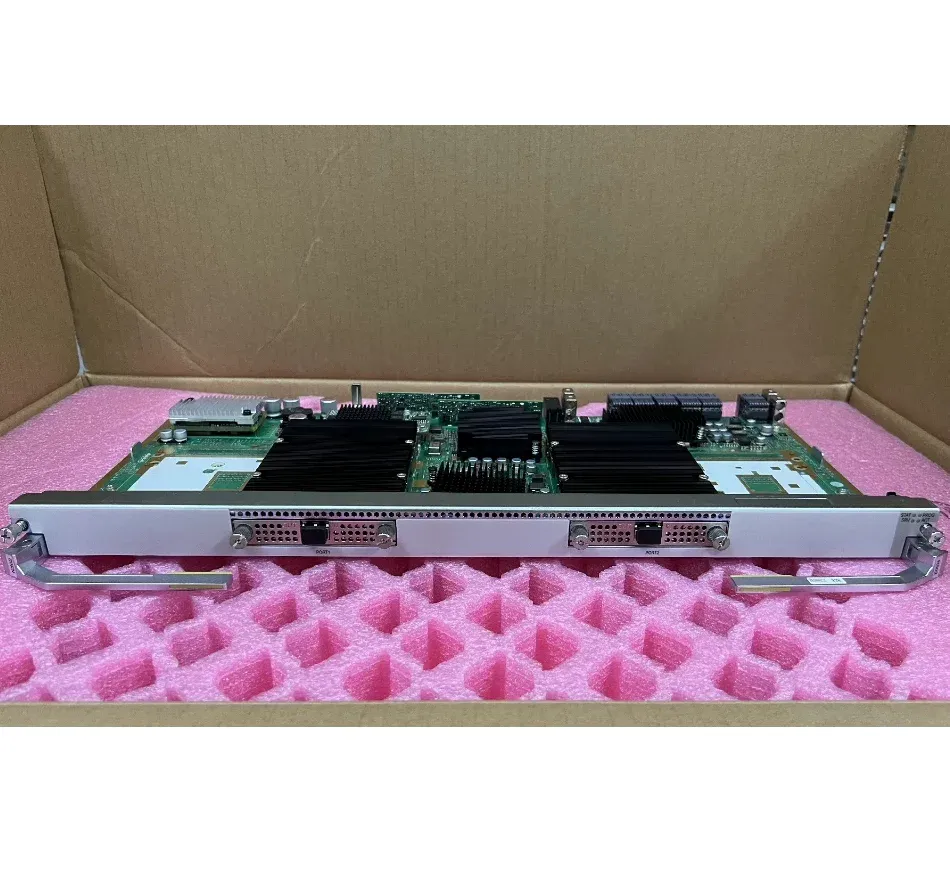

TNV1N402 is a universal, cost-effective single wave 100G coherent wavelength division multiplexing circuit board on the Huawei OSN 9800 series optical transmission platform.This board is based on mature and globally validated 100G coherent transmission technology, aiming to provide stable, reliable, and cost-effective high-capacity transmission solutions for urban core, regional trunk, and various network aggregation scenarios.It is a cornerstone product for operators and enterprise customers to smoothly upgrade their networks from 10G/40G to 100G, or to expand and optimize existing 100G networks.

2.Core Features and Value Positioning

Mature and reliable 100G transmission

Supports a single channel 100Gbps line rate, with high technological maturity and a complete industrial chain, providing carrier grade stability and availability.

Adopting classic and efficient coherent optical transmission technology, it has strong dispersion tolerance and nonlinear tolerance, and can adapt to complex fiber optic network conditions.

High cost-effectiveness and wide applicability

As the mainstream 100G board of the platform, it achieves an excellent balance between cost and performance, with a low overall cost of ownership.

The design has strong universality and is suitable for various transmission distances ranging from 80 kilometers to thousands of kilometers (by adjusting modulation formats), meeting various networking needs such as metropolitan areas, regions, and long-distance trunk lines.

Flexible modulation and configuration

Support optional modulation formats for software, mainly including DP-QPSK, and can support more efficient 8QAM/16QAM (depending on the specific version) to meet medium to short distance high-capacity requirements.

Support integrated tunable lasers to simplify wavelength planning, management, and spare parts inventory.

Standardized OTN bearer and easy operation and maintenance

Fully supporting the ITU-T G.709 OTN standard, it can efficiently and transparently carry customer side services such as 100GE, 40GE, 10GE, OTU2/OTU4, etc.

Provide comprehensive performance monitoring, alarm management, and fault location functions, seamlessly integrated with Huawei's unified network management platform, and easy to operate and maintain.

3.Detailed technical specifications

1.Physical and General Specifications

Model: TNV1N402

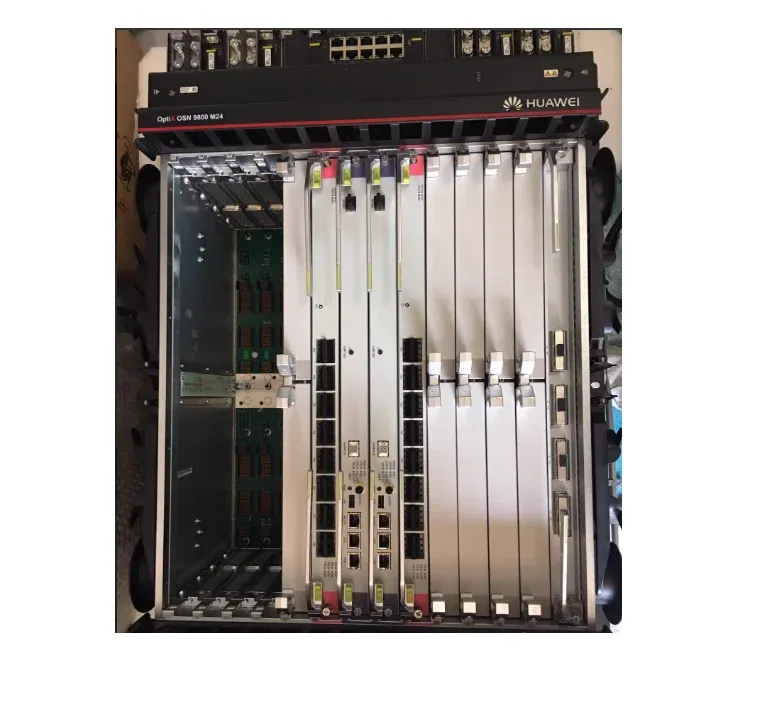

Applicable platform: Huawei OSN 9800 series subrack

Board type: 100G coherent line interface board

Typical power consumption:<75W

Working temperature: -5°C to+55°C

2.Line side transmission performance

Line speed: 100G

Modulation format: Supports DP-QPSK (standard).Some versions support 8QAM/16QAM (for short distance scenarios such as urban areas).

Line side optical interface: Supports CFP/CFP2 coherent optical modules.

Working band: C-band (compliant with ITU-T wavelength grid)

Wavelength tuning range: adjustable across the entire C-band.

Typical relay free transmission distance (based on DP-QPSK, G.652 fiber):

≥ 1000 km (long-distance trunk line)

By configuring different modulation formats and FEC, it can flexibly adapt to transmission needs from 80km to over 1500km.

Receiver sensitivity (typical, DP-QPSK): better than -18 dBm

3.Customer side and business characteristics

Customer side interface: Connected to an independent customer side business processing board (such as various branch boards) through the device backplane.

Support customer side protocols: 100GE, 40GE, 10GE, OTU4, OTU2, STM-64/16, etc.

Mapping and encapsulation: Supports GMP and other standard mapping methods to load customer business into ODU4/ODUflex containers.

Protection and Recovery: Supports network level protection mechanisms such as ODUk SNCP and optical line 1+1 protection.

4.Management and Operations

Performance monitoring: Real time monitoring of optical power, center wavelength OSNR,Key parameters such as bit error rate (Pre FEC&Post FEC).

Fault management: Provide detailed information such as laser status and module alarms for quick demarcation and positioning.

Network management support: Supports Huawei iManager U2000/NCE series network management systems.

4.Typical application scenarios

Urban optical network core/aggregation layer: As a backbone link between core nodes or aggregation rings within the city, it carries comprehensive business traffic.

Provincial/regional trunk network: used to connect adjacent cities within the province and build a regional high-speed transmission plane.

Existing network expansion and optimization: Insert into deployed 10G/40G DWDM systems to upgrade link capacity and protect existing investments.

100G dedicated network construction: Build dedicated high-capacity transmission channels for large enterprises, governments, power and other industry customers.

5.Summary of Core Values

Stable and reliable: A mature platform based on massive application verification, with low risk and guaranteed long-term stability.

Economically efficient: Providing highly competitive cost per bit, it is the cost-effective choice for building high-capacity transmission networks.

Flexible deployment: With flexible modulation and configuration capabilities, it can match diverse transmission distances and capacity requirements.

Smooth Evolution: As the basic speed board of the OSN9800 platform, it can be mixed with higher speed 200G/400G boards for networking, and the network evolution path is clear.

6.Ordering and Service

Basic board model: TNV1N402.

It needs to be used in conjunction with the designated model of CFP/CFP2 coherent optical module.

Please refer to the official documentation for specific supported modulation formats, compatible subracks, and minimum software versions.

Provide standard maintenance and technical support services.
