* Widely Frequency Band 1710-1880MHz/1920-2170MHz/2500-2690MHz
* Low VSWR& Low insertion Loss
* High Isolation between each inputs port

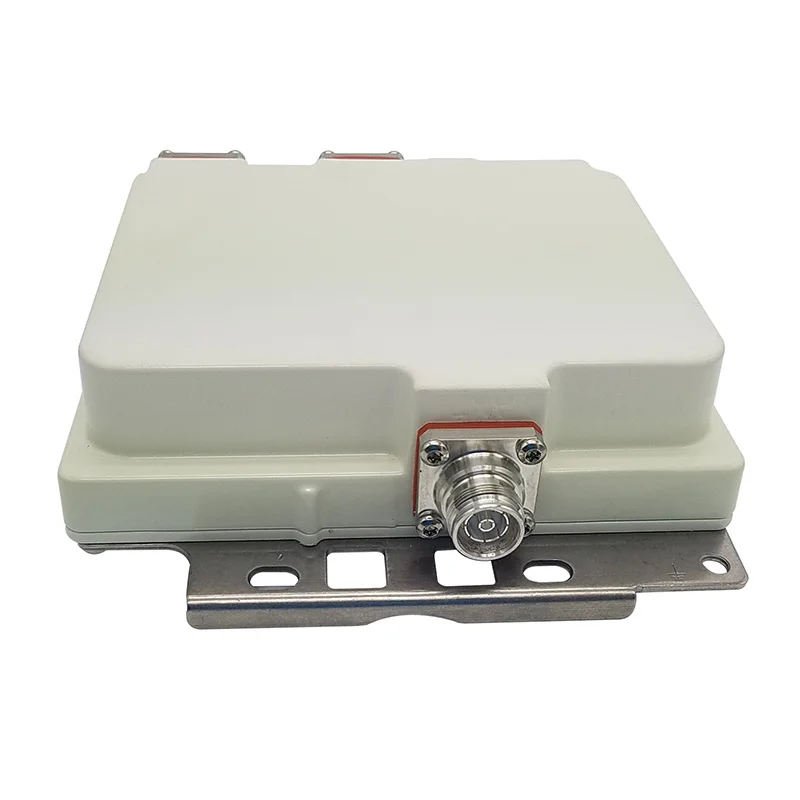

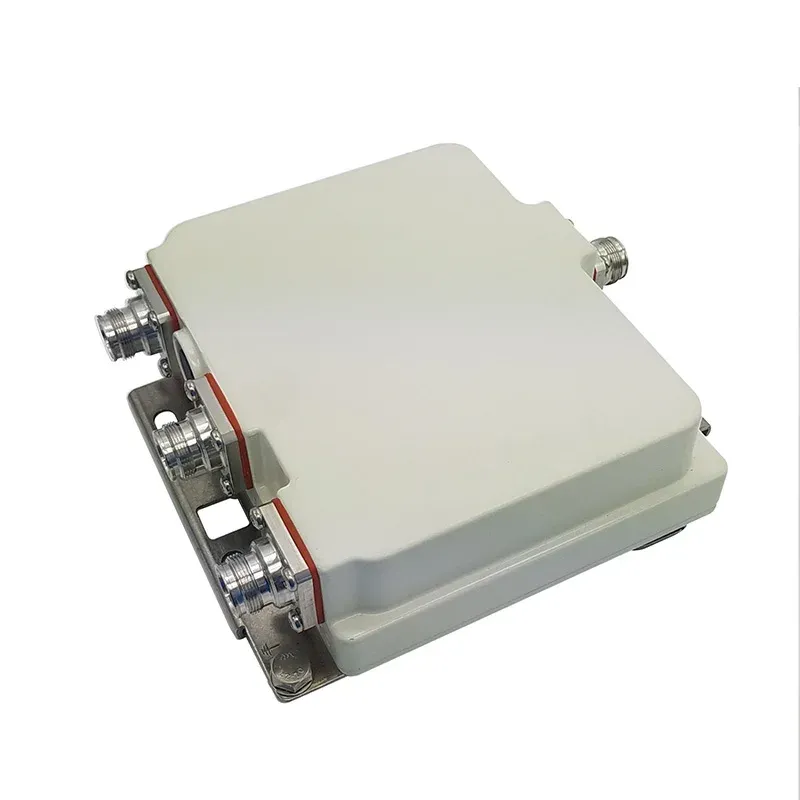

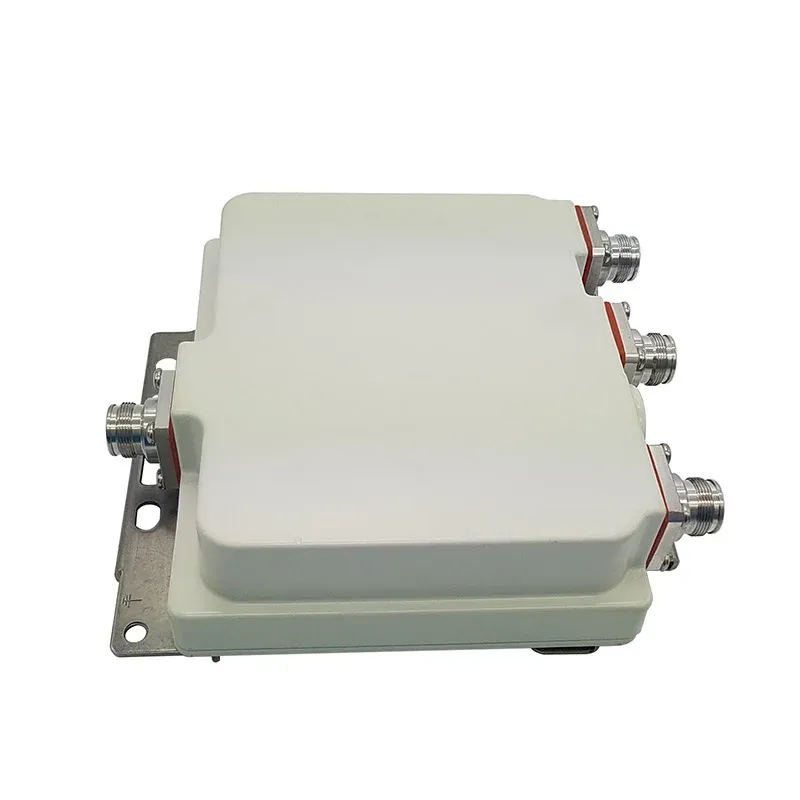

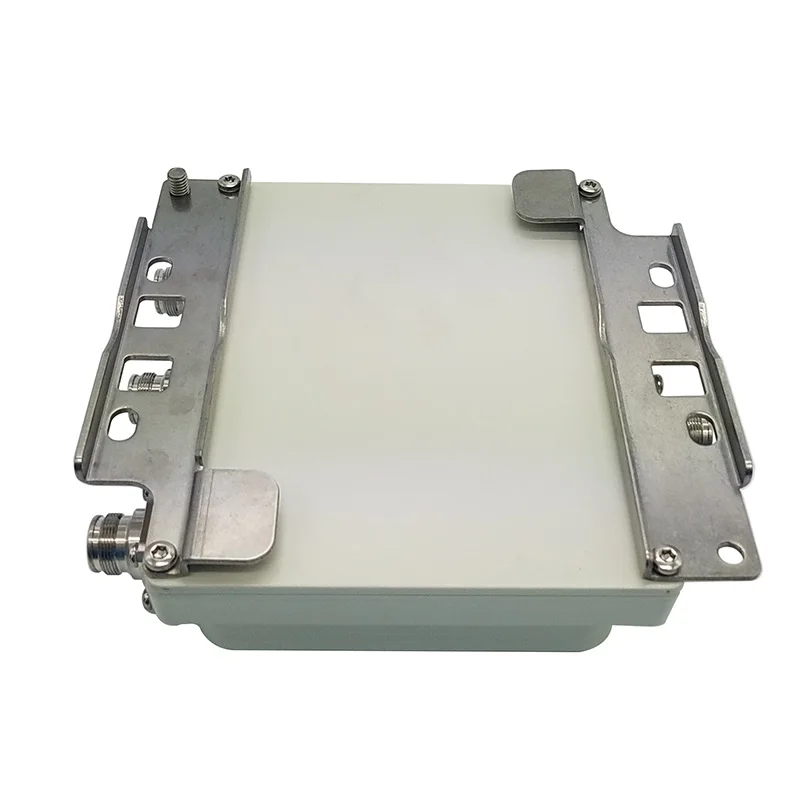

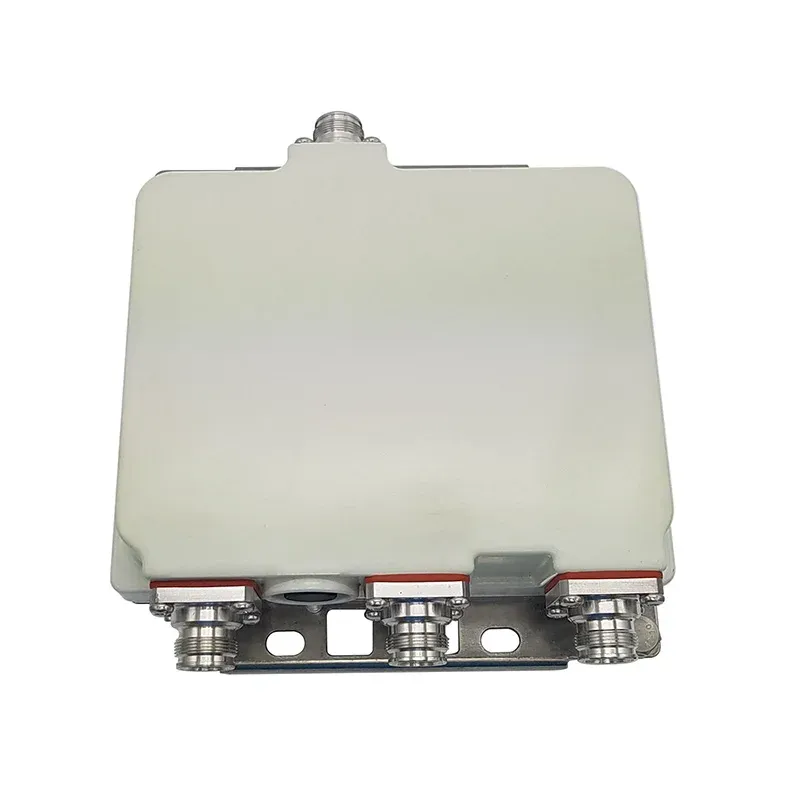

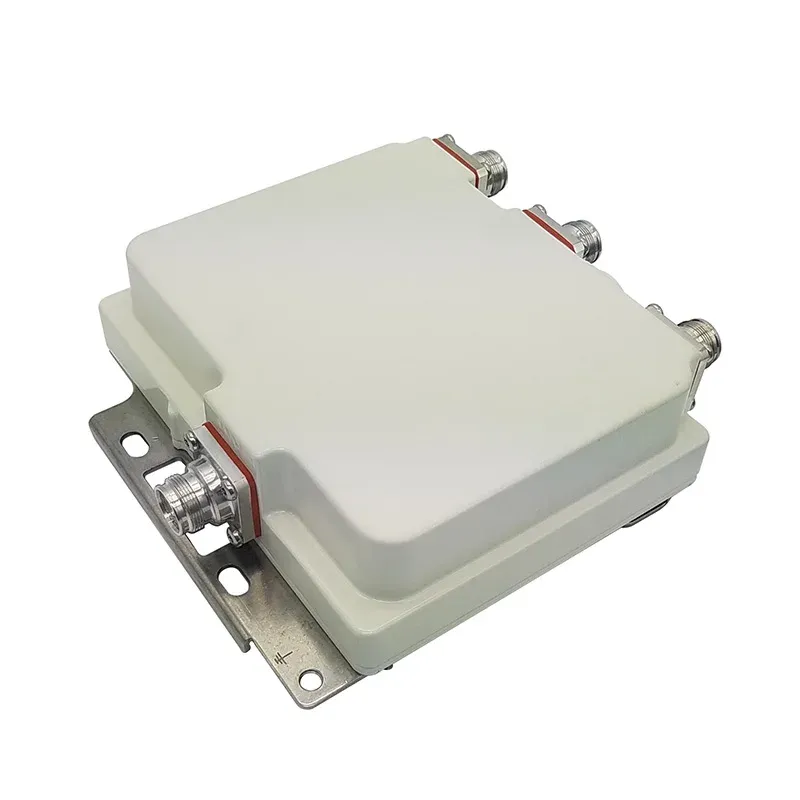

RF Passive Components LTE 200w RF Triplexer combiner 1710-1880/1920-2170/2500-2690MHz, single, 4.3-10F, -160 dBc, IP67
$85.05 USD
Quantityتعداد
Yantai Boxin International Trading Co., Ltd. is a professional comprehensive trading service provider for communication equipment.With warehouses established in Yantai and Hong Kong, we have built a complete and localized network for delivering communication products and services.In 2018, Yantai Boxin International Trading Co., Ltd. set up its international sales department in Yantai, China.Based in China, we operate in emerging markets across Southeast Asia, India, the Middle East, Africa, Europe, and the United States.
Yantai Boxin International Trading Co., Ltd. supplies products to various telecom operators, meeting their needs for supplementing and expanding 2G/3G/4G/5G network stations.Our current equipment portfolio covers brands such as Nokia, Ericsson, Alcatel, Huawei, ZTE, ZTT, and FiberHome.
We expand our international market share by offering high-quality products, excellent service, competitive pricing, and timely delivery.Feel free to contact us for more information.
Product Description
Electrical Specification | ||||||||
Product Name | Triplexers | |||||||
Port | Band 1 | Band 2 | Band 3 | |||||
Frequency Range | 2500-2690 MHz | 1710-1880MHz | 1920-2170MHz | |||||
Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | |||||
Ripple | ≤0.3dB | ≤0.3dB | ≤0.3dB | |||||
Power Handling | 200W | 200W | 200W | |||||
Isolation | ≥50dB@1710-1880MHz ≥50dB@1920-2170MHz | ≥50dB@1920-2170MHz ≥50dB@2500-2690MHz | ≥50dB@1710-1880MHz ≥50dB@2500-2690MHz | |||||
DC Pass | 3A | 3A | 3A | |||||
AISG Pass | yes | yes | yes | |||||
VSWR. | ≤1.25 | |||||||
PIM | ≤-160dBc@2x43dBm inputs | |||||||
Impedance | 50 ohms | |||||||
Lightning Protection | IEC 61000-4.5;3kA 10/350us,8kA 8/20 us | |||||||
Weight | 2.52 kg | |||||||
Dimensions | 218*191*60mm | |||||||
Connector | 4.3-10-Female | |||||||
Color | Grey or customized | |||||||
Opertating Humidity | 5-95% | |||||||
Operating Temp | -40~+65 | |||||||
Applications | Outdoor | |||||||
Mounting | Pole or Wall Mount | |||||||
Waterproof | IP65 | |||||||
Product performance description
Product performance description
* RF Connector:4.3-10-Female
* Low PIM as -160dBc@2x43dBm
* Available for all indoor and outdoor applications
* Applications:wireless base station,Indoor DAS,metro coverage etc.
* Guaranteed one year Standard
