Product Description

1.Product Overview

Attribute specification description

OptiX OSN 9800 series intelligent optical transmission platform (compatible with OSN 8800/6800)

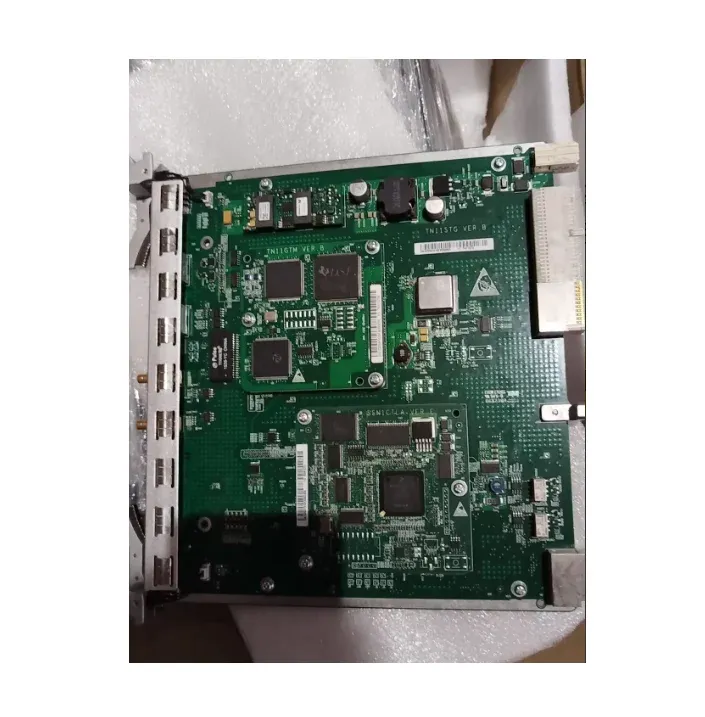

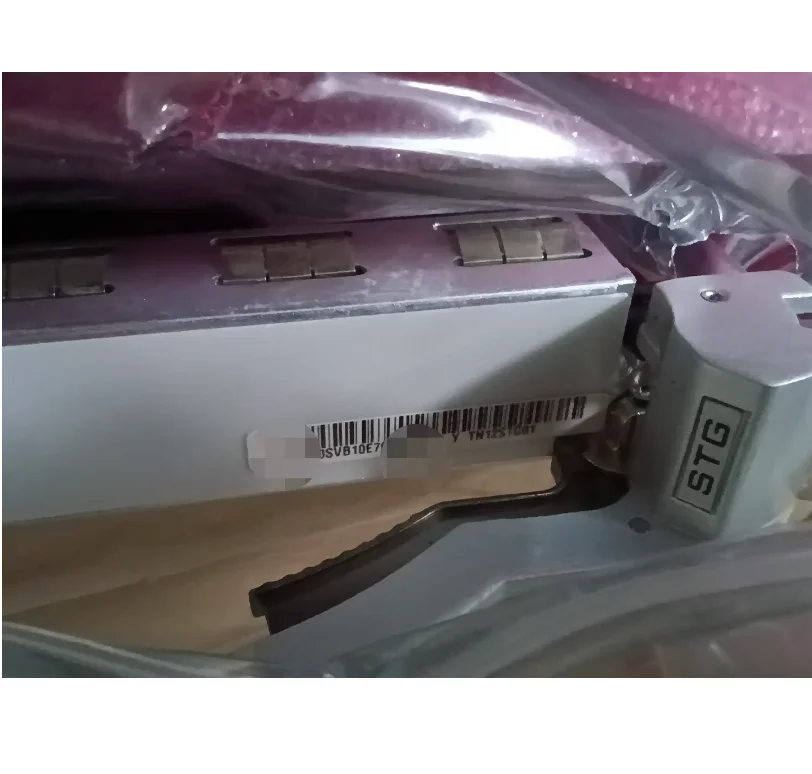

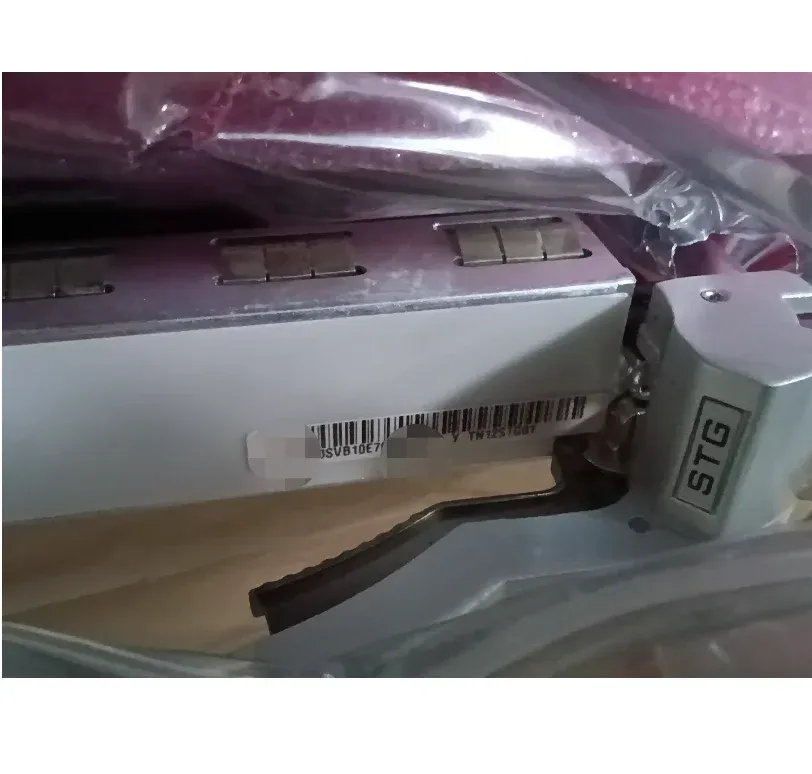

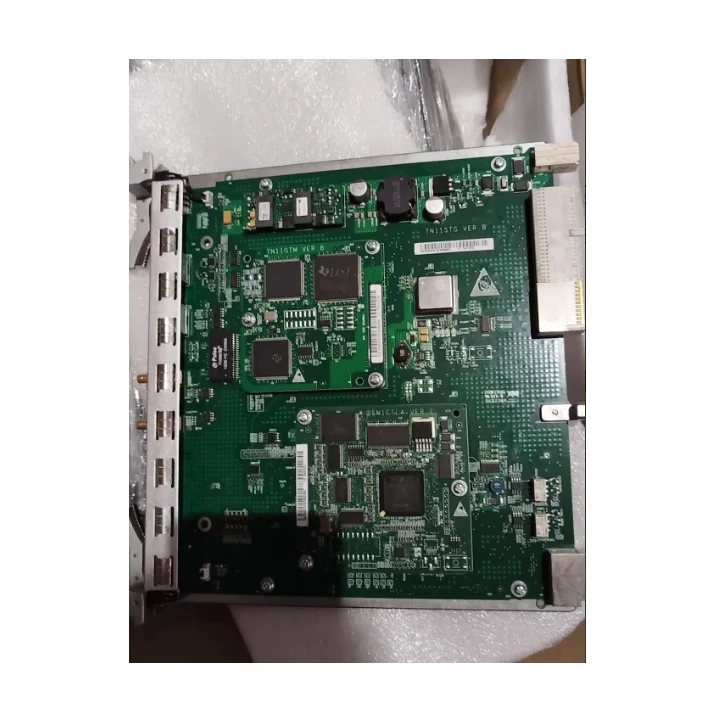

Board Name: System Timer Generator Board (Enhanced)

The functional positioning is to provide high-precision system clock sources for transmission devices, support the generation, distribution, and synchronization of clock signals, and have enhanced IEEE 1588v2 time synchronization processing capabilities.It is the core component for building 5G bearer synchronization networks

Board type: System clock and time synchronization processing board

Adaptation subrack OSN 8800 T64/T32/T16 subrack, OSN 8800 universal platform subrack, OSN 6800 subrack, OSN 9800 universal platform subrack

Occupy 1 slot

Front panel dimensions: height x width x depth: 264.6 mm x 25.4 mm x 220 mm

Weight 0.8 kg

Typical power consumption of 9.0 W

Maximum power consumption 11.0 W (normal operation at maximum ambient temperature)

Working temperature -5°C to+55°C

Initial software version V100R006C00

Key Features: System Clock Source, IEEE 1588v2 High Precision Time Synchronization, BITS Interface (2MHz/2Mbit), Clock Quality Level Monitoring, Automatic Clock Source Switching, 1+1 Hot Backup, SSM Processing, Enhanced Hold Mode

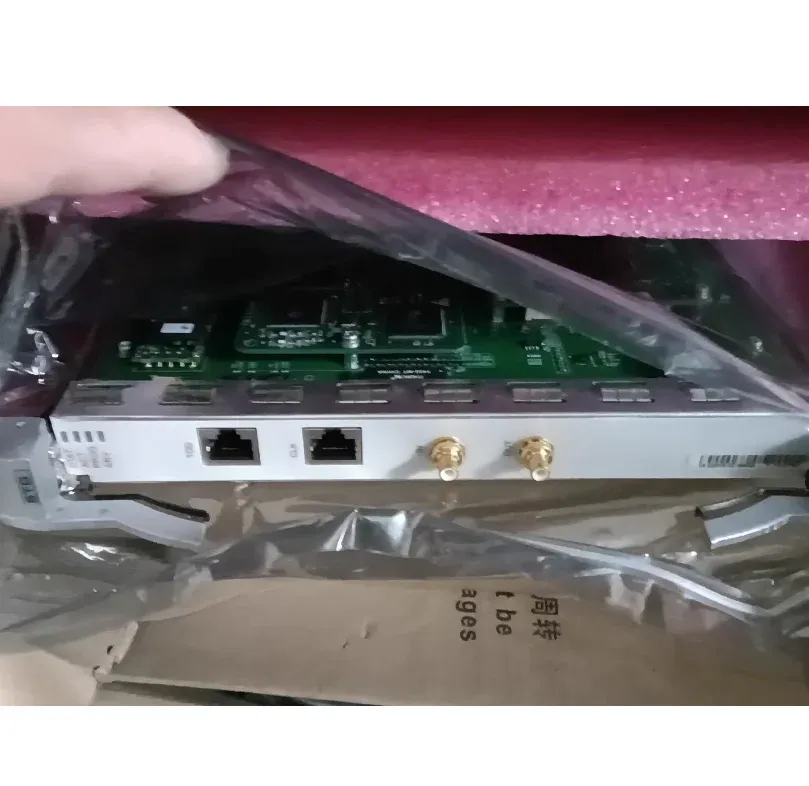

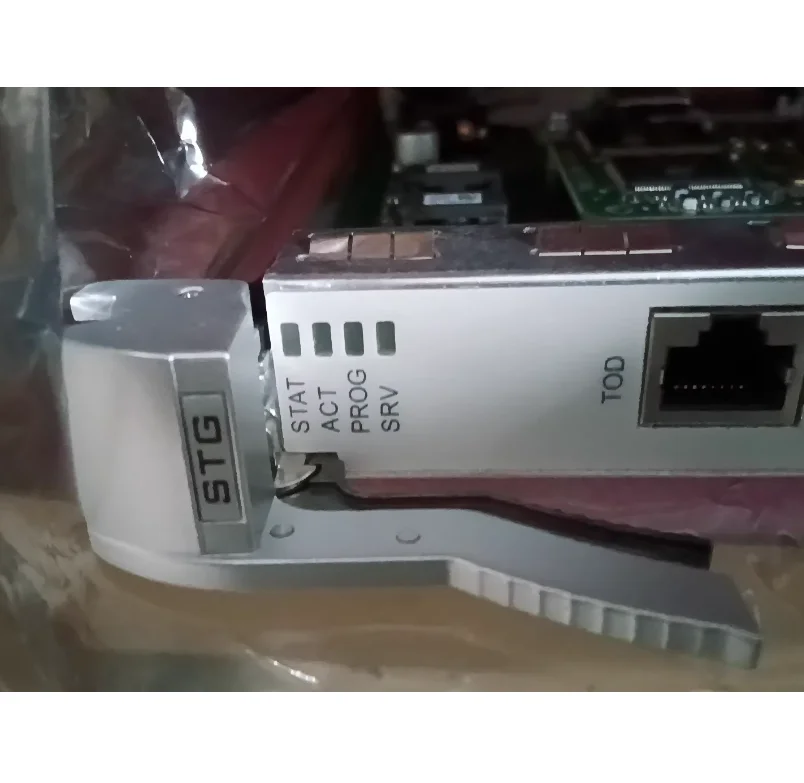

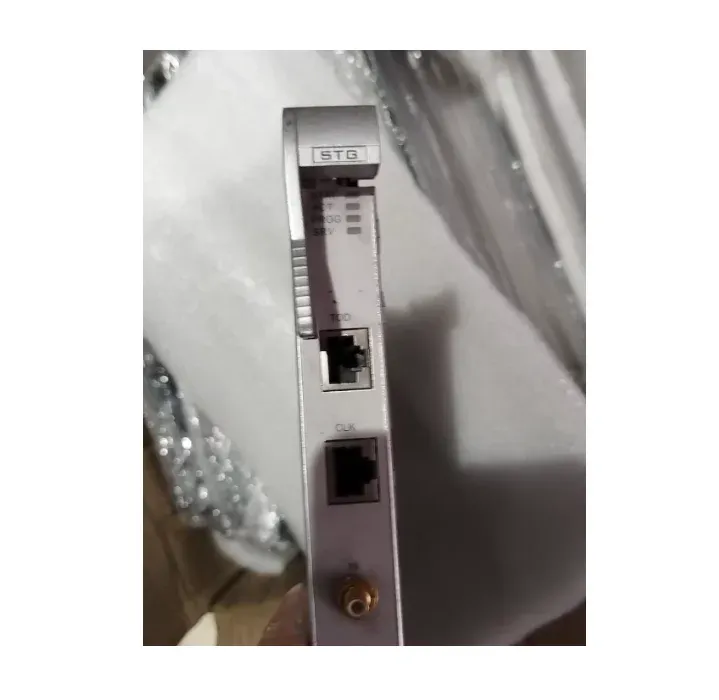

2.Interface specifications

Interface Identification Interface Type Quantity Function Description

BITS1 IN/BITS2 IN SMB 2 receives external clock signals (2MHz/2Mbit/2KHz) from BITS1 devices, in compliance with ITU-T G.703 standard

BITS1 OUT/BITS2 OUT SMB 2 outputs system clock to external BITS devices or other network elements

1PPS+TOD IN/OUT RJ45 1 in/1 out high-precision time synchronization interface, receiving/outputting 1PPS second pulse and TOD time information, supporting IEEE 1588v2

Clock interface for interconnecting CLK IN/CLK OUT SMB 2 with other clock boards, used for multi board synchronization

The 1588v2 interface RJ45/SFP 2 supports the processing and forwarding of the IEEE 1588v2 protocol, and can be configured as an electrical or optical port

Alarm output backplane - outputs clock related alarm signals to the main control board

System interface backplane connection - communicates with the main control board and business board, distributes system clock and time synchronization signals

3.Core functional characteristics

Functional Module Technical Description System Value

IEEE 1588v2 supports high-precision time synchronization protocols, providing nanosecond level time synchronization accuracy, and supporting boundary clock (BC) and transparent clock (TC) modes to provide critical support for time sensitive services such as 5G mobile backhaul, meeting 3GPP's stringent requirements for air interface synchronization

The system clock source is equipped with a high stability crystal oscillator, which can serve as the main clock source of the system, providing a reference clock for the entire sub frame to ensure that all business cards work on the same clock reference and guarantee business quality

The BIT interface supports receiving external clock signals (2MHz/2Mbit/2KHz) from BIT devices, seamlessly integrating with existing synchronization networks in accordance with ITU-T G. 703 standards, and can obtain synchronization from external high stability clock sources

Clock quality level monitoring: Real time monitoring of the quality level (QL) of the selected clock source, following the ITU-T G.781 standard to automatically select the optimal clock source in complex synchronous networks, avoiding timing loops

SSM processing supports the extraction, processing, and forwarding of synchronous status messages (SSM) to achieve automatic configuration and fault protection of synchronous networks

Automatic switching of clock source supports selecting system clock from multiple sources such as BITS1, BITS2, 1588v2, internal oscillator, etc., and automatically switches to ensure uninterrupted system clock, improving network survivability

Enhanced hold mode enters hold mode when all external clock sources are lost, using internal high stability crystals and intelligent algorithms to maintain clock accuracy and maintain business clock stability for a long time, which is superior to traditional hold mode

1+1 hot backup supports two STG boards to form a primary backup relationship.In the event of a primary board failure, the backup board can take over the business in milliseconds without interruption, improving system availability

4.Performance indicators

Table 1: Clock synchronization performance

Parameter specification remarks

The frequency synchronization accuracy is better than ± 0.05 ppm when locked to a BIT or 1588v2 source

Frequency synchronization maintenance mode is superior to ± 0.37 ppm (24 hours)/± 1.0 ppm (7 days) enhanced maintenance algorithm

Time synchronization accuracy ± 50 ns (typical value) end-to-end IEEE 1588v2 time synchronization

BIT interface 2MHz/2Mbit/2KHz complies with ITU-T G.703 standard

1PPS interface TTL level, pulse width 100ms

TOD interface RS-232, NMEA format

SSM processing complies with ITU-T G.704

Output jitter<0.05 UI complies with ITU-T G.813 standard

MTBF    > 550, 000 hour high reliability design

Table 2: Clock Source Priority Configuration

Clock source type priority (configurable) application scenarios

BITS1 obtains a highly stable clock from an external BITS device

BITS2 obtains a high stable clock from an external BITS device (backup)

Obtain time and frequency from the 1588v2 master clock in 1588v2 Master

Internal oscillator low free operation or hold mode

5.Comparison with TN12STG

Characteristics TN12STG TN13STG

IEEE 1588v2 supports or does not support (nanosecond precision, BC/TC mode)

BIT interface 2MHz/2Mbit 2MHz/2Mbit/2KHz

1PPS+TOD interface not available (1 input/1 output)

1588v2 interface without 2 (RJ45/SFP configurable)

Maintain mode performance for 24 hours ± 0.37ppm, 24 hours ± 0.37ppm, 7 days ± 1.0ppm

Time synchronization accuracy without ± 50ns

Typical power consumption 8.0 W 9.0 W

Initial software version V100R005C00 V100R006C00

Application positioning frequency synchronization frequency+time synchronization, 5G ready

6.Monitoring and management functions

Monitoring Category Monitoring Parameter Management Function

Real time monitoring of the existence, quality level, and locking status of each clock source in synchronization with the network status

System clock status, current source of system clock, working mode (track/hold/free run), monitoring system clock health

1588v2 status, master clock status, path delay, synchronization accuracy monitoring, time synchronization quality

Alarm management clock source loss, clock quality degradation, 1588v2 protocol abnormality, hold mode activation for fast fault location

Performance event clock source switching record, time synchronization accuracy change record assist network optimization and fault diagnosis

7.Power consumption and mechanical parameters

Parameter specifications

Typical power consumption of 9.0 W

Maximum power consumption 11.0 W (normal operation at maximum ambient temperature)

Front panel dimensions 264.6 mm (height) x 25.4 mm (width) x 220 mm (depth)

Weight 0.8 kg

Working temperature -5°C to+55°C

Storage temperature -40°C to+70°C

Relative humidity 5% to 95% RH, no condensation

8.Compatible with subrack and slot requirements

Sub rack type effective slot position

OSN 8800 T64 subracks IU1-IU8, IU11-IU42, IU45-IU68

OSN 8800 T32 subracks IU1-IU8, IU12-IU27, IU29-IU36

OSN 8800 T16 subrack IU1-IU8, IU11-IU18

OSN 8800 Universal Platform Sub Frame IU3-IU16

OSN 6800 subracks IU1-IU8, IU11-IU16

OSN 9800 Universal Platform Subracks IU1-IU15

9.Application scenarios

Core Value of Application Scenario Deployment Method

The 5G mobile carrier network is deployed at the aggregation layer and core layer nodes, serving as a 1588v2 boundary clock or transparent clock to provide nanosecond level time synchronization for 5G base stations, meeting the strict requirements of 3GPP for air interface synchronization

Traditional SDH/OTN network synchronization nodes are deployed at sites that require BIT clock synchronization, providing devices with highly stable system clocks compatible with existing network synchronization architectures and ensuring traditional business clock requirements

The core clock source node is connected to a BIT device or GPS/Beidou receiver, serving as the clock source for the entire synchronization network and providing high-precision and highly reliable time and frequency references for the entire network

Multi level clock synchronization network is deployed at all levels of nodes to achieve the step-by-step transmission of clock and time signals, building a reliable clock synchronization network and ensuring business quality

Smart grid/financial dedicated lines are deployed in dedicated line networks that require high-precision time synchronization to meet the strict requirements of time synchronization for wide area measurement and high-frequency transactions in the power grid

10.Maintenance and ordering information

Project Information

Component code TN13STG

Ordering instructions: When placing an order, it is necessary to confirm whether a matching clock cable (such as SMB to BNC) and 1588v2 optical module (if using an optical port) are required

On site operation supports hot plugging, but the synchronization status of the two boards must be ensured during the main and backup switching

After testing and verifying the installation, clock synchronization function testing, 1588v2 time synchronization testing, BITS interface connectivity testing, and primary/backup switching testing are required

Spare parts management suggests configuring spare parts at critical nodes in the network to quickly restore faults

Software dependency requires support from the host software version (V100R006C00 and above)

Core Summary:

TN13STG is an enhanced system timing generator board in the OSN 9800/8800/6800 platform.As an upgraded version of TN12STG, it adds IEEE 1588v2 high-precision time synchronization support (nanosecond precision, BC/TC mode) while maintaining the traditional BIT clock synchronization capability, and is equipped with 1PPS+TOD interface and dedicated 1588v2 interface.This enables it to simultaneously meet the frequency synchronization requirements of traditional SDH/OTN networks and the time synchronization requirements of new services such as 5G bearer, making it a core component in building a unified synchronization network for the future.

Core values and positioning:

Time synchronization ready: Added IEEE 1588v2 support, providing nanosecond level time synchronization for 5G carriers.

Dual mode synchronization capability: Supports both traditional BIT frequency synchronization and 1588v2 time synchronization for smooth evolution.

Enhanced retention performance: The 7-day retention mode has better accuracy than traditional solutions, improving network survivability.

Collaboration with TN12STG: TN12STG is used for pure frequency synchronization scenarios, while TN13STG is used for new networks or upgraded nodes that require time synchronization.

Application suggestion:

This board is the preferred component for synchronous networks in the 5G era on the OSN 9800/8800/6800 platform, especially suitable for scenarios that require simultaneous support for frequency synchronization and time synchronization, such as 5G carrier network aggregation/core layer, smart grid, financial dedicated line, etc. For new networks, it is recommended to directly use TN13STG to obtain complete time and frequency synchronization capabilities; For existing TN12STG networks, they can be gradually upgraded to TN13STG at nodes that require time synchronization.
